I was looking for the open barrel female socket and that I could've find close to the original size for regular size auto relay. If you have source info, please let me know! By the way, thanks for the photos of Corolla relay box. I notice it uses unique size of relays. Is it easy to find replacement relay? Sent from my iPhone using Tapatalk

Ok, revised :-)

Oh, I see. nicely done!

Thanks Captain for your kindness of your offer. I really appreciate it! Currently, I will stick with my box. I'm pretty sure other audience might want it from you :-) I just order Open Barrel Terminal Female socket on ebay. http://www.ebay.com/itm/140962830904?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT

Hi Chas, I was looking at Captains 4 relays schematics. http://www.classiczcars.com/topic/51554-a-different-headlight-relay-upgrade-4-relays/?p=470544 However, your requirement is to have 4 fuses too. So, I modify my schematics for you with just for fun:-) I also replace with H4 headlight, but I'm not so much worry about safety issue since I'm not planning to drive at night...!

Captain, You scored good one! I saw a lots of Camry at junkyard, but not much Corolla. That's nice one!

I forgot what year, but it's from Camry Sent from my iPhone using Tapatalk

Found good size relay box from Junkyard Toyota car. From my schematic, I can just modify wiring within Engine bay. It fits 3 relays and 1 30A fuse. I can use 2 relays and 1 fuse for headlights and another relay for something else :-) Maybe radiator fan?

Nice write up. Where did you mount relay?

Simplified version schematic. one 30A fuse version. two 10A fuse version.

I was comparing your schematic and Jim's schematic which one is easier to deploy... http://www.classiczcars.com/topic/50416-75-280z-headlight-relay-upgrade/?p=458629 I was wondering where is your dimmer switch?

Hi Chas, Looks good fitting. Cutting turn signal supports is one of the difficult thing I have experienced....

Hi Chas, You made great progress! Can't wait to see fitting the grille on the car. Regards, tamo3

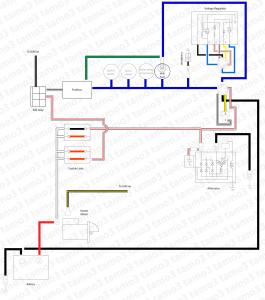

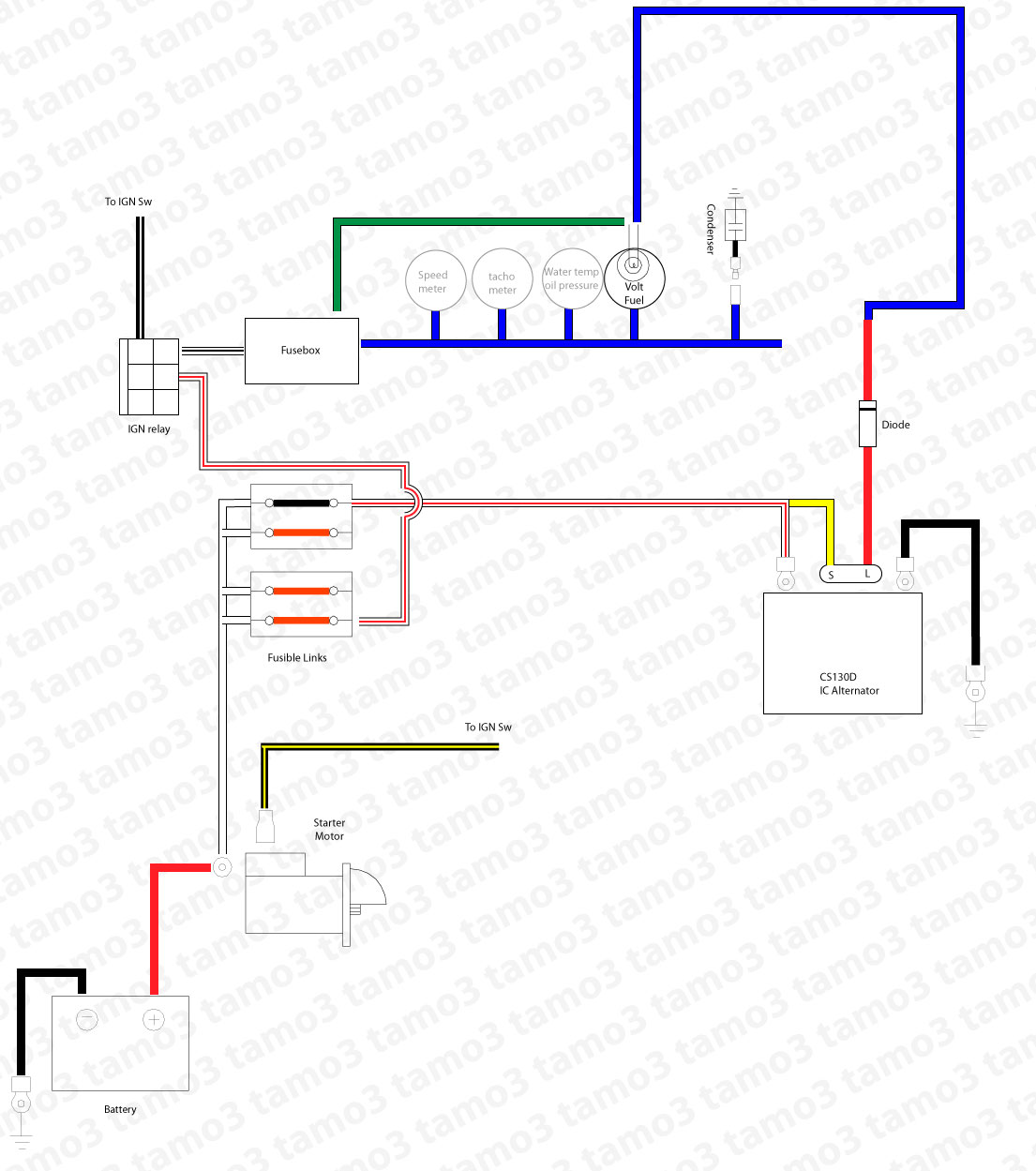

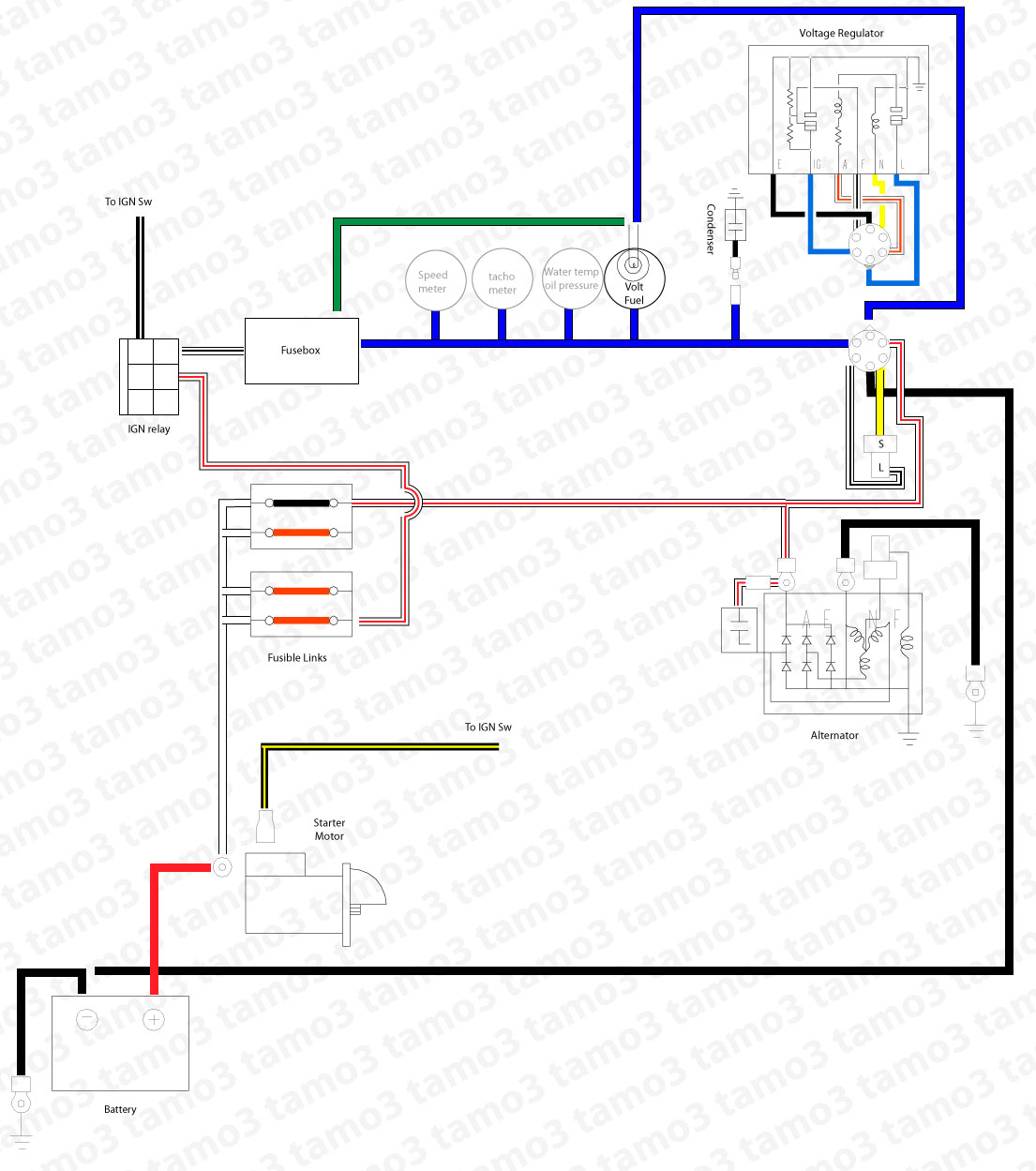

Working on de-coding External regulator with alternator diagram on '77 280z. Original External Regulator Remove external regulator and replace GM CS130D IC internal Alternator What do you think?

Thanks Captain for checking! I totally agree. They might try to make user not easy to trace diagram and hidden force to user to sent Z car to Datsun dealer...

Thanks Captain. Now, I'm working on the IGN relay. I saw photo of new IGN relay. part number (PN: 25230-89958) and cost $60 or more.... http://forums.hybridz.org/topic/72897-280z-ignition-relay/?p=696663 But don't see schematic for easy wiring. So, I draw one. Do you think this is correct wiring? Thanks, tamo3

Thanks Captain for your feedback. I was actually looking at 76 diagram at the beginning where ignition relay is white. Update to white/red. In order to simplify I omitted the ballast resistor in the previous diagram.

It's been long time. busy at working now a days. Travel to Shanghai, China and skip visiting Japan The last time I went to Shanghai was more than 10 years. It become beautiful clean city now! And happy people dancing at busy street every night. Anyway, thank you Chas, Captain for your feedback. I updated schematic. 77_IGN_schematic.pdf How does this look? Regards, Takashi

It's not a ECU, it's a fusebox. I will get rid of ECU once I mount carb :-)

Slowly, tracing wiring diagram and draw simplified schematic around fusible link and ignition relay & fusebox for '77 280z and '75 280z. Now I understand how to install IGN relay and additional fusible link. I guess. If you find any mistake, let me know! Thanks, tamo3

AutoCAD is appropriate to use like this work, but I don't have it. I used Adobe Illustrator to trace line...

Nice work! I'm also doing '75 280z color wiring diagram too. working in progress... 75_280z_wiring_color.pdf
