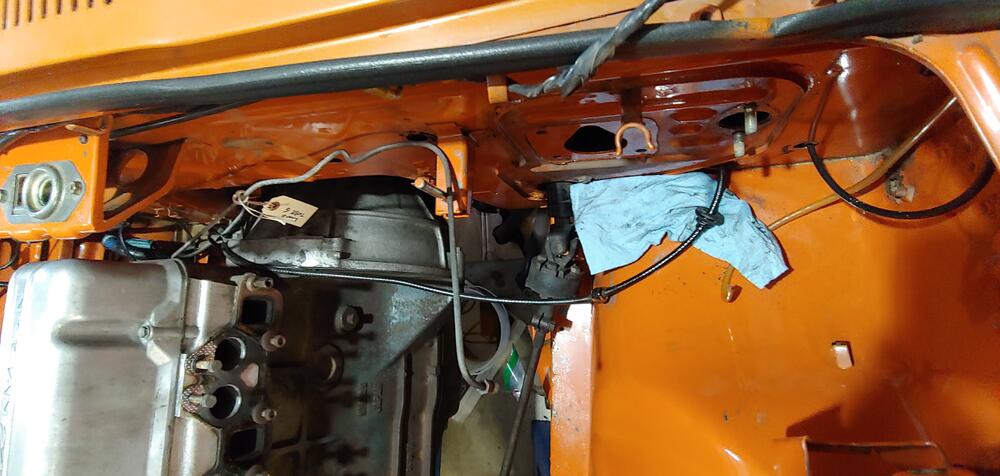

emccallum Posted March 2, 2023 Share #1  Posted March 2, 2023 I am putting my steering column back in. Wondering which way the coupler bolts go. My pictures prior to taking the car apart show the nuts towards the steering rack. When I look at the parts diagram it shows the nuts towards the firewall (#30,31,32). Just trying to figure out where my nuts go 🙂  2 Link to comment Share on other sites More sharing options...
CanTechZ Posted March 2, 2023 Share #2  Posted March 2, 2023 (edited) My 7/70 car is like this, what year is your car? just saw you put year in the topic title. 🙂 Edited March 2, 2023 by CanTechZ Link to comment Share on other sites More sharing options...
CanTechZ Posted March 2, 2023 Share #3 Â Posted March 2, 2023 (edited) Here is a screen grab from a video I took prior to disassembly for my current resto. Also the FSM is your friend, here's an image from my 1970 FSM, steering section. The 72 FSM shows the same orientation. Â Edited March 2, 2023 by CanTechZ 1 Link to comment Share on other sites More sharing options...
inline6 Posted March 2, 2023 Share #4 Â Posted March 2, 2023 Both of my Z's had the bolts oriented with nuts on the lower side (12/70 and 6/71 production dates) Link to comment Share on other sites More sharing options...
CanTechZ Posted March 2, 2023 Share #5 Â Posted March 2, 2023 FYI on these bolts, two of them are quite fussy to remove/install and would be impossible to do in the OE orientation if you don't use the correct JIS head bolts. If DIN bolts with larger hex heads were substituted they would need to be reversed. Not that anyone should be making substitutions when it comes to steering bolts. Just my two cents worth. 2 Link to comment Share on other sites More sharing options...
emccallum Posted March 3, 2023 Author Share #6  Posted March 3, 2023 Thanks for the replies. I have found a couple of instances when the parts manuals didn't match what I thought was correct. I guess the FSM is the better document. I only use JIS hardware, and let me tell you, I have had to replace a lot of hardware that wasn't correct! I took a ton of spare hardware and had it replated along with other stuff. Between that and Belmetric it has been invaluable. 4 Link to comment Share on other sites More sharing options...
