Bolt-in LED headlights?

Recommended Posts

Question for you guys.

Are there any LED headlights that simply bolt into the standard housing without having to modify/lengthen what the car comes with?



-chase

Share this post


Link to post
Share on other sites

What do you mean by modify/lengthen?

There are lots of 7 inch LED headlights on the market. Thank the Jeep enthusiasts. The stock retaining rings will have an issue with the cooling fins on some of those headlights. I found that replacement retaining rings can work around that issue.

The biggest problem is that the S30 switches the ground to go between high and low beam. Most LED headlights assume the positive side is what switches. Since the D in LED stands for diode, that means that the headlight probably won't work right unless you configure the headlight circuit to use relays that switch the positive on the headlights.

If this seems confusing, go with H4 headlights.

Share this post


Link to post
Share on other sites
5 minutes ago, SteveJ said:

What do you mean by modify/lengthen?

There are lots of 7 inch LED headlights on the market. Thank the Jeep enthusiasts. The stock retaining rings will have an issue with the cooling fins on some of those headlights. I found that replacement retaining rings can work around that issue.

The biggest problem is that the S30 switches the ground to go between high and low beam. Most LED headlights assume the positive side is what switches. Since the D in LED stands for diode, that means that the headlight probably won't work right unless you configure the headlight circuit to use relays that switch the positive on the headlights.

If this seems confusing, go with H4 headlights.

I tried to put some H4s in there a while back and since they weren't sealed beam and were a bit longer in the back (where the bulb plugged in) I couldn't screw the splash-guard (not sure if that is the correct term for the dome in the back of the bulb that keeps the water from the wheel well out) back into the fender.

I've seen posts on here of people who had to lengthen that so that LED bulbs would fit.  Are there bulbs now that fit without having to do that modification?

Share this post


Link to post
Share on other sites

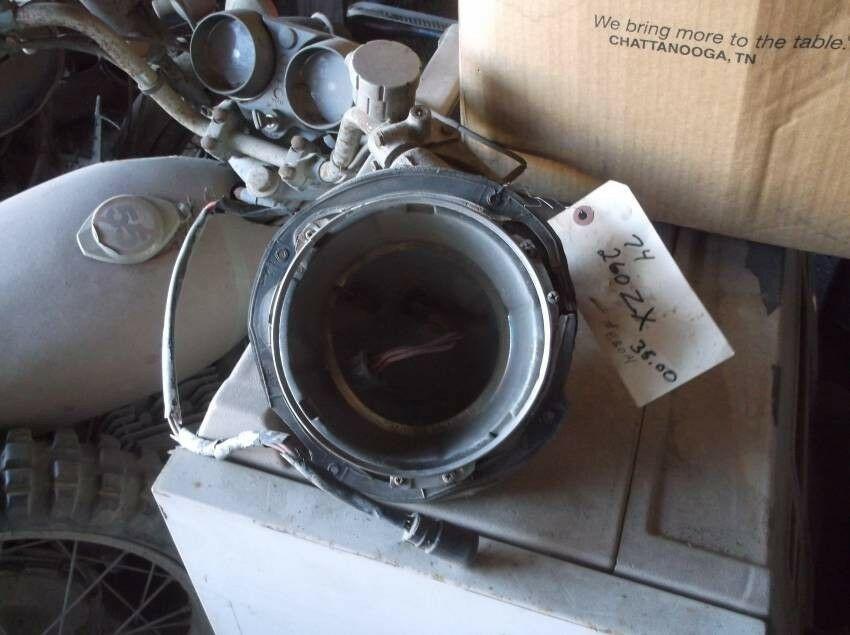

Having installed the Black Dragon H4 kit and various LED headlights into a 260Z, I'm not sure what the issue may be. They all fit inside the headlight assembly body like the one pictured. The part number, 26075-E4100, is for the 280Z, and I don't know if it differs in dimension from the 260Z assembly body. I wouldn't think there would be that much of a difference.

https://www.carpartsmanual.com/datsun/Z-1969-1978/electrical/head-lamp

Headlight bucket.jpg

Share this post


Link to post
Share on other sites
4 hours ago, SteveJ said:

Having installed the Black Dragon H4 kit and various LED headlights into a 260Z, I'm not sure what the issue may be. They all fit inside the headlight assembly body like the one pictured. The part number, 26075-E4100, is for the 280Z, and I don't know if it differs in dimension from the 260Z assembly body. I wouldn't think there would be that much of a difference.

https://www.carpartsmanual.com/datsun/Z-1969-1978/electrical/head-lamp

Headlight bucket.jpg

Gotcha, maybe it was just the one I got.  I'll give a different brand a shot, thanks!

Share this post


Link to post
Share on other sites

Like I said before the headlight retaining ring (called a headlight bracket in this ebay listing and is 26016-04100 in the carpartsmanual link) makes a difference. The one in the ebay link I provided allows for the cooling fins on the LED headlight.

Share this post


Link to post
Share on other sites
3 hours ago, SteveJ said:

Like I said before the headlight retaining ring (called a headlight bracket in this ebay listing and is 26016-04100 in the carpartsmanual link) makes a difference. The one in the ebay link I provided allows for the cooling fins on the LED headlight.

Sorry, I didn't see that.  I'll pick some up now, thanks!

Share this post


Link to post
Share on other sites

I went with these in the stock buckets, even was able to fit the anti-flicker block in the stock buckets too.

https://www.eaglelights.com/collections/jeep-led-kits/products/eagle-lights-7-round-led-headlights-jeep-wrangler-cj-jk-tj-97-2015

Had to use the anti-flicker block with the stock headlight wiring. I've just swapped to the MSA headlight relay upgrade and will see if I can remove the anti-flicker blocks.

https://www.thezstore.com/page/TZS/PROD/classic10l/12-4651

I think the headlight relay kit changes the wiring so that the center post is ground rather than the 2 outer posts which is stock. I 1st tried without the blocks and the lights wouldn't come on at all. I think the blocks changed the polarity so I had light. When I get around to trying again without the blocks I'll let you know if my thinking is correct.

Here's my initial thoughts when I first installed the lights.



Share this post


Link to post
Share on other sites
11 minutes ago, w3wilkes said:

I went with these in the stock buckets, even was able to fit the anti-flicker block in the stock buckets too.

https://www.eaglelights.com/collections/jeep-led-kits/products/eagle-lights-7-round-led-headlights-jeep-wrangler-cj-jk-tj-97-2015

Had to use the anti-flicker block with the stock headlight wiring. I've just swapped to the MSA headlight relay upgrade and will see if I can remove the anti-flicker blocks.

https://www.thezstore.com/page/TZS/PROD/classic10l/12-4651

I think the headlight relay kit changes the wiring so that the center post is ground rather than the 2 outer posts which is stock. I 1st tried without the blocks and the lights wouldn't come on at all. I think the blocks changed the polarity so I had light. When I get around to trying again without the blocks I'll let you know if my thinking is correct.

Here's my initial thoughts when I first installed the lights.



Sounds good, thanks

Share this post


Link to post
Share on other sites

Be aware that the MSA headlight relay kit will not work for the 280Z without modifications. Contact @Zs-ondabrain. Dave designed the kit and has modified the kit for 260Z & 280Z owners. The reason for the relays is in my first response in this thread.

So far I haven't needed the anti flicker kits for any of the LED headlights I have tried, but I already had relays in the circuit.

Share this post


Link to post
Share on other sites
Just now, SteveJ said:

Be aware that the MSA headlight relay kit will not work for the 280Z without modifications. Contact @Zs-ondabrain. Dave designed the kit and has modified the kit for 260Z & 280Z owners. The reason for the relays is in my first response in this thread.

So far I haven't needed the anti flicker kits for any of the LED headlights I have tried, but I already had relays in the circuit.

gotcha

from what ive gathered so far, this seems to be more than just pop in some led bulbs.  are there any other bulbs you would recommend I use to get more light instead of leds that are a bit more noobie friendly?

Share this post


Link to post
Share on other sites

H4 lights are your alternative. The problem is that if you have dirty connectors or a dirty switch, light output will be diminished due to the voltage drop. That's why a lot of us have installed relays into our cars.

Share this post


Link to post
Share on other sites
1 minute ago, SteveJ said:

H4 lights are your alternative. The problem is that if you have dirty connectors or a dirty switch, light output will be diminished due to the voltage drop. That's why a lot of us have installed relays into our cars.

I thought it was only the early 240s that didn't have that headlight relay; 280s are also missing it?

Unrelated - what if I were to get an h4 housing but use h4 connector led bulbs like this - https://www.amazon.com/ICBEAMER-Canbus-Headlight-Replace-Halogen/dp/B07HCTQJMV/ref=sr_1_7?keywords=led+bulb+h4&qid=1551296553&s=automotive&sr=1-7 ?

Share this post


Link to post
Share on other sites

The 240Z headlight upgrade harness was designed for and only for the 240Z. No simple modifications will allow it to be plug and play on the 260Z or 280Z.

I used to make a Hard-wire version of the headlight upgrade harness as well as a plug and play 260Z/280Z harness but only when the customer could find and send me the connectors from a donor 260Z/280Z harness.

They are super hard to find and making the Hard-wire version HLH is just not in the cards at the moment.

A 240Z HLH can be modified for a hard-wire install if you wanna cut the connectors off. Or additional connectors and terminals can be added to the 260Z and up to 76' 280Z to make the harness plug and play.

Share this post


Link to post
Share on other sites
2 hours ago, chaseincats said:

I thought it was only the early 240s that didn't have that headlight relay; 280s are also missing it?



None of the S30's came with headlight relays. I don't think they planned on the car lasting as long as they have, honestly.

  • Like 2

Share this post


Link to post
Share on other sites

A newer option is this link from Hagerty as to another LED.    .  https://vintagecarleds.com

I haven't  investigated very deep yet but I know they make a 7",  although they don't list Datsun or Nissan in their search.  They say they have a 99% fitment and I think phone call will answer more detail.

Edited by gwri8

Share this post


Link to post
Share on other sites
56 minutes ago, gwri8 said:

A newer option is this link from Hagerty as to another LED.    .  https://vintagecarleds.com

I haven't  investigated very deep yet but I know they make a 7",  although they don't list Datsun or Nissan in their search.  They say they have a 99% fitment and I think phone call will answer more detail.

Cooled by a 4,000 rpm brushless fan or an external heatsink according to the write up.  Must get quite hot.

Dennis





Share this post


Link to post
Share on other sites
8 hours ago, psdenno said:

Cooled by a 4,000 rpm brushless fan or an external heatsink according to the write up.  Must get quite hot.

Dennis

All of the LED headlights I have played with have good sized heat sinks. The LED bulbs I installed in my daily driver have fans. All lights generate heat by nature. With the semiconductors, it's important to prevent the heat from building up too much.

Share this post


Link to post
Share on other sites

I should add that it's the heat sink that interferes with the stock headlight bracket. The aftermarket headlight brackets I found on ebay do not have the clearance issues.

Share this post


Link to post
Share on other sites
