Basic S30 wiring diagram question

Recommended Posts

What are the letters on the wiring diagram. As in pic. On top of wiper motor. Or where can I find out ? Thank you.


Share this post


Link to post
Share on other sites

I don't know.what year model you have, but it's mentioned in the 72 manual in the body electrical section. The other manuals should have it too.

The letters come from the original diagram from the body electrical section of the manual. The section about the wiper motor has the letters, misses the (E) for earth which is the black wire

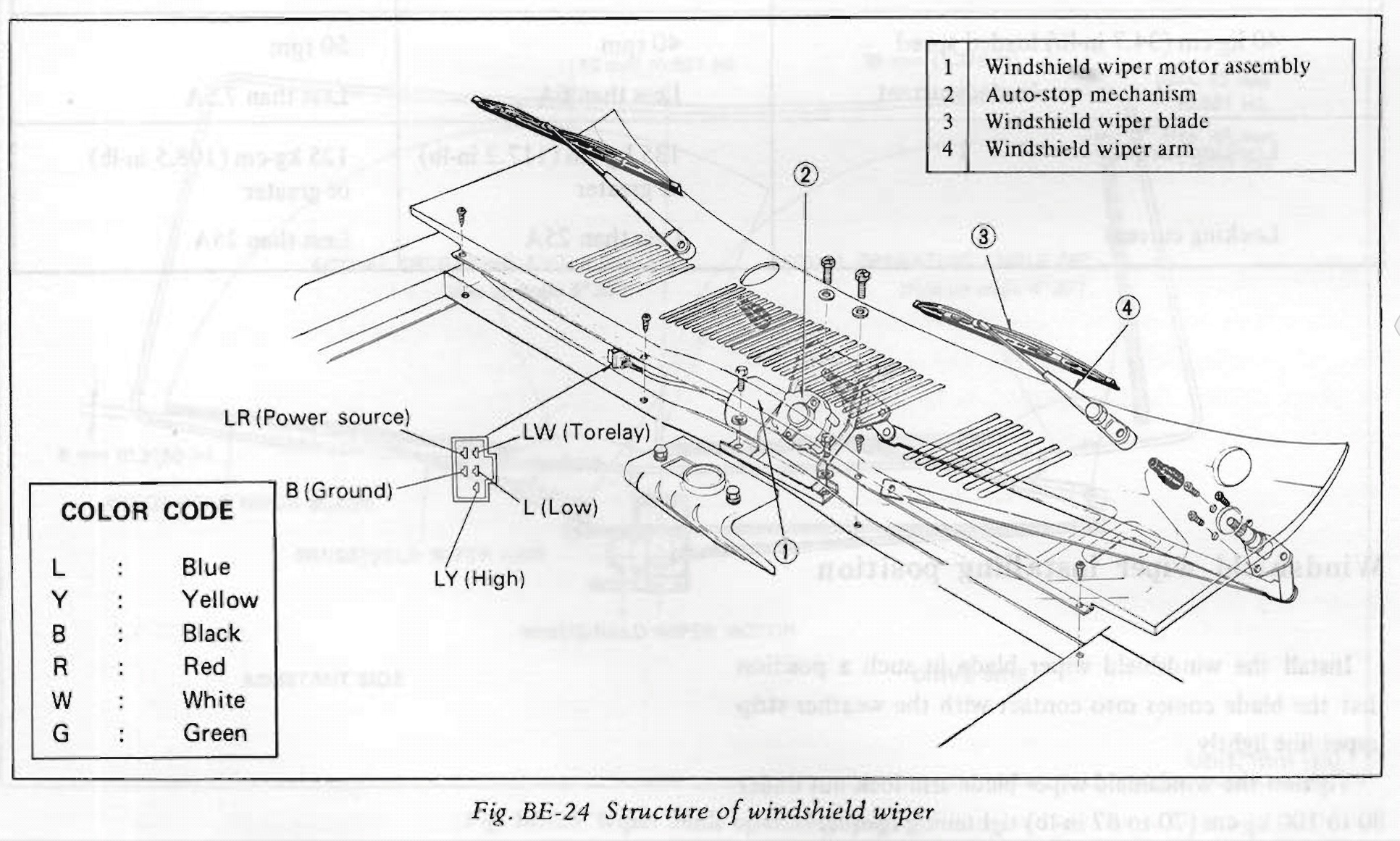

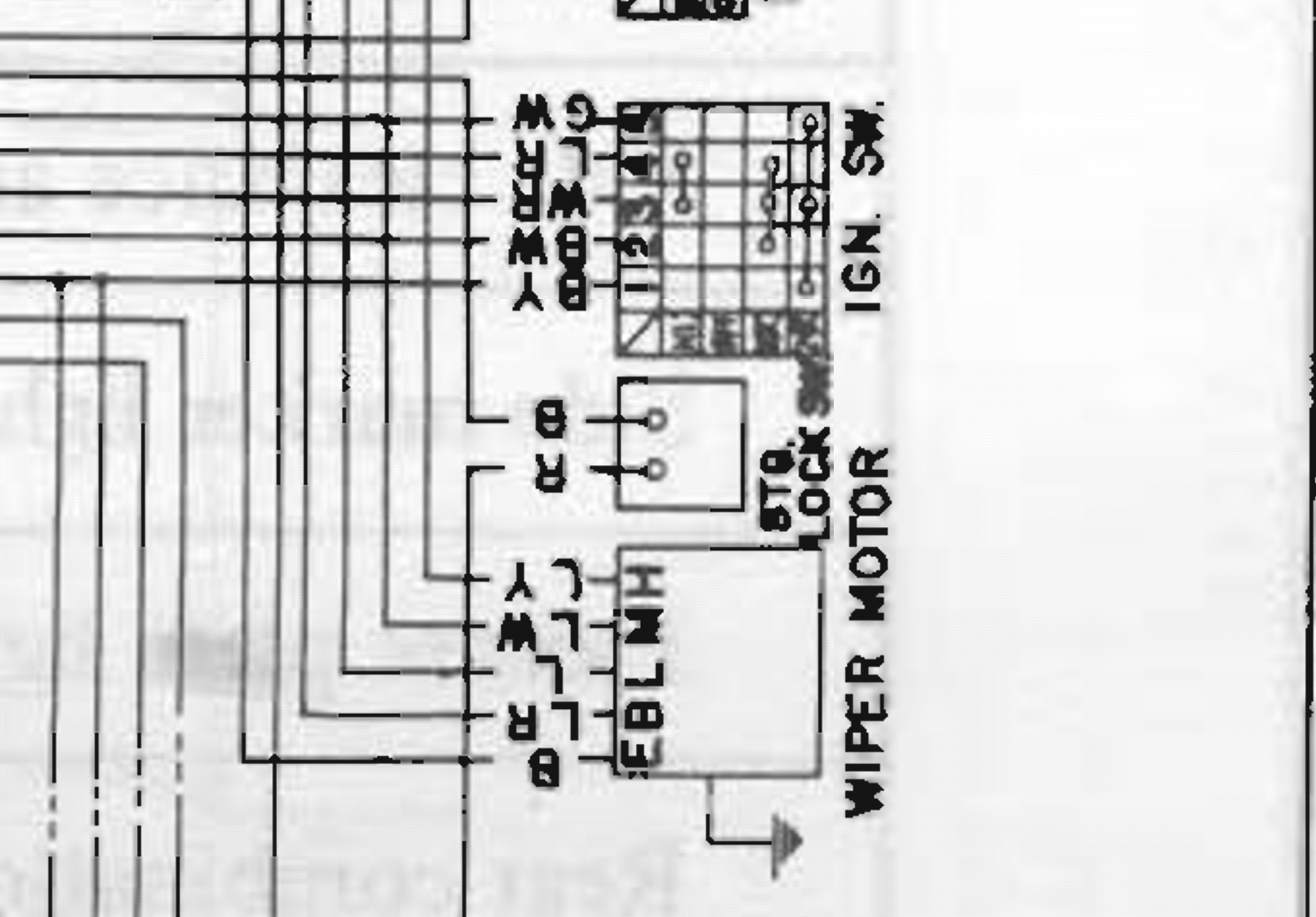

Here are some screen shots from the 72 manual. See second screen shot for the letters.






Edited by EuroDat
Tablet Tipo

Share this post


Link to post
Share on other sites

I am thinking more along the lines of "E" earth / "P" park / "F" fast

Don't know what the others are right off the top of my head...

Share this post


Link to post
Share on other sites
1 hour ago, Patcon said:

I am thinking more along the lines of "E" earth / "P" park / "F" fast

Don't know what the others are right off the top of my head...

That sounds logical, until I read the 72 and 73 manuals and diagrams??? The A-F-P becomes L-M-H.

Anyway, it's not labeled on any of the cable plugs I have seen. Could be lettering in the motor?





ColorWiring240Z-1971-USA-Late.pdf

ColorWiring240Z-1972-USA.pdf
