Front crossmember hardware

[Patcon]

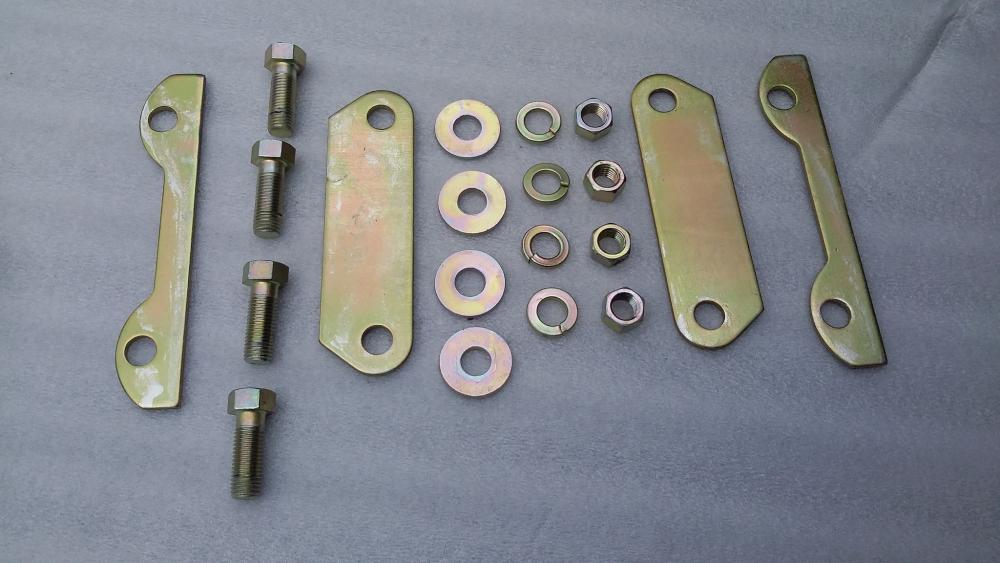

I need to source this front cross member hardware

Norm @ Zeddsaver has it, but only on an exchange basis. I have looked through all my hardware but haven't been able to find them. Any of you guys parting cars have this hardware? The washers are more important than the bolts. Also size pitch and thread would be good to know if someone can check for me

[Patcon]

Bolts are M10x1.25 but don't know the length...

[zKars]

Is it just the bolts you are after or all the plates as well? They are just M10x1.25 as noted, maybe 30mm long. Grade 10.9 JIS for sure. Belmetric would have them. I wouldn't feel bad using SAE 3/8 Gr8 NF hardware either. At the local "Bolt supply house" the Gr8 fine hardware is all CAD plated and purdy too! Bonus.

I have spares of the top/bottom plates if you need a set.

[Patcon]

@zKars

Jim

I am really after the plates. I probably have spare bolts and washers I could use but can't locate the "special washers"

[zKars]

Oh! Well that's easy. Send me a note to z240@shaw.ca and I'll get a set in a box for you and send some pics!

[Patcon]

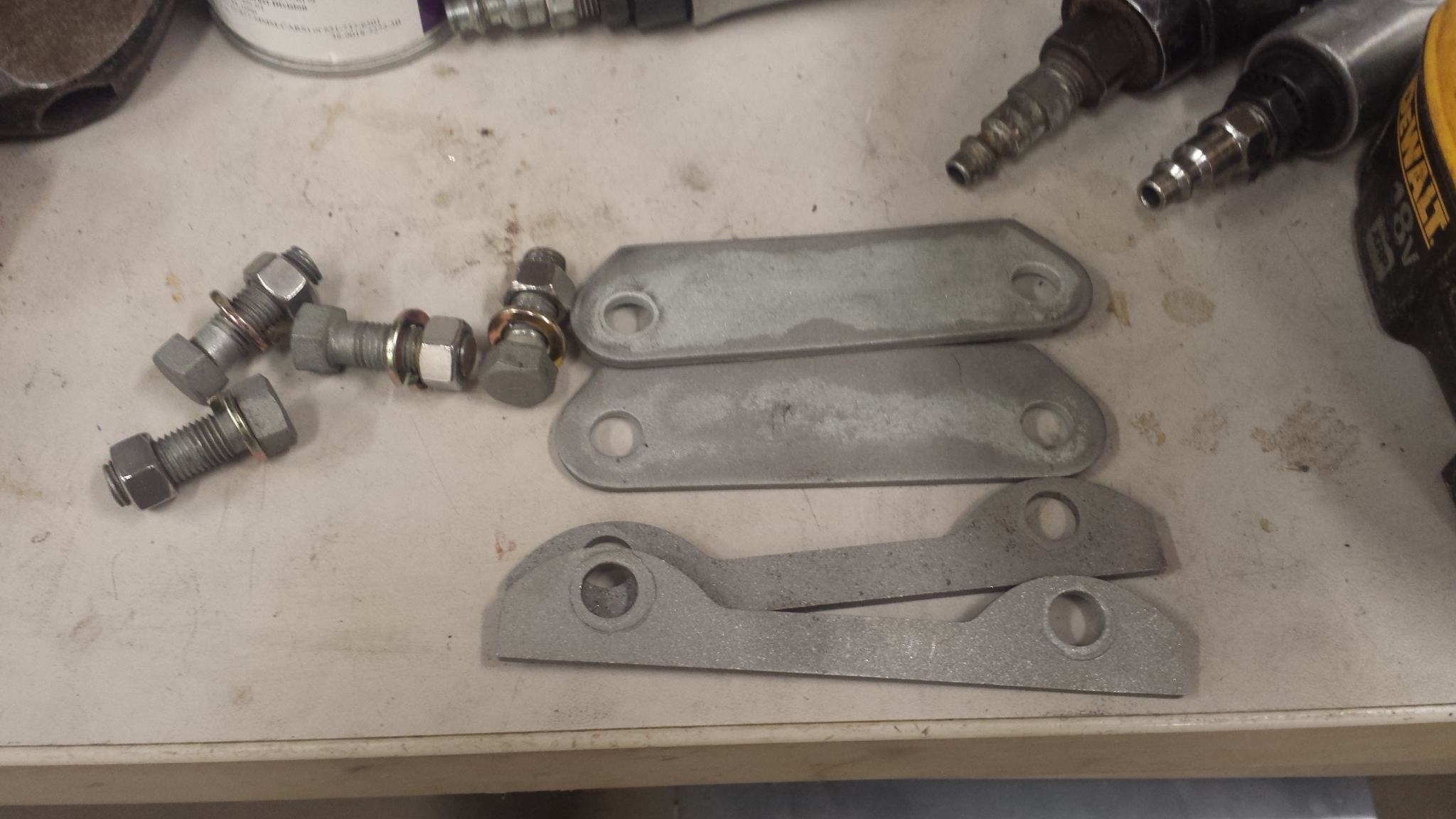

Got them a little while back

Thanks, Jim

@zKars

[sweatybetty]

On 4/16/2016 at 4:33 PM, Patcon said:

@zKars

Jim

I am really after the plates. I probably have spare bolts and washers I could use but can't locate the "special washers"

out of curiosity, what is so special about those washers?

[Patcon]

The "special washers" are what they call the oddly shaped plates. The bolts and lock washers are standard hardware
