Does anybody know what these wires are for? I didn't have them marked for some reason. I can't find the other half either. They came from engine bay area. The red with white stripe in the middle is a little bigger than the red with yellow stripe and the red with blue stripe wires. I don't see them on the wiring diagram. Thank you very much

This is the head light connector in front of the rad. Now is that the headlight harness end or the car harness end?

I'm thinking that's black and not blue. It's for your left headlight.

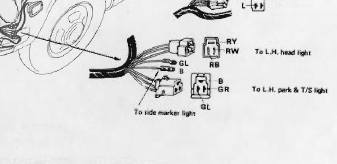

See the Engine Compartment Harness drawing in the 1971 Supplement (pg 29)

Thank you very much
