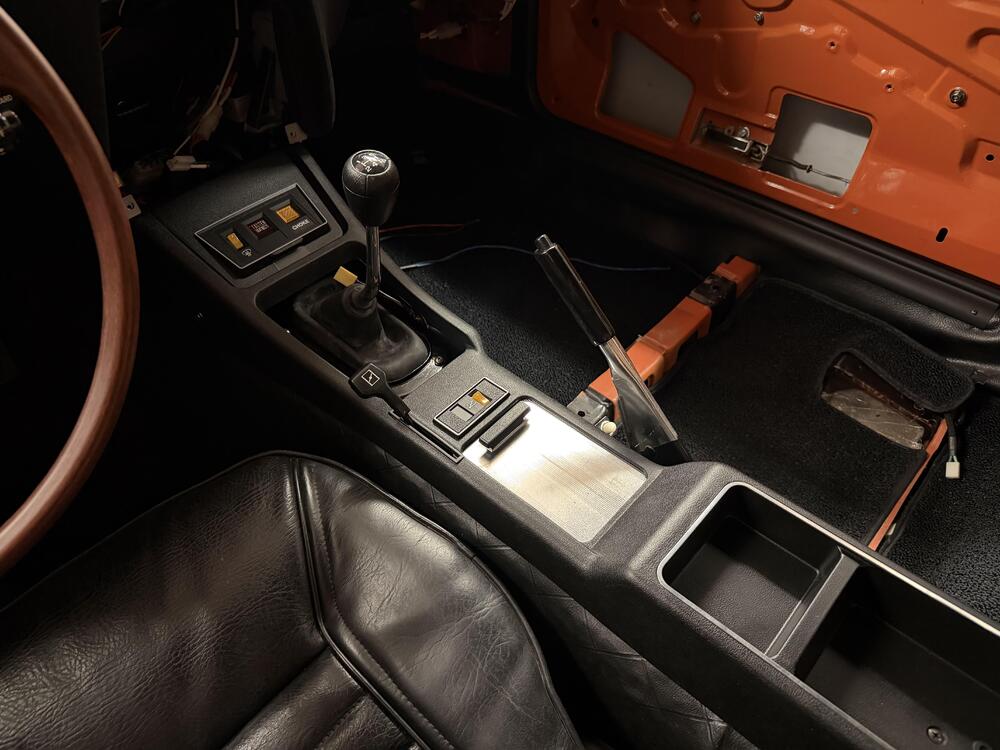

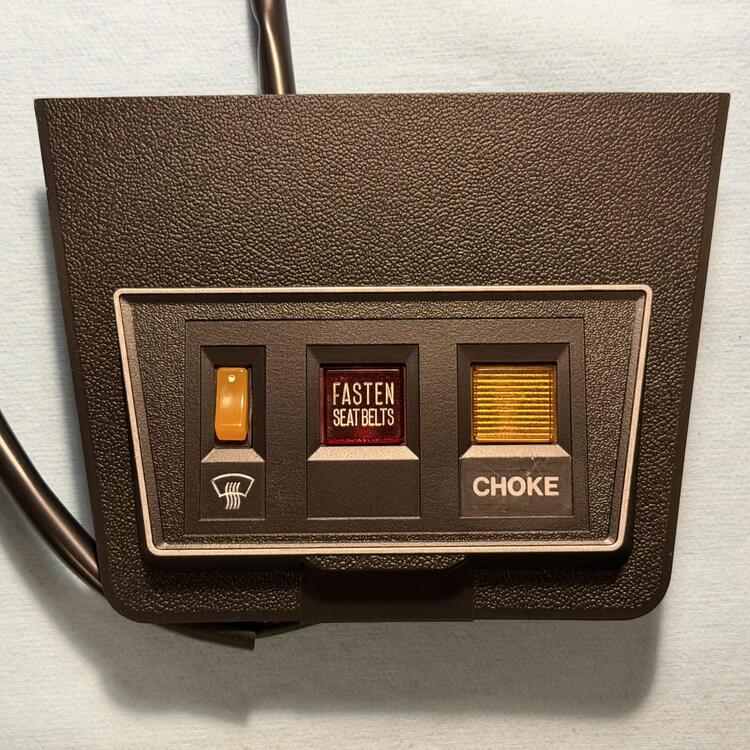

I finally got the center console in today.


I had to repair a crack in the right rear corner, but that was no big deal. Some superglue, some JB Weld for plastic reinforced with fabric, some putty to fill what pits the super glue didn’t cover, and it’s nearly invisible.

I sprayed all of my interior plastic with SEM Landau Black, and this piece came out the best.

Other than the steel trim ring around the trays in the back, I used chrome paint pens for the silver trim. It looks okay. I kind of wish I had gone with silver leaf, but this is probably more resilient. The defrost emblem is done in white nail polish. I just masked the “choke” label. All of the hardware is new.

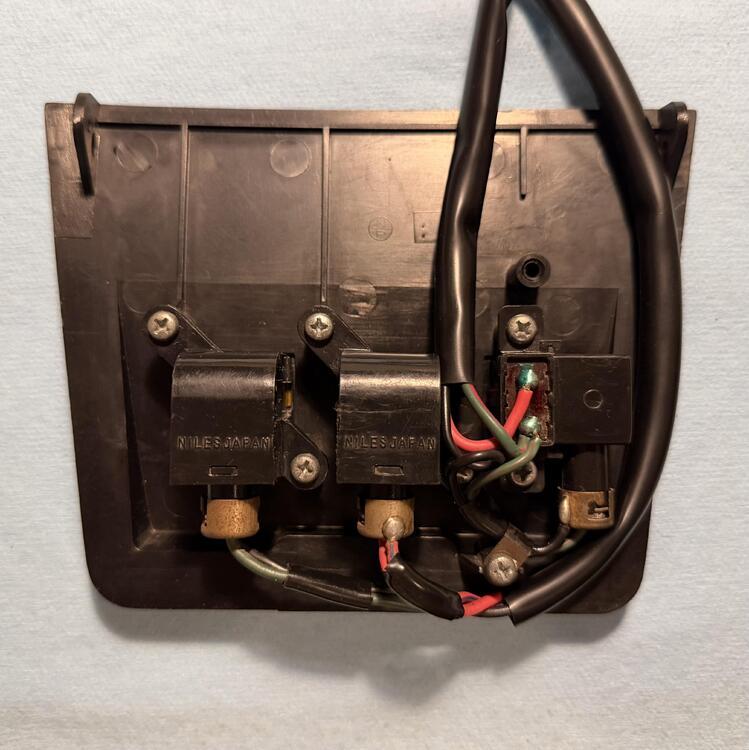

The ash tray was surprisingly easy. The rail was pretty corroded, so I cleaned it up and sprayed it with zinc paint, but the cover just needed a polish. All of the switches were much less clean, so they were disassembled and cleaned up.

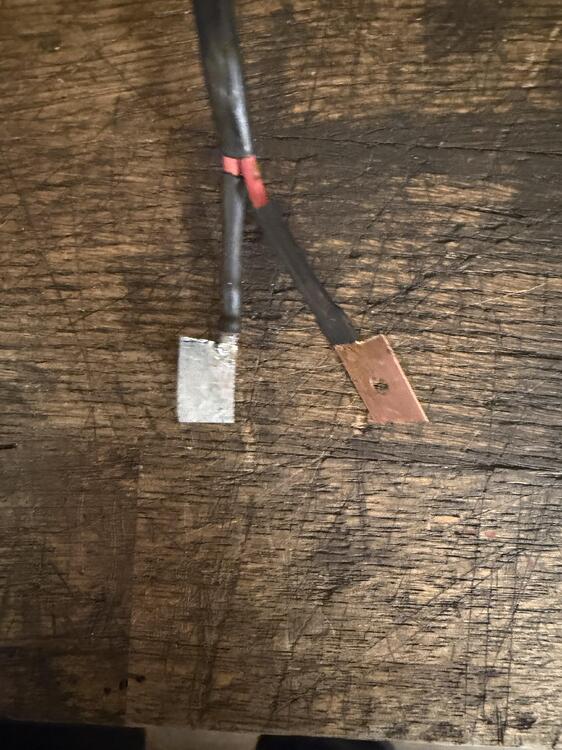

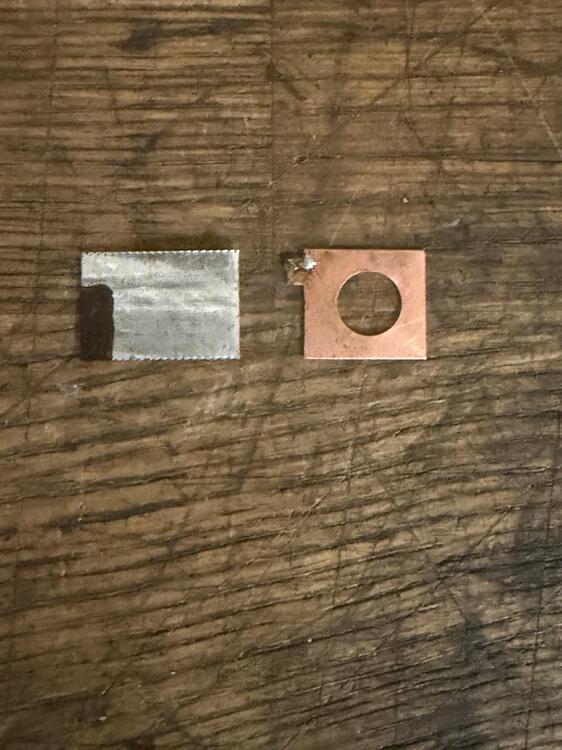

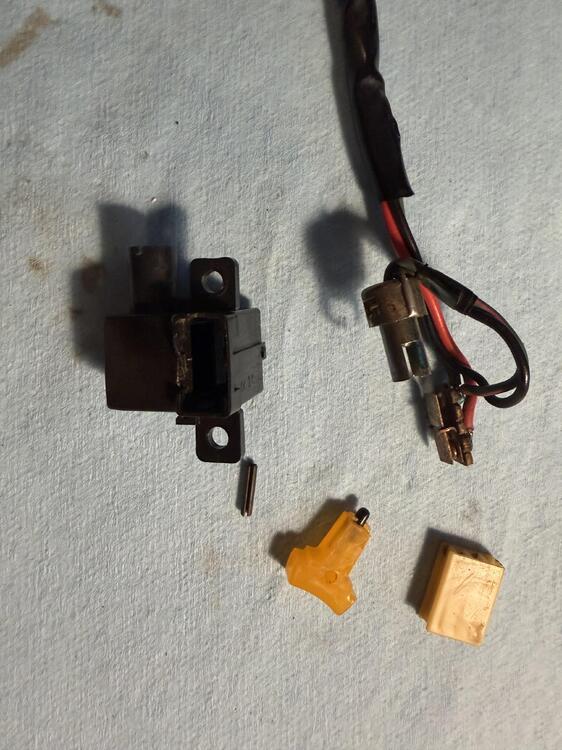

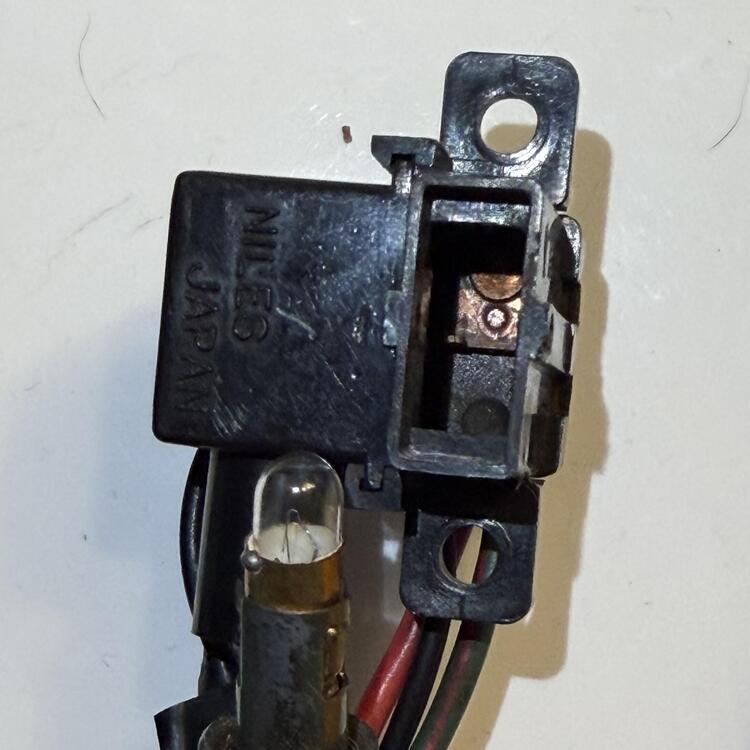

I had to fabricate a terminal for the choke lever switch because it had snapped. I used a tab from some HVAC duct that gave me the same reading on the ohm meter as the original piece, so should be fine. I don’t know why the original had a hole in it, but it works without.

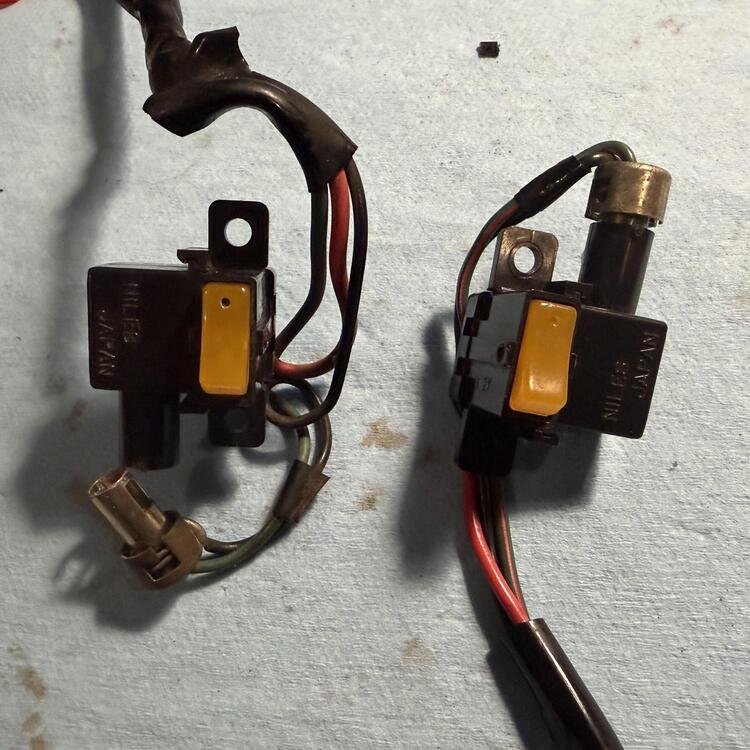

Speaking of switches, I also made myself a switch for my fog lights and mounted it in the console between the ash tray and the shift stick. I used a junked defroster switch I had replaced with a better unit, so it wasn’t a problem experimenting. It has to go in upside down so the light doesn’t hit the choke lever, which meant inverting the guts.

Basically I just popped the bottom out of the switch so the mechanism was reversed and put the button back in up side down. There was some cutting and filing involved, so do do this with a switch you care about.

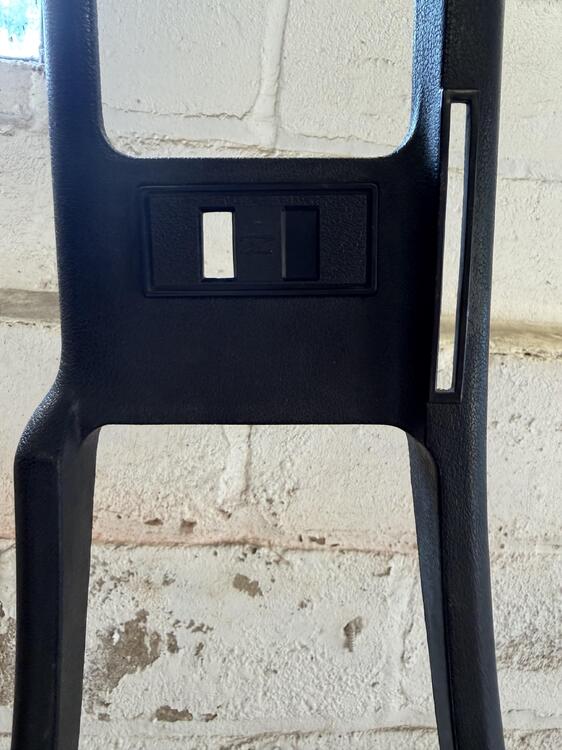

The console already has bosses and a hole for a switch like this, I just had to cut out an opening in the trim plate glued to the top of the console for the switch to poke out.



The only issue is I don’t have a ground wire for the light, so I’m going to have to make a mini harness that will splice it into the ground wire for the defroster switch light. I think it looks great. The only thing I would change if I could is to make the switch green instead of orange.

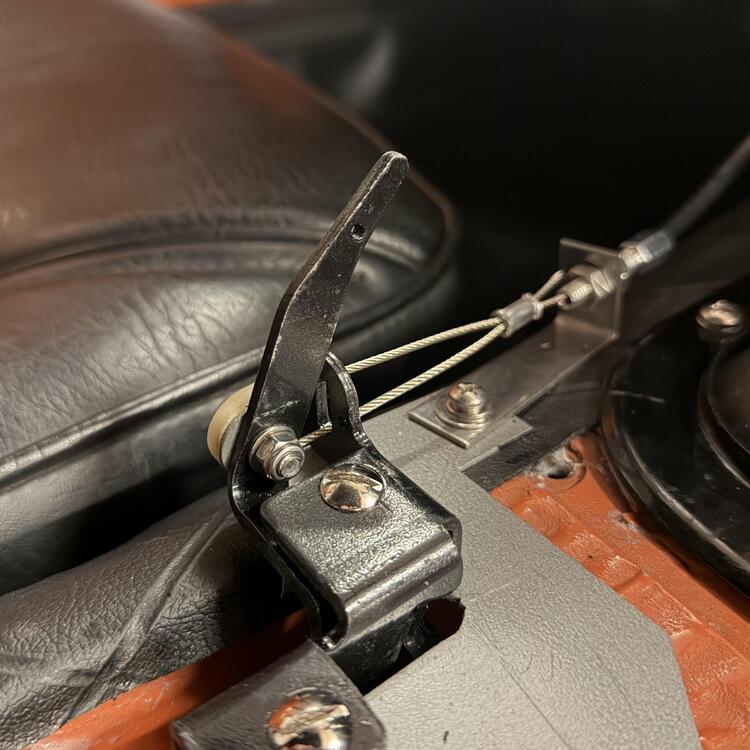

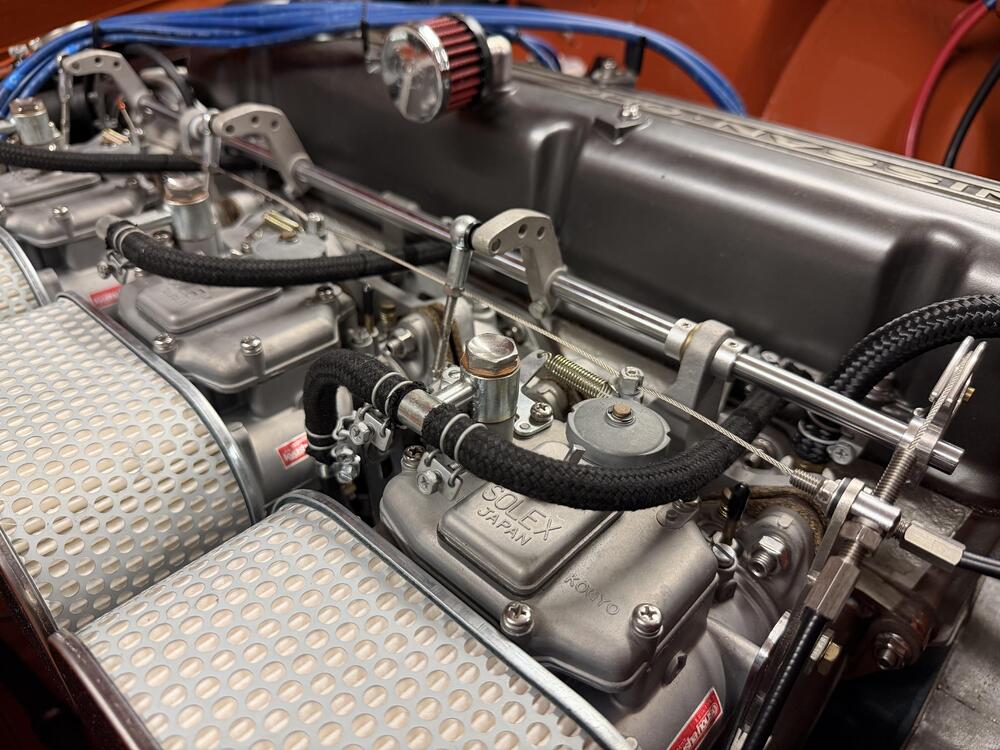

The other modification I made was repurposing the choke cable for the starter valves on the Mikunis. I doubt I’ll ever use them, but it’s nice to have the lever actually do something.

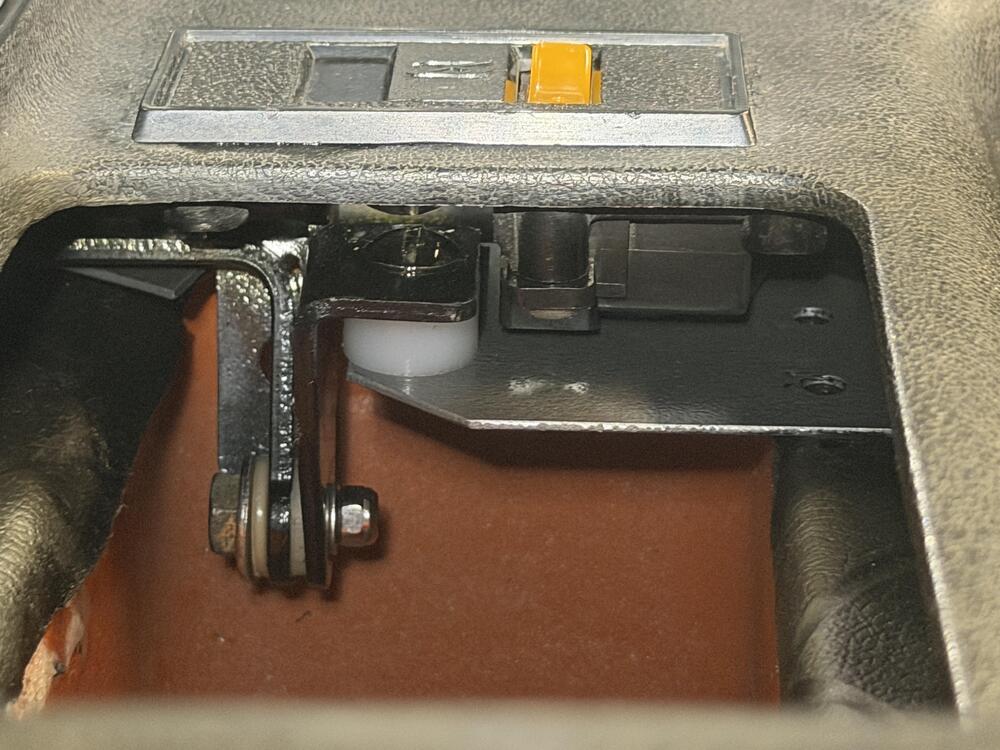

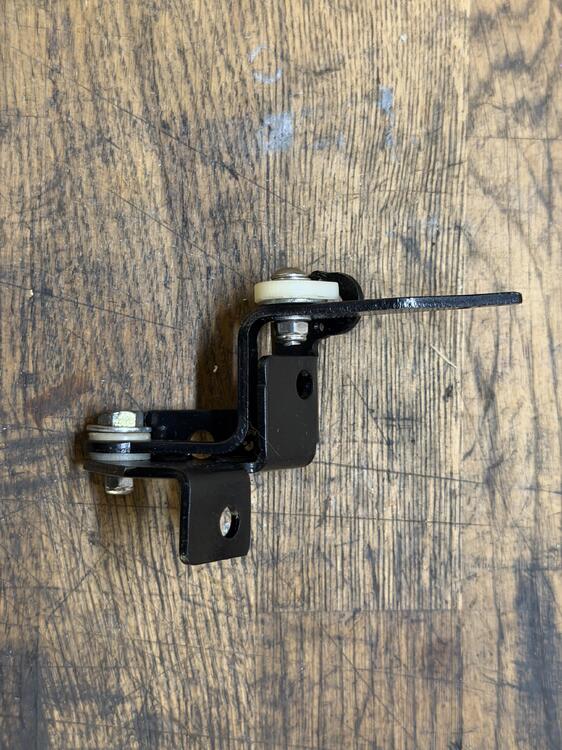

I used a mounting plate for the lever because I didn’t want the console to crack, which meant a lot of fiddling to get things to line up and clear each other.



I will need to make a new bracket for the throttle and choke cables now because the angle isn’t quite right. The fuel lines are also closer than I would like. I have around 3mm of clearance, so I’ll put sleeves on the cable between the starter valves just in case. There’s probably something I can do to raise the cable more, but that will take some thinking I can’t handle right now.

Edited by Matthew Abate

  • 1 month later...
  • Author

This took a minute, but I’ve rebuilt the strap side of my retractable seatbelts, with some help from @Captain Obvious.


Bruce’s seatbelt rebuild thread has all of the info you need, but the image links are broken so I’ve tried to capture as much of the process as I could.

Starting with two filthy mechanisms that wreaked of rust, oil, and every other toxic old car smell, the first step was to get the belt switch wires out of the way.



Next you want to pop the gear cover off. This isn’t happening with leverage alone, so run it under hot water where the pin comes through the top.

It will eventually soften and expand enough that you can pop it off with a paint scraper (wide enough to not distort the cover from too much pressure in one spot).

This exposes the brown ring gear that controls the ratchet catch.


Save this photo or take one of your own at this point so you know where it should align to the rest of the moving parts when the belt is fully retracted. Make sure the belt is spooled up all the way and tight when you take this note so you have a definite starting point you can recreate when reassembling.

Next, flip it over and carefully pop the spring cover off, making sure to not let it spin freely. This is the one that says Do Not Remove. Remove it, but count the number of rotations as you let the spring unwind slowly. I counted seven full turns.

You will now see the slotted end of the pin that holds everything together.



This is a good time to note that the spring coiled up in its case spirals counter clockwise from the center out, or clockwise from the outside in.

Now support the bracket on hard wood risers so it is elevated enough to ensure the plastic parts aren’t touching anything. Protect the pin with a piece of wood or use a hard plastic-faced mallet to hammer it out. It only needs to move one or two millimeters to be loose. Pull it out.


At this point everything is free except the plastic gear case and the plastic belt sleeve. You should be able to pull the belt out completely. Make sure you get the plastic bushing on the spring side out before refinishing the bracket.

The gear case is riveted to the bracket. I was able to punch them out and reuse them. I suppose you could also buy some hollow rivets and replace them, but getting them tight again took some care.


This is where I used a very sharp paint scraper to separate the belt sleeve from the bracket. Be careful not to pry it and stretch the plastic. I don’t know what kind of adhesive they used but it’s incredibly hard. Running it under hot water helps this part, as well.


From here I spent a couple of leisurely weeks cleaning up all of my parts while I had the ratchets, spindles, and pins replated in zinc.

I also washed the belts several times with laundry detergent until the water ran clean and I couldn’t smell anything. Yes, I should have had the belts remade, but I can’t swing the cost right now and this is better than no seatbelts. I’ll do it later.


Now do everything above in reverse. Don’t forget the bushing or the gold spring washer.


Make sure those rivets in the gear case are super tight.



Make sure the ratchet spring is UNDER the ratchet, like this:


and not between it and the belt, like this:


Before you put the belt in, make sure you have them in so the stitched side of the belt is toward the spindle and not facing out so when it’s on your lap it isn’t upside down. Don’t forget to put the plastic belt sleeve on before installing the belt. Note that I have not replied my sleeves to the brackets. I plan to use RTV for this but only right before I bolt them down.



When you get the pin back in you will need to use the hard wood support again to pound the pin into the spindle. Make sure to use a hollow punch or socket to protect the gear on the end of the pin.

It’s possible that heating the spindle and freezing the pin could make this go together without the hammer, but I didn’t try it. Make sure the pin is completely seated and below the plastic case before proceeding so the ring gear doesn’t jump its track.

Put your clean spring back in the case, making sure it’s coiled the right direction. Place the tang on the spring into the pin slot and wind it up the same number of rotations as your count from disassembly. One thing I did was over wind it two times before counting. This put another half turn into the spring because it had been bound up inside the case. Hold it all together lightly and do a test to make sure you wound the belt the right direction, put the spring in the right way, have enough tension to retract the belt, and that it retracts all the way into the plastic sleeve before completely snapping it shut.


After I made sure they still worked, I resleeved the wires for the belt switches and used new connectors and terminals, because I like stuff to look new.

Put the cleaned-up switch back on, then fit the ring gear in place. Something I found was it’s easy to get the brown ring gear out of position by one or two teeth and screw up the ratcheting. Refer to your photos.

Once the gears are together, do a few test pulls to make sure the gears are in the right alignment. Now is the time to fix it.

Once it’s right, press the case back on, making sure the wires are in their groove in the cover and not pinched.

Edited by Matthew Abate

Seat belt mechanisms look great. And glad I could help in some way! Too bad photobucket sucks so bad.

Edited by Captain Obvious
