Fitting 240Z bumpers and Valences to a 280Z

Recommended Posts

Hi fellow members,

I have been searching the forum and although I can find a lot of info about replacing the bumpers I can't find much about replacing the valences. My plan was to buy the fibreglass bumpers, fit them, if everything went well replace them with the Stainless steel bumpers from Harrington.

Datsun 240Z and 260Z Bumpers | Harrington Group

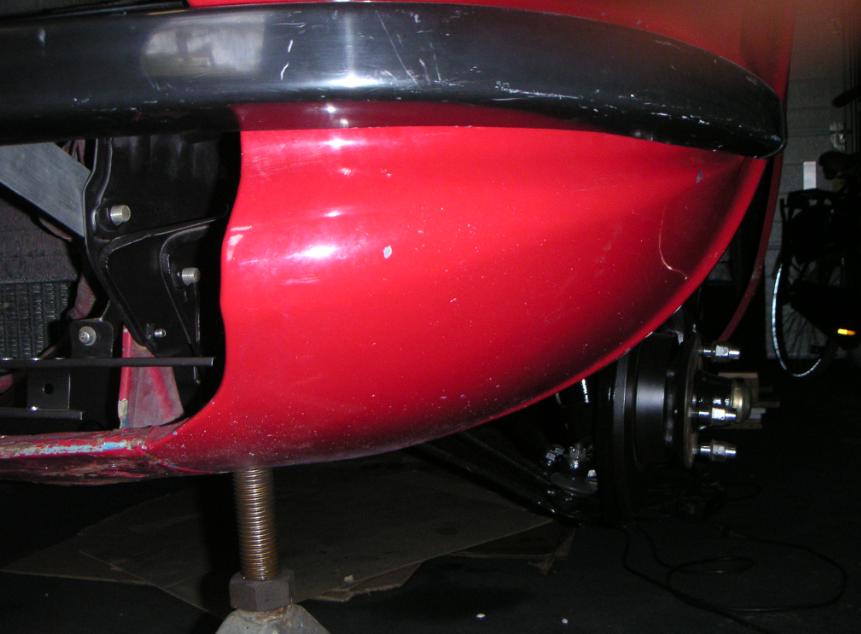

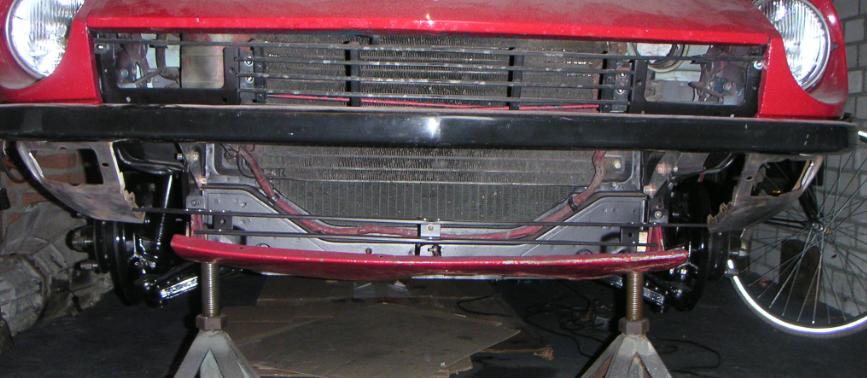

Fitting the front bumper was easy, but it left a big open area between the small two bar grill and the bumper. I knew there was a hight differance between the 240 and the 280 valences and decided to go down that road.

The height difference was more than I expected. The 240Z is so much higher that the centre section between the valences can not be fitted because the chassis drops down to low.

To solve this problem I want to fit a front airdam. I have found info on this and some say remove the centre section and use the airdam to hold it all together. Others say dont do that, it will vibrate at cruising speeds. Something which I could tend to agree with. To solve this I am going to make an aluminium frame to brace the two valences with the centre mount and use this to support the airdam.

I dont have an 240z airdam yet so I not sure if it will be low enough to cover the lower section of the frame. Before I start digging an even deeper hole (buying an airdam, hiring a Mig welder to weld the frame) I decided to ask for help.

Maybe someone has done this before or knows someone who has? Even the distances from the bumper to the lower edge of different airdams would be a great help or even photos.

I will post photos of my progess.

Any help / advice is much appreciated.








  • Like 1

Share this post


Link to post
Share on other sites

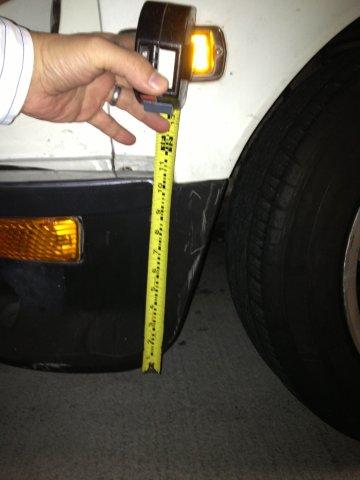

Here is the photo of the xenon airdam mount onto my 240z.


You can just drill a holes at the bottom section of the head light case behind the bumper. You don't need welding. It's easy.

As you can see, it's about 10 inches long from the bottom of bumper.

You can measure your Z's crossmemebr height from the bottom part of your bumper.

Good luck!

tamo3

Share this post


Link to post
Share on other sites

Thanks tamo,

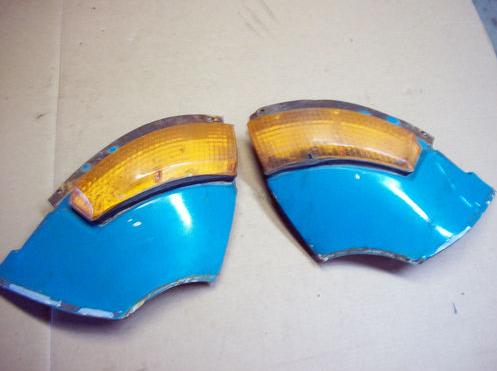

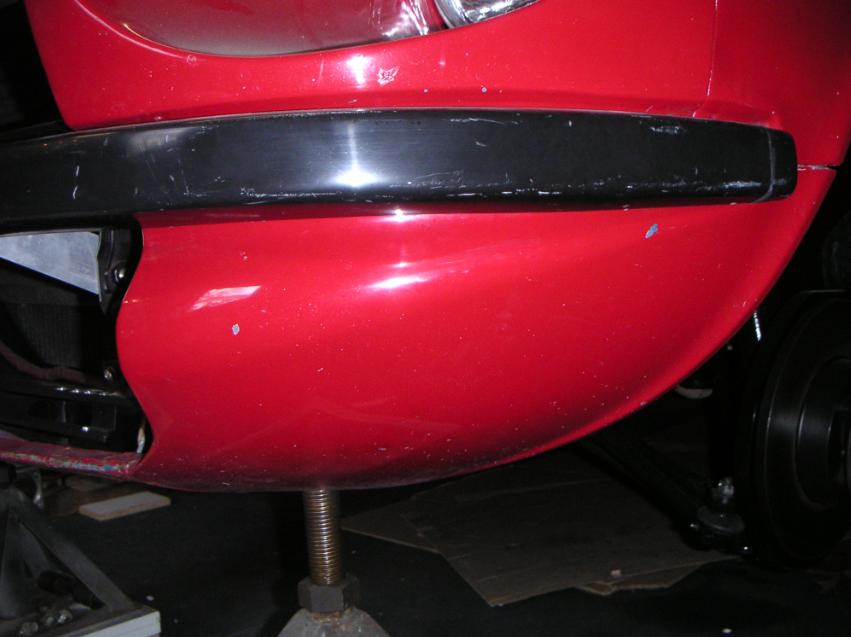

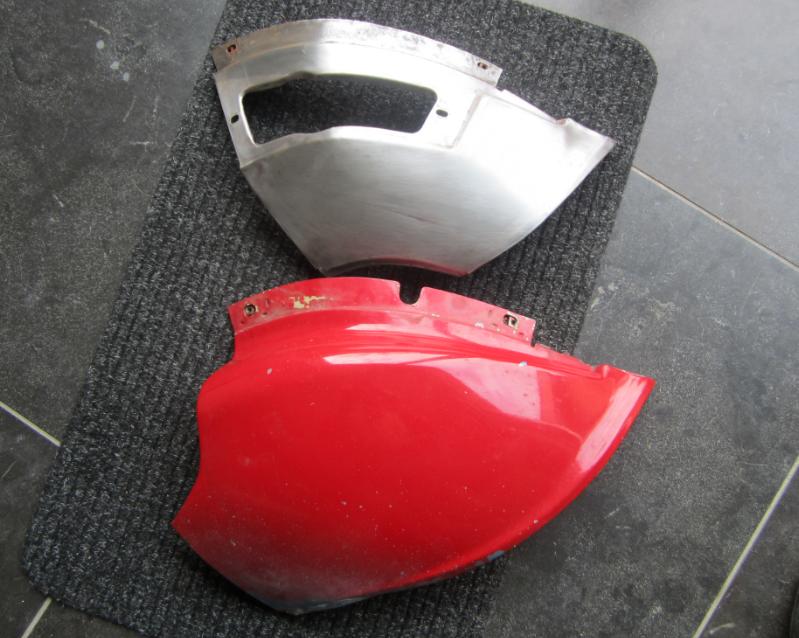

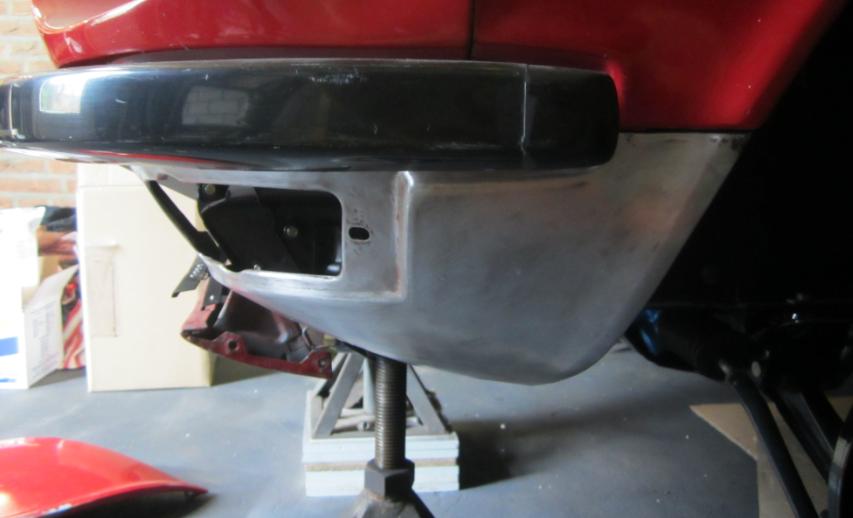

Ill measure my crossmember today. The right side valence is now stripped and mounted. They were painted white then repaited white and someone painted them blue. Took three goes with the paint stripper to get them cleaned back to bare metal.

The centre section is completly different to the 280z and will not fit because of the cross member. I dont wont to do any cutting or modify the chasis in any way. Everything Im doing in bolt on and reversable.

Once I work out the height issue I can order an airdam and fabricate the brackets to hold it all together.

Share this post


Link to post
Share on other sites

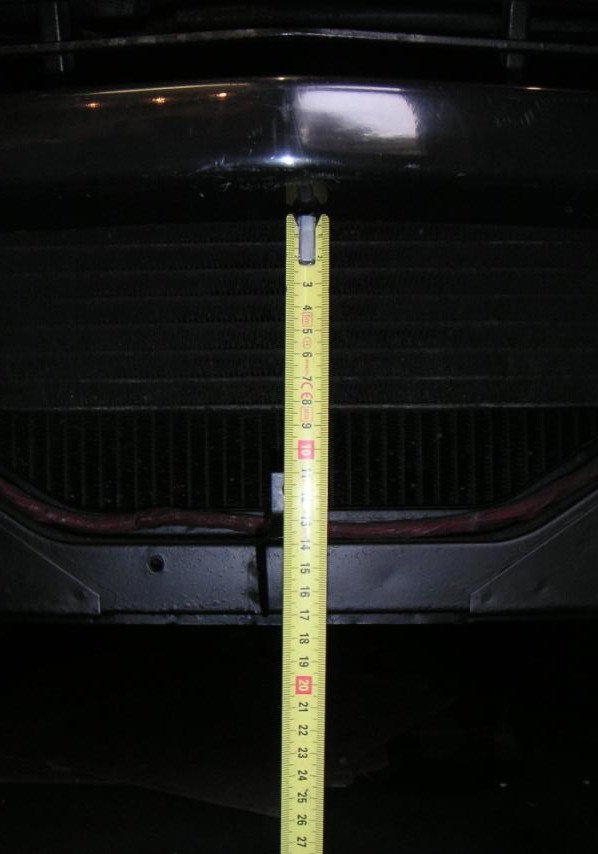

Looks like the 240Z air dam will fit and cover the front cross member on the 280Z. The cross member is about 9" under the bumper. I took some phots, but the angle is deceiving.

The measurements are:

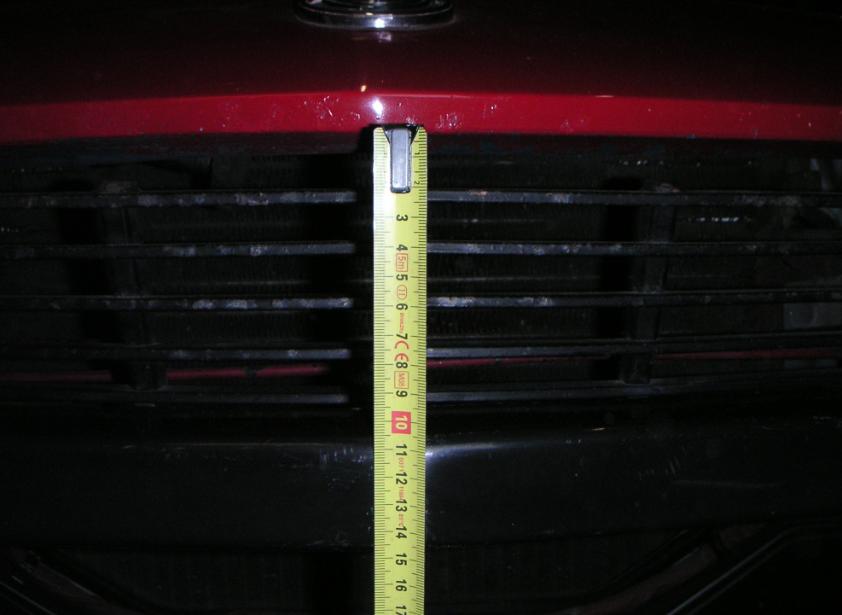

From the bottom edge of the hood to top of bumper is 10cm (4")

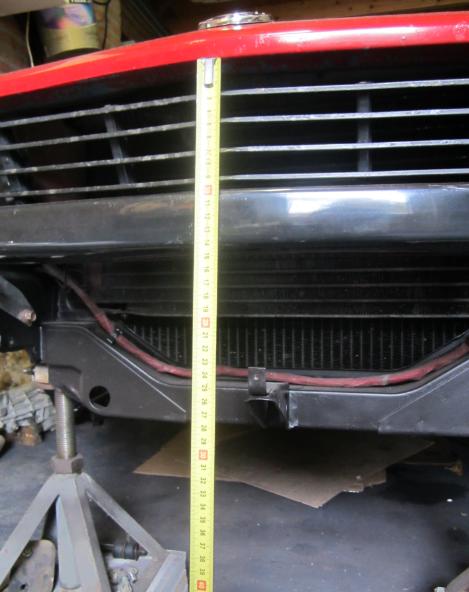

Botom edge of bumper to lowest edge of the cross member is 22cm (8.7")





  • Like 1

Share this post


Link to post
Share on other sites

No wonder you have red, blue, and bare metal valence.

Once you purchase airdam, you don't need it anymore.

The front turn signal can mount direct to the airdam.

Good luck!

Tamo3

Share this post


Link to post
Share on other sites

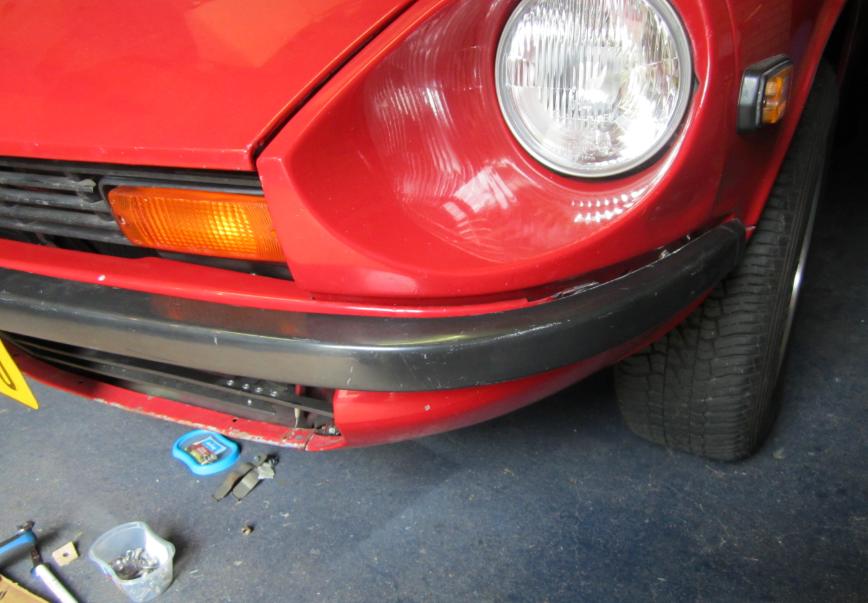

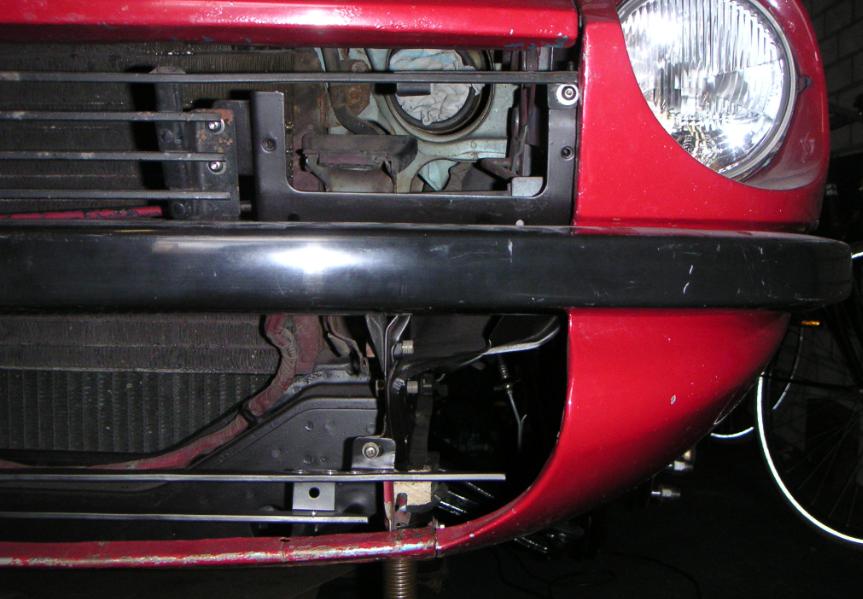

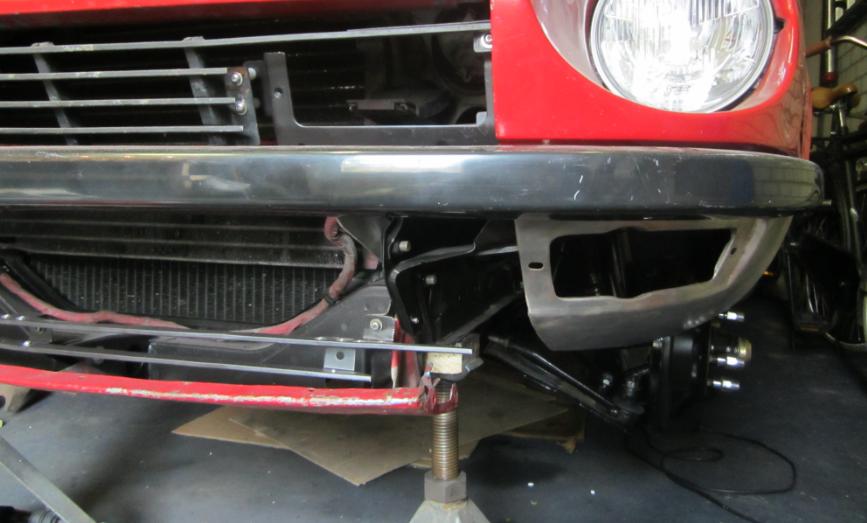

Started playing with thre front bumper again. The bumper does not fit very close to the 280Z grill leaving a wide gap between the two. I tried to close the gap but then the bumper side arms extended past the recess in the fender.

I am now playing with the small cover panel that fitted between the grill and the original 280Z bumper. It strapped onto the shocks and the bolted to the valences on the side.

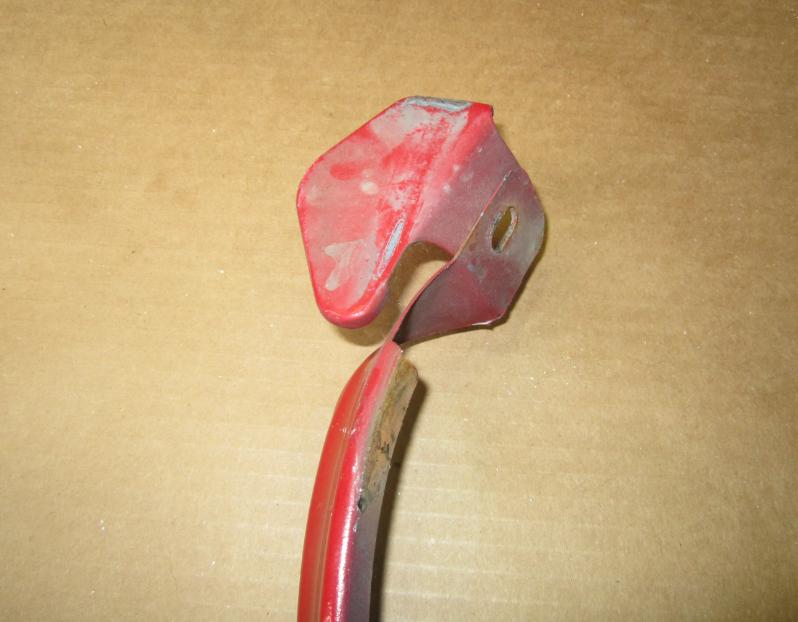

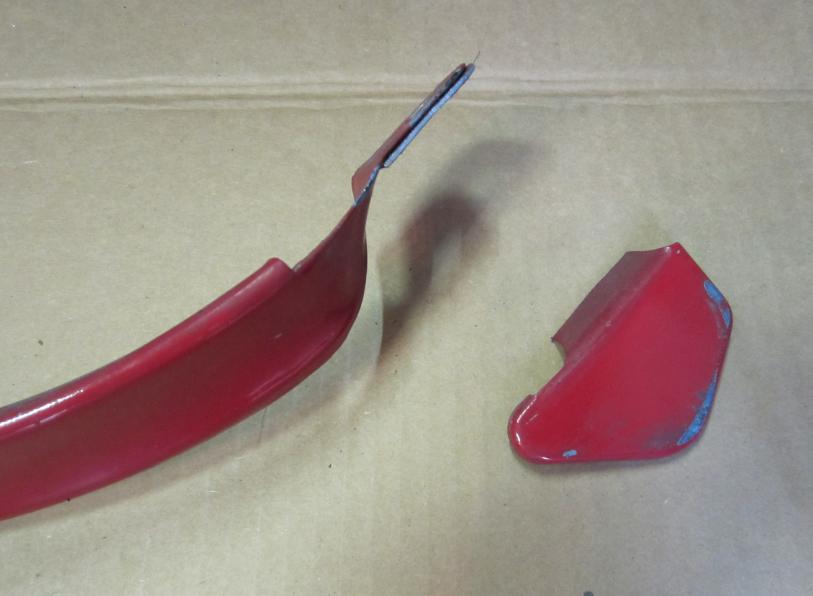

This panel fitted quiet well and covers the gap nicely. I had to remove the two ears at each side of the panel and reset my bumper mounting brackets. The brackets are now made of aluminium so I can modify them easily. When its all finished Ill make them out of Stainles steel.

I pleased with the results so far.:D

Now to rebuild my 240Z indicators (out of the blue valences). Ordered new lens rubbers and other small parts from MSA and will be ordering the Air-Dam shortly. Just got to get my mind around the shipping costs and import duties.

Start gripe // The air-dam kost $180 + $ 250 shipping + $90 Dutch taxes = $520.00. Sure takes the fun out of restoring. Sorry guys, but this haunts me every time.:sick: // End gripe

Might try and hold out till MSA start their christmas specials. Releave the pain a bit.

Motorsport! Urethane Air Dam, With Brake Cooling Ducts, 70-8/74 240Z-260Z - The Z Store! Nissan-Datsun 240Z-260Z-280Z-280ZX-300ZX(Z31/Z32)-350Z-370Z Parts

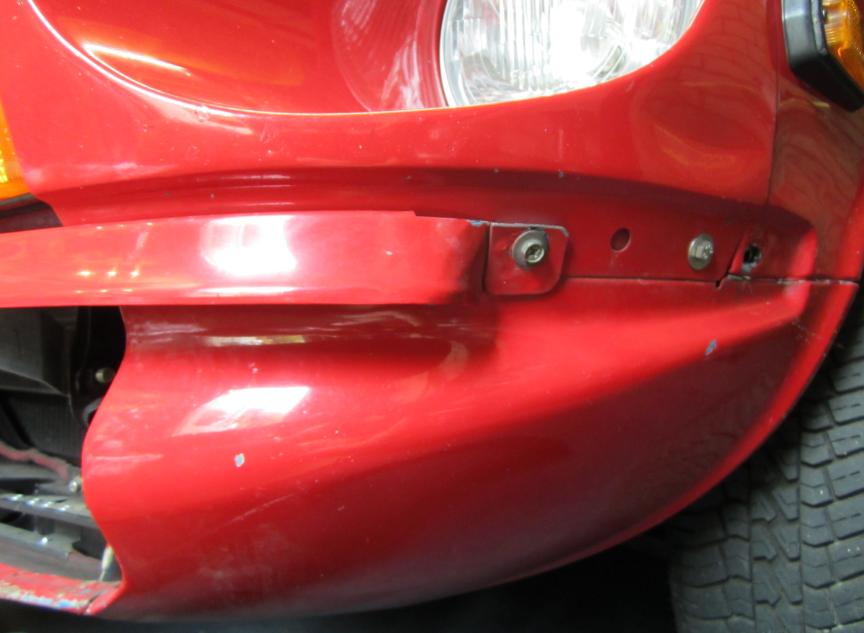

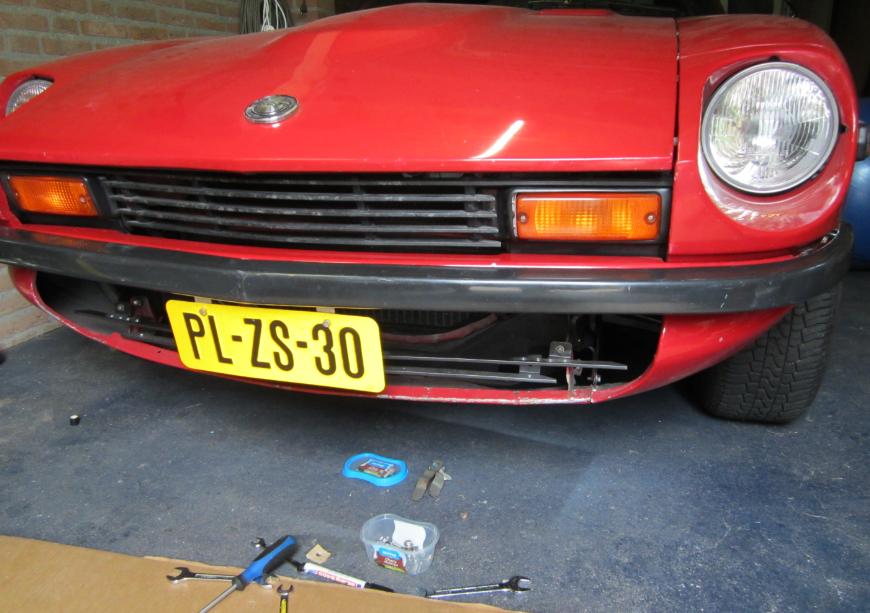

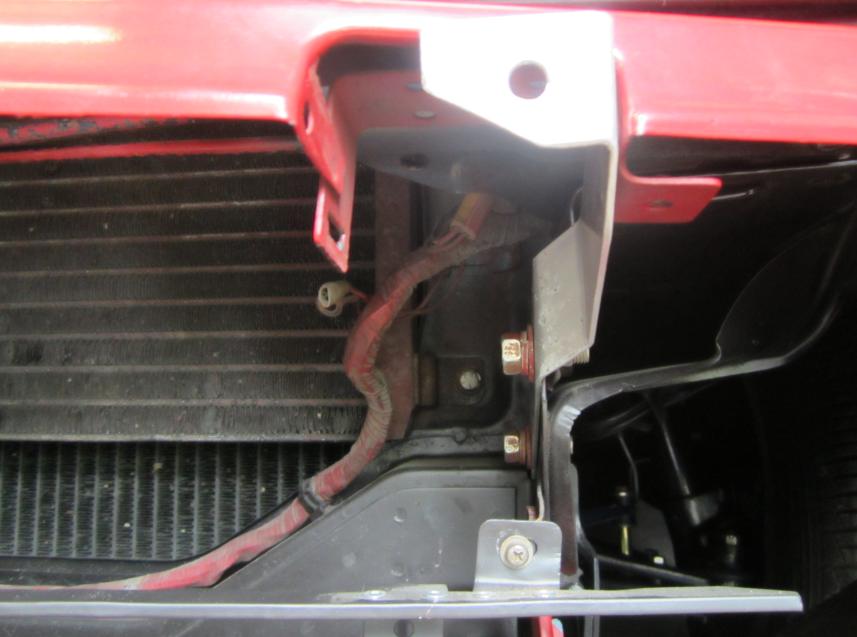

Here are some photos of the panel fitment.

Chas










Edited by EuroDat

Share this post


Link to post
Share on other sites

Good job, Nicely done!

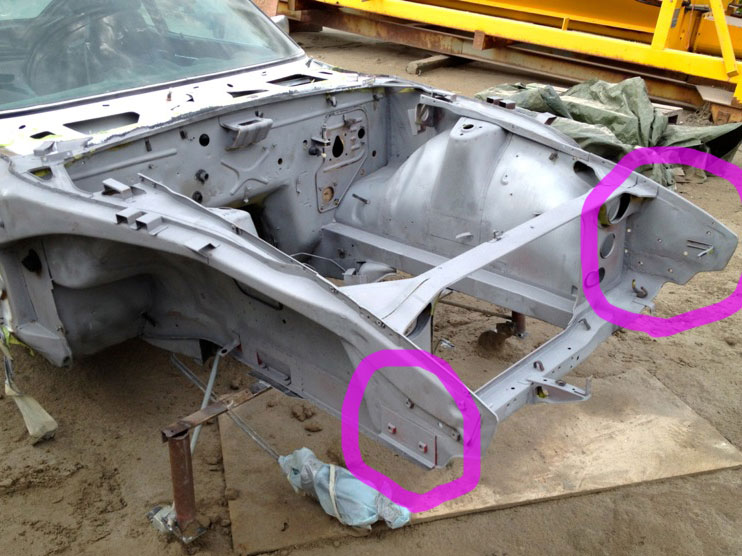

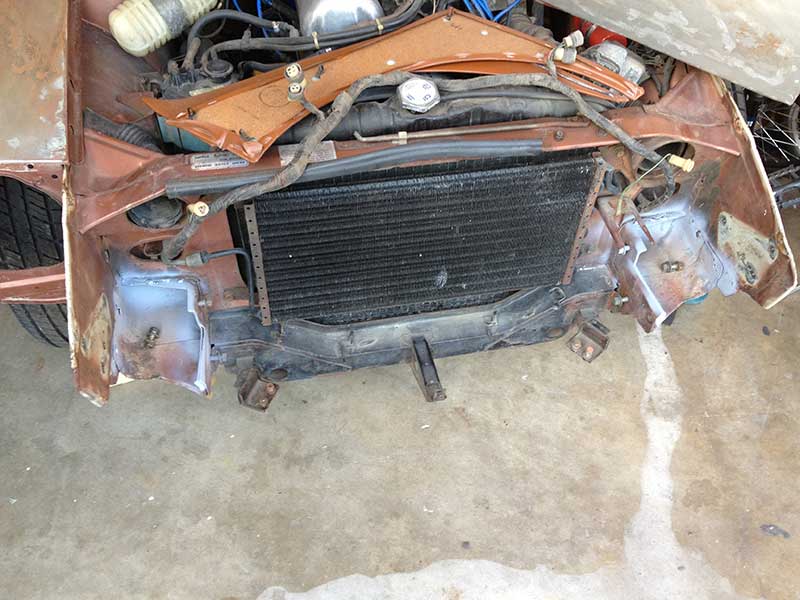

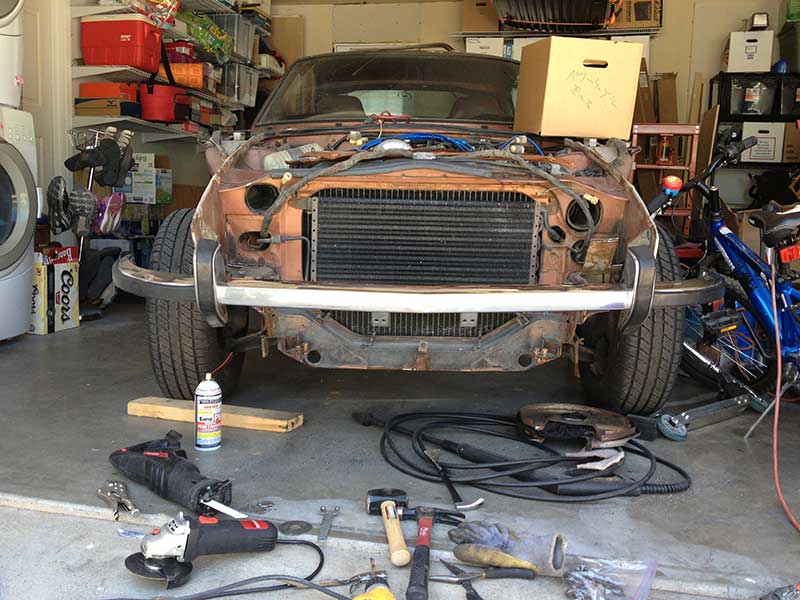

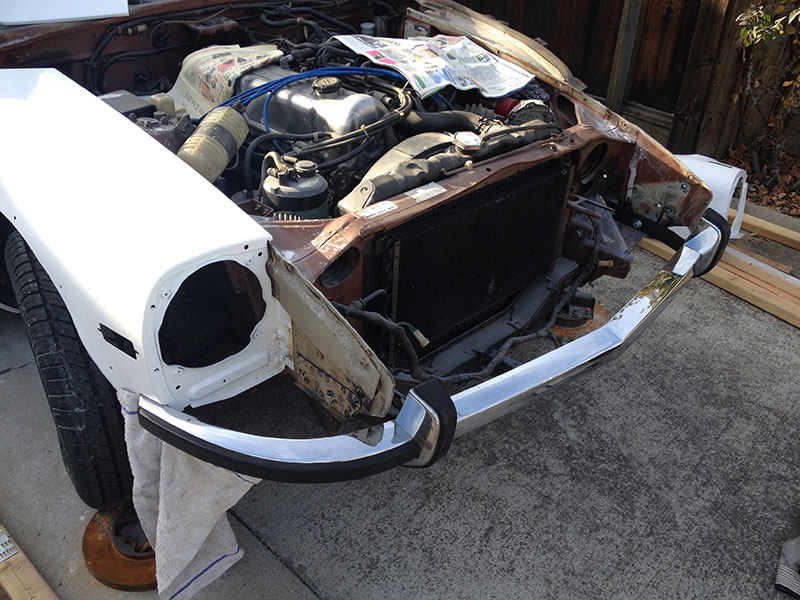

In order to mount 240z bumper onto my 280z, I started cutting front section now.

Share this post


Link to post
Share on other sites

Looking good. The bumper is in good condition complete with bumperettes and rubber strips. Im trying to get the fibreglass one to fit and then might go over to the stainless steel one from Harrington. They dont come with the bumperettes.

You have strip the grill supports. What are your plans for the grill area? I have been leaning towards the JDM style that 1tuffZ on HybridZ makes and sells through MSA. With the 240Z indicators and air dam it would clean up the front nicely.

I can see two brackets on the frame in the first photo. Their located in front of the bottom corners of the radiator. Mine didnt have them so Im thinking its something different between the 75 and 77 model or stone gaurd supports?

Chas

Share this post


Link to post
Share on other sites

Hi Chas,

The two brackets are used for mounting horn.

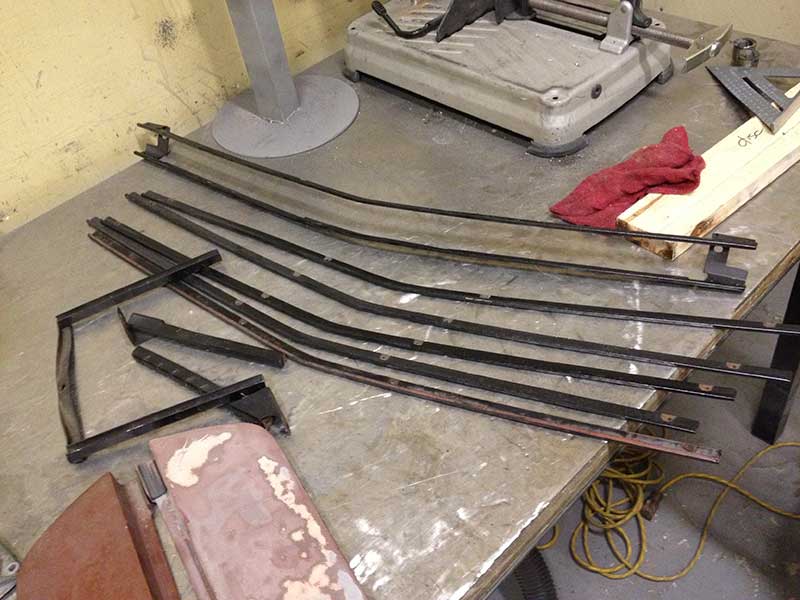

I'm rebuilding 240z front grille now. Sandblasted and power coated as matte black.


Share this post


Link to post
Share on other sites

Some more update.

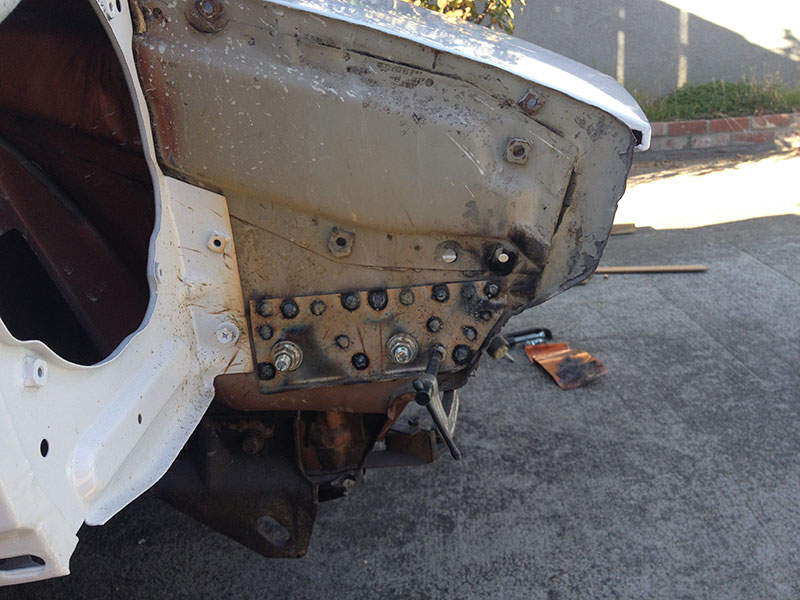

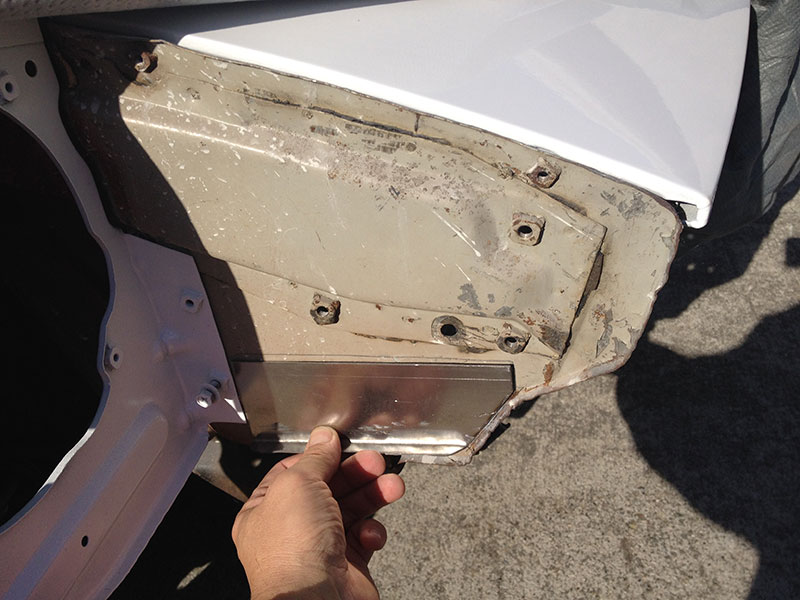

240z has bumper bracket that does not comes with 280z.


So, I made one.


Weld it.


Done!


Share this post


Link to post
Share on other sites

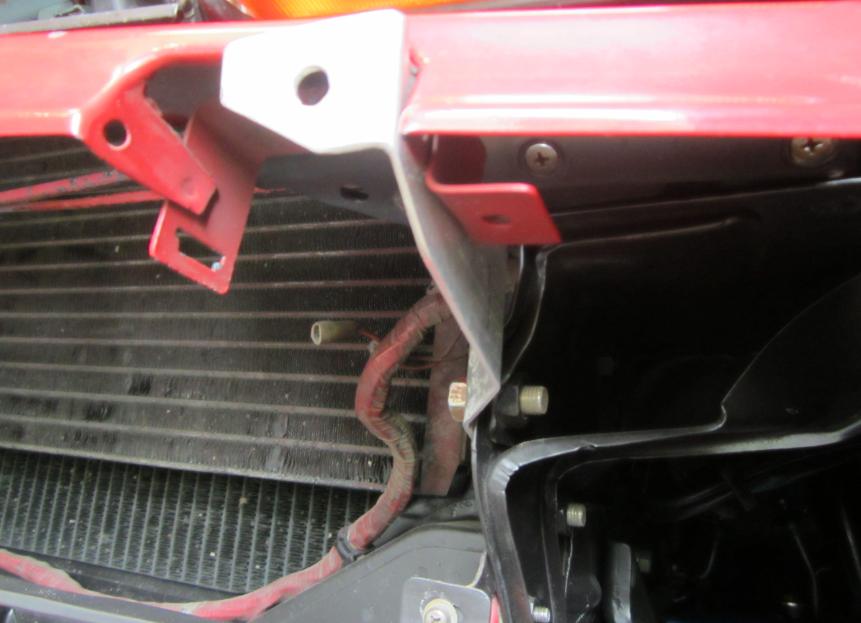

Tamo, Thats a neat job you have done to get the 240Z brackets to fit.

I stayed with the original shock mount holes. I can't use the 240Z brackets because the shock mounting is lower and further to the centre. Ordered a 240Z air dam and I already have the turn signals from the 240Z. Next is find a 240Z grill.

Which year is the bumper you are using? I know that somewhere in 73 they started making the the 240Z bumper compressable. I have not seen one, so not sure how it changed.

Chas

Share this post


Link to post
Share on other sites
Tamo, Thats a neat job you have done to get the 240Z brackets to fit.

I stayed with the original shock mount holes. I can't use the 240Z brackets because the shock mounting is lower and further to the centre. Ordered a 240Z air dam and I already have the turn signals from the 240Z. Next is find a 240Z grill.

Which year is the bumper you are using? I know that somewhere in 73 they started making the the 240Z bumper compressable. I have not seen one, so not sure how it changed.

Chas

Eurodat, so are you saying the 1973 mounting brackets might make the 71 bumper fit onto a 280z?

I have 1971 split bumper and it looks like the 1973 looks bent, as opposed to the 70-72.

Edited by nissanthanh

Share this post


Link to post
Share on other sites

Im not sure where the mounts are positioned on the 71 bumper. The fiberglass bumper has long slots which give you plenty of room for adjustment. I still had to set a 15mm offset to reach the slots. The original bumpers don't have as much "adjustability" and require more thought when making your brackets. The offset in the bracket will be a lot more if you don't modify the frame.

If you do go with the original brackets you will need to remove the 280Z bumper shock supports and the front turn signal mounts. Then you need the 240Z grill and turn signals under the bumper. You won't need the valences, the air-dam replaces them. I was toying with the idea of fitting the 240Z valences with a BRE spoiler, but the front subframe drops down too low and prevents mounting the center valence section.

It was tempting to go with the original 240Z mounts and Tamo's work makes it all the more tempting, but for now I opted for the "quick and dirty" reversable approach. Thats why I made my own brackets.

I might go the full mod with the ss harrington bumper, but that is a bit further down my to do list.

Chas

Share this post


Link to post
Share on other sites
I know that somewhere in 73 they started making the the 240Z bumper compressable. I have not seen one, so not sure how it changed.

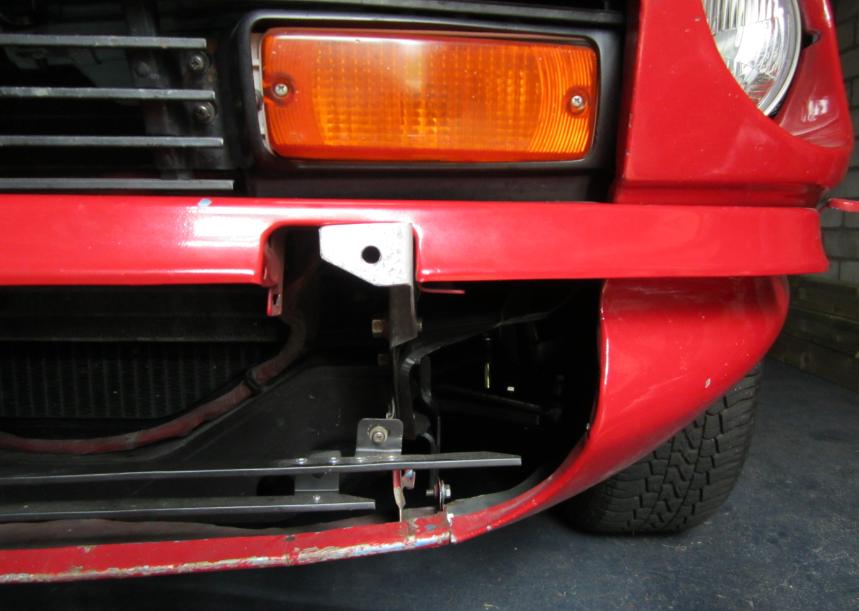

Did somebody say 1973 bumper? Not the best picture, but here's a looksy of mine.

Share this post


Link to post
Share on other sites

I like what this guy did. He kept the 280z grill and valance panel and just

built his own grill below using parts of another grill


  • Thanks 1

Share this post


Link to post
Share on other sites

Looks like he used the original 280Z grill under the bumper for the lower two runners and build it up with 4 runners from a 240Z grill. I like the neat and tidy result.

Chas

  • Like 1

Share this post


Link to post
Share on other sites

Its been a while, but Im back at my 240Z bumper and airdam. I decided to leave the 280Z valance panel until I found all the parts needed to fit the air dam.



The biggest challenge was finding a 240Z grill that had not been run over by a truck. Now I have one thats really straight, but very grotty. It will be dismantled and the top runner will be changed to the 280Z so it will mount on the existing 280Z mounts. Thanks to HaZmat for that tip.



Now for the indicators and air dam. The indicators are not the best, but with some repairs they will do for now. If it all works well I may buy a set from Zcardepot.

This is what I started with.



post-25317-0-54996700-1431890726_thumb.j



The left lense was in pretty bad shape. The PO used a self tapping screw and broke the plastic. It also has a crack in the top section. I used some resin to repair the broken off section. Sprayed the screw with releasing agent so I could screw it out after the resin set.



post-25317-0-74106400-1431890773_thumb.j



Next was the bolts that hold the indicator unit in the body panel. One bolt was missing so I had to fabricate a new plate and get a bolt tack welded to it. (No photo of the two small tack welds on the bolt head).



post-25317-0-10159800-1431890814_thumb.j



The reflectors were in bad shape. The chrome foil was non existant and the steel back plate was badly rusted. I cleaned them up as best I could and gave the a couple of coats of primer.

I was debating on using chrome spray paint of aluminium reflecting tape. Ended up trying the tape first and if it worked ok leave it at that. It reflects good enough for these old indicator units.



post-25317-0-88040100-1431890837_thumb.j



The indicators are now mounted in the airdam. The result is better than I expect from the old indicators.

I not impressed about the holes they cut for the indicators. The holes are too big and tapered to one end. The rubber gasket only just reaches it in some places. I also had to make L brackets so I could fit the lenses without pulling everthing out of shape.



post-25317-0-19930800-1431890871_thumb.j



Now to fit the air dam.





  • Like 1

Share this post


Link to post
Share on other sites

Very nice work.  I bought the exact same air dam from MSA and have yet to start on this project.  Finding a good solution to the bumper mounting has been taking some time.  All of the premade conversion mounts that I have bought on line have been total garbage.  I may just design something myself and pay the local fabrication shop to make them for me.

Share this post


Link to post
Share on other sites

Its been a while, but Im back at my 240Z bumper and airdam. I decided to leave the 280Z valance panel until I found all the parts needed to fit the air dam.



The biggest challenge was finding a 240Z grill that had not been run over by a truck. Now I have one thats really straight, but very grotty. It will be dismantled and the top runner will be changed to the 280Z so it will mount on the existing 280Z mounts. Thanks to HaZmat for that tip.



Now for the indicators and air dam. The indicators are not the best, but with some repairs they will do for now. If it all works well I may buy a set from Zcardepot.

This is what I started with.



attachicon.gifOriginal Valances.jpg



The left lense was in pretty bad shape. The PO used a self tapping screw and broke the plastic. It also has a crack in the top section. I used some resin to repair the broken off section. Sprayed the screw with releasing agent so I could screw it out after the resin set.



attachicon.gifRepair Lens.jpg



Next was the bolts that hold the indicator unit in the body panel. One bolt was missing so I had to fabricate a new plate and get a bolt tack welded to it. (No photo of the two small tack welds on the bolt head).



attachicon.gifRepair Bolt-lug.jpg



The reflectors were in bad shape. The chrome foil was non existant and the steel back plate was badly rusted. I cleaned them up as best I could and gave the a couple of coats of primer.

I was debating on using chrome spray paint of aluminium reflecting tape. Ended up trying the tape first and if it worked ok leave it at that. It reflects good enough for these old indicator units.



attachicon.gifRepair Lens reflector.jpg



The indicators are now mounted in the airdam. The result is better than I expect from the old indicators.

I not impressed about the holes they cut for the indicators. The holes are too big and tapered to one end. The rubber gasket only just reaches it in some places. I also had to make L brackets so I could fit the lenses without pulling everthing out of shape.






Now to fit the air dam.







Nice work Chas, I am just starting a similar repair to my left turn signal lens.  But I don't have much experience with plastic repairs, what type of resin did you use and what is the material that you shaped as the temporary mold, also what did you use as a release agent on the screw.  I was considering the exact method for repair but wasn't sure of the best material to use.



Mike

Share this post


Link to post
Share on other sites

Nice work Chas, I am just starting a similar repair to my left turn signal lens.  But I don't have much experience with plastic repairs, what type of resin did you use and what is the material that you shaped as the temporary mold, also what did you use as a release agent on the screw.  I was considering the exact method for repair but wasn't sure of the best material to use.



Mike

Hi Mike,



I experimented with an old lens first and found Polyester resin had attached better to the old arcrylic and gave the best holding power. The Polyurethane let go easier.



You can find the polyester resin at hobby shops for around $10.00/kg. I found it at a local arts supplier for €8.00. The polyurethane is a lot more expensive at around €35.00 a liter.

I didn't use any coloring in the resin and its hard to notice on the outside.



The releasing agent costs around €15.00, but you can use silicone or teflon spray on the screw. I have tried both and they work just as good.

Just a quick spray, let it dry and wipe away any excess. Otherwise it can fill the threads in the small screw.



That black stuff was the most expensive :D. Playdoe for the local toy store at €1.50 a pot. I fashioned it into shape with a paddle pop stick and when it cured removed the playdoe and washed away any leftovers. Then filed it into shape and finished it with 500 and 800 emery paper.



Don't forget to rough up the surface wear the resin bonds to.



I used the Bick ArtSupplies resin in the centre photo.



Goodluck

Chas

post-25317-0-07400700-1432050282_thumb.j

Share this post


Link to post
Share on other sites

All of the premade conversion mounts that I have bought on line have been total garbage.  I may just design something myself and pay the local fabrication shop to make them for me.

Hi Jim,

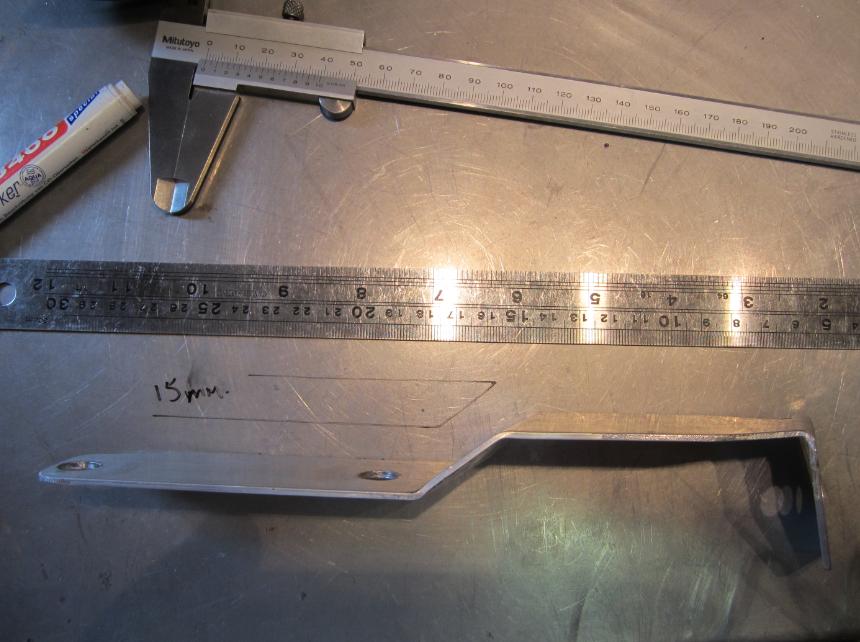

I know what you mean. Been there done that as well. I ended up making them first out of 50x2mm aluminium strip from a local hardware store and then out of stainless steel. The aluminium made it easy to drill and shape. You could do that and take them to a shop to duplicate in Stainless steel or coated/zinc plated steel.



Chas

Share this post


Link to post
Share on other sites

Very nice work.  I bought the exact same air dam from MSA and have yet to start on this project.  Finding a good solution to the bumper mounting has been taking some time.  All of the premade conversion mounts that I have bought on line have been total garbage.  I may just design something myself and pay the local fabrication shop to make them for me.

I ended up making my own for my 260Z. https://fiddlingwithzcars.wordpress.com/2014/09/06/260z-air-dam-and-front-bumper/

It's not perfect, but it looks a lot better than with the old 260Z bumper.
