Use some 400 grit Emory cloth. Need to get everything down to bare metal. Including inside the eyelet of the cable.

@Captain Obvious In Your spare time😀.Would you be kind enough to create a rough schematic of your relay install. Also curious on where you located the relays. I’m waiting on other parts to arrive so this would be a good time to go ahead and do the headlight relay upgrade. No Hurry of course!!

What option did you decide on for lowering the car?

Possibly, FS5W71B. 81-83ZX ?

Inexpensive to replace, Easy to get to with the booster out and your already under the dash side by side with the pedals. With it being dry the slave cylinder could be leaking as well. Pull back the dust cover and take a look.

Jeff, I believe these two pics show the location @EuroDat is referring to. Pics 2&4.

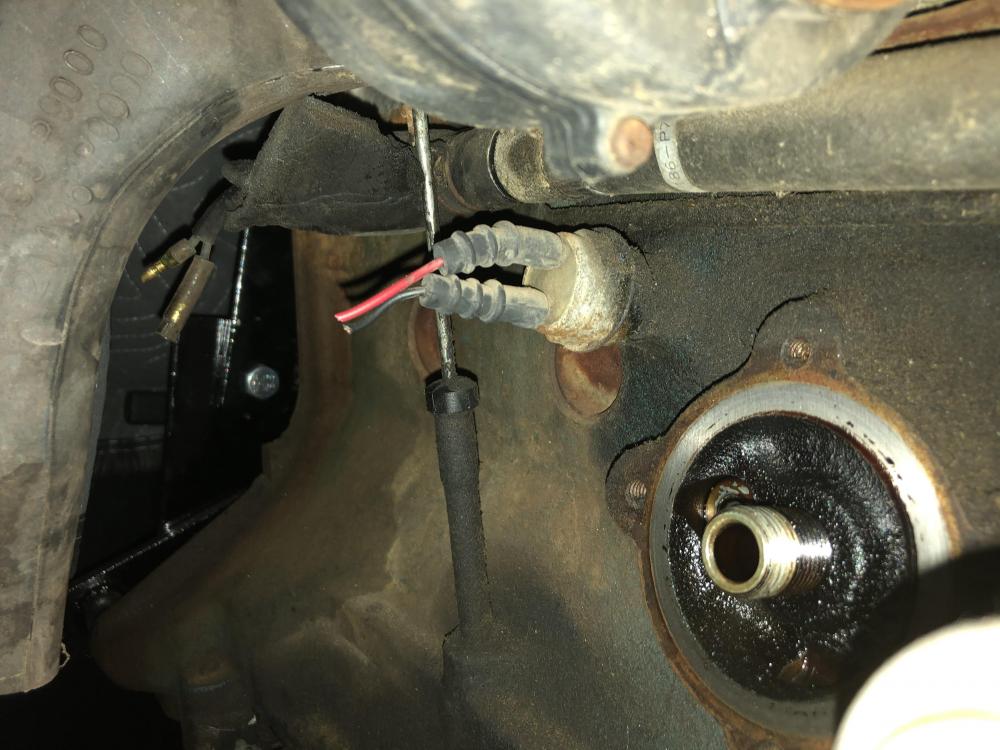

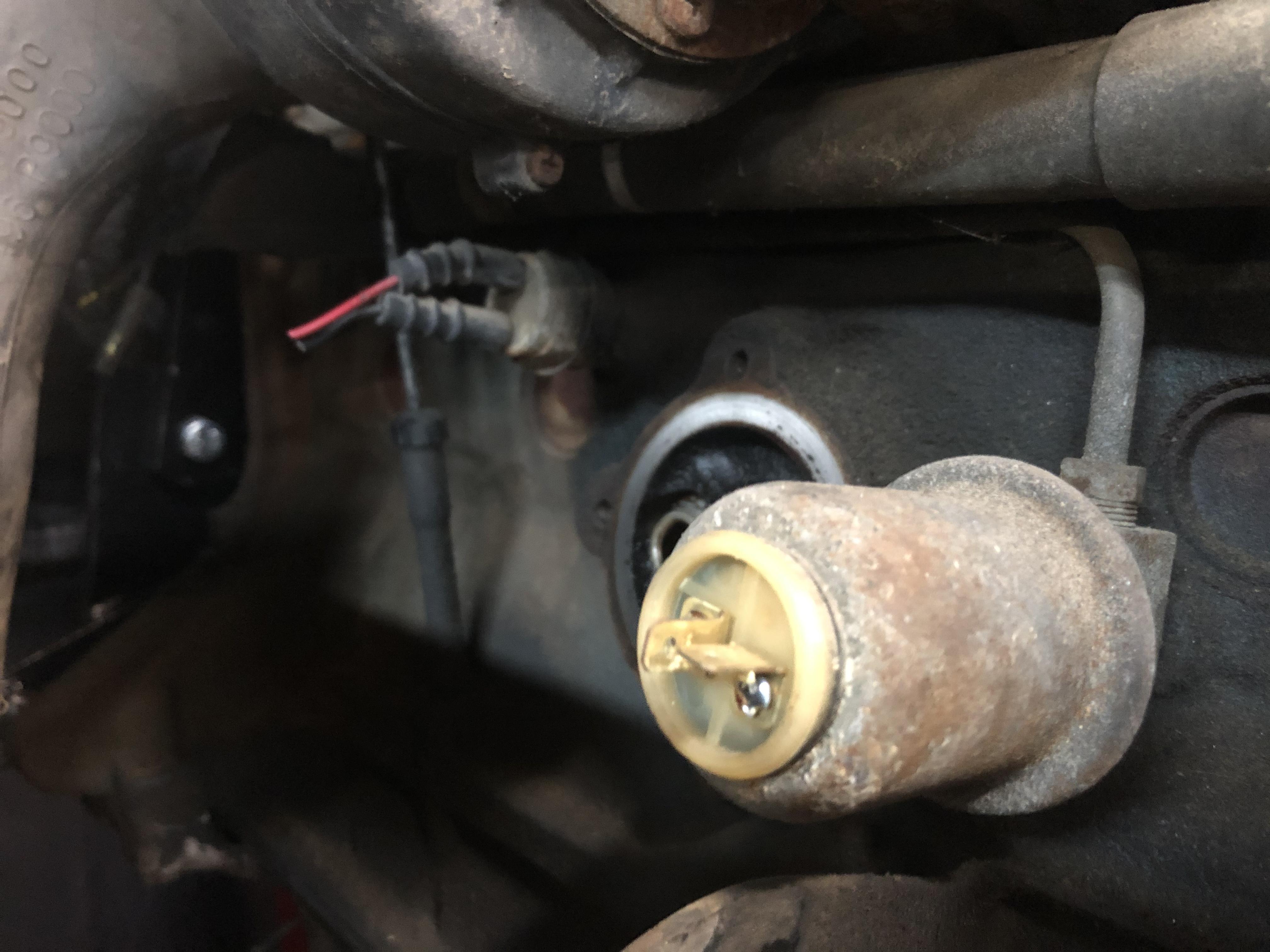

Here’s a couple pics off my 83zxt engine I bought. Haven’t verified it but this might be it.

Awesome, thanks Gentleman...

@EuroDat, I recently replaced the seals on the tail shaft/shifter rod on my 71B transmission 83ZX. The o’ring was the only seal visible on the outside of the speedometer assembly. The seal that you are referring to above was not visible. Is the small seal part of the speedo assembly itself?

ZCD sells the plate. You’ll hav to polish it up before you put it on that beautiful manifold....

Thoughts and Prayers for you and your family

Have you checked the fluid level in your master cylinder?

ZCD 800-1796 $20.50

I’ve heard that as well from another member. I can check the order number if you like.

Have you checked ZCD? Used their stainless lines on my upgrade. Don’t have a measurement for you. Same lines they provide in their kit.

Just sent you a pm

It’s the 10” booster from a 79zx. 1980 & 81are supposed to be the same but I can only say from experience the 79 is a true bolt on upgrade without modifications.

They had to find a core for me. Might want to check, there getting rare. Even if you don’t use it right away. Should have taken a side by side picture of them to show you the difference.

Are you looking to upgrade the booster? From what I’ve read on different posts was that made a big difference with the willwood as well. Something to do with the brake pedal travel being shorter.

Yes Sir. I notified ZCD with the diagram and notes to pass along/add to the sales post when purchasing the plate to help others. Guess it didn’t make the press!

Here’s a new one from Cardone. Bought one... good quality for the money.

Good deal!

Here is a post that Captain Obvious contributed that fixed my same issue. I plugged both holes although only one is necessary with tapered rubber plugs from Ace hardware. Covered each with high temp silicone. These can be removed if necessary if needed. Here’s the diagram. Thanks CO!!

Does it have the OE pump installed?

Have you thought about using the 15/16 Mc off the 79zx? I upgraded to the 79 booster and master cylinder on my 78. Bolted right in with clearance. The booster is the same depth but larger in diameter. Haven’t had the car on the road yet but what I’ve read it performs well.
