Blower fan wiring diagram?

grannyknot
in Electrical

Featured Replies

Does anyone know of a more detailed wiring diagram for the blower fan and switch?

I found this one but it's too basic, there are 6 wires coming from the switch and I need to trace them down.  The car previously had A/C and I think the wiring harness has been modified.



ColorWiring240Z-1971-USA-Early.pdf

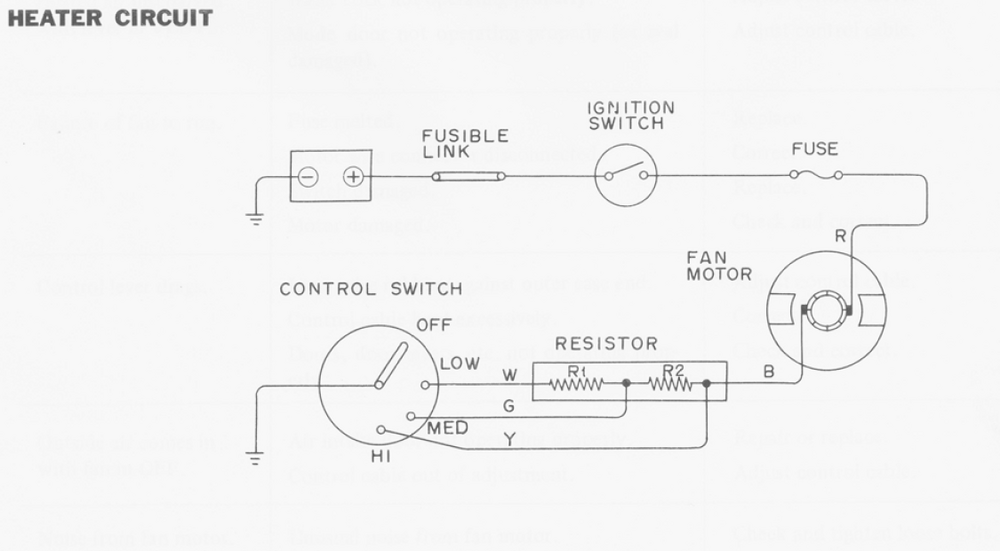

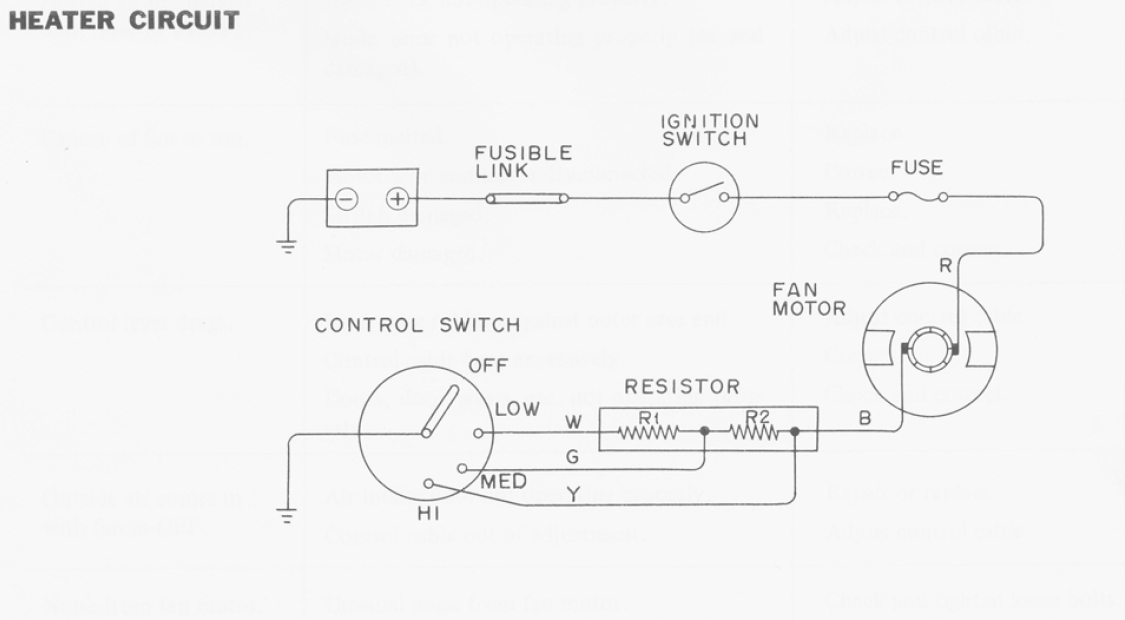

Snipped from S30-heater.pdf. That file may be on the downloads, but I couldn't find it easily.


    • Thanks 1
