Factory Service Manual question


RMin280

Recommended Posts

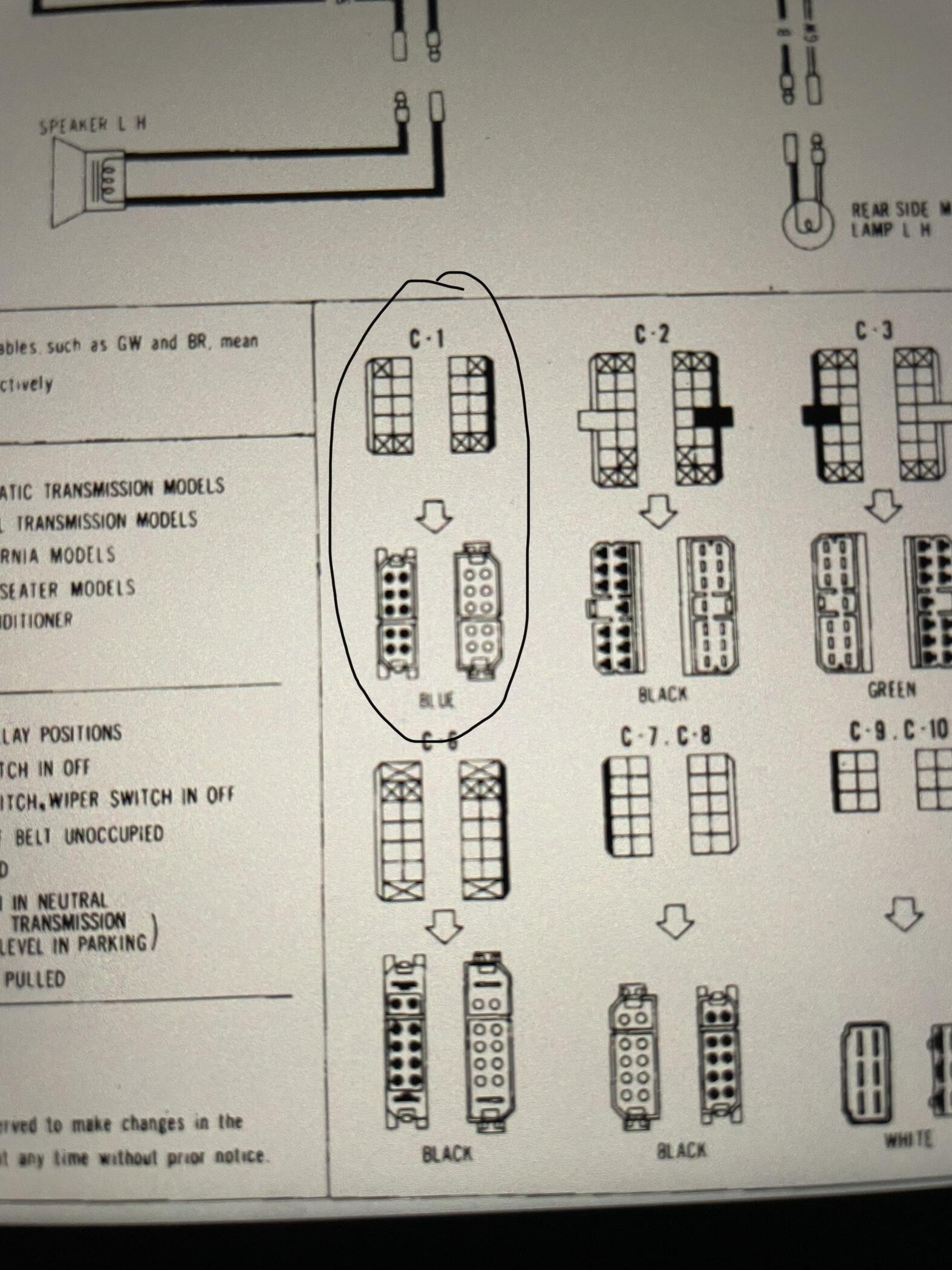

I’m trying to track down an electrical issue and I’m going through the fsm and I found the wire I’m looking for, but it goes through the connector c-1. The issue is that on the last page, it shows the connector with the same shape that I saw on the diagram, but it has an arrow pointing to a different shaped connector. Does anyone know what this means? Image is attached.


Link to comment
Share on other sites


@Terrapin Zis correct.

Those connectors are also color coded. C1 is blue as indicated on the wiring diagram.

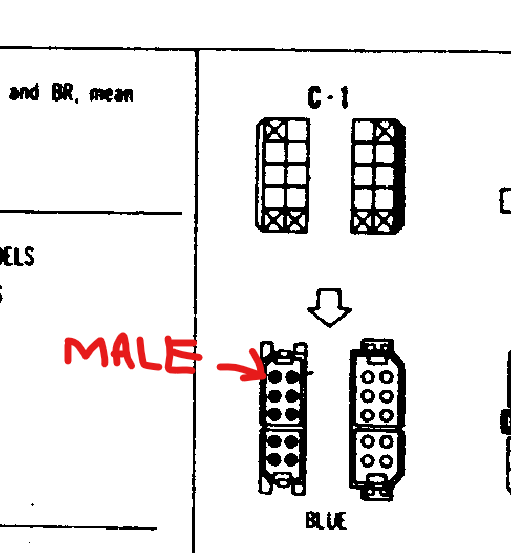

Another convention, knowing which side has the male pins:

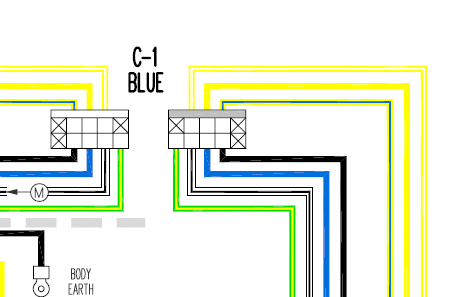

So in the wiring diagram:


The male pins should be on the engine harness side, and the female pins should be on the body harness.

If you see how the connector is shown in the wiring diagram, there are no wires going to where the Xs are.

  • Like 2
  • Agree 1
