1973 240Z Horn signal wiring/relay location


hotsho111

Recommended Posts

Posted (edited)

Hey, next up on the electrical list is the horn and I've hit a bit of a wall.

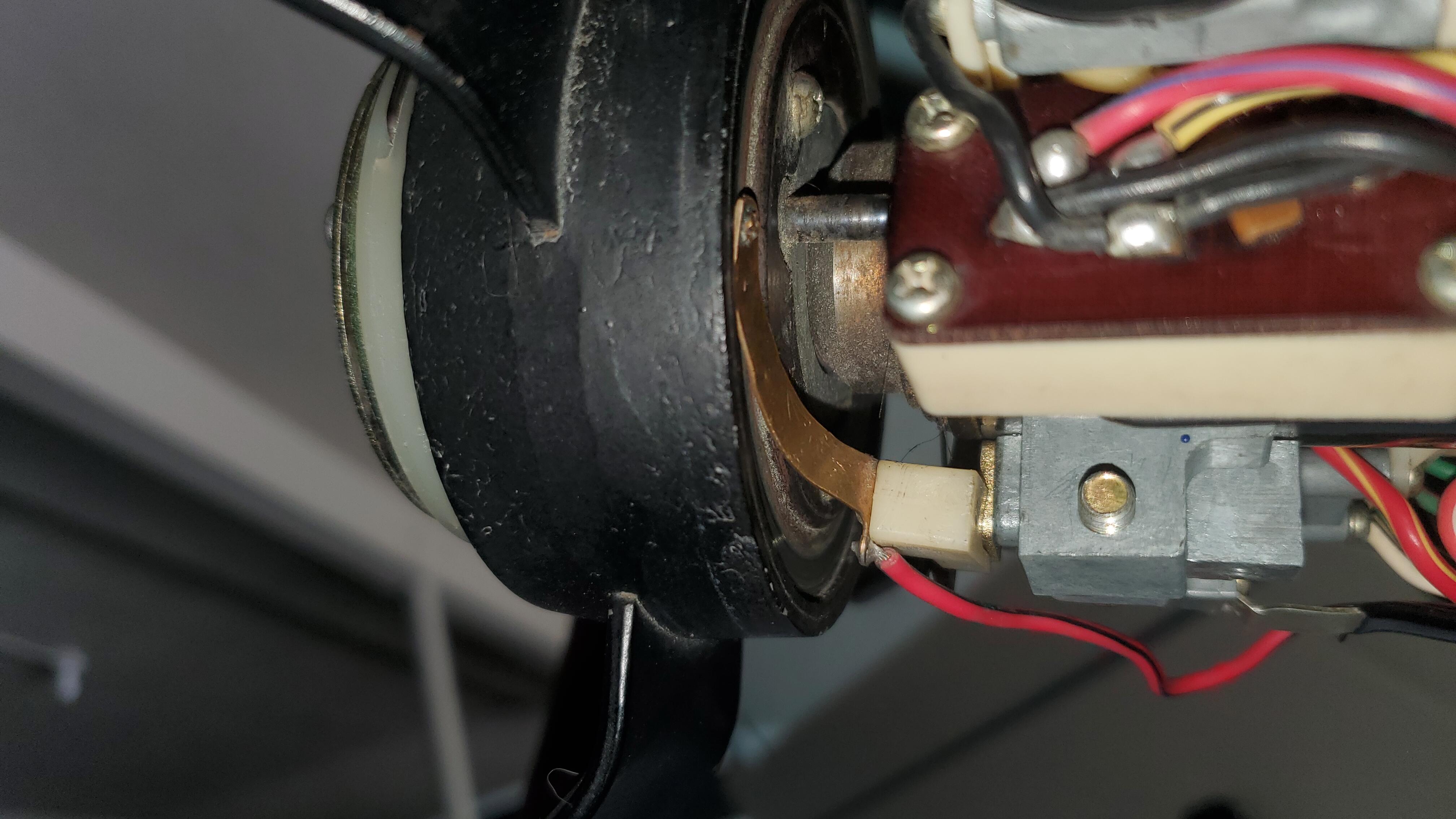

If I push the horn I get no noise and no noticeable relay sound. First thing I did was check and swap the fuse and no difference. My column does have the brass arm contacting the steering wheel and I do measure 12V on the red wire connecting to it. I tried measuring the voltage at the horns alone and didn't get any voltage but I'll try and confirm when I can get a friend to help

I also confirmed that when pushing the horn button that the horn switch does get grounded.

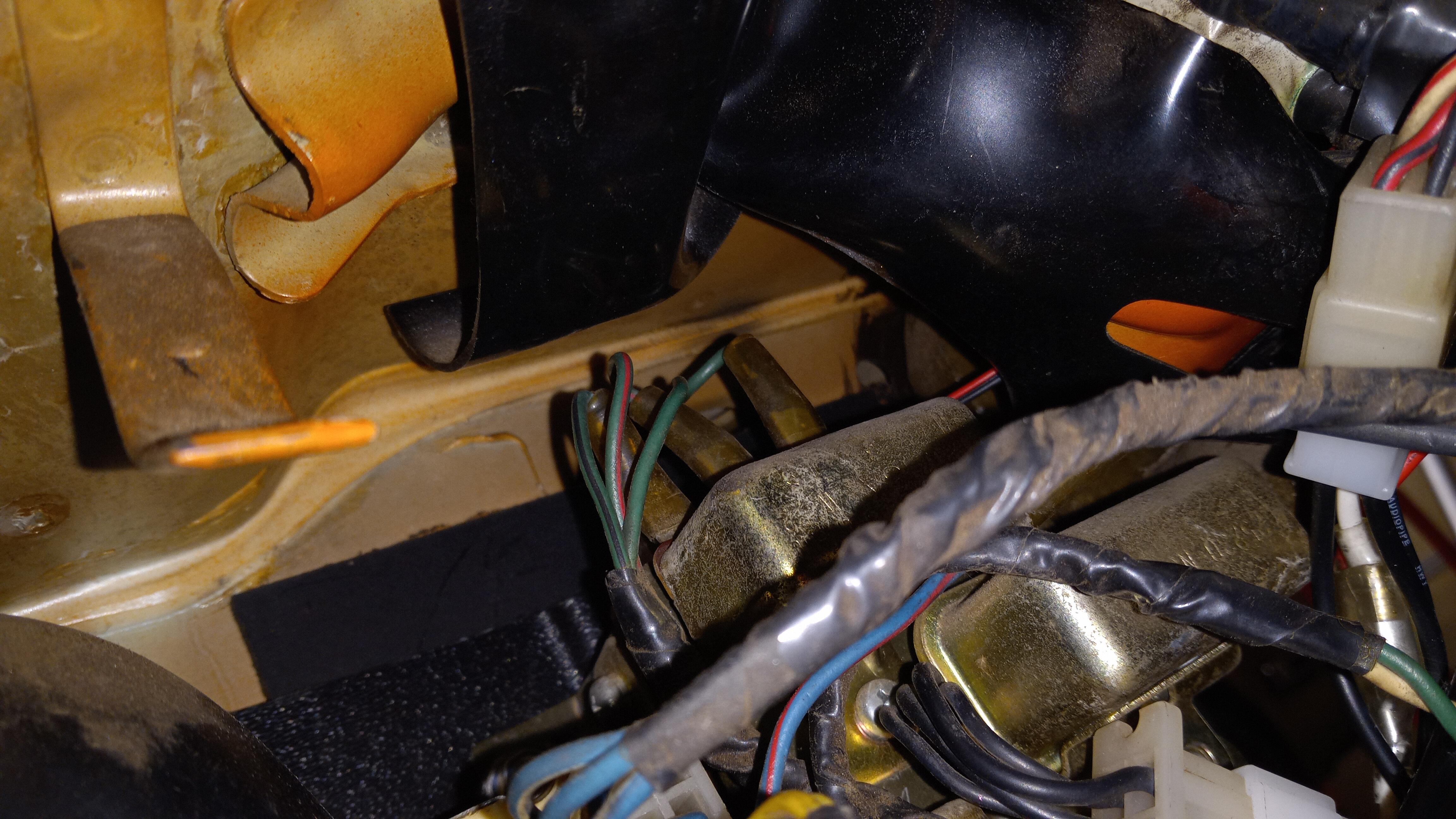

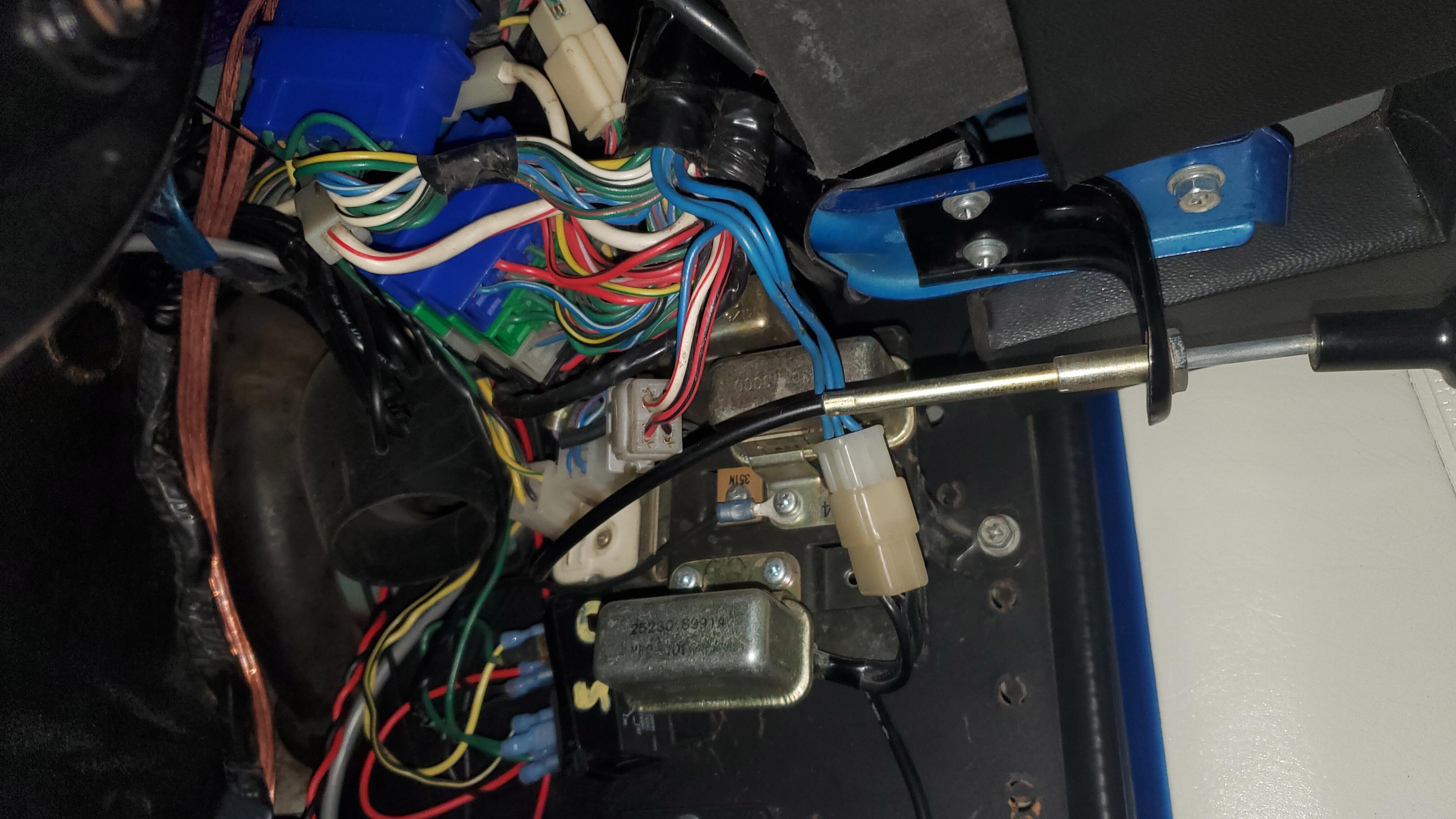

To me it seems like an issue at the relay which I want to check next. Looking at the the FSM it says the horn relay should be in the right dash side panel bracket, which I assume is the set below. I don't have much access to that side of the car, but if this is the right area, which of these switches is the horn relay? I think the bottom one is for the wipers.20220604_134612.jpg

The left is the front of the car and you can see the closed passenger side door card on the right

Thanks!



Edited by hotsho111
Link to comment
Share on other sites

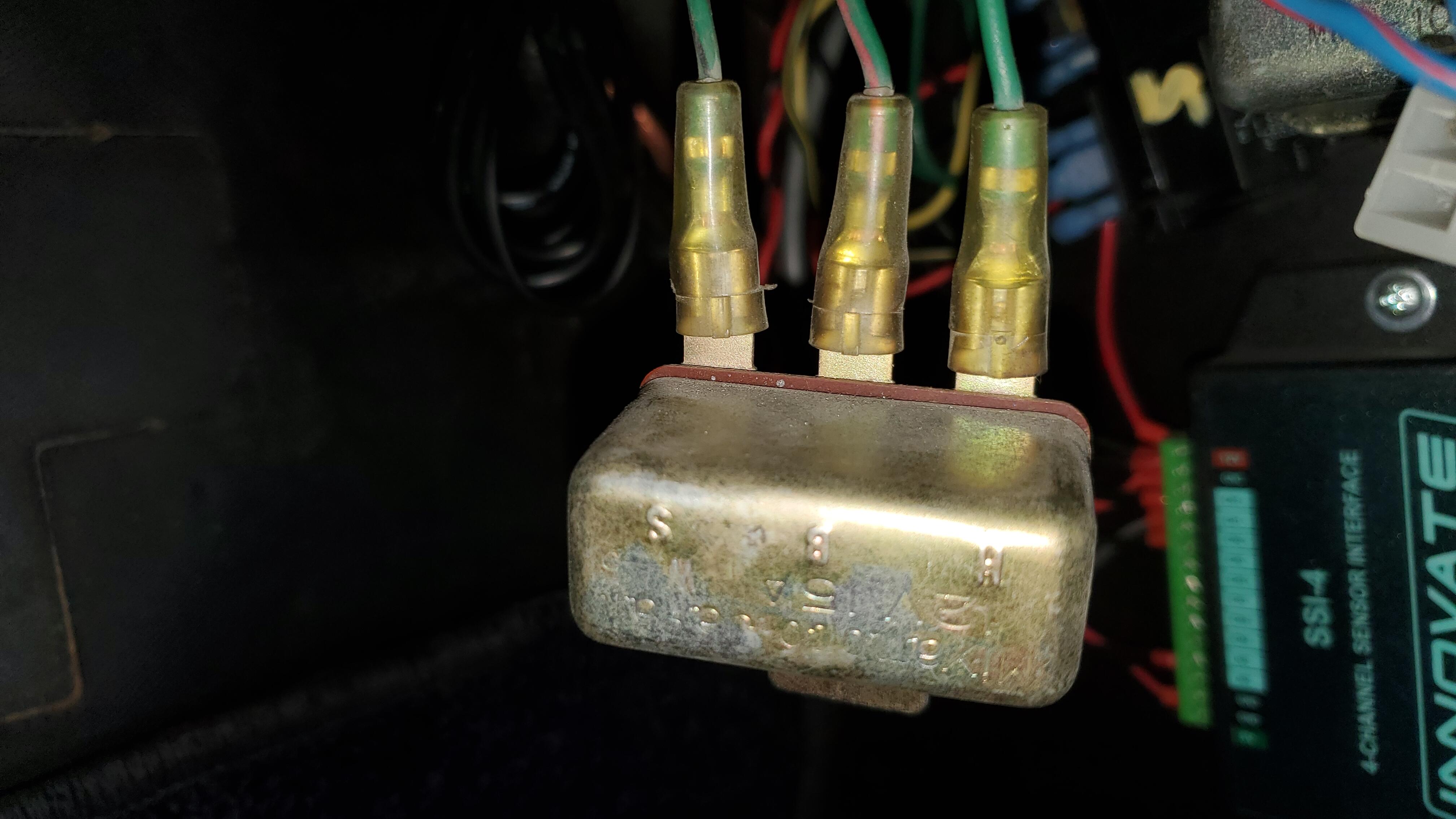

Look at the junction between the engine harness and the dash harness in the passenger footwell. On the engine harness side, you should see 3 wires with individual terminals going to the horn relay. Those three wires should be green, green/red, and green/black. I'll see if I can snap a picture for you.

Link to comment
Share on other sites

  • 1 month later...
Posted (edited)

Circling back as I've finally had a chance to look at this. I can confirm the horn relay works. If I remove the ground (GB wire connected to the S terminal on the relay) and directly ground it the horn works. I also independently tested the relay and it worked as well


So the problem appears to be the ground path isn't being completed. There is continuity from the GB wire at the relay to the horn switch (I checked the black wire on the front and the flexible brass arm on the back).

I don't remember how I tested the column originally but I can confirm it *doesn't* have ground. If I ground the steering column (just clipping a ground wire to the ignition switch from the battery) and hit the horn it works as expected.

Does anyone know how/where the column is grounded? Is it just by being bolted to the frame or is there an actual ground wire that should be connected somewhere? I would assume its the former and so maybe there's some paint or corrosion preventing that

Edited by hotsho111
Link to comment
Share on other sites

Posted (edited)

For the column grounding, is it generally grounded via just being bolted to the body or is there supposed to be an actual dedicated ground wire?

An easy solution would be to run a ground wire from the ignition or turn signal/light stalk to the metal dash bracket which is grounded.

Something else I noticed is there's a slight spark when the column is grounded and I press the horn plates together. That makes some sense since the red/black wire has 12v that touches the back of the steering wheel, but I would have thought that's just completing a ground circuit and there wouldn't be a spark. Any idea what's going on there? (I'm mostly just curious and definitely not an electrical expert so it just seemed a little unexpected) <- Thinking about it more, that makes sense. I figured I'd leave the info there if it helps anyone else though

Edited by hotsho111
Link to comment
Share on other sites

The steering column is grounded to the frame by it's mounting bolts. There isn't a specific ground wire connected to it. There is a large ground wire at the steering column to provide the grounds needed by the switches on the column but it's not directly attached to the column itself. Is your frame ground intact?



Link to comment
Share on other sites

Thanks @cgsheen1, that's what I initially thought. I can't confirm if the frame ground is intact but I would assume so.

I know it was common to ground columns around that time via the rag joint for the steering column so I was going to look into that next. The rag joint parts and the column are painted so I was gonna check if something wasn't able to ground because of that.

Another question I've had some trouble trying to confirm looking at the wiring diagrams: should the red/black wire that connects to the brass arm that touches the steering wheel have 12v power or should that be purely ground?

Mine has 12v so when I press the horn button (grounding the "column" via the ignition switch bracket) I get a small spark which makes sense in that context, but I would have thought that would all just be a ground circuit with no power

Link to comment
Share on other sites

48 minutes ago, hotsho111 said:

Thanks @cgsheen1, that's what I initially thought. I can't confirm if the frame ground is intact but I would assume so.

I know it was common to ground columns around that time via the rag joint for the steering column so I was going to look into that next. The rag joint parts and the column are painted so I was gonna check if something wasn't able to ground because of that.

Another question I've had some trouble trying to confirm looking at the wiring diagrams: should the red/black wire that connects to the brass arm that touches the steering wheel have 12v power or should that be purely ground?

Mine has 12v so when I press the horn button (grounding the "column" via the ignition switch bracket) I get a small spark which makes sense in that context, but I would have thought that would all just be a ground circuit with no power

You're just not thinking about electricity the right way.

Another term for voltage is potential because you have potential (aka stored) energy when the circuit is not complete.

Here's a rough diagram of the horn circuit.


You go from the positive of the battery to a fuse (not shown) to the horn relay. The electromagnet in the relay is just a long piece of wire. When the horn button is not depressed, there is no current flowing through the wire of the engine harness, dash harness, or horn relay. So you have a long piece of wire attached to the positive terminal of the battery, and that wire includes the red/black wire going to the horn button. Measuring along any point of that wire is the same as measuring at the positive terminal of the battery. The red/black is not at the ground state.

When you press the horn button, you are putting the red/black wire at the ground state with the negative terminal of the battery. Now you have current flowing. The electromagnet in the relay is pulling in the contact to sound the horns. You're going from potential energy to kinetic energy because work is being done.

So until you press the horn button, you should see voltage to ground at the green/red wire.

  • Like 1
Link to comment
Share on other sites

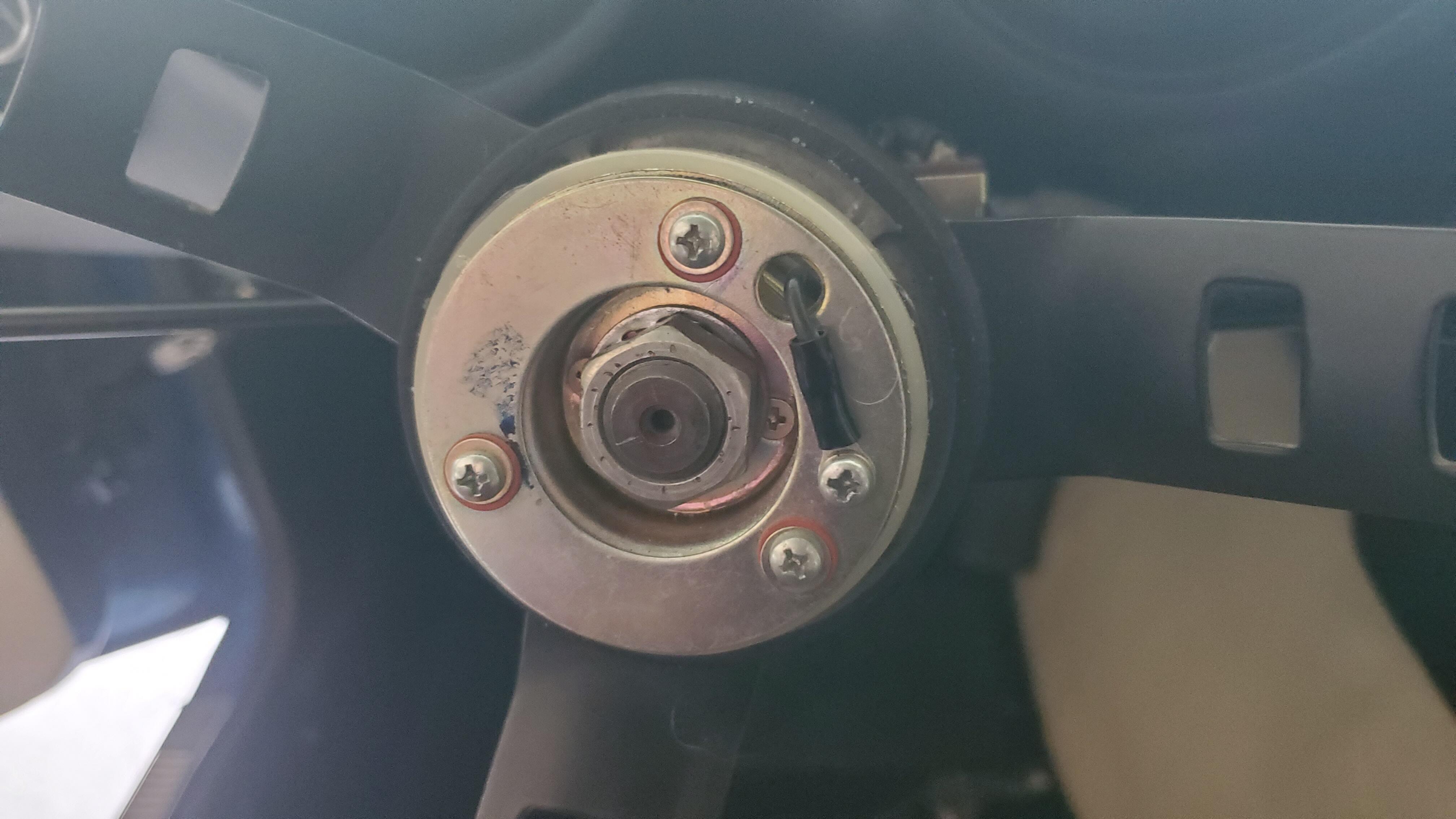

So I went out to check to see where exactly is the best point to measure ground on the steering column. For the body ground, you can use one of the screws on the scuff plates in the doorframe. Here is where you should put the other probe on the steering column. Be sure not to touch the top ring.


As for the body ground, it's in the engine bay. Unless you have a host of electrical issues with your car, the ground should be there. I put a battery cable from the negative to the grounding point because I could. It's on the passenger side of the engine bay, not too far from the firewall.




Link to comment
Share on other sites

Thanks for the explanation @SteveJ, I'd been doing some research today and went over something similar with a buddy so it makes more sense now.

Thanks for the ground check spots. I can try checking that tomorrow.

Link to comment
Share on other sites

Finally had a chance to get to this today. The ground strap is there but it's connected to the starter starter but there are a few small ancillary grounds that do go to the body.

@SteveJ I tried checking for continuity from the spots you indicated on the column and no bueno.

I'm not sure if the column ground is supposed to come from where it's bolted to the firewall, the metal bulkhead, or from the steering coupler in the engine bay. I thought the columns were generally grounded through the steering coupler joint as the column was generally isolated from the column tube. I'll have a little more time tomorrow and might start poking at that

Link to comment
Share on other sites

That should work for body grounding. I did a regular cable because I am me.

Check for resistance from the negative battery terminal to the bolts on the passenger side shock tower. It should be close to 0. If it's more than a couple of tenths, then something is wrong with your technique, or there is something wrong with the grounding.

Has anything been refurbished or refreshed around the steering column. Sometimes when people try to make things pretty, the paint they used insulates a part from ground.



Link to comment
Share on other sites

Taking that resistance reading with the ignition in the lock position it reads .2 ohms. With the key in the ACC position it reads about 8 ohms

The car was restored in ~2010 and they painted a lot (which is why I've been trying to track down what should be the source of ground).

I was poking at the steering coupler and the column does have continuity through the coupler but it doesn't have continuity to the input shaft to the steering box (that does have ground though). I'd guess it's because a bunch of this stuff has been painted over

I've attached a picture to try and help. The red circled bolts have continuity with the steering column. The green part has continuity to ground. I think there should be a connection between the two where the steering box input shaft is bolted to the H section of the coupler. The H plates have been painted blue so I'd guess that's why there's no continuity there.


I think the "proper" solution is to probably take those coupler plates off and make sure there's not paint preventing contact, but the easier solution (and what I'll probably do) is just buy a short grounding strap and connect them that way

Link to comment
Share on other sites

I have very little 240 experience, but I wouldn't expect the steering coupler to be the "planned" source to ground the steering column.

I would expect the steering column to be grounded through the bolts that hold it to the firewall or the bolts that hold it up to the underside of the dash.

  • Agree 1
Link to comment
Share on other sites

I definitely thought the same thing but it looks like that coupler is a pretty common ground approach for 60s/70s vehicles (American ones at least). The column might get ground from where it's bolted to the firewall as it looks like the steering column bearings aren't rubber coated like some other steering columns from the period so there should be some contact there

I know the entire column is isolated from the dash mounting bracket as that mount has a rubber gasket so it shouldn't touch the column housing

Link to comment
Share on other sites

So I (actually) read through the details of the thread this time and I think I have a better understanding of what's going on...

The issue you are having is that the steering SHAFT that runs through the center of the steering column assembly does not seem to be grounded. The outer shell may be (or may not be), but that isn't good enough to get the horn the actuate. You actually need the rotating steering shaft in the center to be grounded.

So, I agree though... I would expect the center shaft to get grounded through the roller bearings, but maybe not?

Have you tried grounding the outer tube with a dedicated wire and seeing if that makes your horn work?








Link to comment
Share on other sites

I connected a ground strap to the ignition switch and that grounded the column and the horn worked then (which is how I ID'ed it being a grounding issue).

I also agree in that I'd expect the center shaft to be grounded via the bearings since they are metal. American cars of the period would use a metal bearing in a rubber sleeve so it makes sense why those needed a grounding strap. I don't know if the housing was painted or what as it doesn't seem to be grounded through the housing

Link to comment
Share on other sites
