ennisdavis Posted November 7, 2021 Share #1 Posted November 7, 2021 Any of you have a 240 driveshaft laying around. I need measurements of the bolt pattern, X and Y. and....the hole size also be nice if someone has a 260 driveshaft for measurements too Link to comment Share on other sites More sharing options...

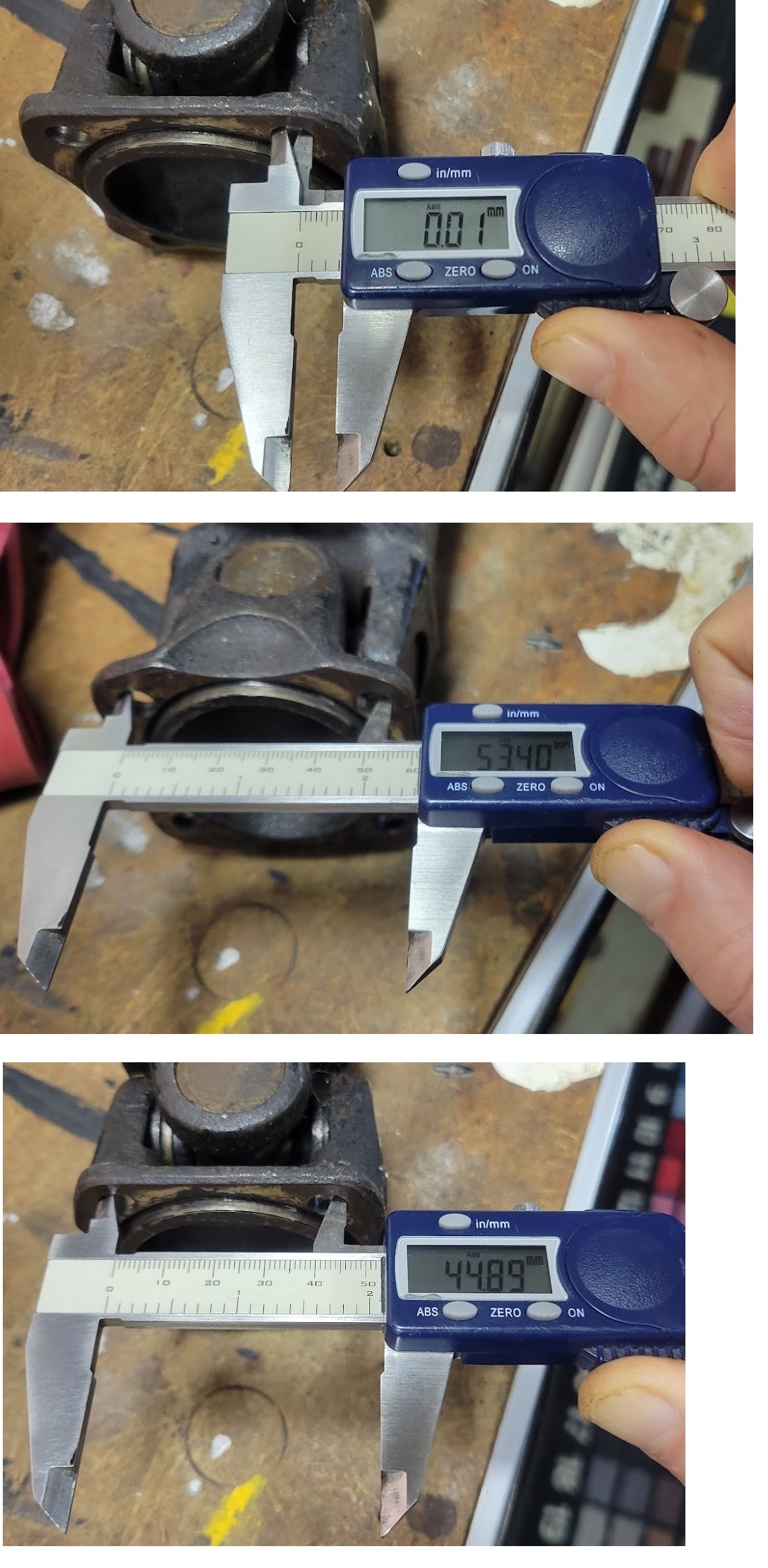

CanTechZ Posted November 7, 2021 Share #2 Posted November 7, 2021 (edited) Good timing on your request, my 1970 propeller (drive) shaft is currently sitting on my workbench. I measured the "X" dim as 53.4mm and the "Y" dim as 44.9mm, using a digital caliper. To do direct center to center measurements I first zeroed the calipers on one of the holes, see pics below. The holes measured 8.10/8.15mm dimeter, clearance for an M8 bolt. Sorry I don't have a 260Z shaft. Edited November 7, 2021 by CanTechZ 2 Link to comment Share on other sites More sharing options...
