Alternator Wiring

Featured Replies

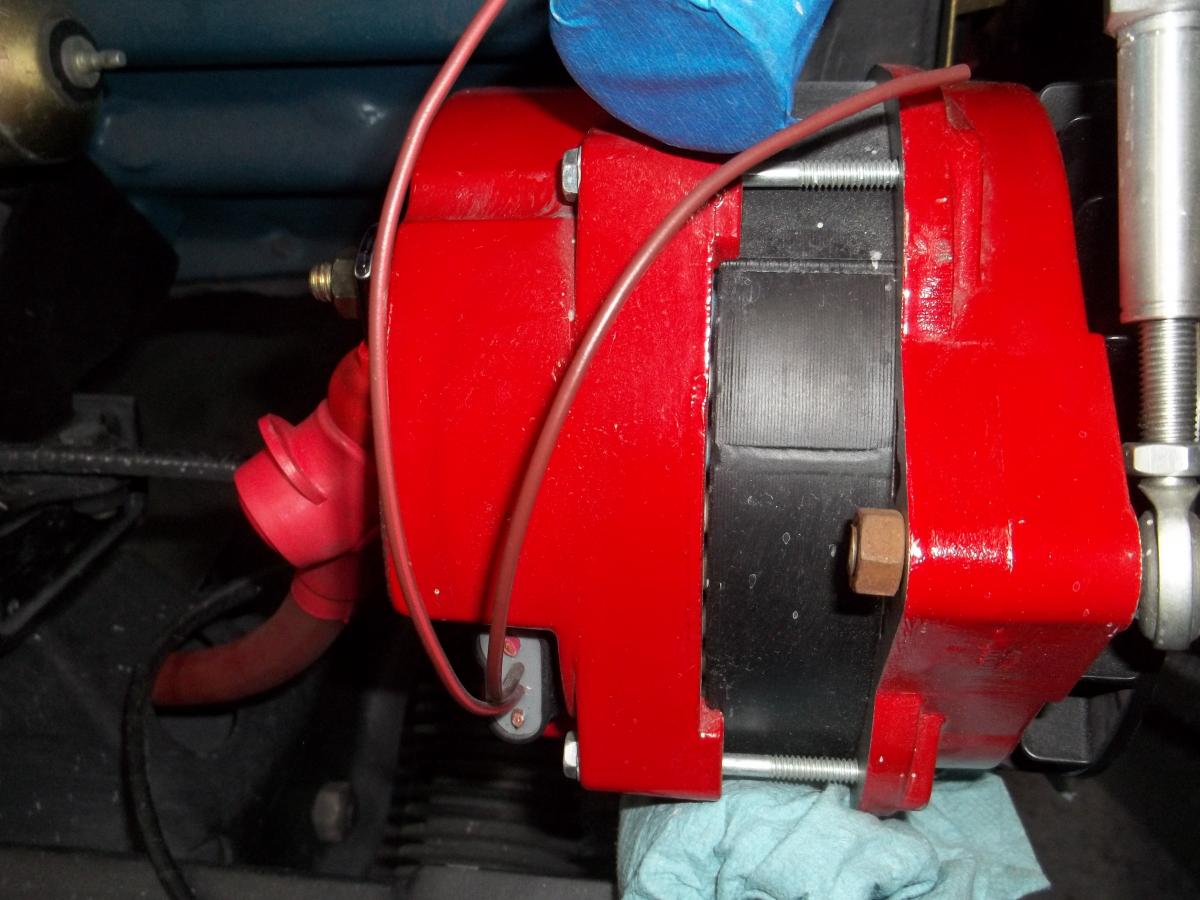

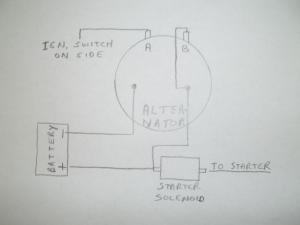

post-17813-0-88949400-1422386505_thumb.jpost-17813-0-45759100-1422386566_thumb.j   Is this the proper way to wire my alternator? It has two wires, like in the pic. I have an upgraded 71Z. Thank you.

what is this Alternator?

CS? 280zx's?

Here's  a write up on my '72 upgrade to an internally regulated alternator.

  • Author

Sorry, forgot to i.d. alternator. It's an internally regulated Iraggi 220 amp. I'll look for labels. Thanks

S
