I've been going through and replacing vacuum lines and I need a little bit of help. Some of my lines are labeled, but I cant seem to find anything that references them besides a terrible picture diagram.

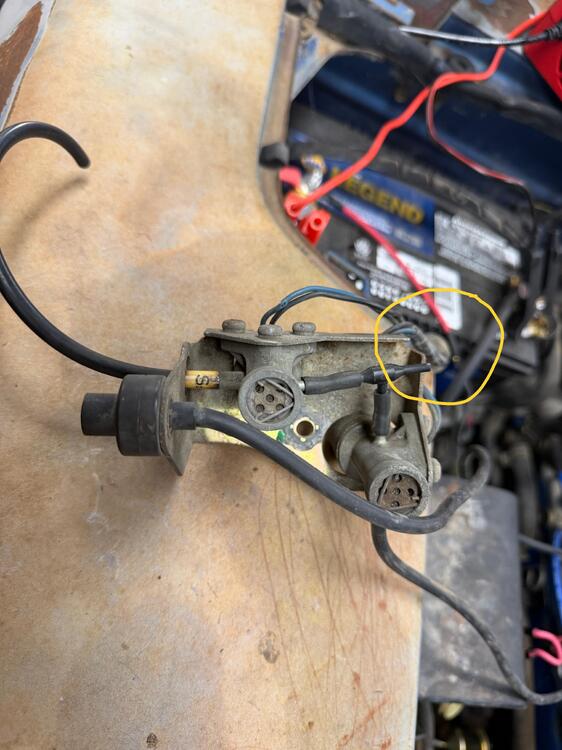

Whatever this thing is below, im looking for where the hose that is connected in the yellow circle is terminated. I know is a long hose, it was disconnected at some point and I dont know where it leads. I know it goes around the back of the engine to the driver side somewhere.

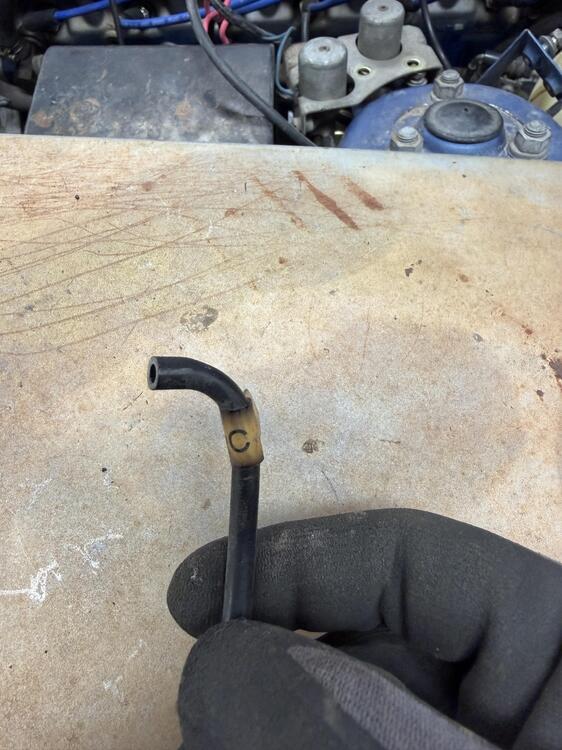

I have already replaced the EGR hose, Fuel pressure regulator hose. There is also a line that runs front to back along the manifold that was replaced. I cant seem to find anything left where that hose would reach. The hose is labeled C.

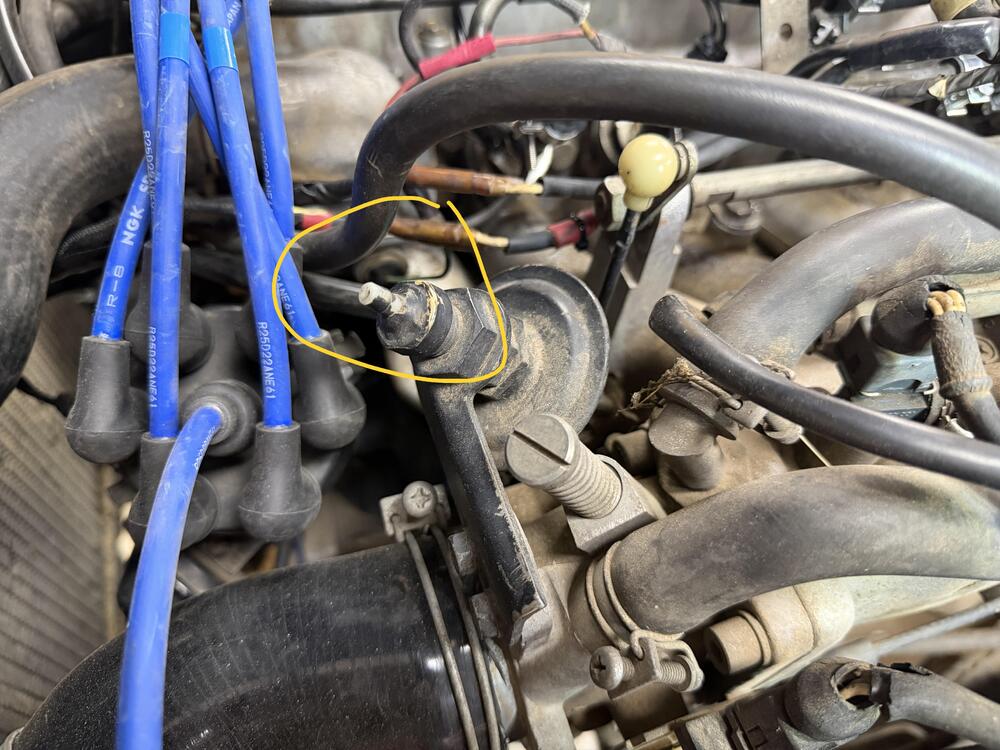

I also need to find out what the connector pictured below connects to. It looks like a diaphragm that adjusts the throttle? Nothing was ever hooked up to this when I got it. it doesnt connect to the above. The hose above is way to small. I saw a T under the air intake, but i have everything hooked up there, as far as know.

7 hours ago, nowak1981 said:

I've been going through and replacing vacuum lines and I need a little bit of help. Some of my lines are labeled, but I cant seem to find anything that references them besides a terrible picture diagram.

Whatever this thing is below, im looking for where the hose that is connected in the yellow circle is terminated. I know is a long hose, it was disconnected at some point and I dont know where it leads. I know it goes around the back of the engine

The nozzle in your photo does not have a vacuum hose conne ted to it. It is a restricted open outlet to retart the diaphragm action.

See photo of my 280Z.

I can check my car tonight and get back to you with the other connections. Mine is still more or less original.
