I have my 240Z in for paint and the fenders are off.  I see a fender liner (rubber seal) on Z Car Depot.  Do you all use them when installing your front fenders?  If so, the clips that hold the seal are $6.50 each and you need 12 of them.  Is there an alternative for the clip?

https://zcardepot.com/collections/gaskets-grommets/products/fender-to-body-inner-rubber-seal-240z-260z-280z

https://zcardepot.com/products/fender-liner-clip-oem-240z-260z-280z-70-78?variant=19274988060785

Any help is appreciated.

Get a bulb seal. No clips needed.

Thanks @wheee! what are this black Rubber squares called?  I guess I need those too?

I used closed cell foam tape. Does not absorb moisture.

@wheee! how think is the tape and where did you get it?

5/16 x 3/4”

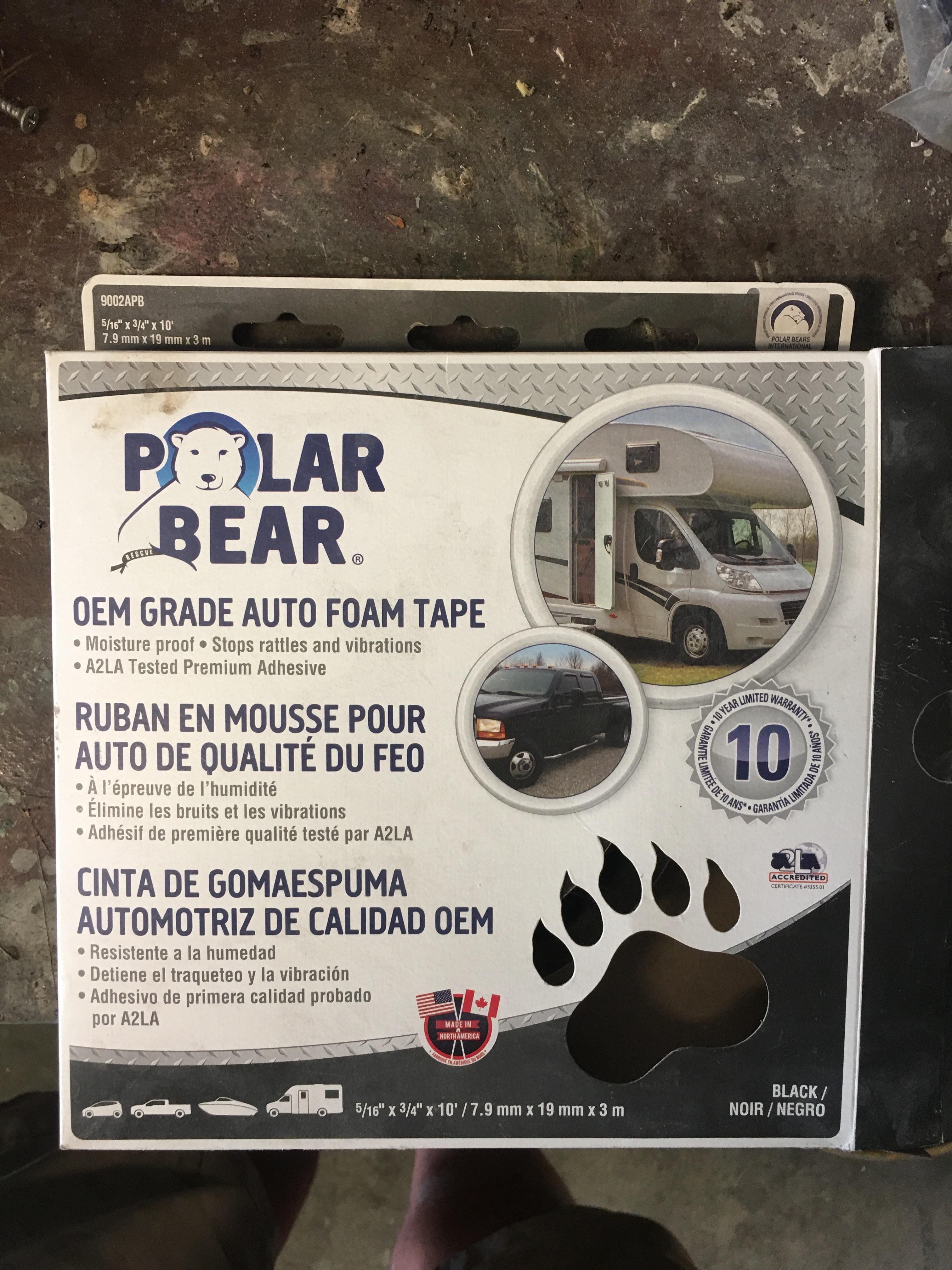

polar bear brand from Canadian Tire.


@wheee! do you pinch it around the rib or do you lay it along side of it?

It snaps over the ridge leaving a bulb on top to cushion the fender. Super simple.

@wheee! I hate to beat a dead horse, but I see the foam tape as a solid piece of foam with one sticky side.  I don't see how it "snaps over the ridges".  Do I cut a slit in the tape to allow it to snap over the ridges.  Can you explain a bit more please.  Also, will this work?

https://www.homedepot.com/p/Frost-King-3-4-in-x-5-16-in-x-10-ft-Black-Rubber-Foam-Weatherseal-Tape-R534H/202262324

Thanks!

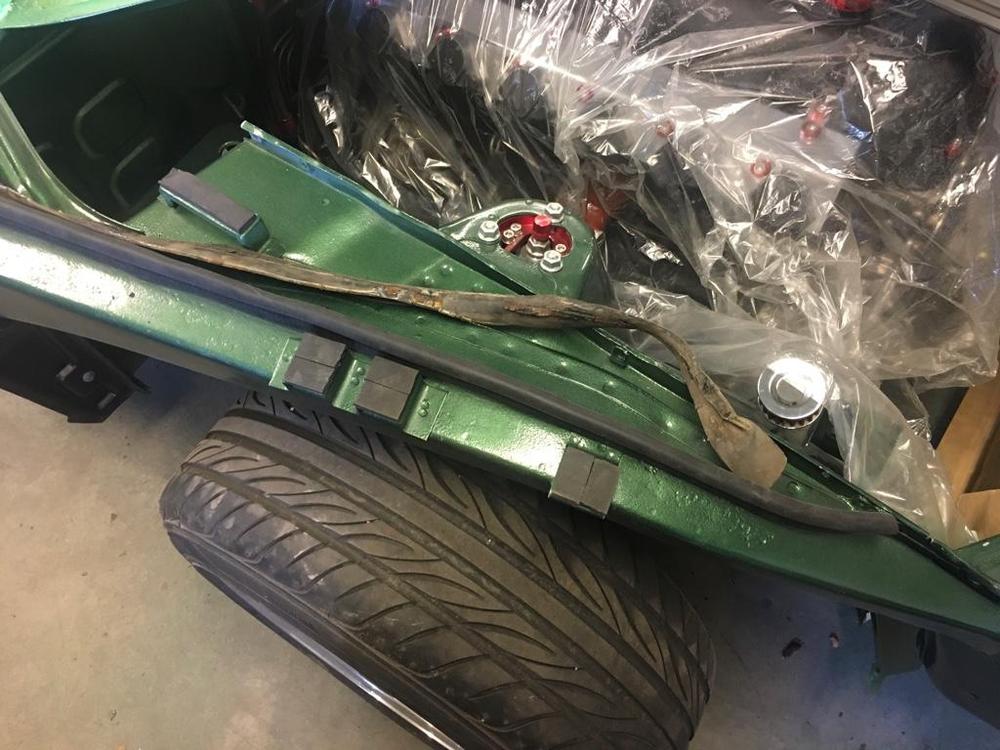

Sorry, the foam tape goes on top of the flat fender supports. The bulb gasket goes over the fender gasket pinch weld.

https://www.classiczcars.com/forums/topic/50908-1976-280z-restoration-project/?do=findComment&comment=586590

This ended up being the trim I used for the fender liner seal.  It fit snug on the pinch weld and the seal fit perfectly.

https://www.amazon.com/gp/product/B085NHLTS4/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

uxcell Trim Seal with Top Bulb, EPDM Rubber Seal Channel Edge Protector Sheet, Fits 0.5-3mm Edge 3Meters/9.84Ft, 1.22inch Height

Edited June 20, 20206 yr by HappyZ
Removed Pic
