Cam's 1977 240k Sedan

[240k Style]

Oh shame dude, I thought the blue mobile was going too!

[Yamahacam]

It runs and drives but no way I would take anyone in my family in it, needs brake work and has leaking valve stem seals.  Waiting till I get my own shed before starting on  that one.

[240k Style]

Yeah I know them feels. I really want to have the sedan stripped and repainted but I need to get the coupe undercover first

[Yamahacam]

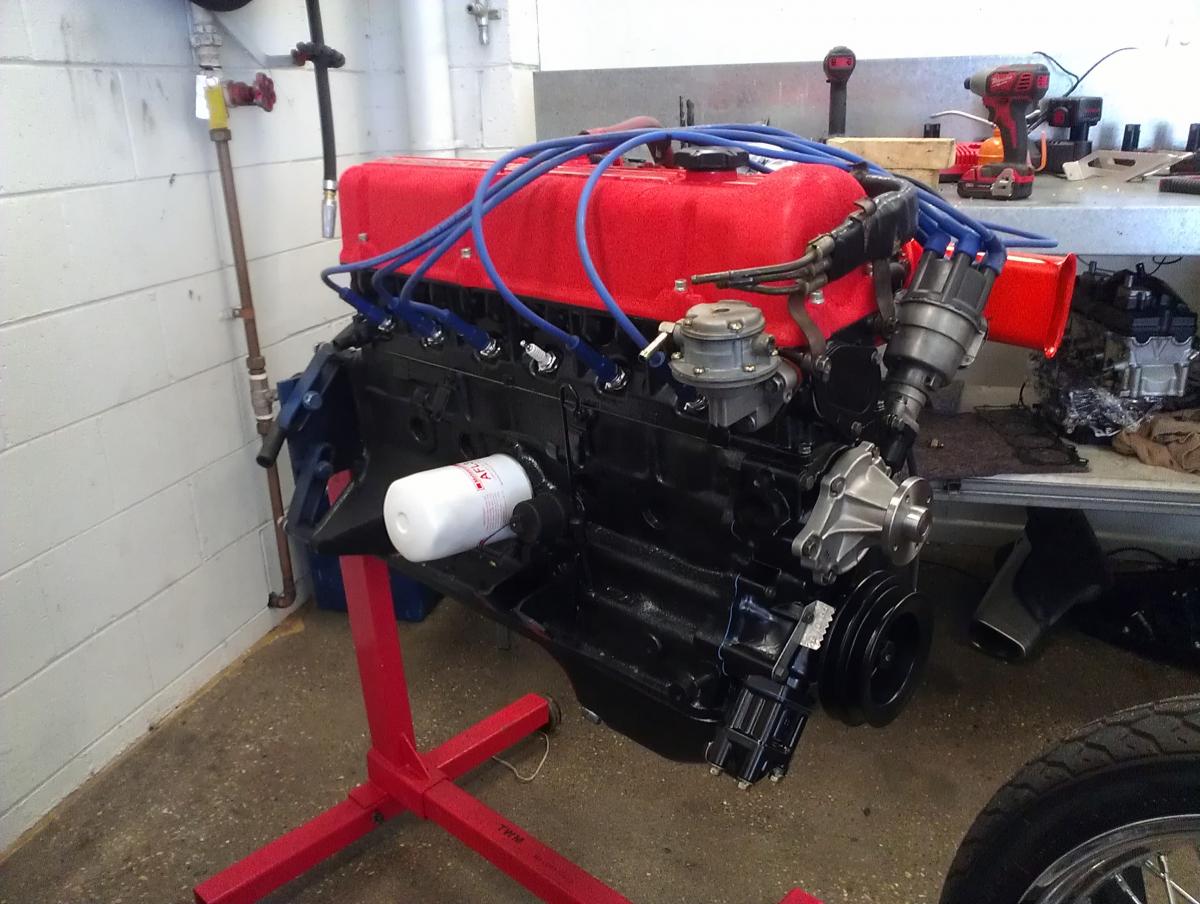

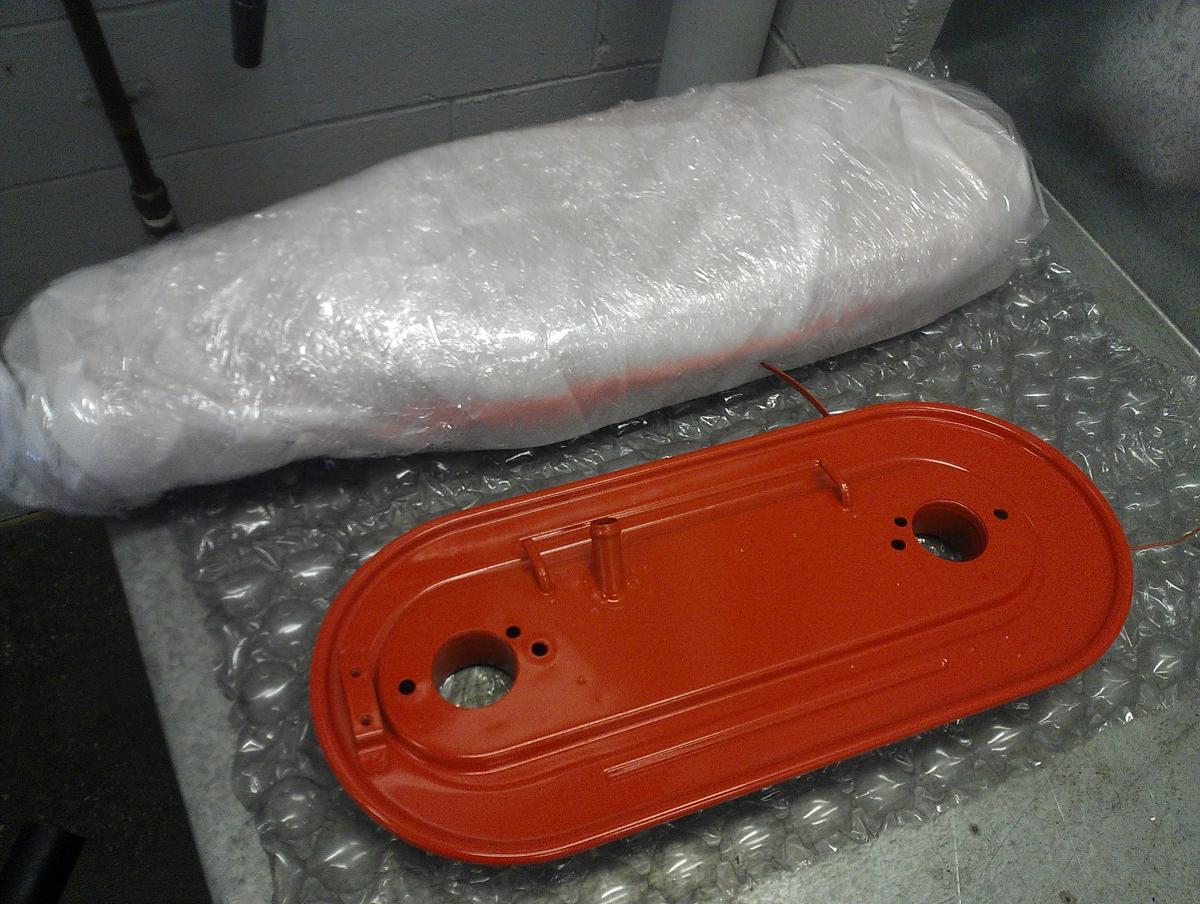

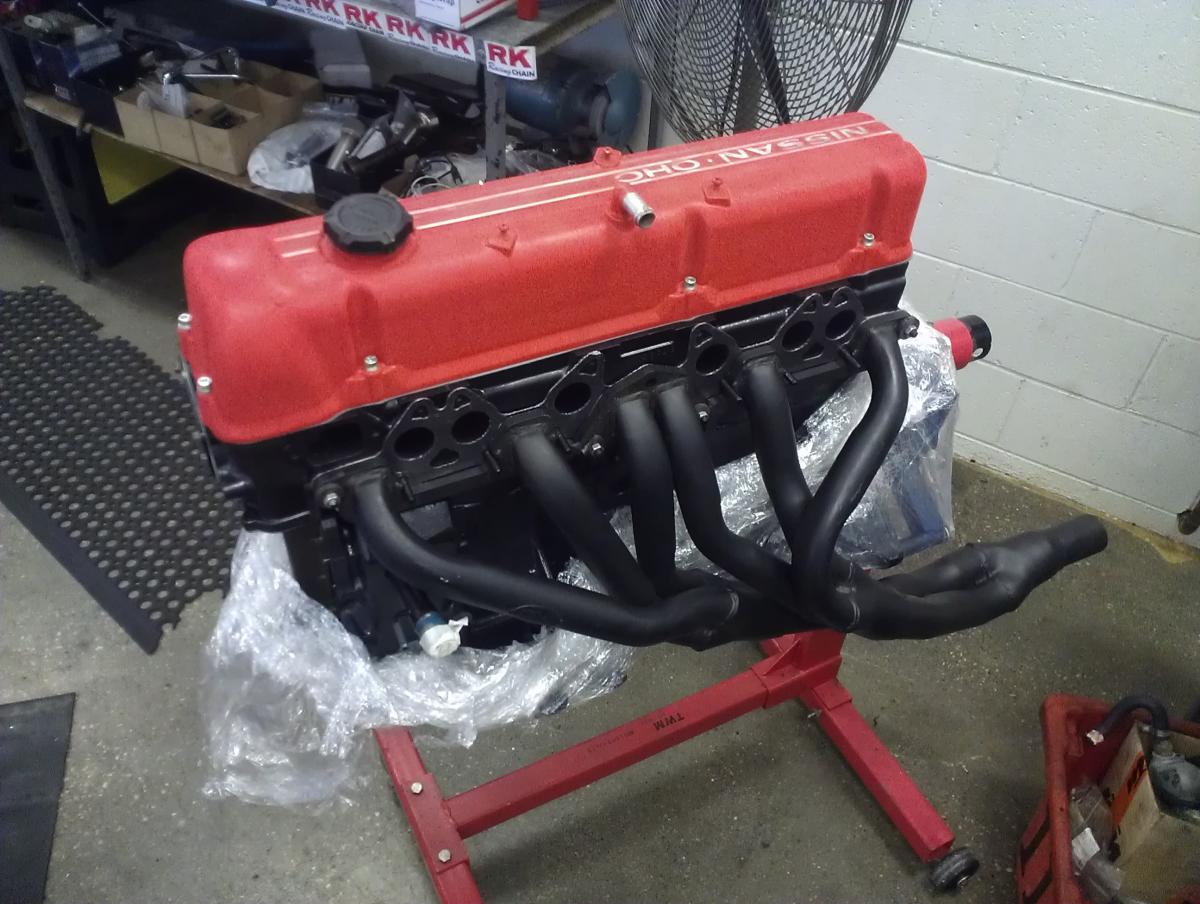

Engine getting closer now, still waiting on a gasket set from amazon but have got it this far with stuff I already had. Going to run with the original 260z air fliter housing for now at least. Painted that in Chev orange which is not a very good match but looks good I think. Have been reading many posts on what kind of power to expect and don't know what to think. Some really low educated guesses and some high, then I look at Robello's mods and he can really squeeze some power out of these things.  Just hoping for a noticeable improvement, may dyno if I get really keen.



Mods are:

240K 83mm block

260Z crank

240 83mm pistons shaved 2.79mm

240 rods

Ported head E88 head ( by who?)

Not sure on  cam specs but looks to be about 280 duration? Moderate lift. Made by Camshaft engineering in Brisbane, no longer exist.

Dome top SU carbs

Removing belt driven fan for thermo.

Hi tech headers through 2 1/4 system

5spd manual



Any guesses?





[240k Style]

Didn't have to change the sump and pickup?

[Yamahacam]

No, that's why I didn't just rebuild the 260z engine. Combined the 240k with 260z so can still use original dipstick hole. That seemed to be the main issue, swapping sumps and pick-ups didn't look too bad but the dipstick looked more difficult. In using both motors I could machine the 240 pistons and use the longer rods to basically give me flat pistons instead of dished. Local parts guy has 240z's and said this was the mod back in the day to keep l24 engine numbers.

[Red Rocket]

Oh she's looking cool there Cam, very nice

[Yamahacam]

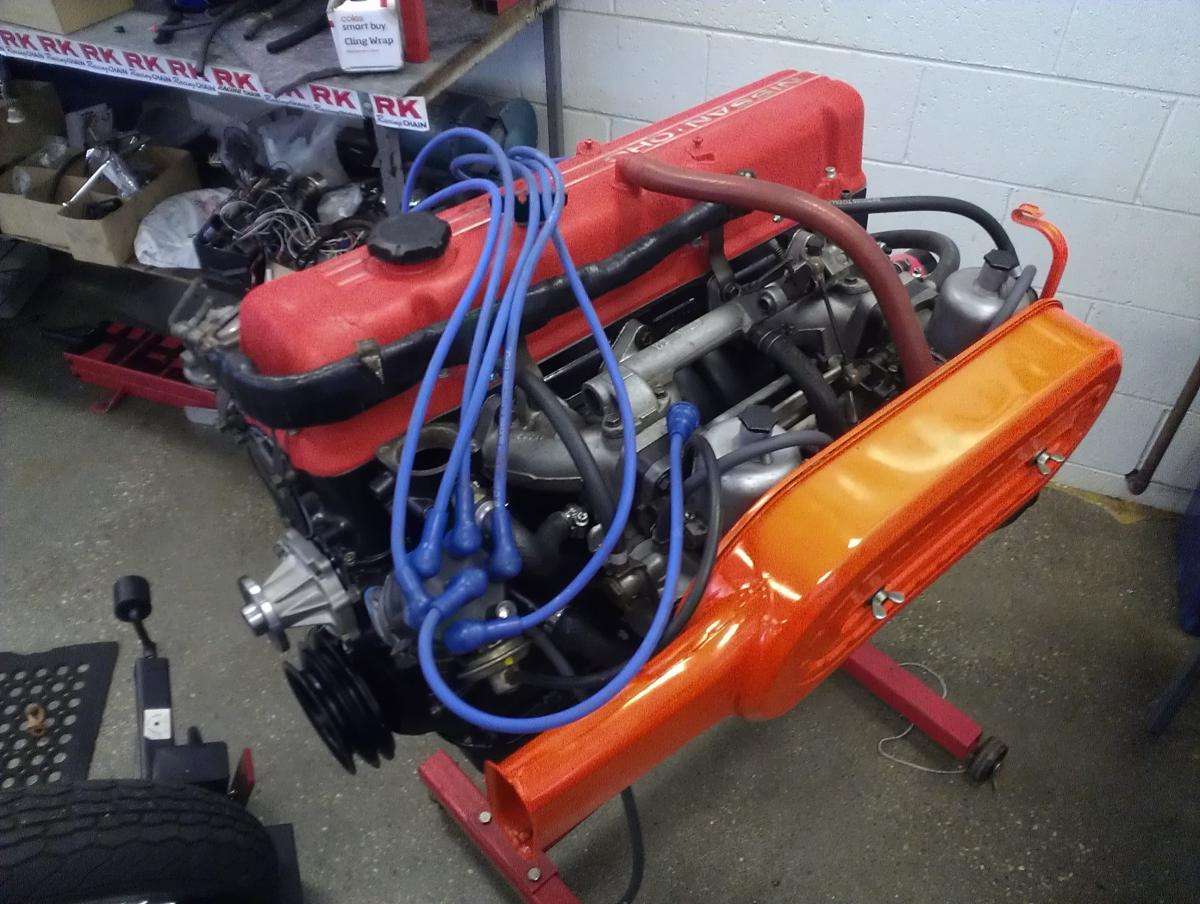

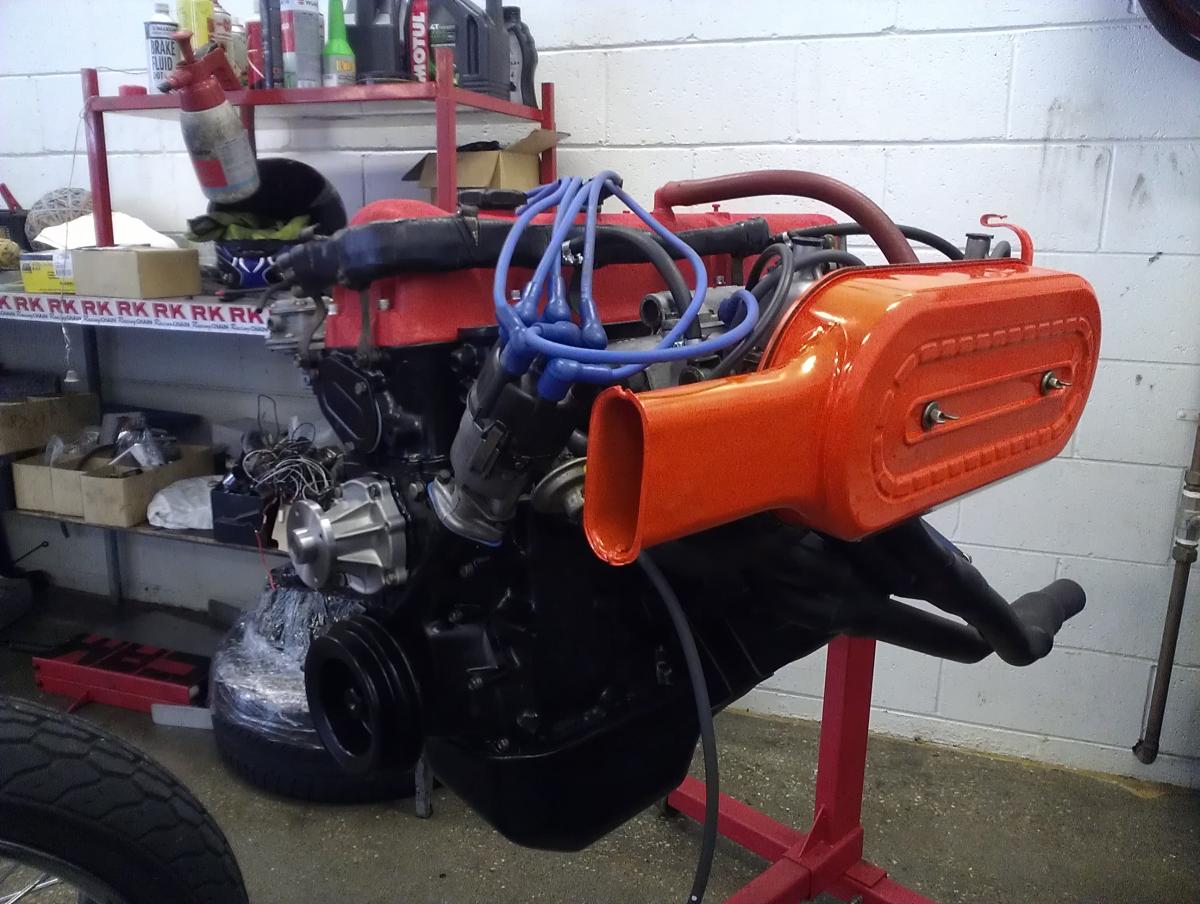

Just about done, not sure if the red cam cover and orange air filter cover go together. May end up running the brushed alloy cam cover instead, will see what it looks like in the car.

[240k Style]

They look like early Z SU's with a 240z air cleaner.

I want to run the same setup on mine Cam. And you take some detail photos of the carbs and manifold? I think I'm missing bits

[Yamahacam]

I can do that but not till Monday, motor is at work. I do remember they where the 3 bolt cap so this would be early 240z? E80 or E88 intake manifold.

[240k Style]

I've got the early done top ones in 4 screw varient. Only minor differences. My manifold looks the same so hopefully will help me with mine 👍

[240k Style]

I'll have to check the manifold. What stamping on yours?
