monster875

'71 240Z EAS seat

Recommended Posts

as u guys might know, i'm working on a couple of Z versions in 3d models.

my problem right now is how does the rally Z's seat looks as the bottom? i mean, where it's attached to the car.

i only have one pic, and it's a see through one, but doesn't help at all on how it's attached :/

Share this post


Link to post
Share on other sites

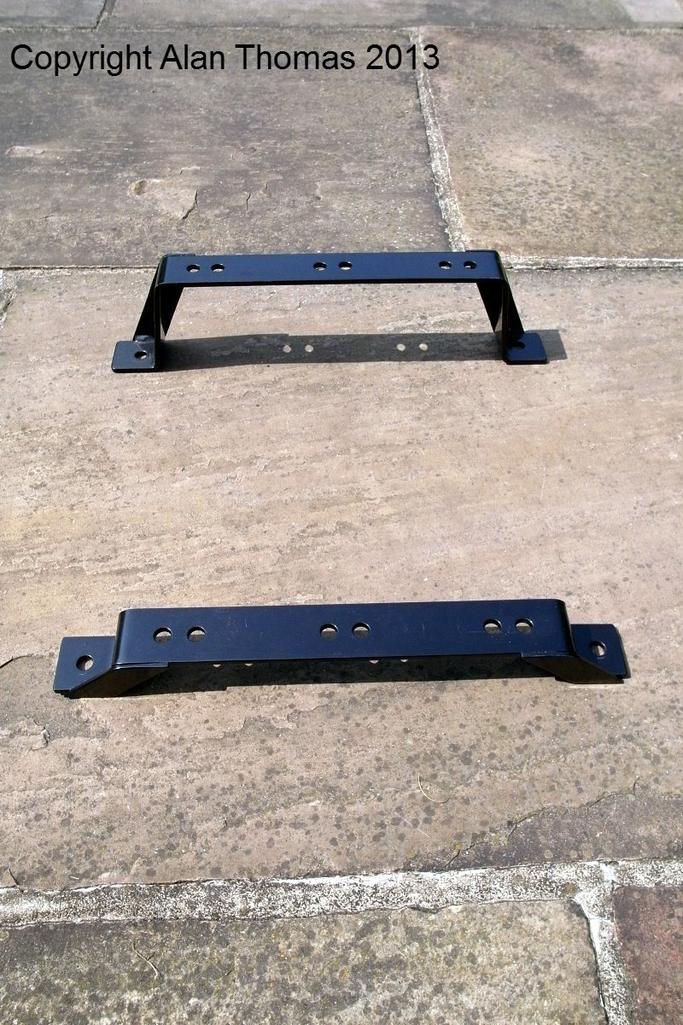

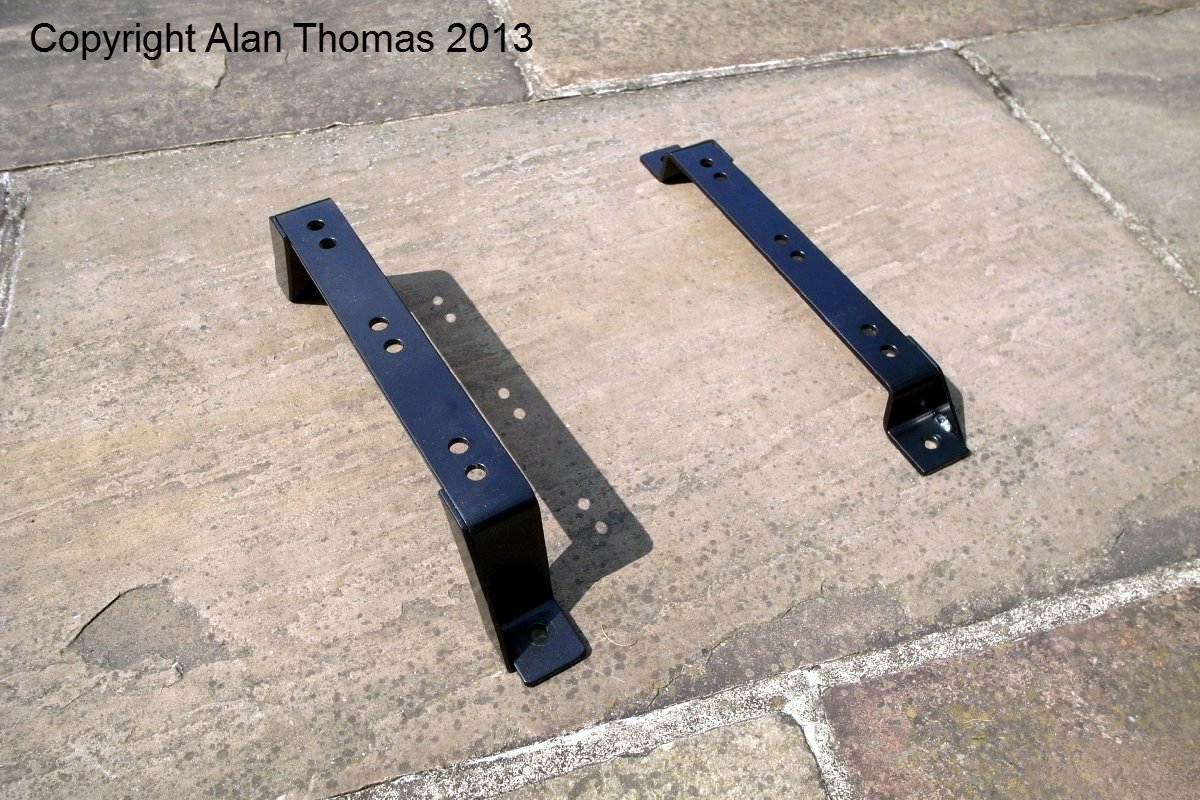

The Works rally seats were made from FRP, but with mounting studs moulded into the base. There were two brackets which attached to these studs, and the brackets were then bolted to the OEM sliding seat rails.

See attached photos. The tall bracket mounted to the FRONT part of the seat, and the short bracket mounted to the REAR of the seat. They are photographed in their correct orientation.



Share this post


Link to post
Share on other sites

I don't think I mentioned the name of the seat manufacturer....?

For the record, the seat manufacturer was a company called Ikeda Bussan. 'FRP' = Fibre Reinforced Plastic. Fibreglass, in other words.

Which particular car are you modelling? Is it the 1971 East African Safari winning car, 'TKS 33 SA 1223'?

Share this post


Link to post
Share on other sites

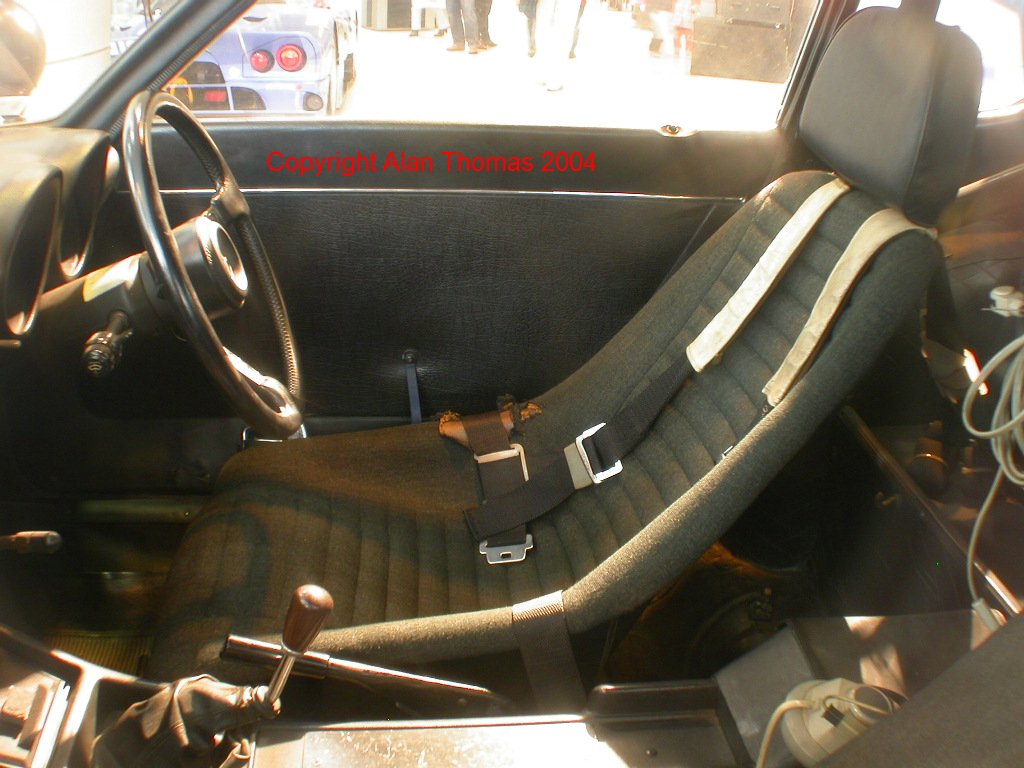

These are pics of the seats in the exact car ( the 1971 East African Safari Rally winner ):



Share this post


Link to post
Share on other sites

can someone tell me what the part in the circle of this pic is called? and someone also have some nice pics of it? some closeup where text and logos is visible?


tnx in advance :)

Share this post


Link to post
Share on other sites

It's good manners to thank the chef for what you've already eaten before you ask for a second helping...

Share this post


Link to post
Share on other sites

yeah, sry. haven't been online for some time, so forgot to thank u.

well tnx :) also made an album with the progress on the car too, if u'd like to see :)

Share this post


Link to post
Share on other sites
...never found that pic, even tho the same guy took all those pics.

All the photos in this thread were taken by me.

Share this post


Link to post
Share on other sites

O.o damn, why didn't u say that earlier?

thought u just were lucky to find those pics :P

is it a car u have at home? or a car u saw a long time ago?

Share this post


Link to post
Share on other sites

is it a car u have at home?

I wish I did......

The car is the actual 1971 East African Safari Winning car ( Japanese reg: 'TKS 33 SA 1223', Chassis number 'HS30-00073' ) and it is part of Nissan's 'Heritage Collection' housed at the old Zama plant in Japan.

I've seen and photographed it many times over the years, as I have a deep and ongoing interest in Nissan's works race and rally cars.

Share this post


Link to post
Share on other sites
could u give me ur collection of pics u have of it?

Sorry, but no. I have hundreds of photos of this particular car so it would be a logistical problem to 'give' them to you, as well as a philosophical one.

A better reference for your purposes might be Tamiya's 1/12 scale model kit of the car. Especially so for the exterior graphics. You can still find them for sale now and then.

Alan T.

Share this post


Link to post
Share on other sites

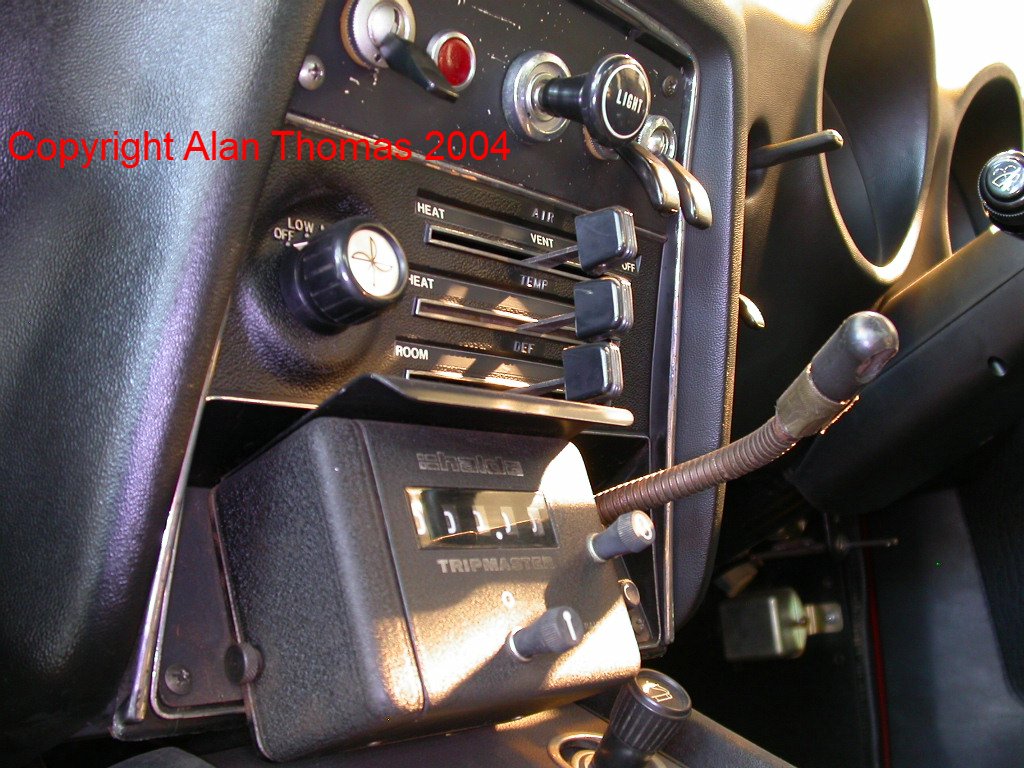

The view of the R/H side of the centre-mount Tripmaster is partially obscured by the P-light.

There is another Tripmaster mounted on the lid of the glovebox, and the view of the R/H side of that one is clearer:



Share this post


Link to post
Share on other sites

ok, finished the tripmaster, it's looking awesome now. tho, i just noticed a little button next to it, but unfornutaly, it's mounted on the OTHER side, closer to the driver side than the Halda. so unless i could get a pic of how it looks 100%, it might be done wrong :(

Share this post


Link to post
Share on other sites

If you're going into that level of detail, I don't know how you can hope to be accurate without detailed photos of every part on the car.

There are literally thousands of non-standard parts and details on a Works rally car, and every car was unique in some way.

This pic is out of focus, but it shows the knob mounted to the right of the centre Halda. This knob is a rheostat for the navigator's Halda-illuminating 'P' light that's above it:


Edited by HS30-H

Share this post


Link to post
Share on other sites

i just want it as accurate as possible. tho i know it's not possible to get it 100% accurate, but i'm trying :)

and thnx for the pic :) now i can go further :)

Share this post


Link to post
Share on other sites

it have been a while.

but i'm pretty much close to the finish of the interior. what i'm missing it only the plastic part hanging under the glovebox, seat belts and finish the door panels (plus a little more stuff, but not alot).

u have any good pics of the door panels + the part under the glovebox?

Share this post


Link to post
