Has anyone got an OWNERS manual from a '77 or '78 280Z and/or an OWNERS Manual and/or FSM from an '83 280ZXT they could scan for me or loan me to scan?

I do not need scans of the entire manual(s), only selected sections.

From the '77/'78 I need any section that contains a picture of the vented hood, even if the text on the page does not mention the vented hood.

From the '83 manuals, I need any section on the L28ET and especially the P90A head.

I would scan them the night and /or next day, and have them sent right back priority mail in two days-obviously I would pay shipping both ways, and make allowances for the trouble.

Thanks,

I will also be at Zfest in Orlando with a scanner and laptop (but no Z:( !), so I could scan them then and there under immediate adult supervision.

Thanks,

Will

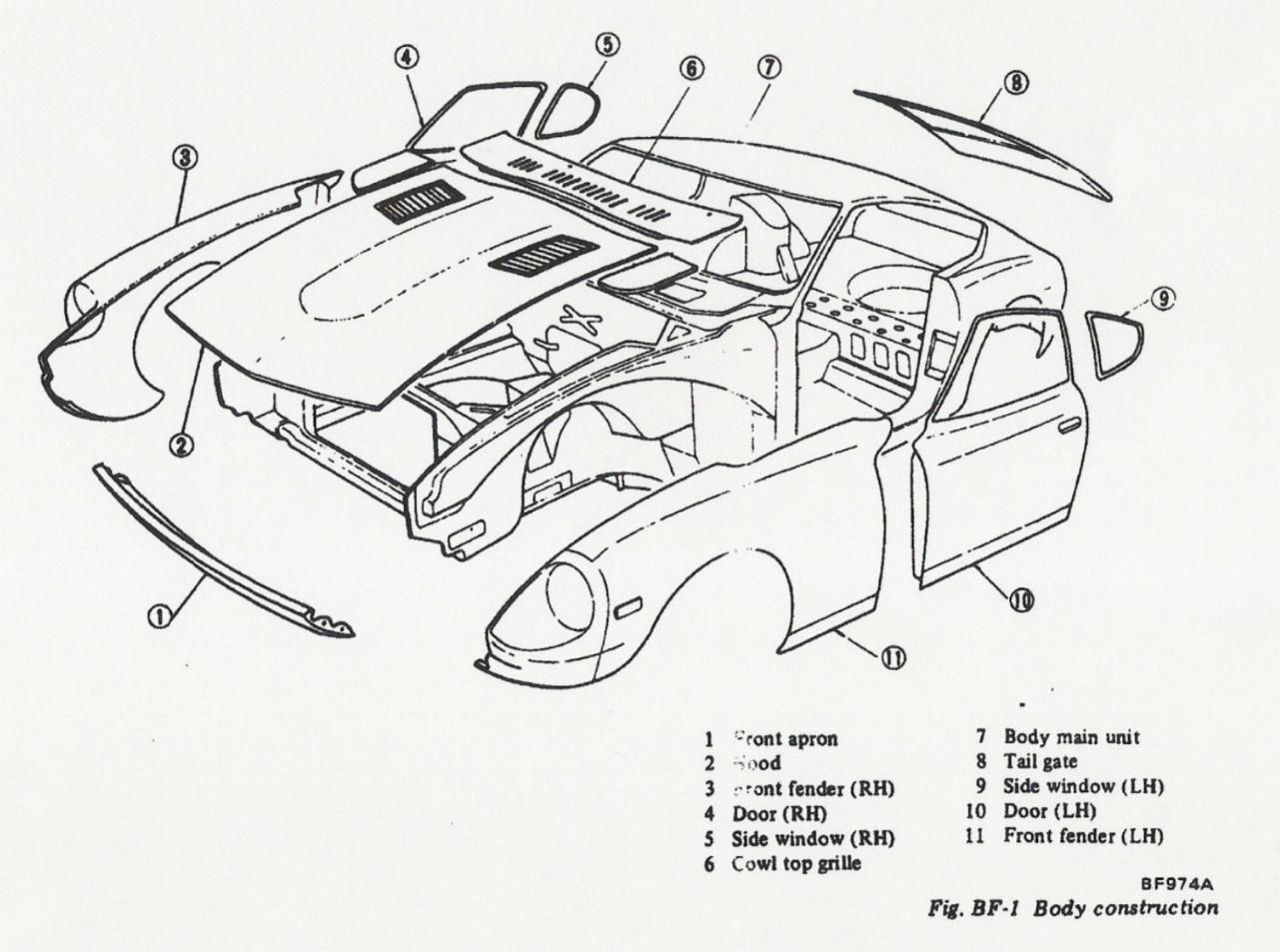

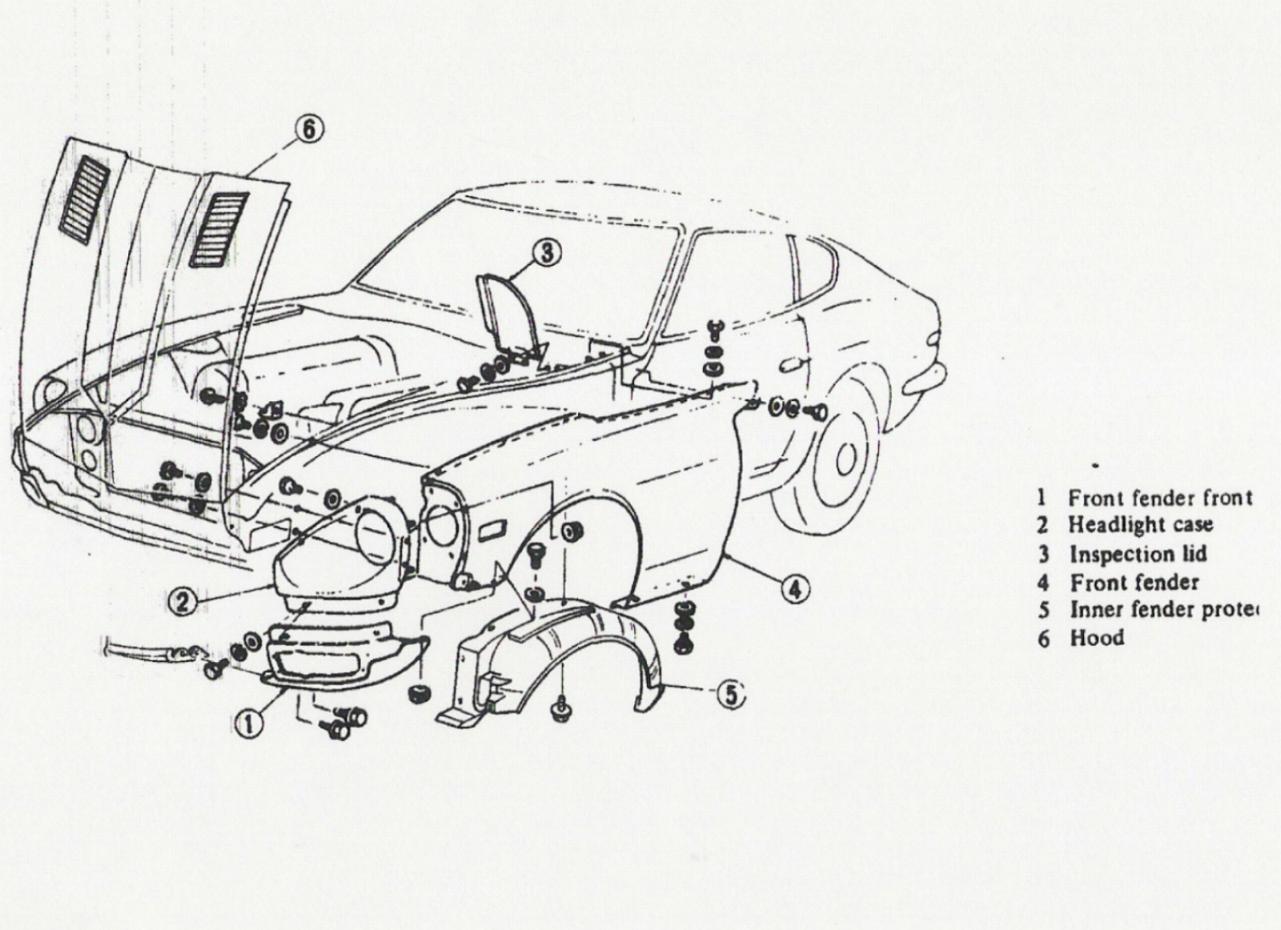

There is no picture of the vented hood in the 78 owner's manual. Here's a couple of scans from the 78 FSM. Is this what you need?

Thanks Stephen!

Yes, but I need the entire page(to show scale of the diagram, and the page number).

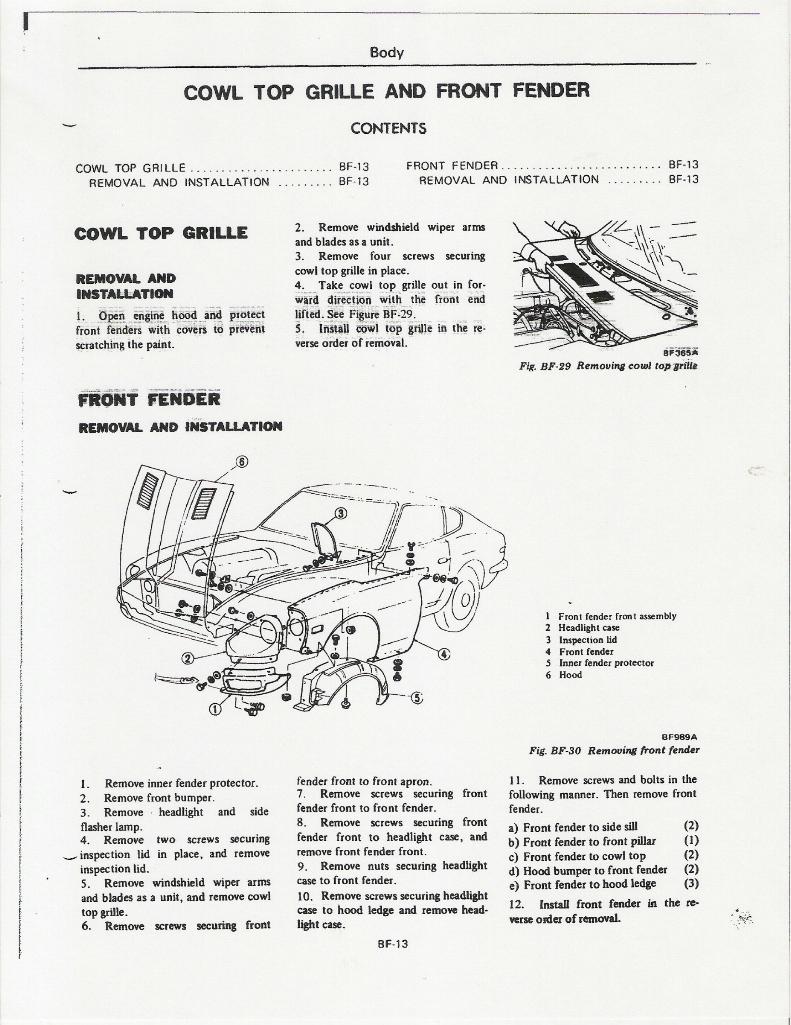

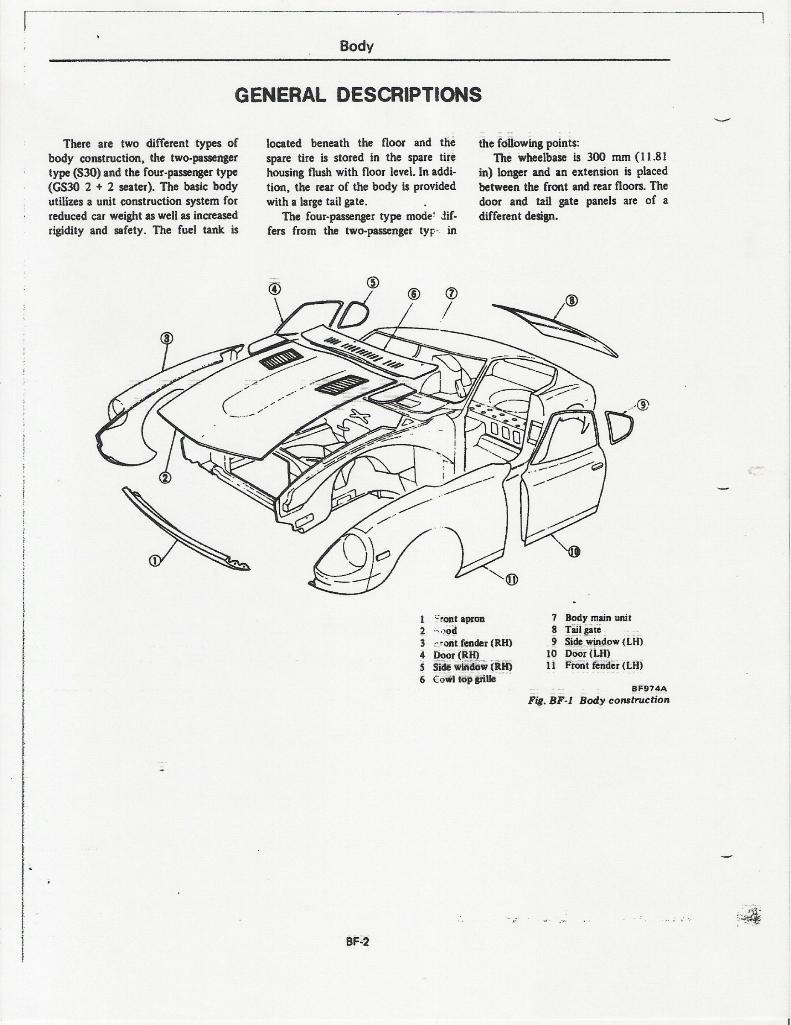

Will these work?

Thanks Stephen ,yes ,those will work. I was hoping there would be at least a part of a picture of the vented hood somewhere in the owners manual.

Will

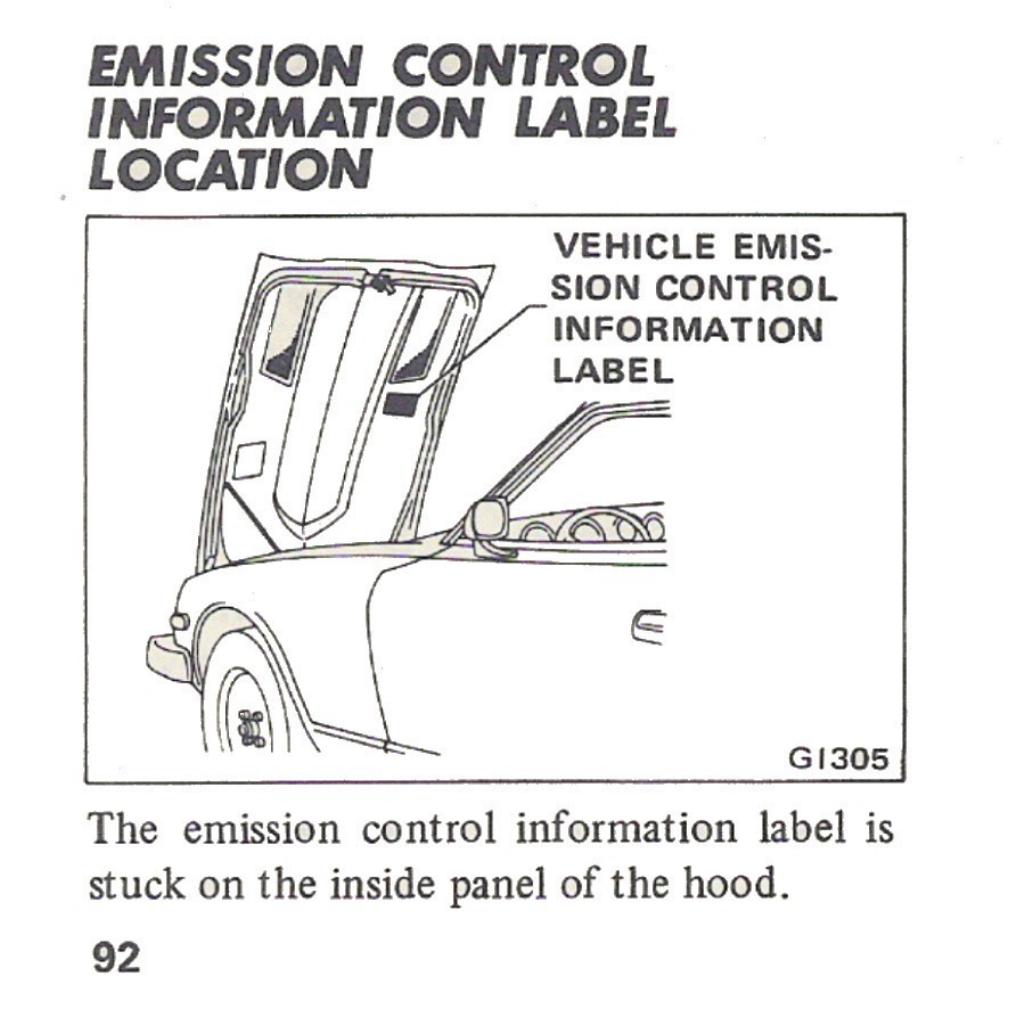

There is this one in the owner's manual but it doesn't show much.

Not sure what you're planning Will but if you want dimensions of the actual hood from certian points to cross reference or check the scale of the drawing let me know.

I thought the owner's manual was small enough to fit into the glove box. Was there another bigger size?

Thanks again Stephen!

jim,

I have one of the hoods, so measurements are not a problem. I am actually working on a different project, I am trying to get as many genuine nissan line art pictures of the '77/'78 hood as I can find. I am going to put together a document on the two factory hoods and the one Nissan Authorized add-in vent. I just want to have plenty of actual Nissan art to choose from when I put this together.

TomoHawk,

You have the size of the owners manual right, but I also asked for images from the '78 FSM. -I have a '77 FSM to take from.

Will

Jim, I realized I didn't capitalize yout name-I can't get in to edit, so I will apologize.

Will
