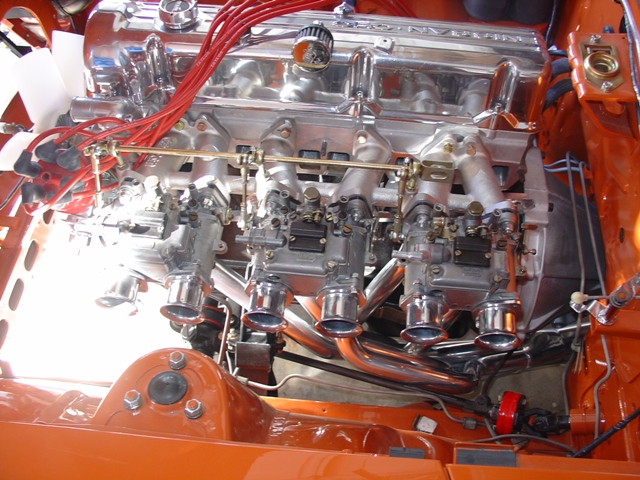

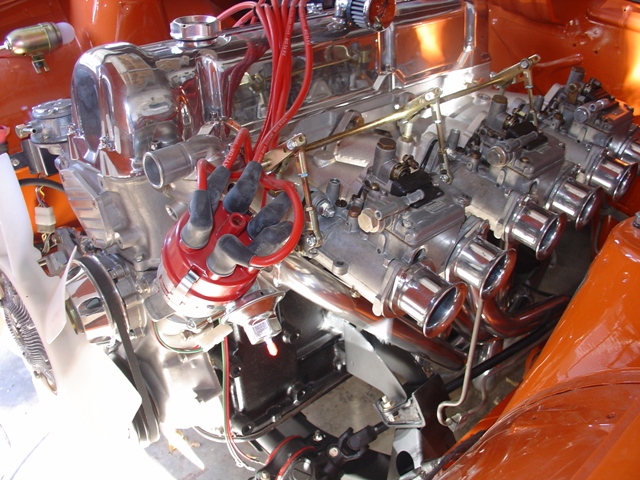

I just recently installed my tripple Delorto carbs into my restoration projection. I need to purchase the hoses that connect them all together and run a fuel rail to the pump. Can anyone tell me what size hoses, ends, joints work the best for this set up. See picture below

I would go with the same I.D. as the fittings on the carb. That's how I plumbed my f.i. system. I started with 1/4 inch i.d., and had to bush the ends with soldered brass tube to get a good seal.

Is there a way to put barb-like things (bulges) in steel tubing?

thx

mmagnus

I can't help with the line sizing but I want to compliment you on the most beautiful Z motor I have seen.

Bob M

mmagnus,

I am using 5/16 on my trip-Mikuni's with a Holley Red fuel pump. At first I thought it might be too small but was advised to go with this size and everything seems to be fine.

By the way, what distributor and cap are you using?

George
