Clay C

Found a place in Auburn Georgia called "Resurrected Classics" that deals strictly with Z car stuff. Wish I would have found them earlier as they have a ton of "roller" cars out front. They also have lots of parts available. I picked up 2 metal Headlight buckets and the lower front valances for $180. They were very helpful and worth a look for anyone in my neck of the woods that are trying to source anything used.

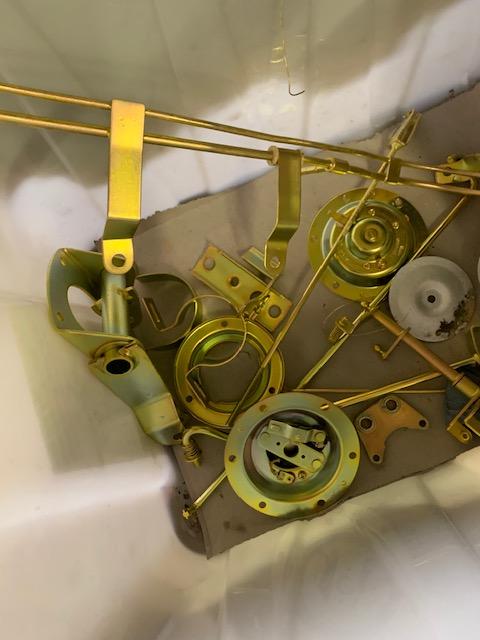

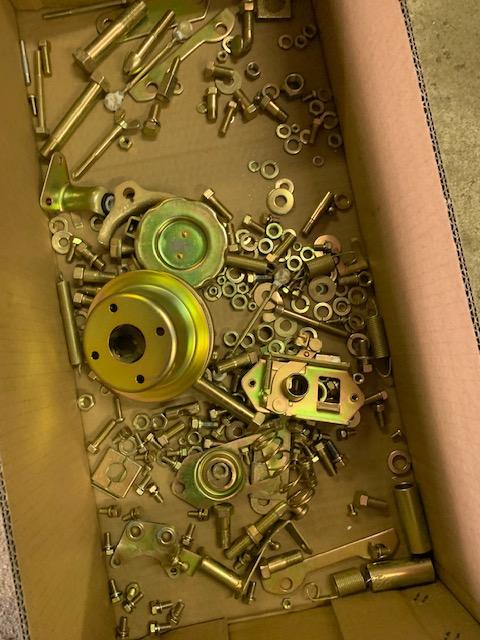

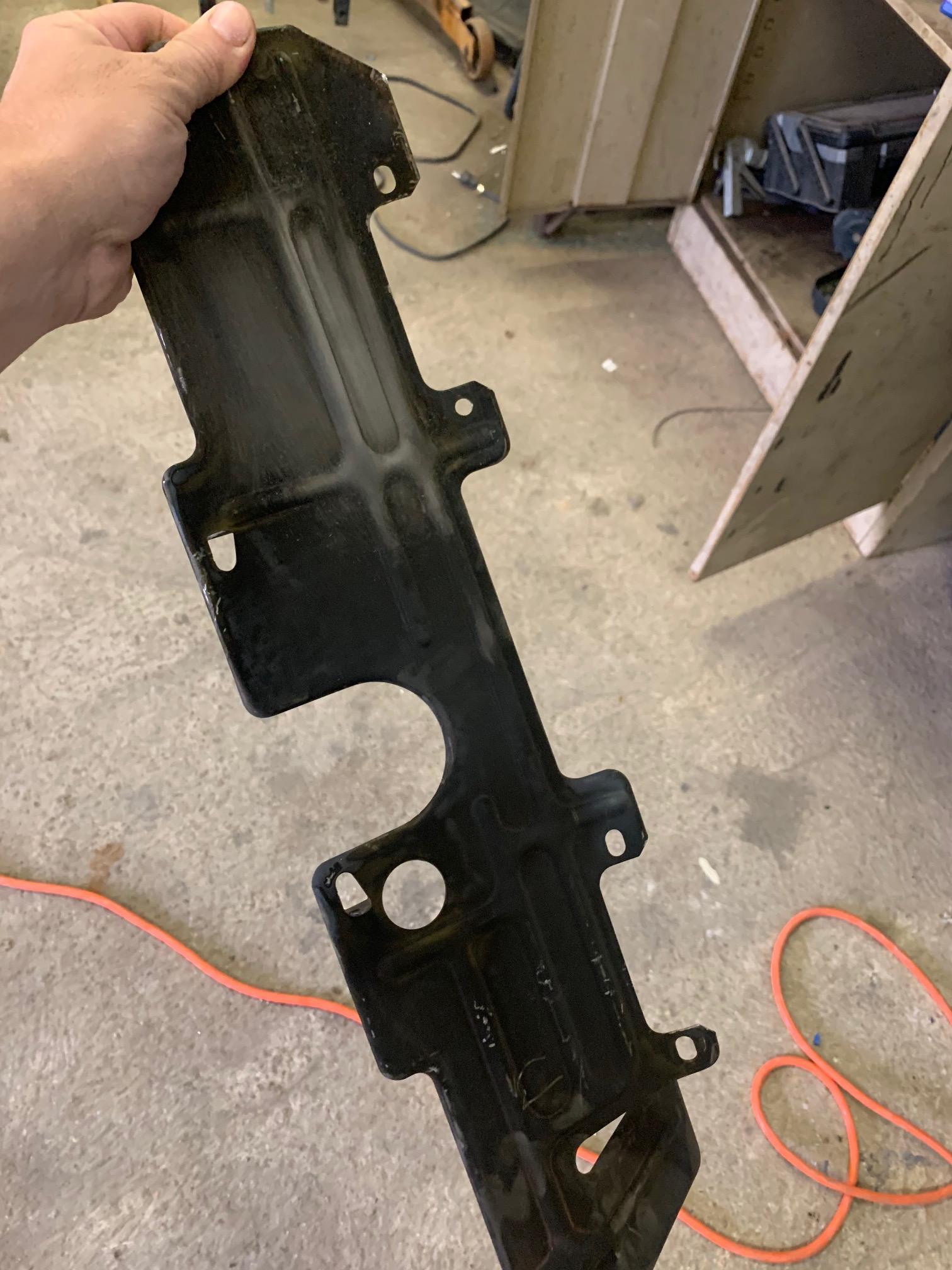

Plating turned out fairly well. I'm a newbie and you guys probably know already but the Heat Shield does NOT like to be plated. Its now "ebony". The ends of the dogbone linkage parts turned a chalky pale flesh color. They wire brush clean OK but was thinking about using some pearl fingernail polish to freshen them up unless anyone has another trick.

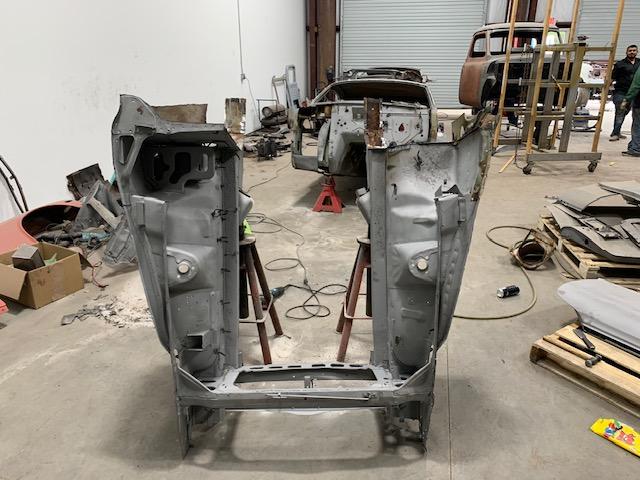

Time to start the operation!

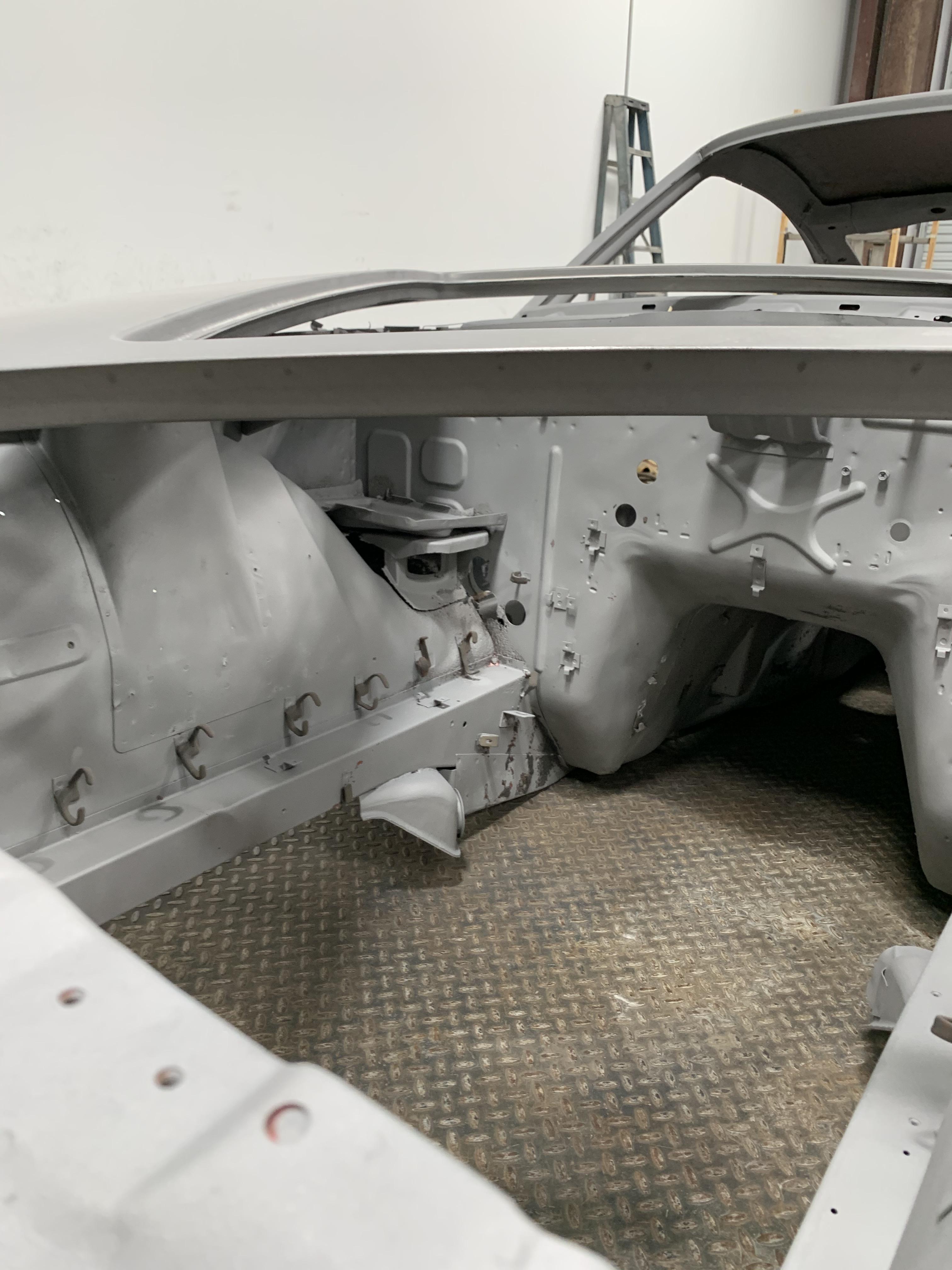

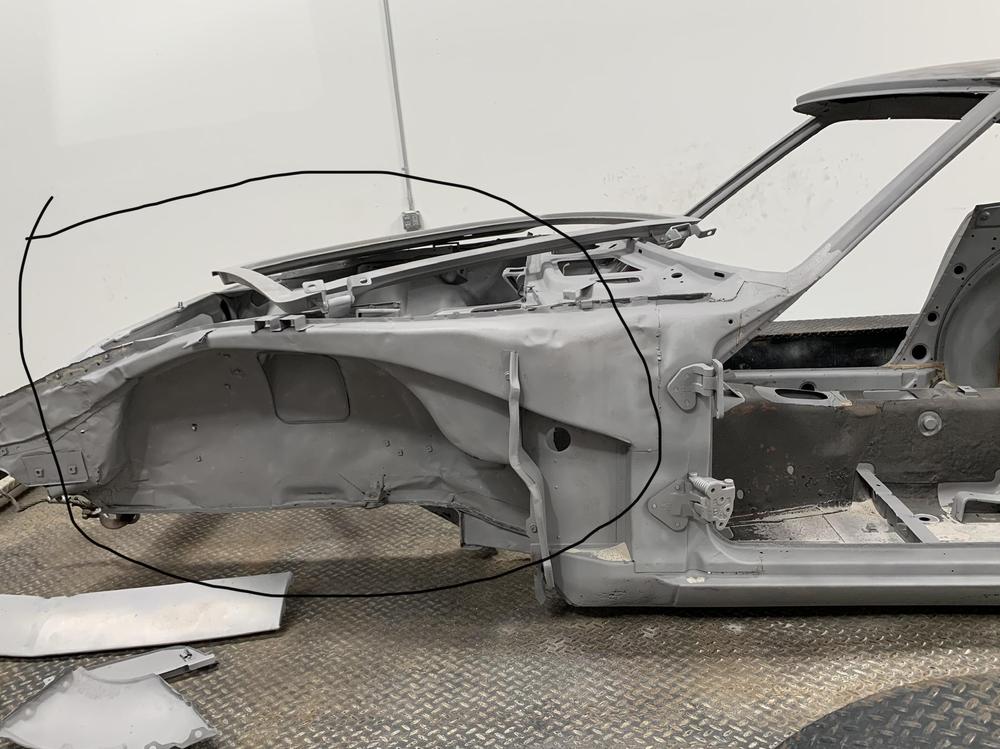

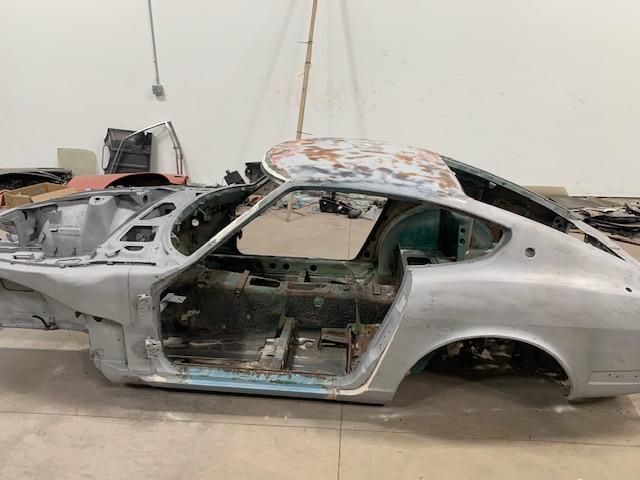

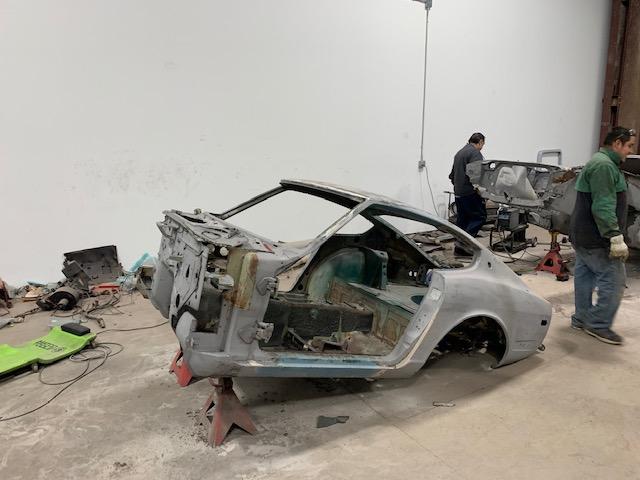

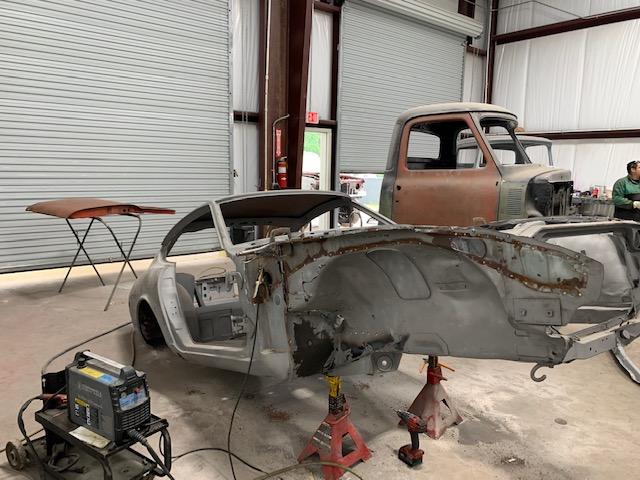

Donor Car got blasted. Wasn't quite as good as I hoped but we can work with it. Front end was rather damage free which is better than what I had to work with.

Done and done. I ordered some metric fittings. Put a standard one in place so I could paint it but it didn’t seem to want to thread in there very well.

Thank you sir! I always try and search for what I am looking for but I am horrible at finding! I appreciate the help.

What goes here? Some sort of vent or something? Resembles the same plastic off the Rear end and Transmission vents.

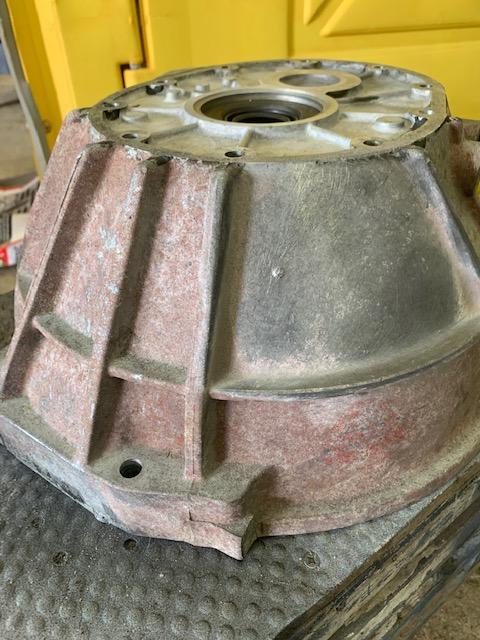

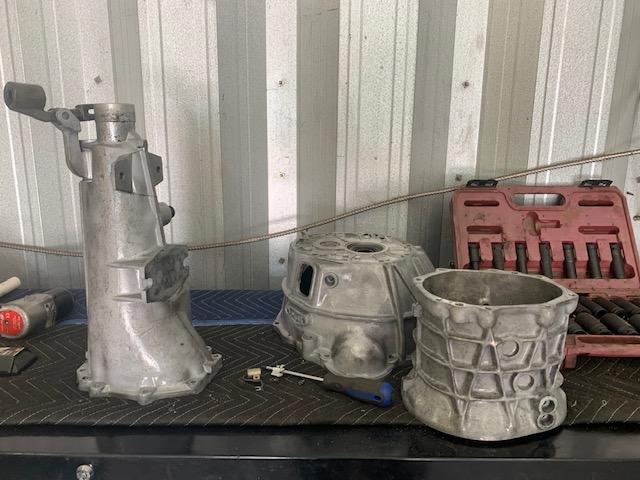

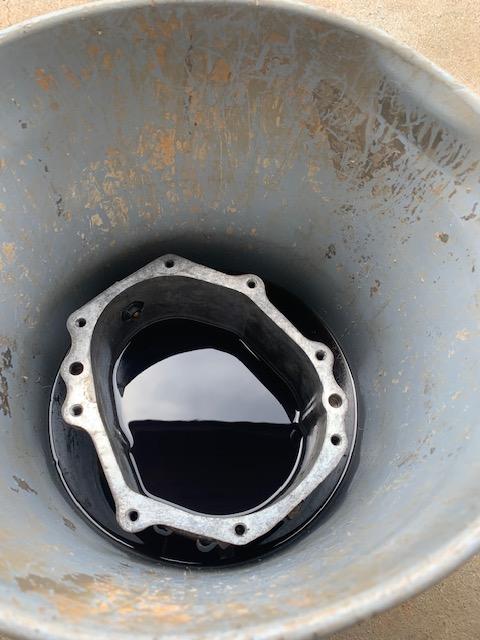

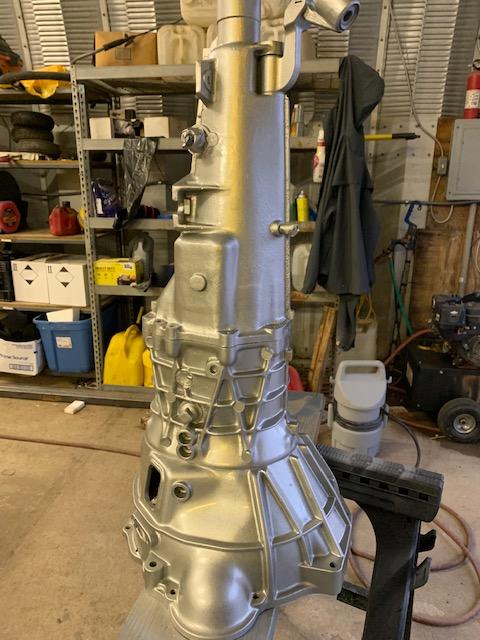

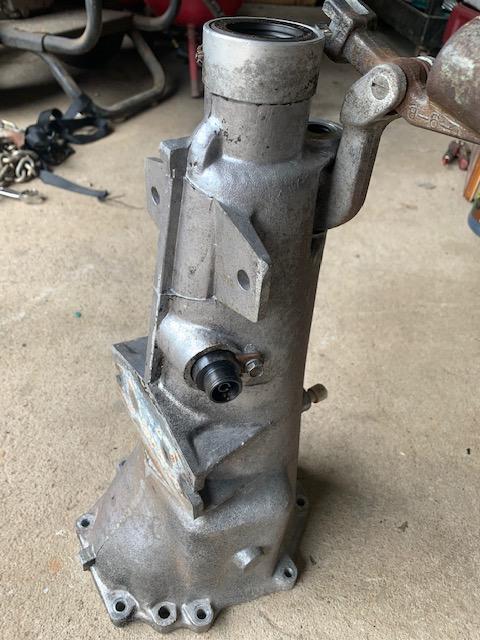

Transmission guy gave me back my casing to clean up while he builds the internals. $400 and I supplied the kit seemed like a reasonable price for some peace of mind that it will be done correctly. I tried everything to clean it to avoid sandblasting but nothing worked. Not sure what the red stuff is but it's stubborn to get off. Eventually just glass blasted it and washed it very well. Used the Eastwoods Alumabright paint and primer.

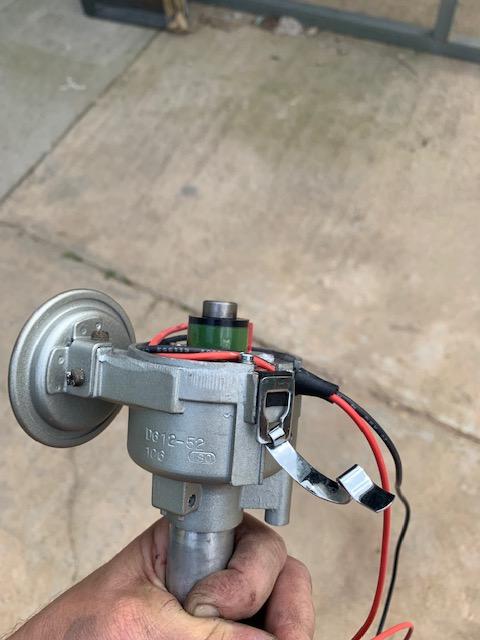

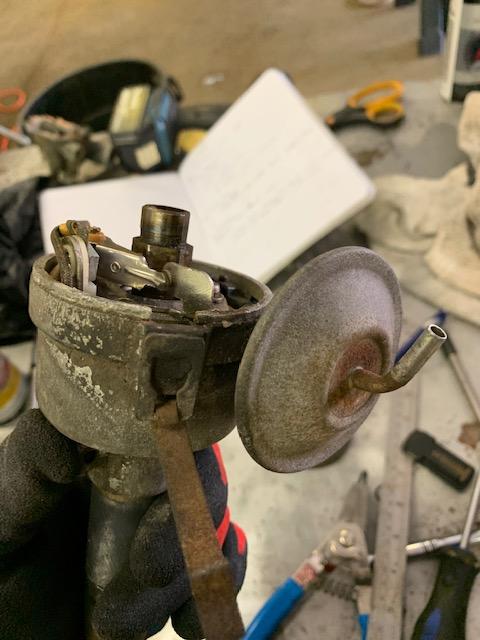

A while back I thought it would be a good idea to take the distributor completely apart to "clean" it. I really should have taken more pictures of the internals. I only have 1 spring on my governors which may or may not be correct. I dissasembled the old points plate for more cleaning... I realized that was dumb after. Luckily I found one on the web. I think its all properly back together. It really will be amazing if this car runs when I'm done. I am getting more and more unorganized the further I go along.

Not yet....

Yes. I am getting the Ztherapy carbs and clean euro style balance tube and intake. I read on numerous posts on this site others saying it was the best purchase they made for their car. Honestly after my multiple attempts to make old Aluminum look all pretty again I couldn’t pass up the opportunity to simply trade out my old ugly parts for new shiny stuff.

What you can accomplish when you neglect your family! You’re right, I should have started the thread earlier. I have been at this since around the 1st of Feb. Also to be fair I’m farming out the body work and the transmission rebuild so I have less to focus on than people like Inline6. That guy is for real! I had a chance to stop by his place to pick up a part a while back and it’s impressive. I’m throwing money at my problems the best I can.

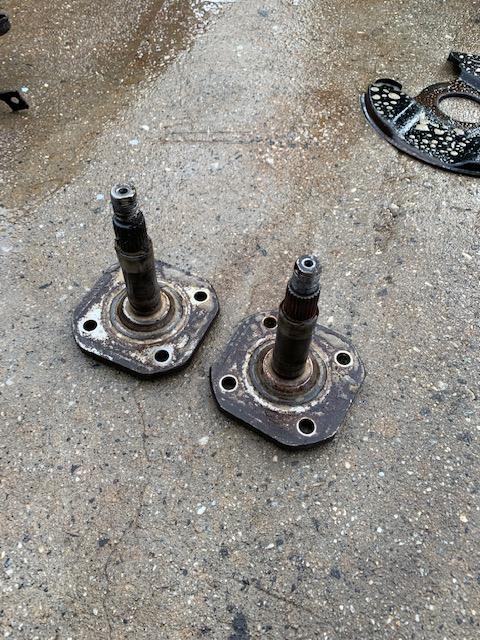

Getting Parts ready for Powder coating. Should these rear stub axles be Powder coated? Hard to tell if they started out painted or not. also...Coil Springs? I didn't spend a lot of time driving the car before I tore it apart, but I don't exactly have a frame of reference either as to whether or not the springs are worth replacing at this time. It didn't seem like anything was wrong with them. They are probably the ones that came on it back in '71....any thoughts on changing them out?

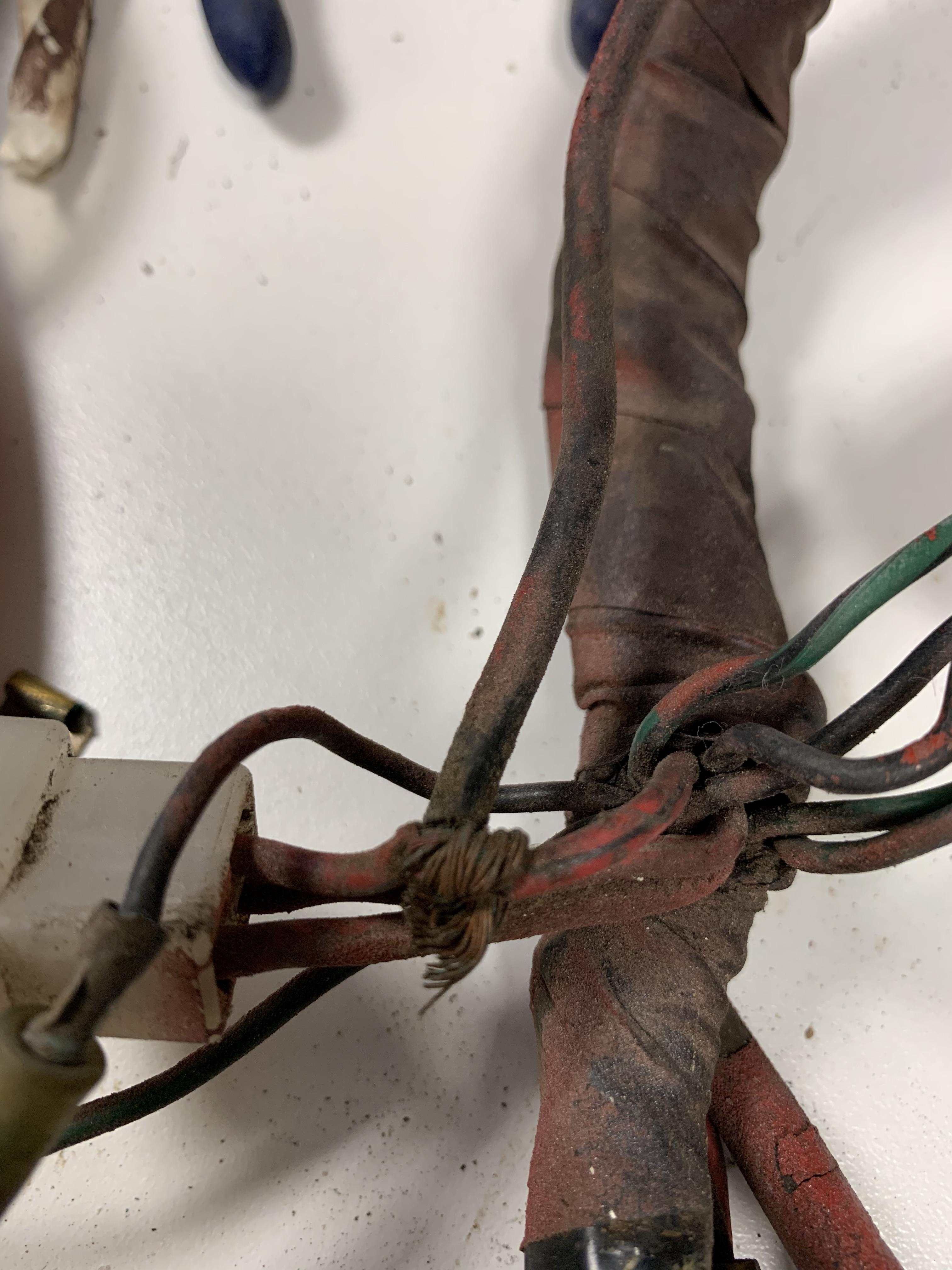

More Red Paint! Working on cleaning up the wiring harness stuff now. Waiting on the Firewall grommet to get here so I can finish that up. For anyone who doesn't already know a company called Vintage Connections sells kits with all the old school connectors. I bought a crimper and 2 assortments of connectors from them and I haven't ran across anything yet that didn't come in these kits.

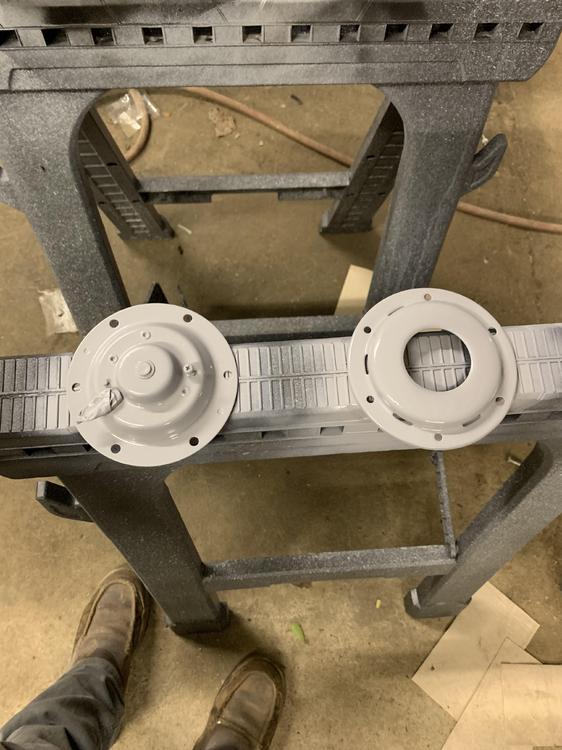

I would like to find out who sprayed this car last and kick him in the nuts! I don't think they even through a cloth over the engine bay before they started. There was red overspray or really DIRECT spray on a lot of things behind the grill. I took these horns apart and was planning on just painting all of them. After I saw someone plate the backside I had another set of horns that I sent off to get plated. I will see how they both turn out and decide later

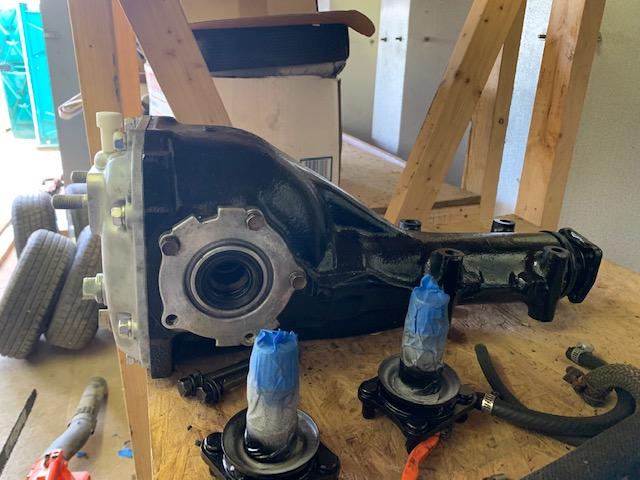

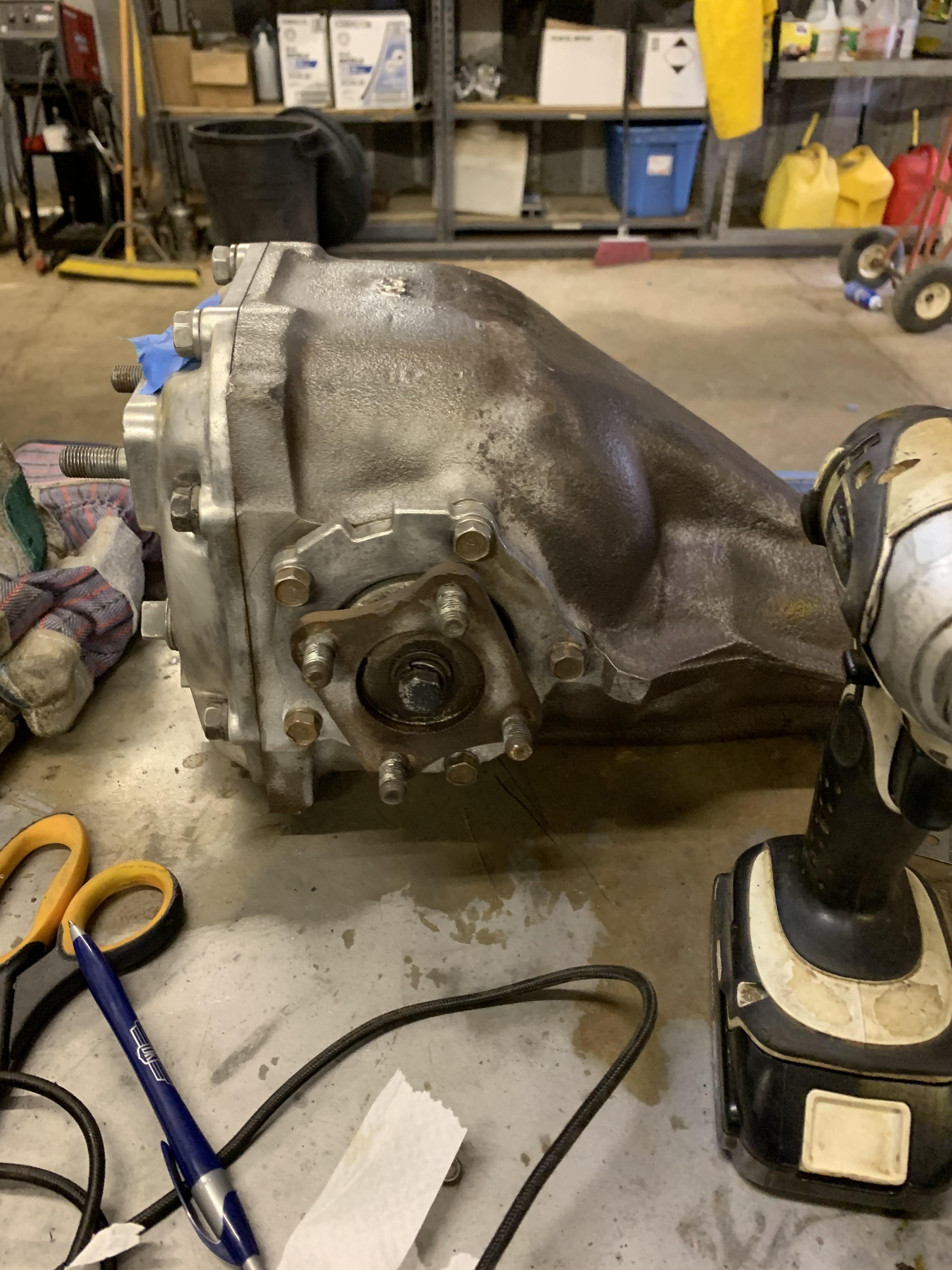

Best I could tell the rear end was in fine shape. Did the usual clean up, prime, re-seal and paint. I am beginning to hate cast aluminum....I think once its installed I wont be able to see every spot that didn't clean up perfectly but sometimes I feel like the more I try and mess with it the worse I make it.

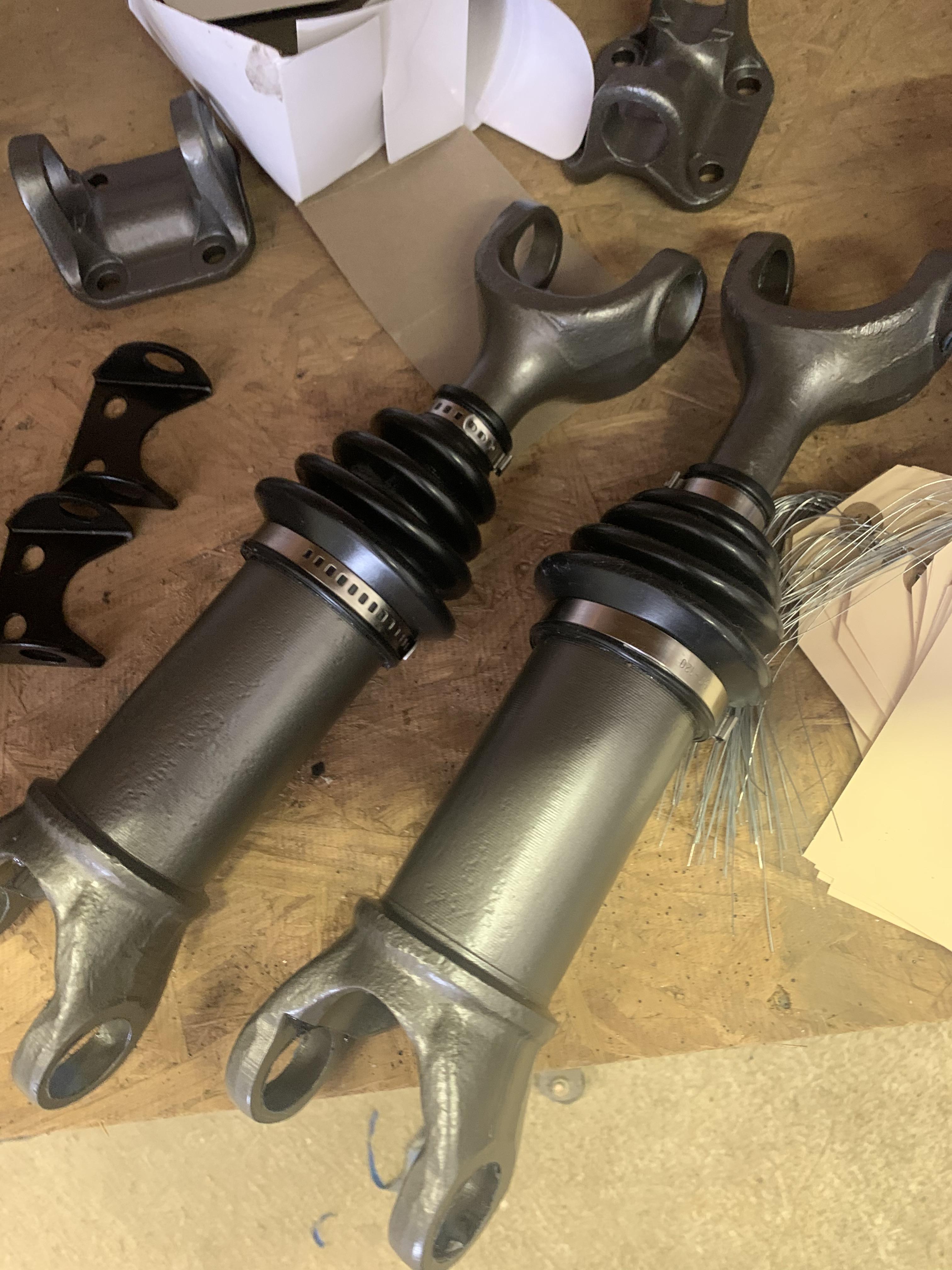

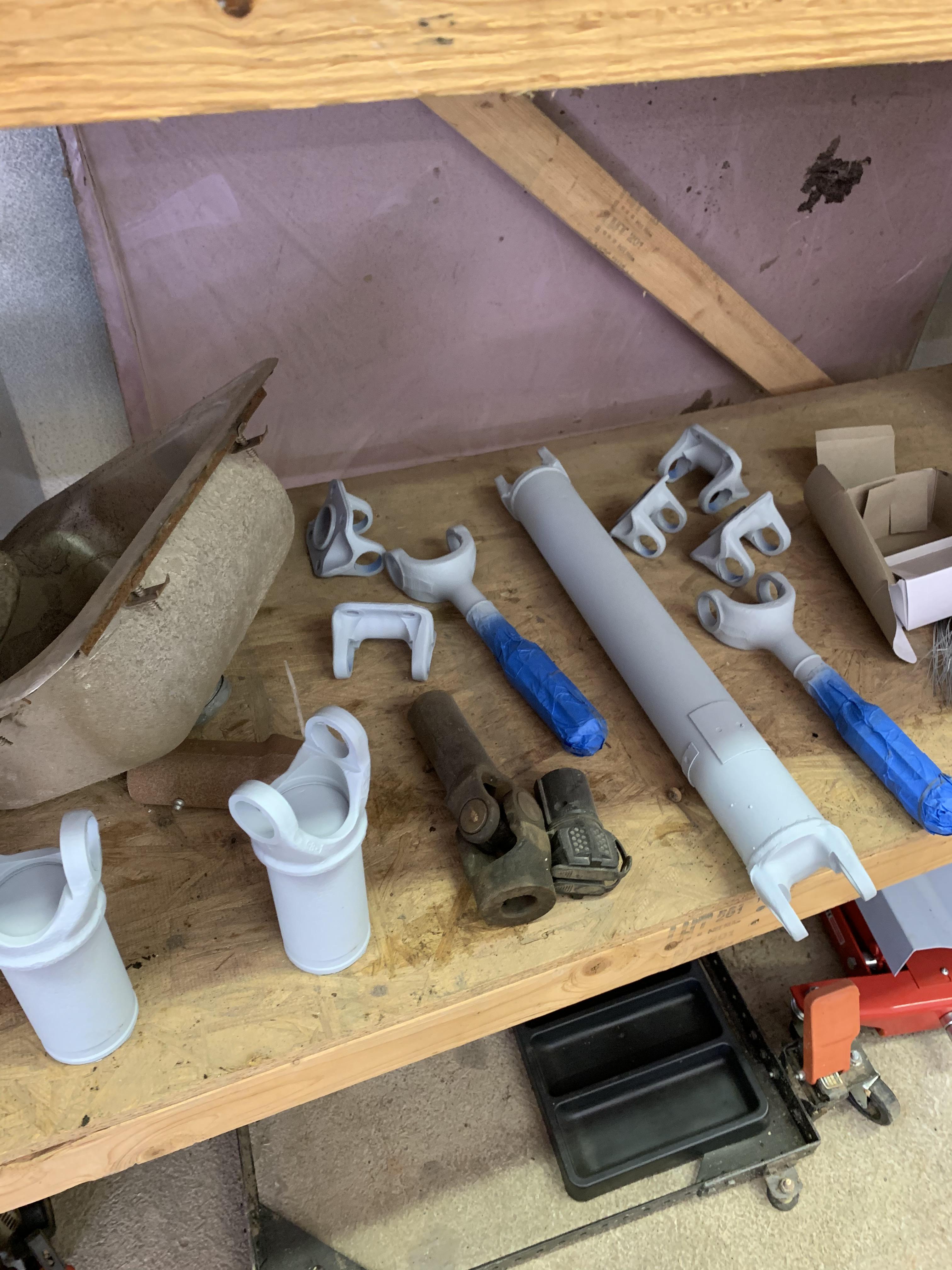

Was going to go black for all the shafts but I really liked Motorman's cast iron color from his thread so I copied that the best I could. Left the driveshaft chassis black

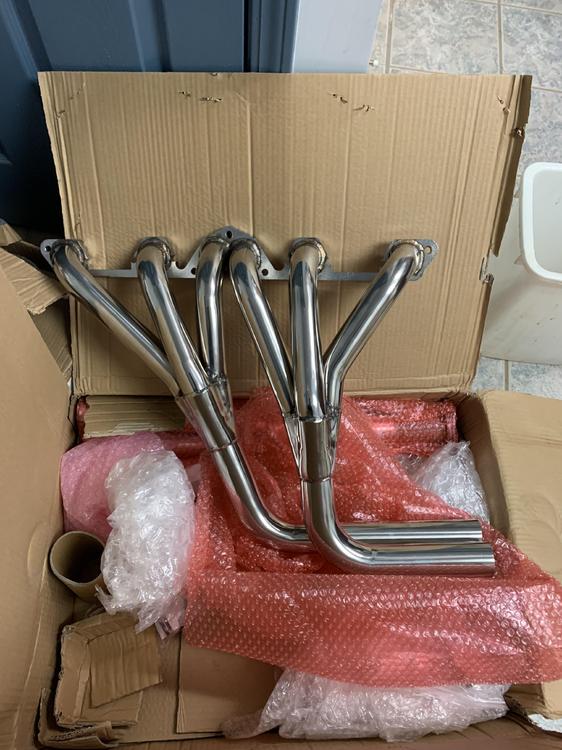

Shout out to Sean Dezart. I cant wait to hear this in action. It is definitely sexier than the rusty manifold with the hacky pinched off air tubes

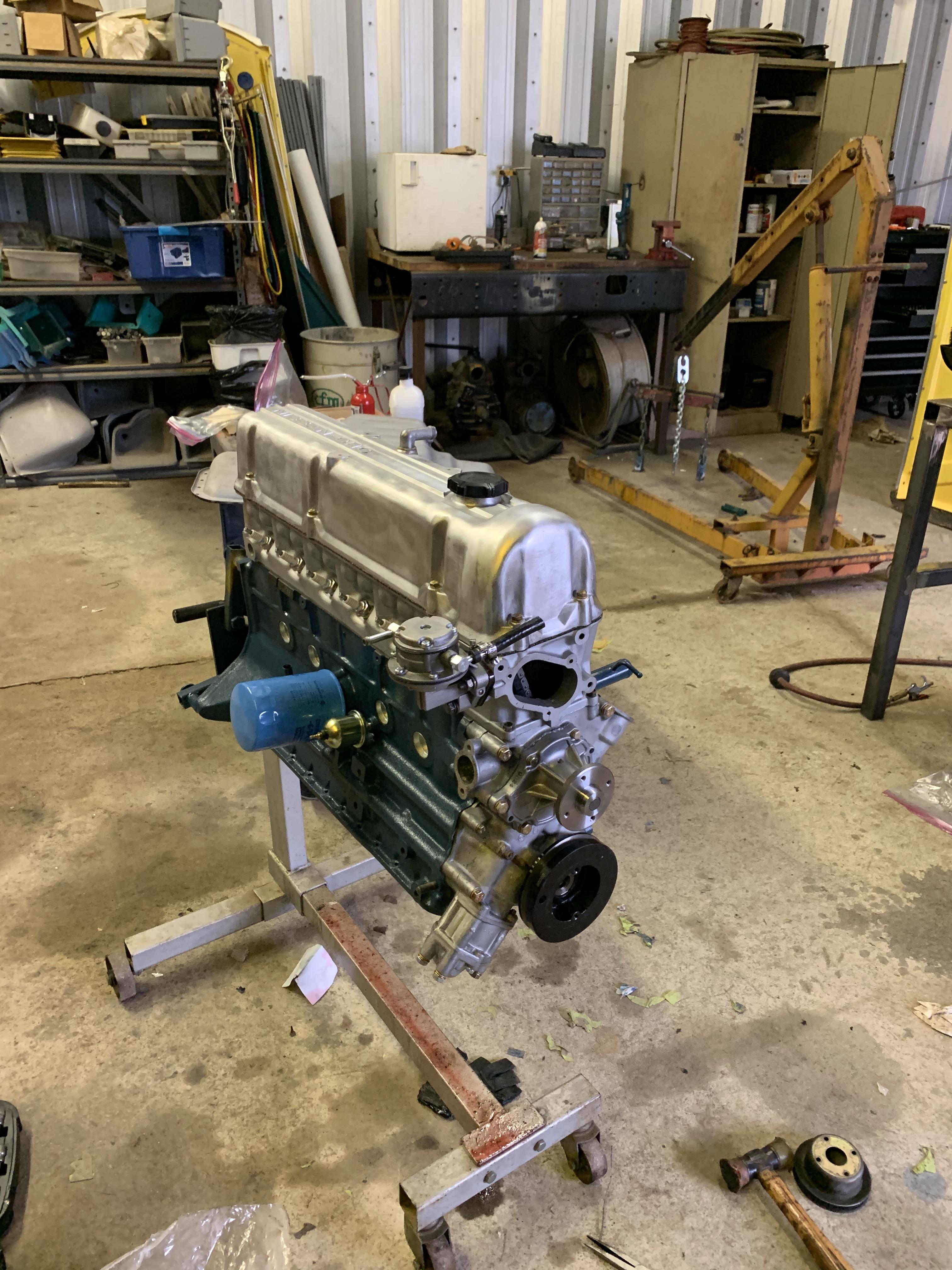

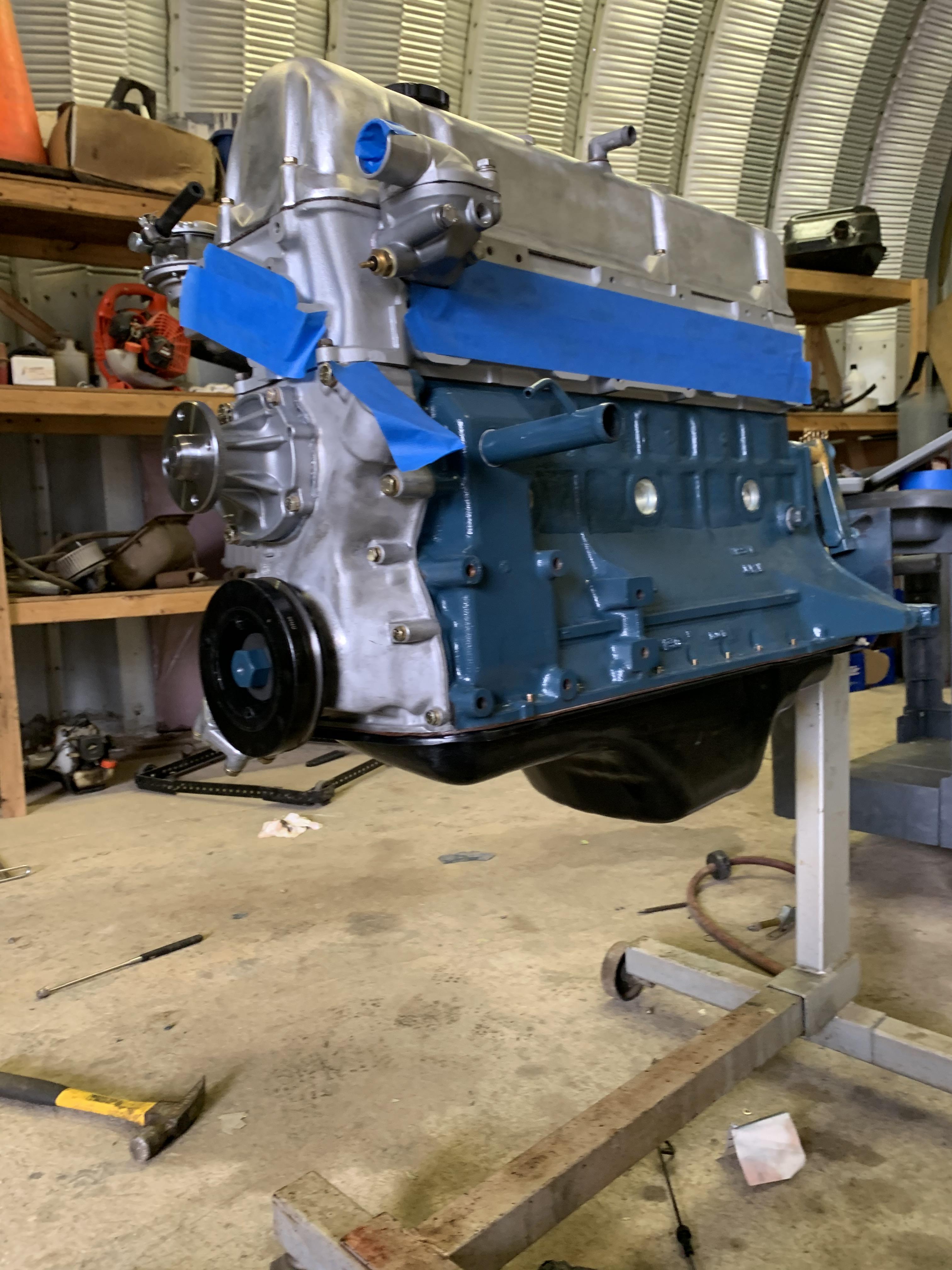

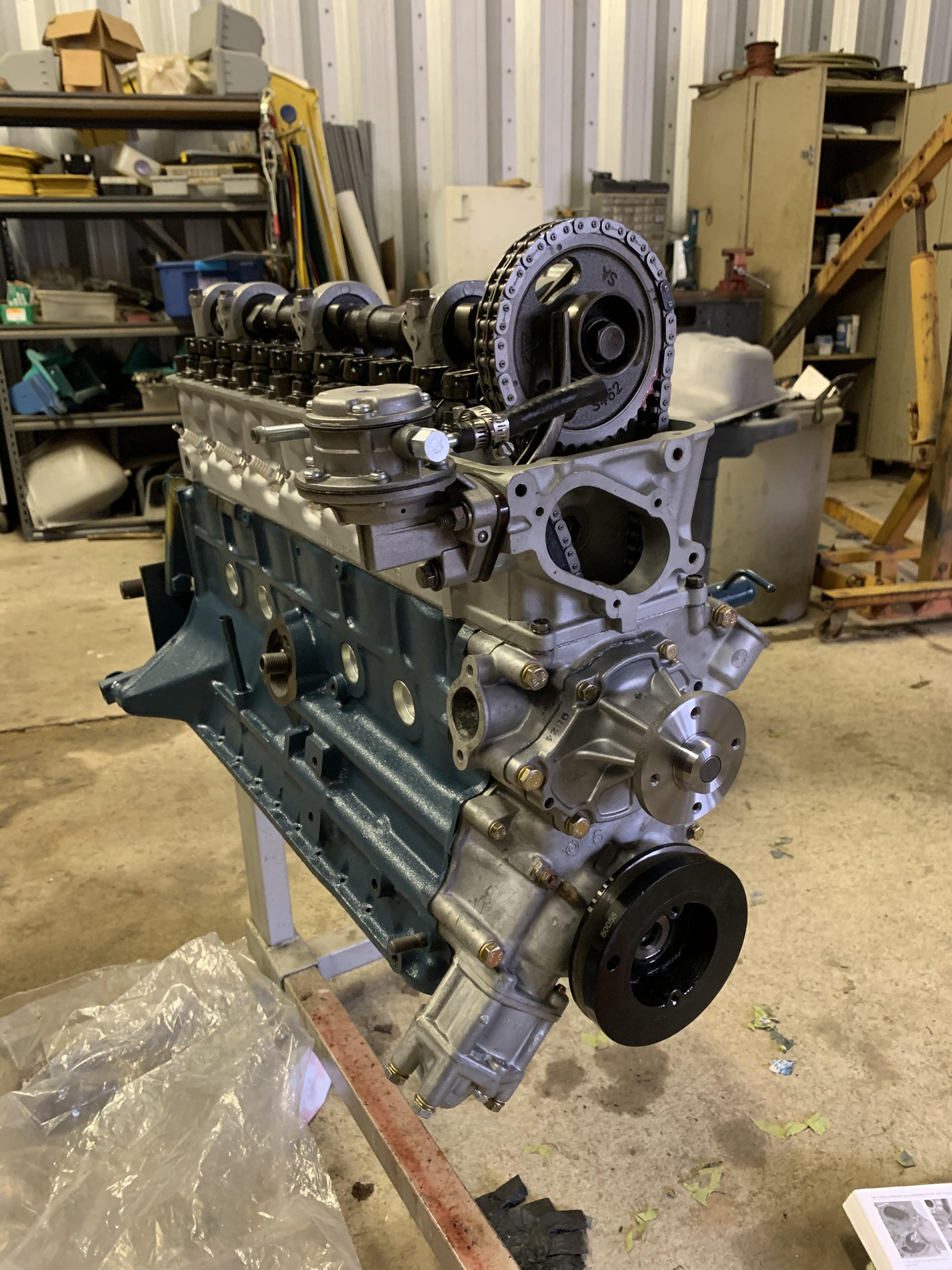

Fingers crossed that it runs but I went by the book. Waiting on various parts from plating to wrap it up. Worst part of the engine rebuild to me was deciding on what to do with the valve cover. Nothing I did turned out the way I wanted it to. Ended up just wire wheeling the hell out of it and calling it a day. It wasn't the expensive cover with the 2400CC stamping so I can try again later. With that other 280 I bought came an entire barn of parts, I think I have around 4 other valve covers now so maybe I can figure out a better process in the future. If ANYONE needs anything for their car chances are I may have it and don't need it. When I do the 280 I am not planning on trying to keep it original.

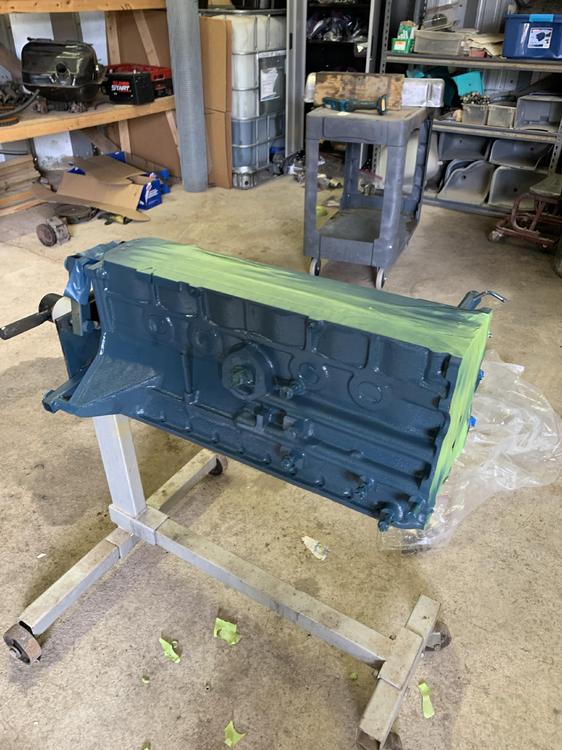

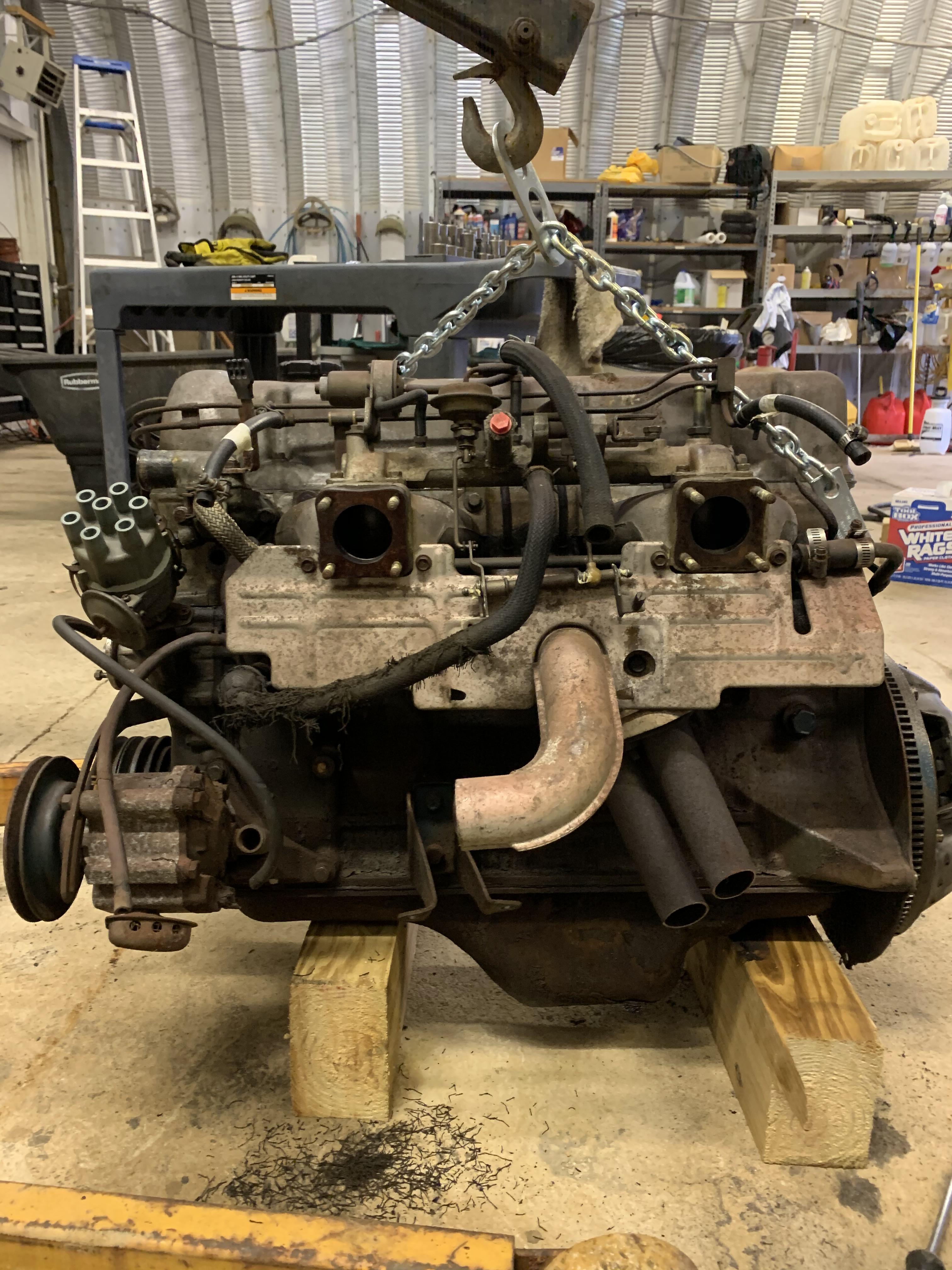

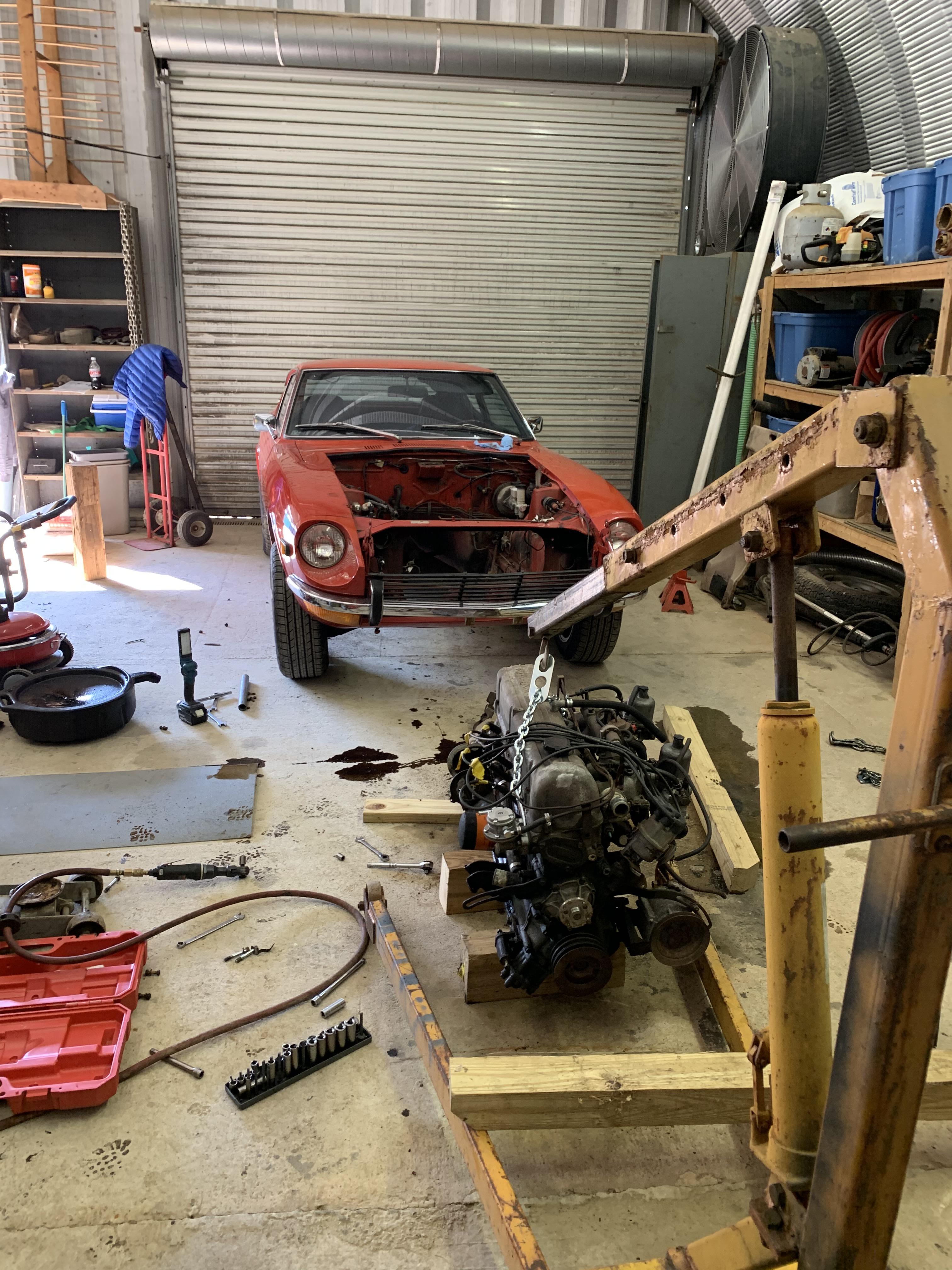

What we started with on the engine. It was numbers matching to the car which was good. I got the kid in the shop when I could to get his hands dirty. He may as well put a little work in since the probability of him running it into a ditch in a few years is likely. Sent the block and head to machine shop. The guy said the engine was in very good shape but since we were do a complete re-build of everything I went ahead and had him rebore to .020 and put new pistons and rings in. Other than that we didn't do anything fancy with the internals.

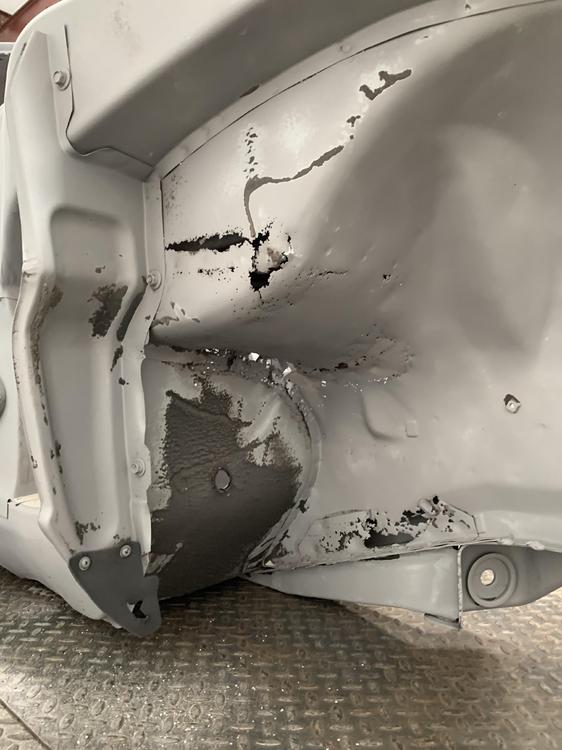

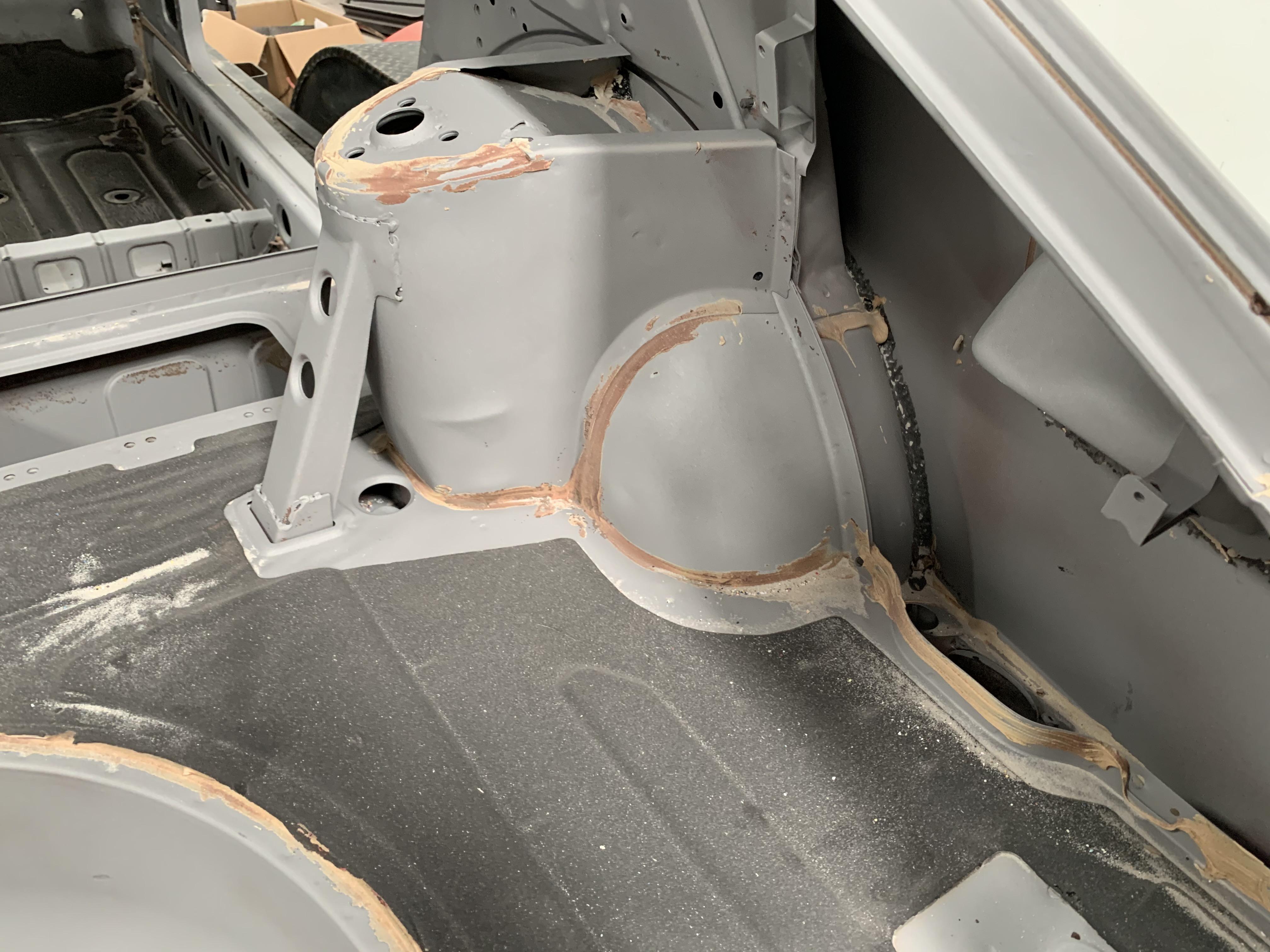

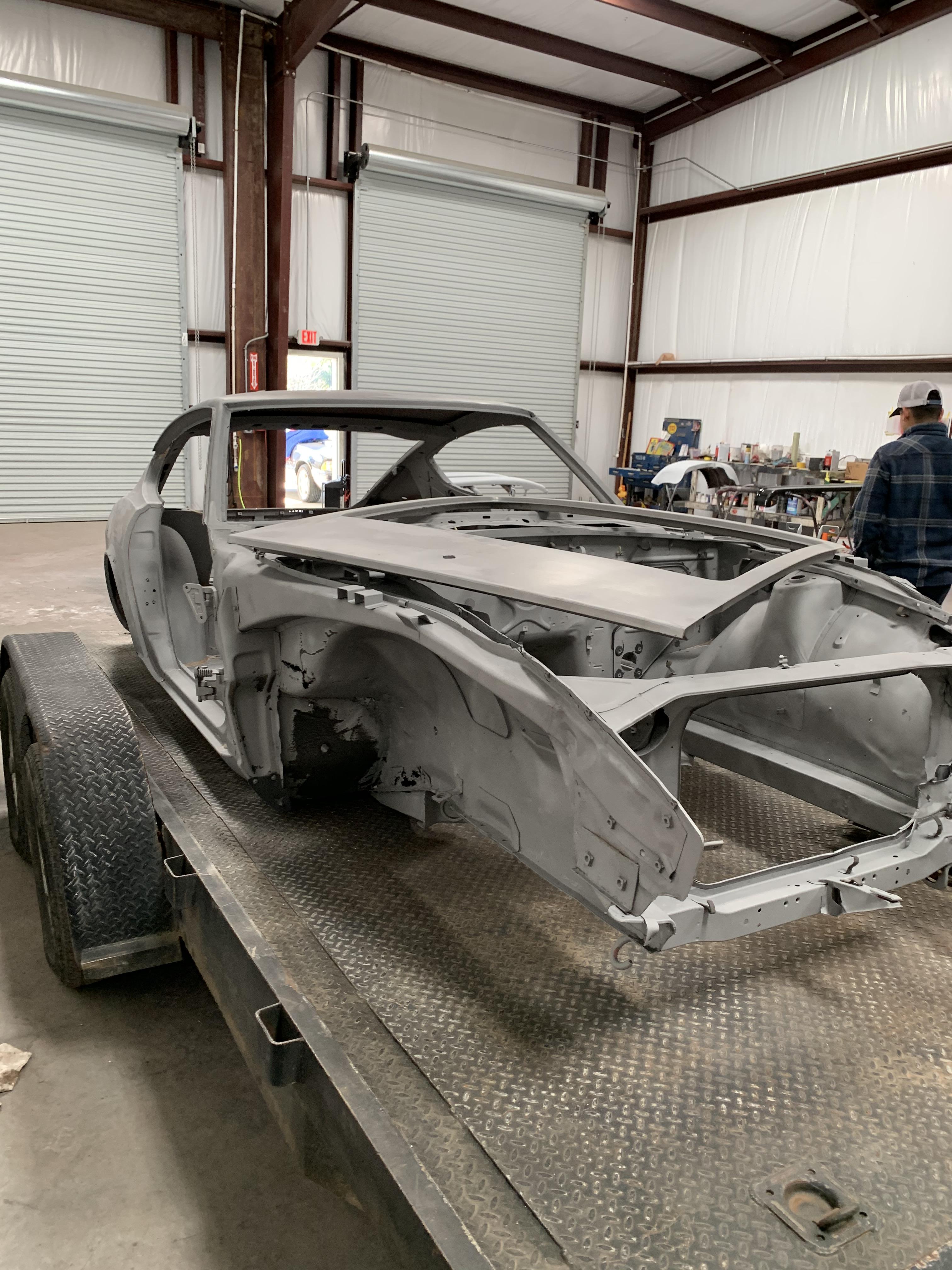

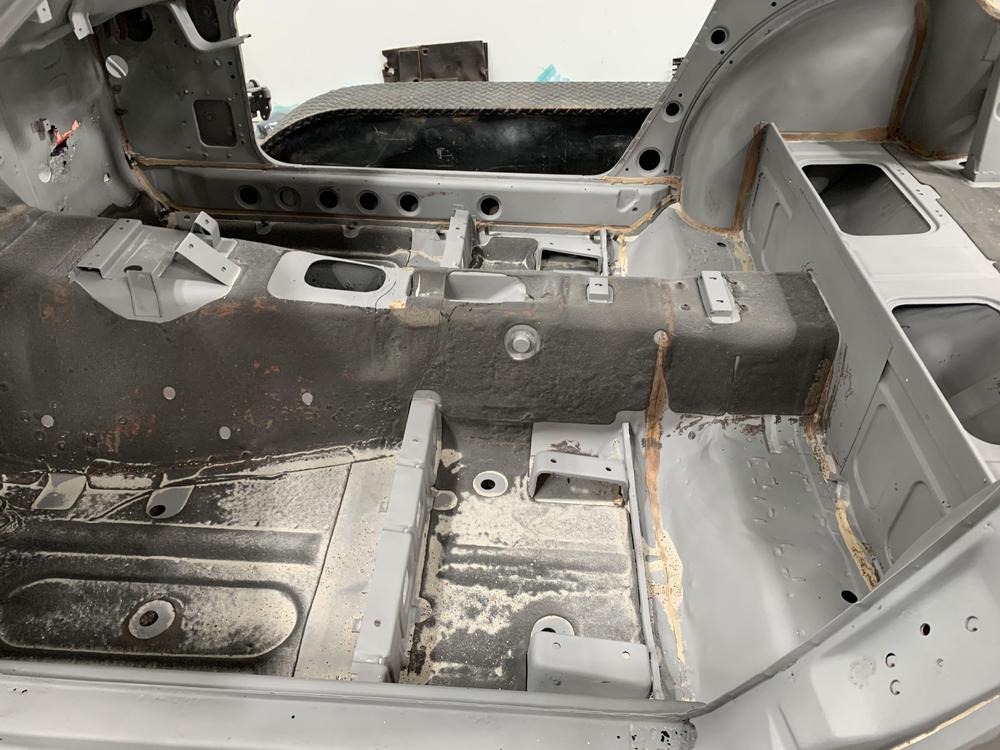

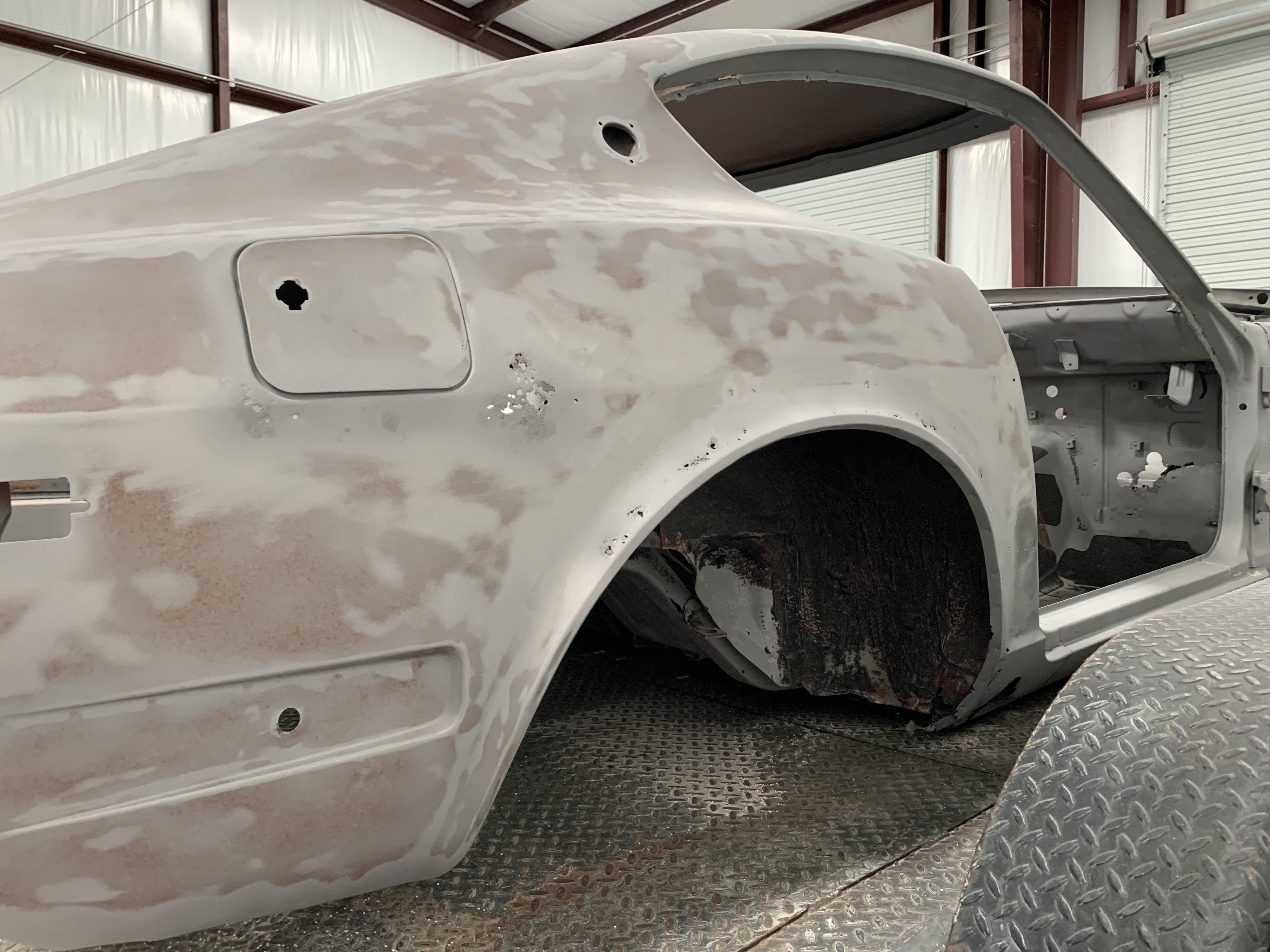

This is my first S30 so I am not sure how well this one stacks up to others in the rust department but the bad areas were the Battery area and rear quarter at the fuel inlet. Wheel Arches had rust through on each side. The interior stuff was in great shape. The donor car has now been sandblasted but I haven't been by to take any pictures of it yet. I've got my fingers crossed that it was a decent investment to save some time fabricating and replacing aftermarket body patches.

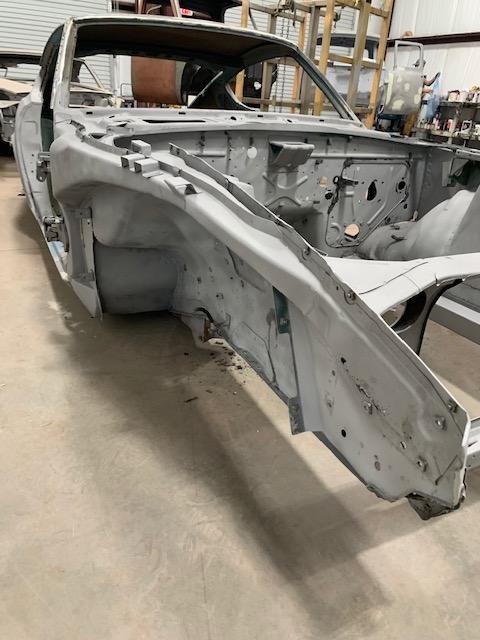

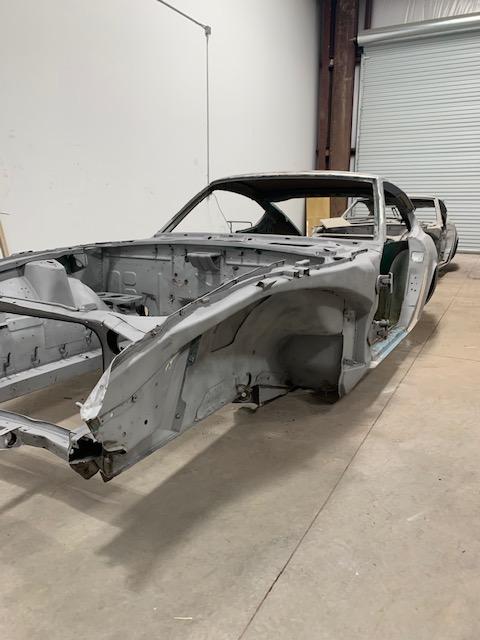

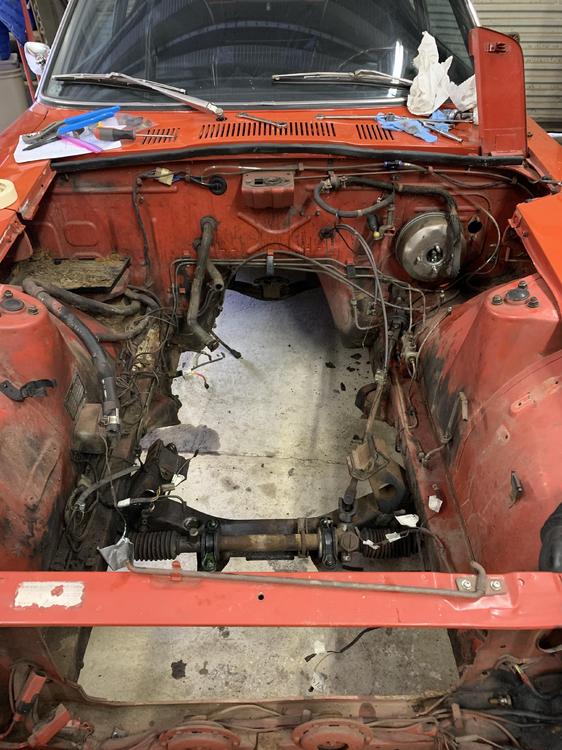

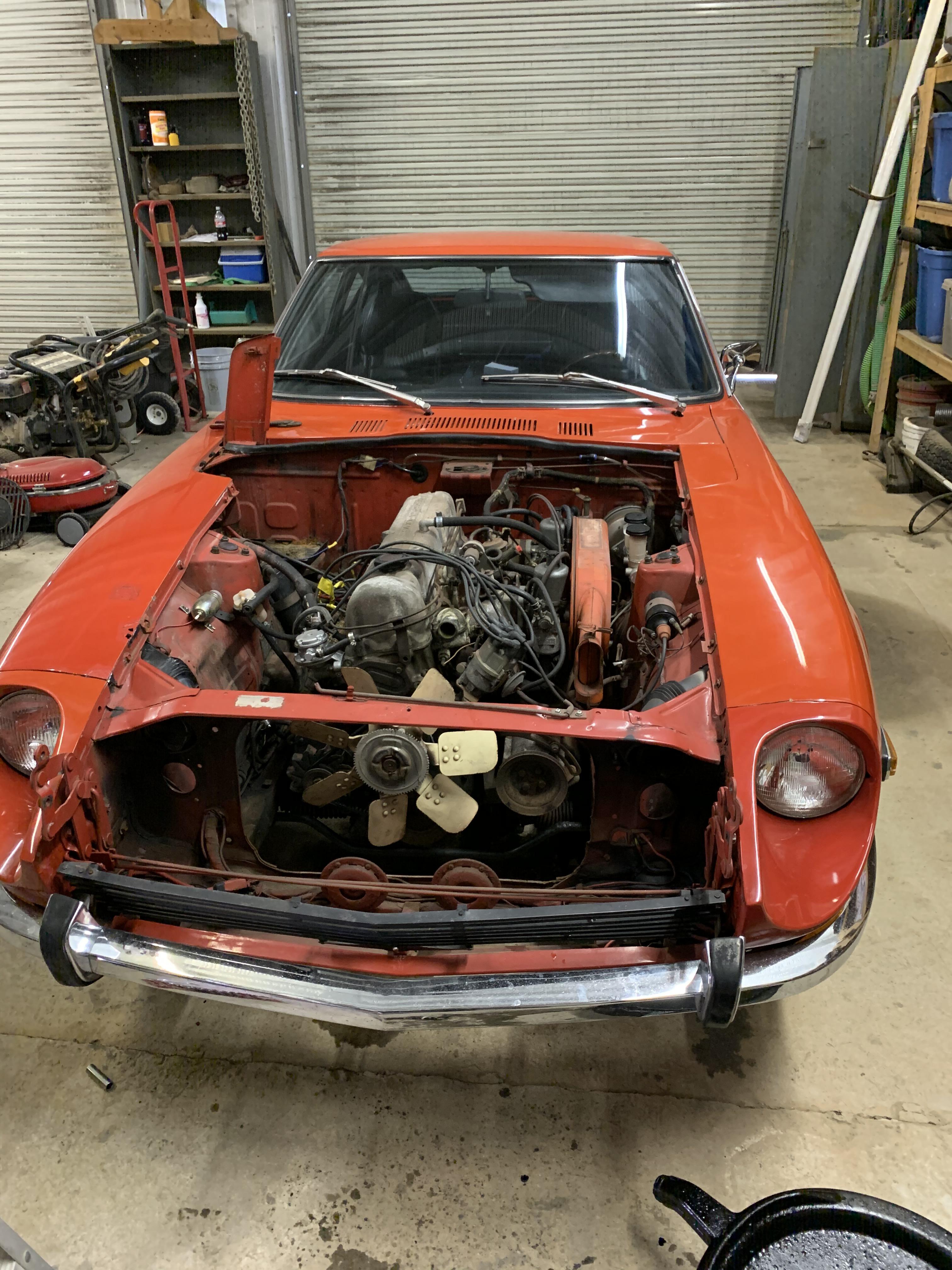

Should have taken more pictures during the tear down but I didn't realize these build threads were popular. I seriously wait for any updates to some of you guys progress like I am waiting for a new episode of my favorite TV show to drop. This car took a good smack to the left front at some point. I don't have much history on the car but other than the damage and some of the normal rust prone areas it appears to be in decent enough shape for a restore. The left frame rail is jacked up and the "under fender ridge" thing is all crinkled. My junker/donor car of course had been hit in around the same area but not as bad. I think the radiator support can be salvaged from the junker car and the under fender part. What I cant find is the front extension that the head light bucket mounts to. I bought a radiator support/font clip from ebay that looked good in the pics and damn if it wasnt crinkled in the same spot too. Im 0-3 on that but I am hoping my man doing the body work can figure it out.

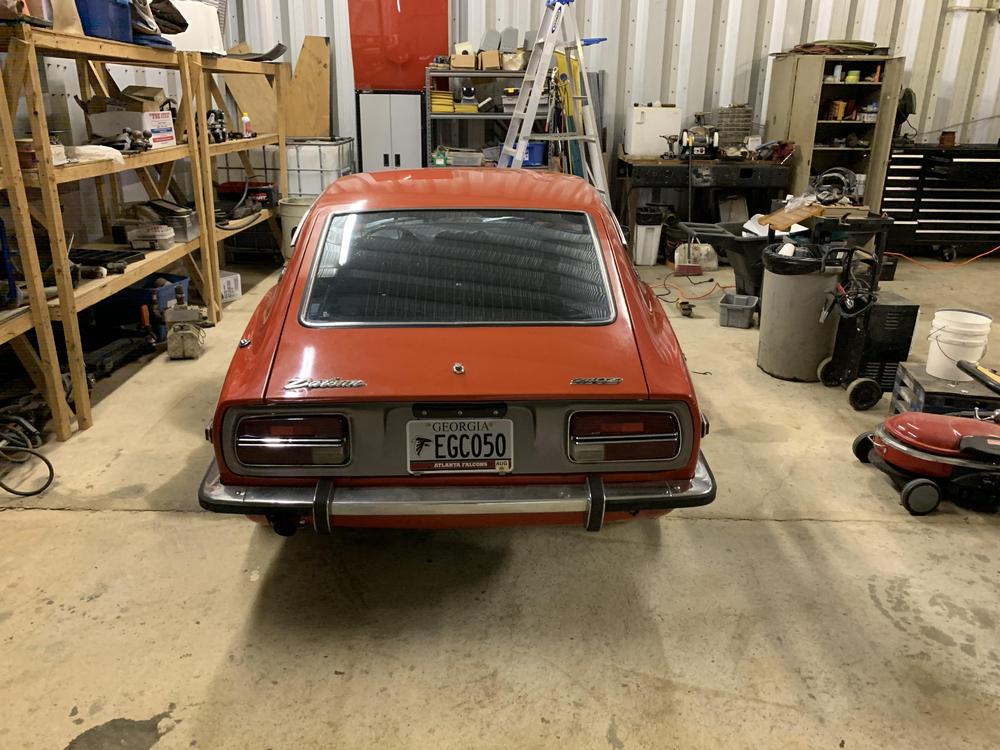

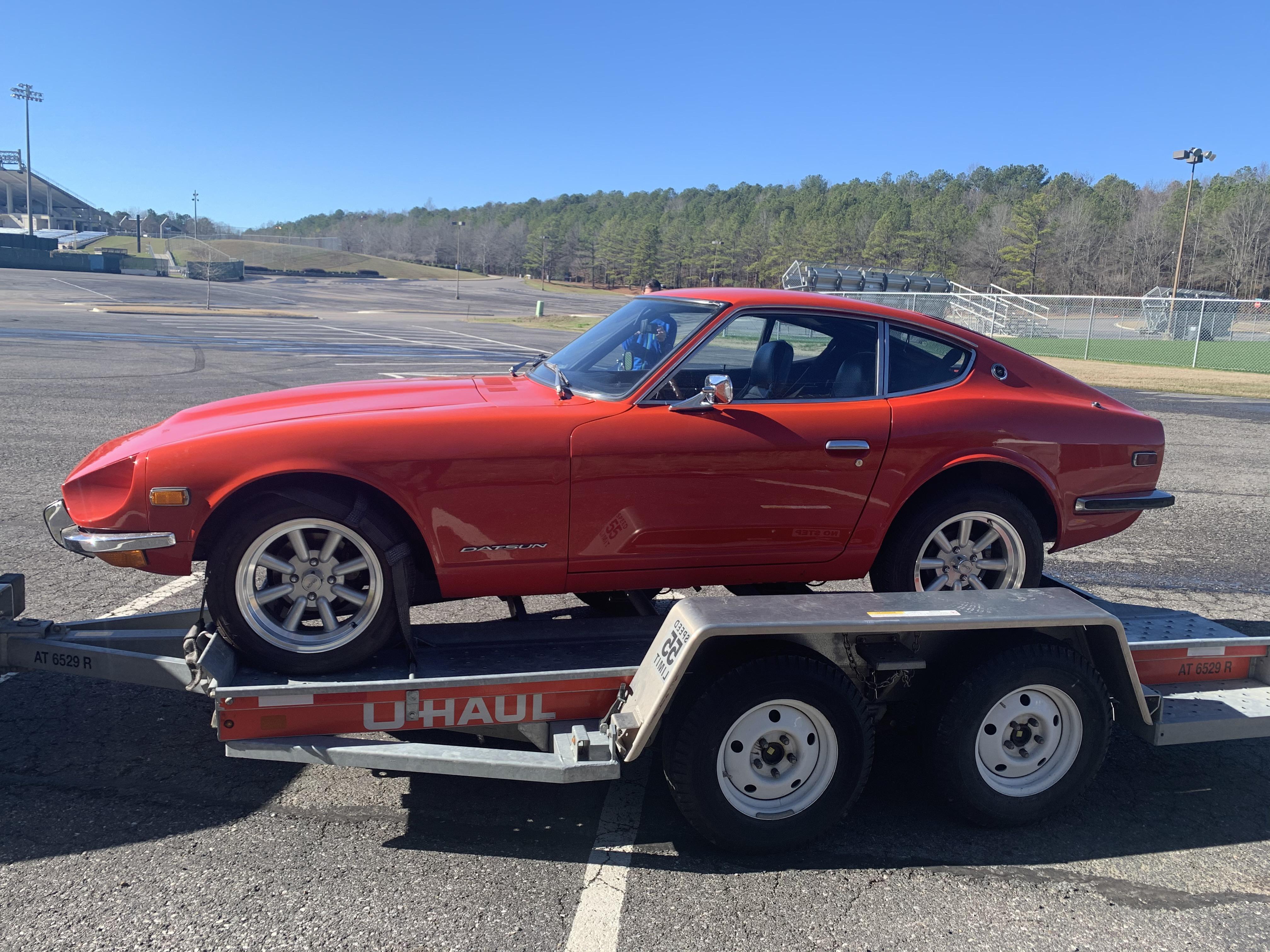

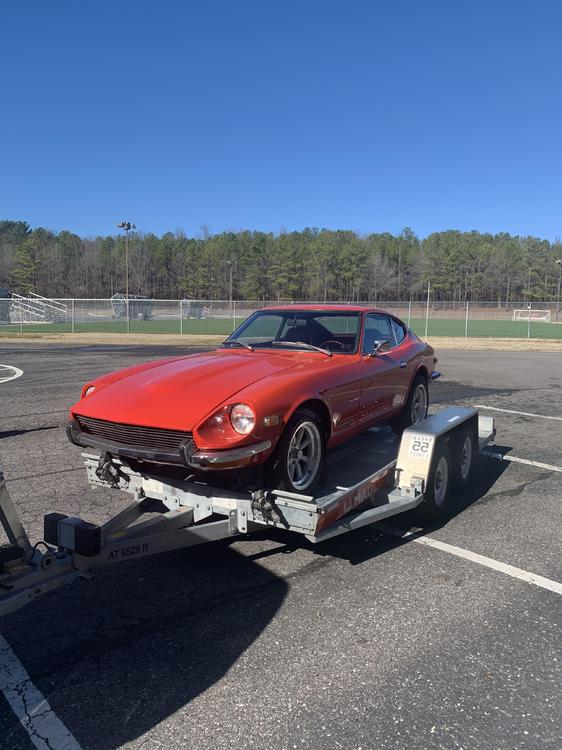

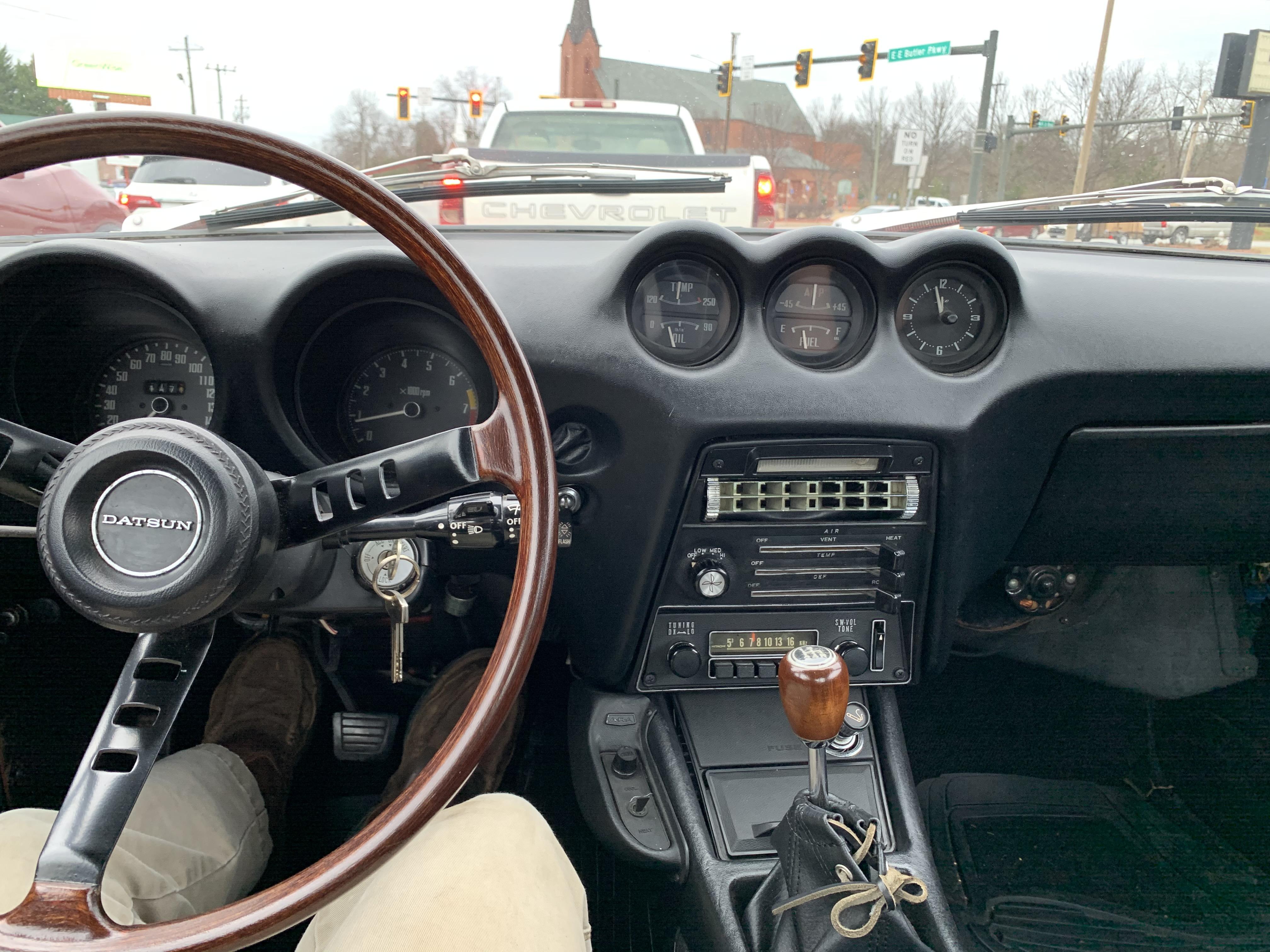

Finally getting around to starting a "Build Thread". Background on me...I'm 40 years old and honestly didn't give cars or motoring a minutes thought until about 3 years ago. I never wanted a sports car or cared anything about the performance of whatever I was driving. I do a lot of work at Road Atlanta Race Track in Braselton GA and have for the past 20 years. Around 3 years ago I started getting a campsite and weekend tickets for the Walter Mitty HSR Historic races down at the track because it seemed like something fun that my then 8 year old son would enjoy. The first year he could care less about the cars but enjoyed the camping and food. The 2nd year we camped right beside a gentleman that had a very nice White 240z that was un-restored but in great shape. I stared at that car all weekend and so did my boy. I still didn't know anything about cars, especially old Datsuns but I really did love the look of that car. By the end of that weekend my 9 year old son was reading the race schedule to make sure we didn't miss any action out on the track. Fast forward a couple of years and I have been bitten by the same bug that infected the rest of you guys! I spend most of my free time looking at Datsun parts or tracking auctions on BringATrailer.com for cars that I may or may not even like. What's worse is my now 11 year old son may be crazier than I am. That kid can tell you the make and model of anything on the road today. His favorite show is Top Gear UK and he has his own subscription to Motortrend TV. While eating Thanksgiving dinner this past year with my family in Alabama I mentioned to my cousin who is an engineer at BMW in Birmingham that I would love to find a 240 somewhere to play with. He immediately informed me his boss had one right then for sale. I of course took this as a sign from GOD and told him to stop eating and call his boss and tell him consider it sold. Below is what I bought. It ran great with the exception of a head gasket that was causing a combustion leak. The interior was in very good shape and the car looked pretty nice from a distance. I usually go overboard with any of my hobbies so I quickly decided it needed to look good up close and be as perfect as I can make it. I am learning a lot and this website and forum have been indispensable to me throughout this process. Everyone I have asked questions of here have been extremely helpful and considerate to point me in the right direction. I now have 3 Datsun's in total, 1 was in bad shape and I am using it to cut and weld metal parts for the car below. The other is a 76 280 that is sitting in a shipping container at my shop waiting on its older brother to be complete.

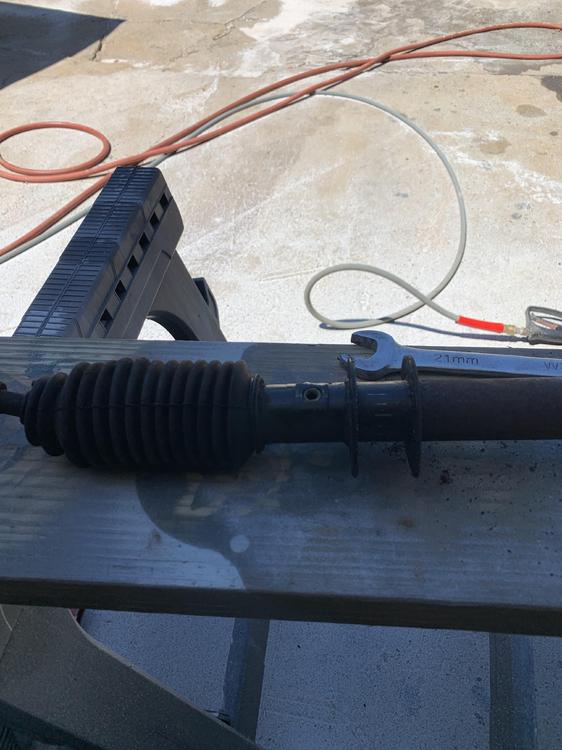

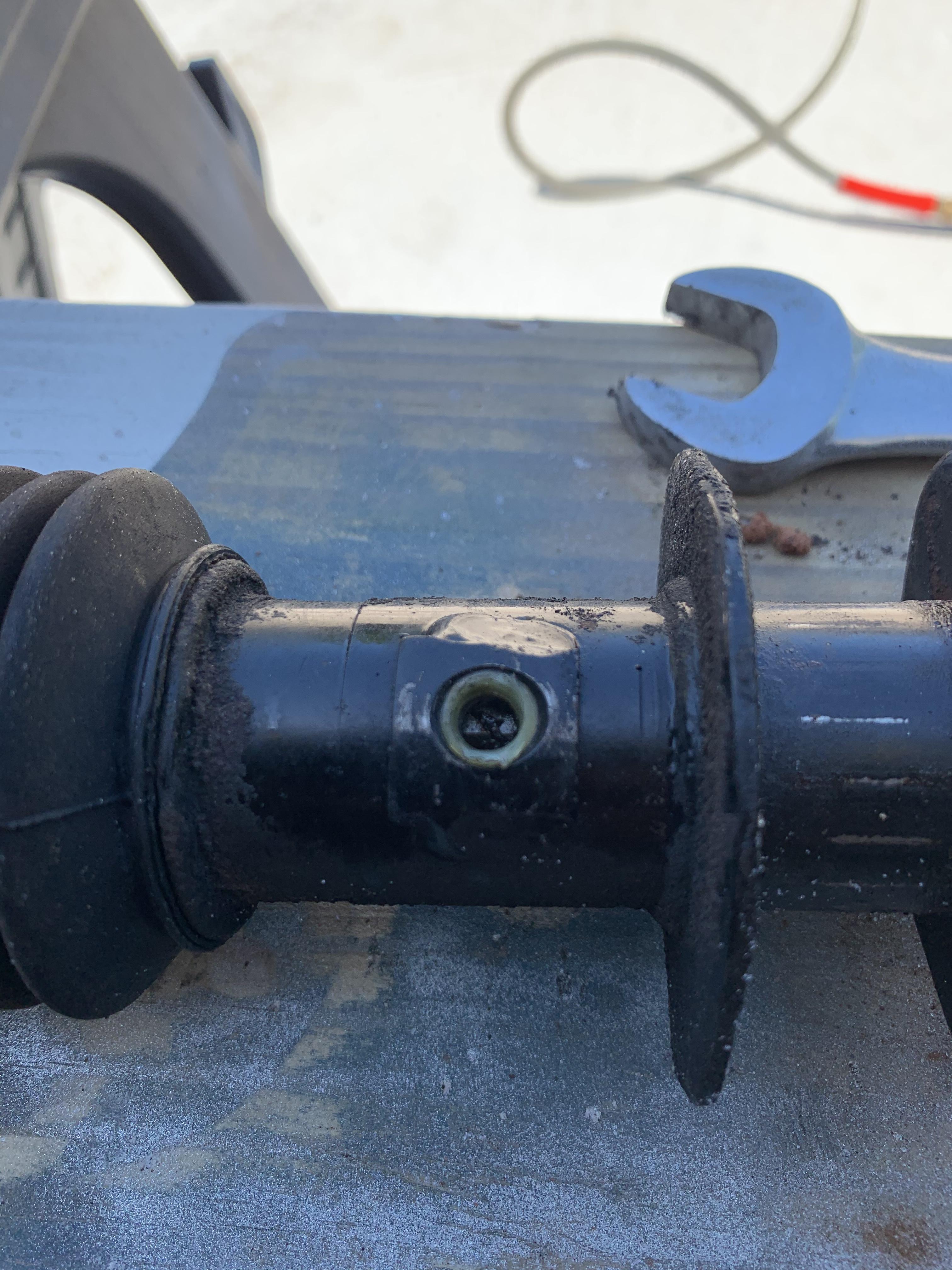

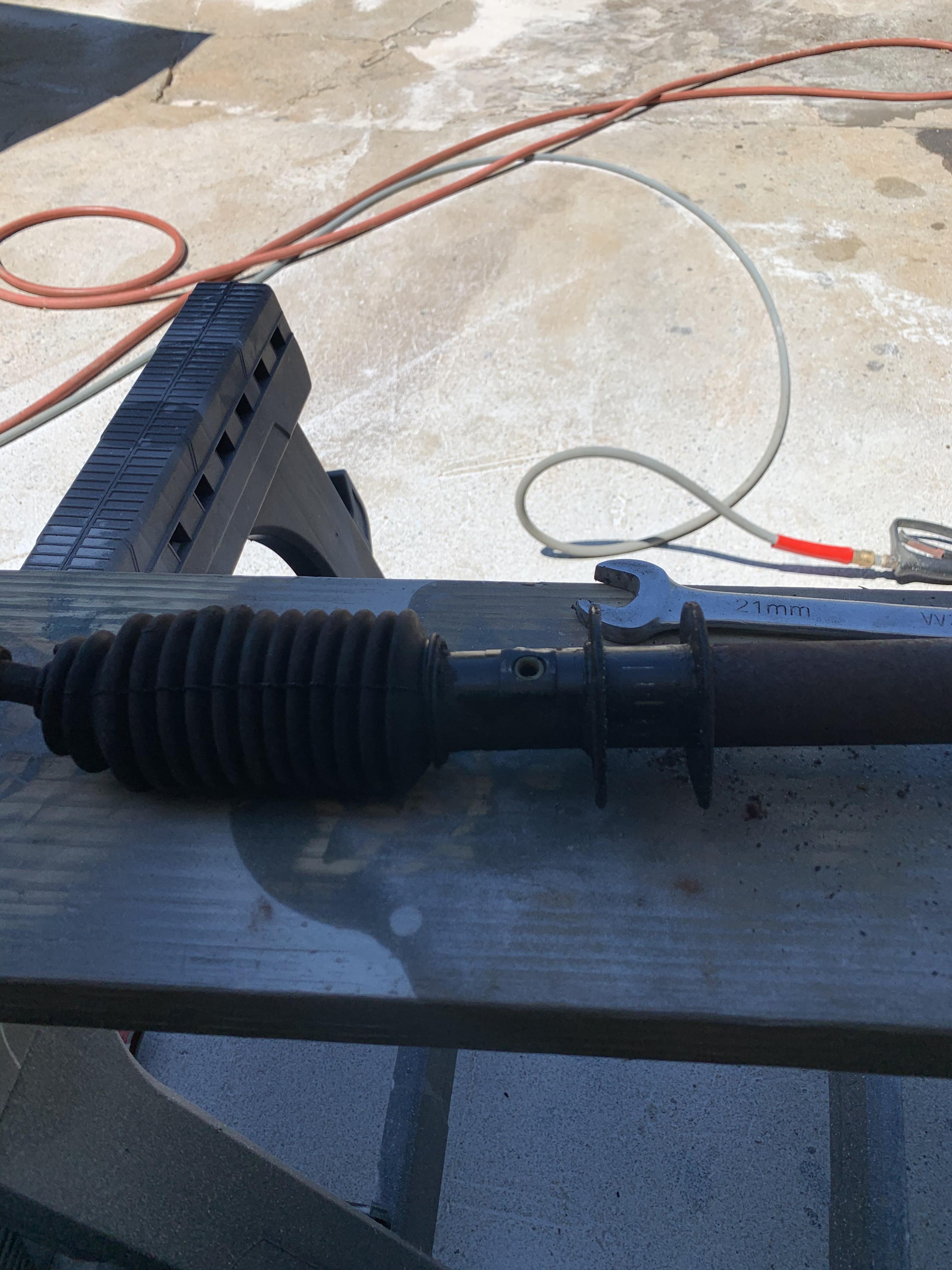

Your Steering Rack looks great. I am getting all of my suspension parts ready for powder coating. Did you just paint your steering rack? I am trying to decide what to do with the upper and lower shaft on mine. The small U joints appear to be "Staked" in place. I have been replacing any wear parts when possible for what will hopefully be the next 50 years of driving my car but I am not sure its worth trying to dismantle those joints. From other posts it looks like those little joints may be hard to come by and difficult to remove. Maybe just paint them and the Shafts with the joints in place?

That turned out great! If we can Frankenstein this thing half that good I’ll be pleased. I think a 260 is what I’ll have to work with. The guy sounded like his only 240 was in pretty bad shape with rust.
