HBS Electrical switch

Frankensteinz2
in Electrical

Featured Replies

Hey Guys

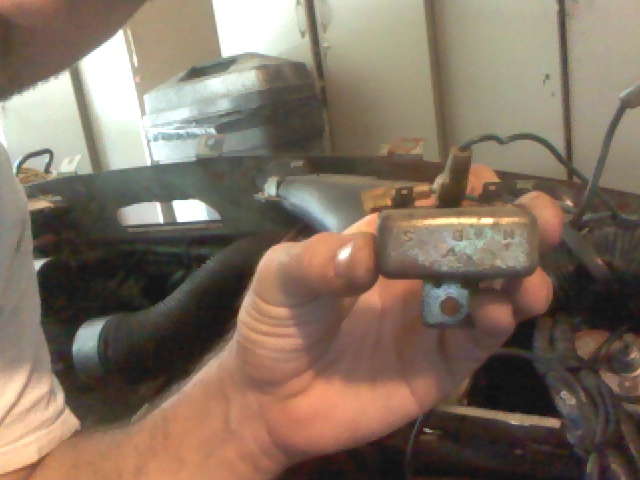

I have an electrical switch under the drivers side dash that the wiring popped out of, I would search it but i don't know what the hell it is. It is rectangular and has the letters HBS on it. 3 wires going to it, GR, GB, and G. Can anybody tell me how this is wired? See attached pic

Thanks

Frankie


That's your Horn Relay.

H = Green to the Horn

B = Green/Red to the Battery (Fuse)

S = Green/Black to the Switch.
