Dealer Wall Chart (S30 - 1975)

webdawg1
in Electrical

Featured Replies

Posted
comment_145204

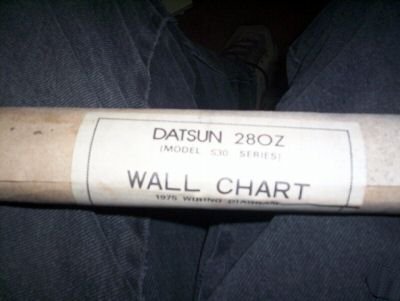

Ran across an item on eBay of some interest...Seems the dealers at some point in the past had a wall chart showing the wiring connections on the 75 280Z...etc...etc. Should come in real handy...Hum...now which wall in the garage should I put it on??
