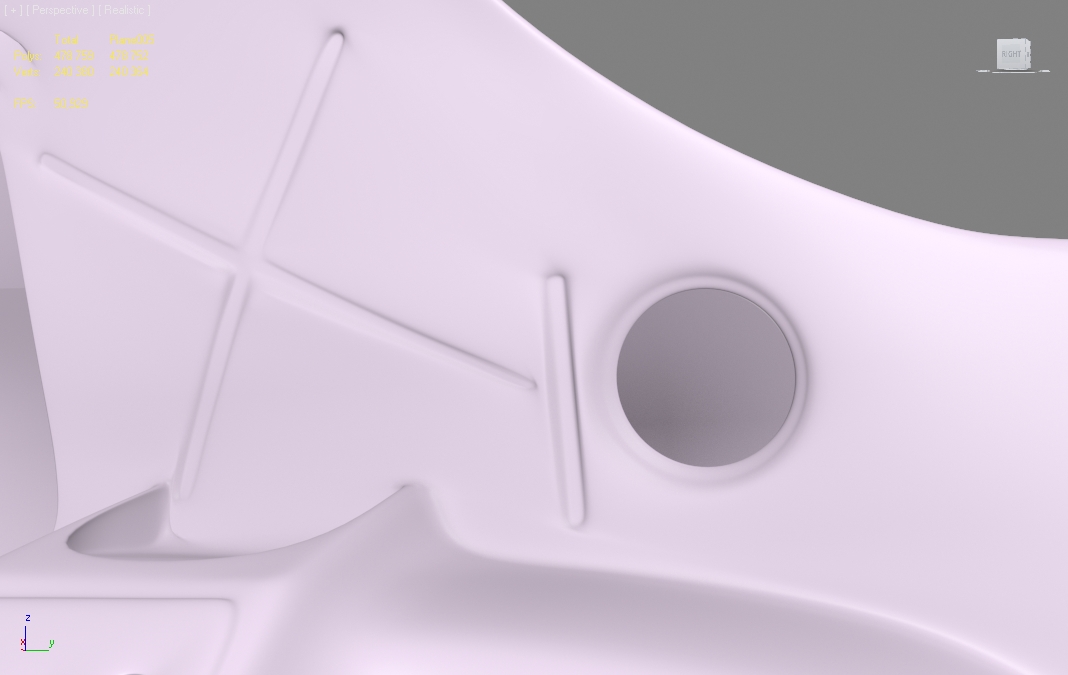

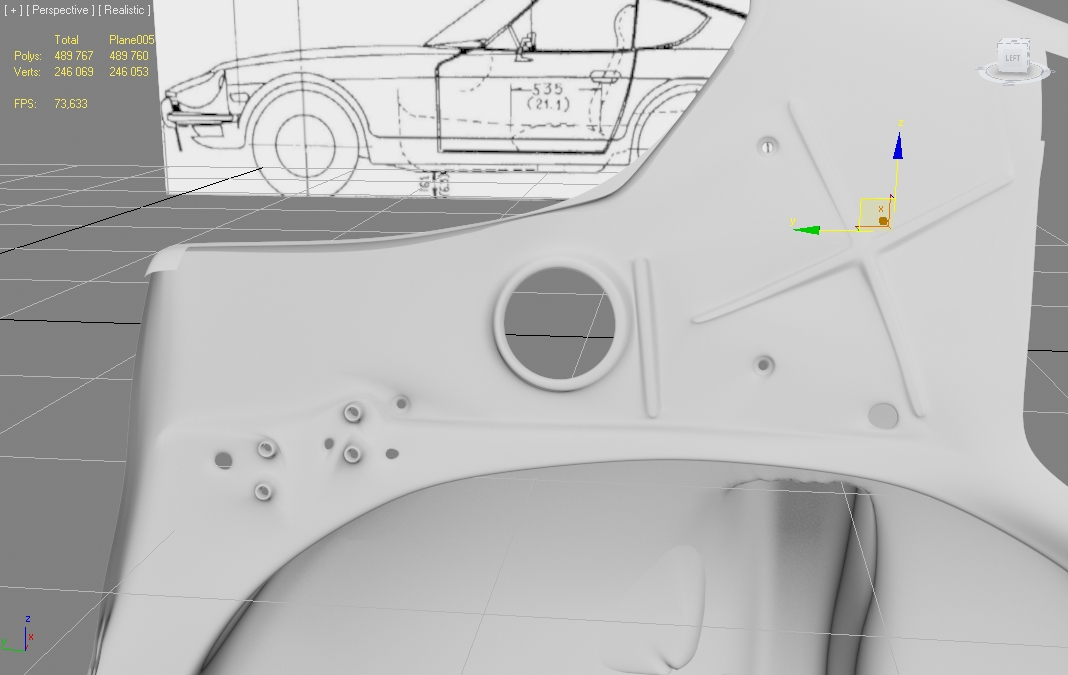

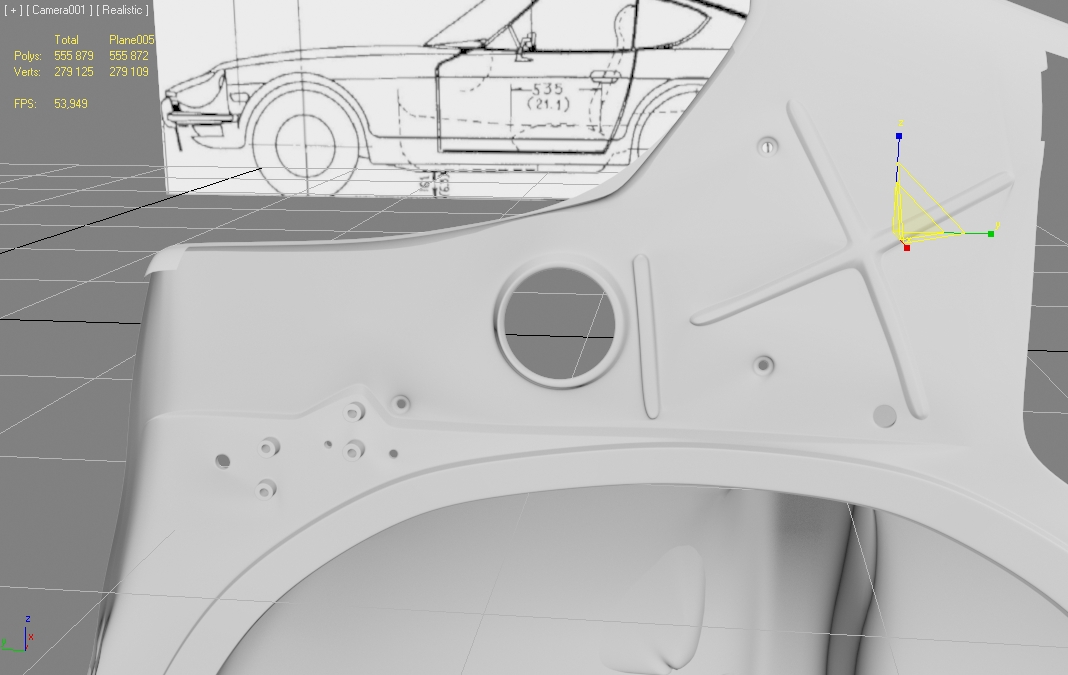

Update!Now more-understandable this gets smoothed gets chamfered(very close to final variant,need to fix geometry lil bit) Are there any missed details?Or maybe something wrong with geometry? now will try to fix the "X"

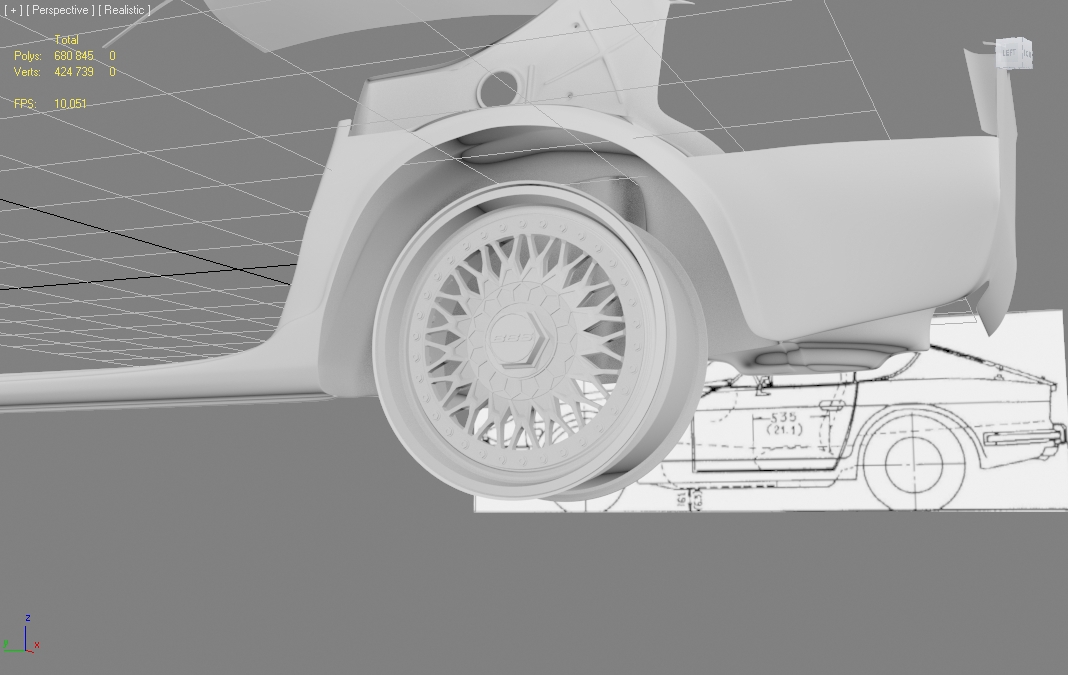

had some fun with my BBS RS also finally decided that it will be a '73 240z, because there are a lot of cool references above.Expect great progress next week! Got the 240z servise manual here http://www.xenons30.com/reference.html and glad there is more information

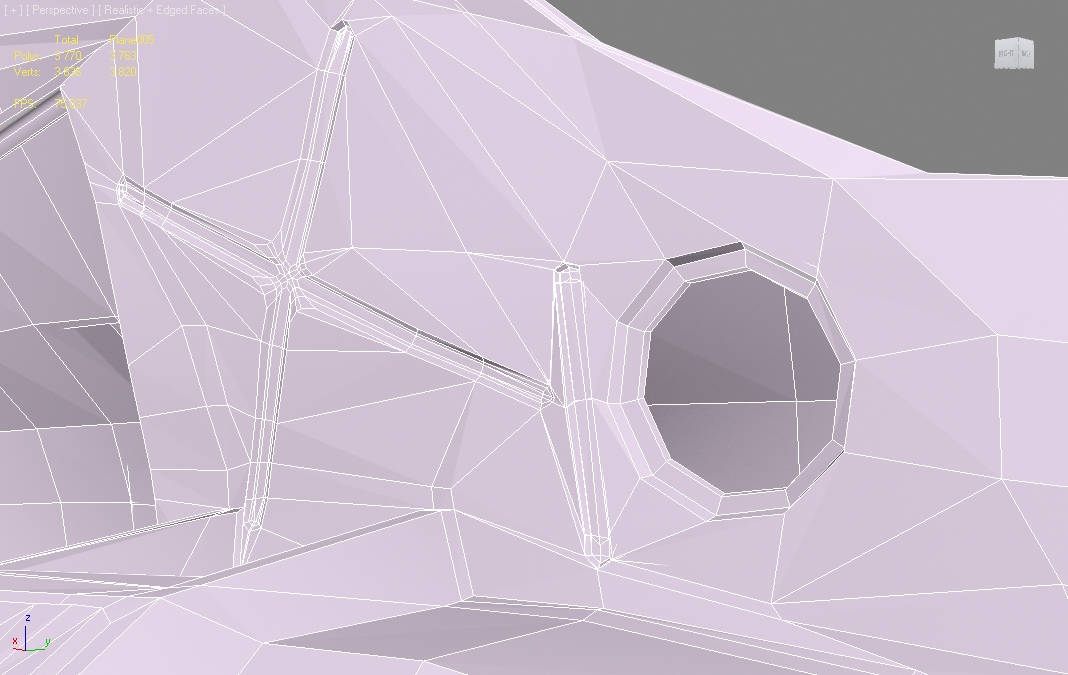

Back home This one is just look like mini-update,but wireframe wasn't easy to edit in this area That's how it looked smoothed without chamfer

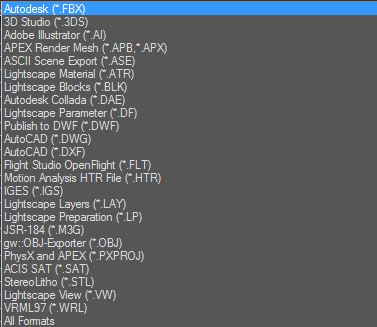

DXF maybe?The list of possible exporting formats: So you know how to model or just have a person who knows?

I'm leaving soon.....so don't know if I would be able to work on it or not, return on 22-23 of august.......Maybe will try to start to make engine in autodesk inventor.

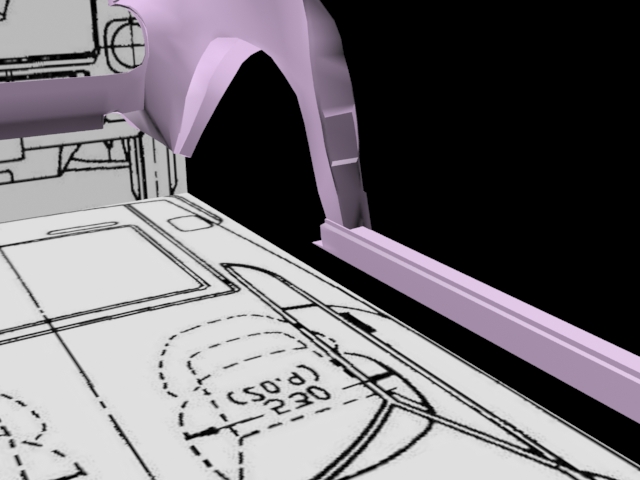

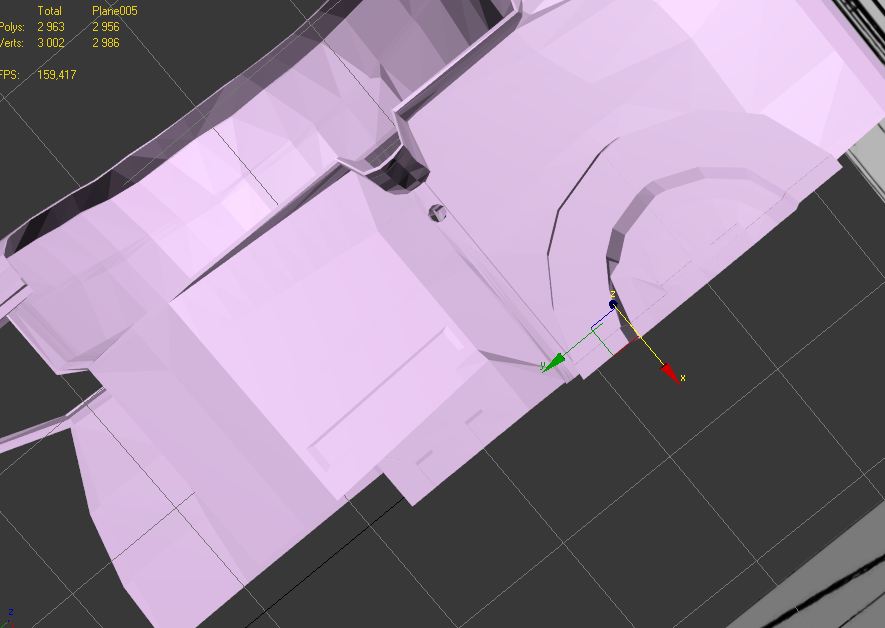

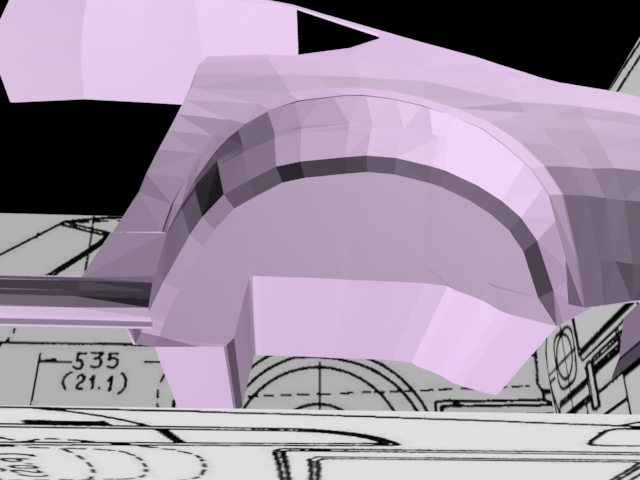

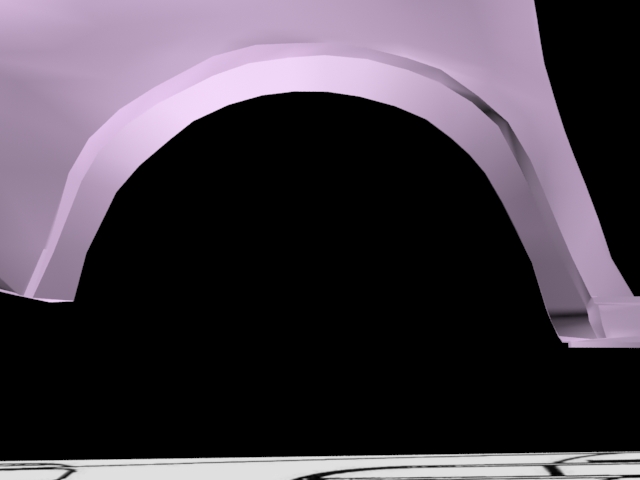

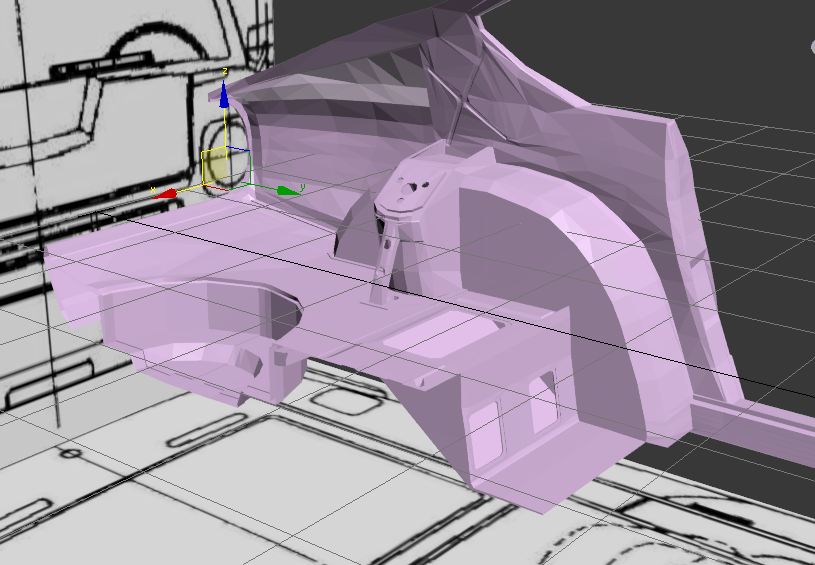

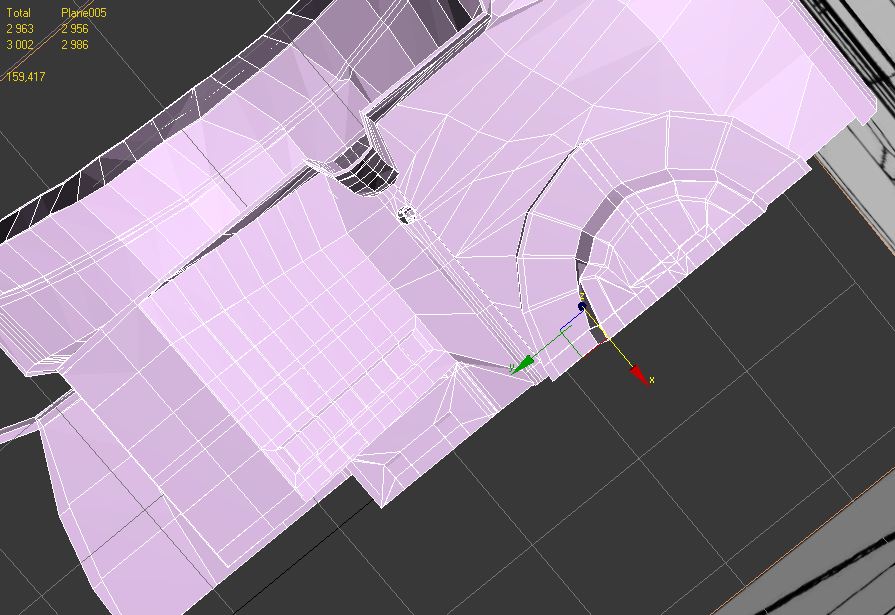

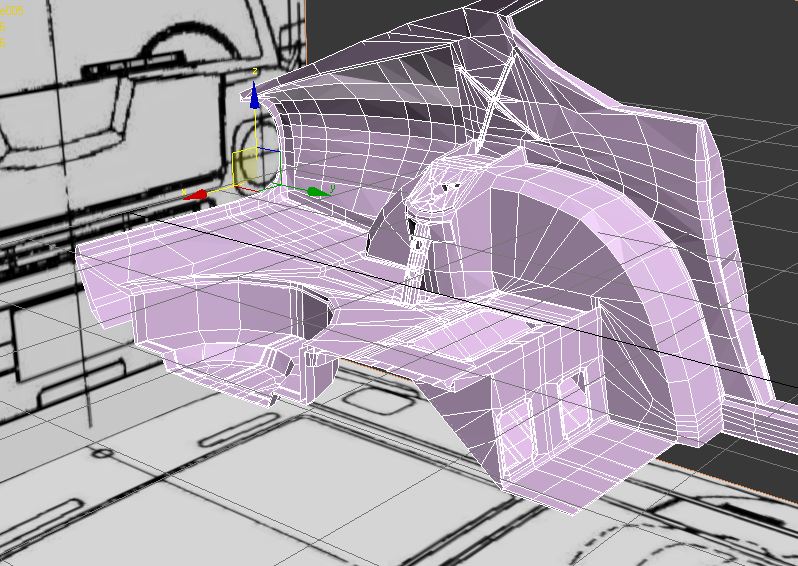

Can't refuse you showing progress One good man sent me a PM,where he gave me a link to a great base of good references,he(and more guys)were restoring a 240z.Thanks,Carl! http://becksystems.com/KellyW/KellyW.htm Also a bit progress...I'll move the "extra wheel"hole to the side when will be making assymetry Started to make the bottom.Also decided it will be high poly,because it looks better. Will fix the heigh differences on the bottom. Ye the wheel hole on 2 last pictures.....fixed.

Thanks!!!Was busy for a bit,so nowadays I might have less time went something like this

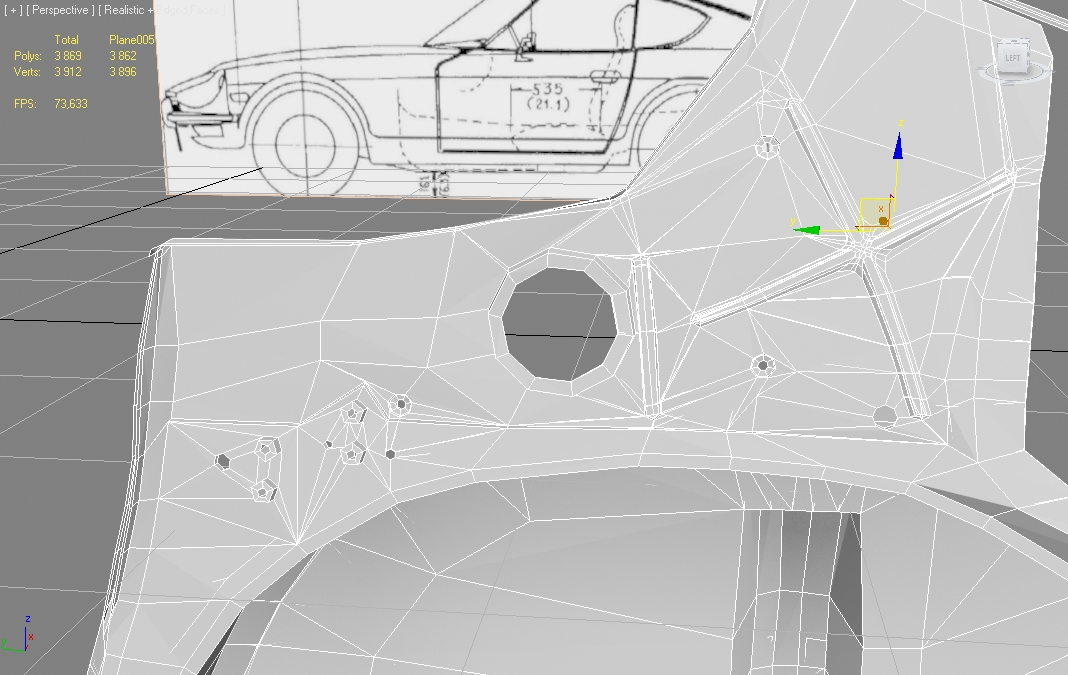

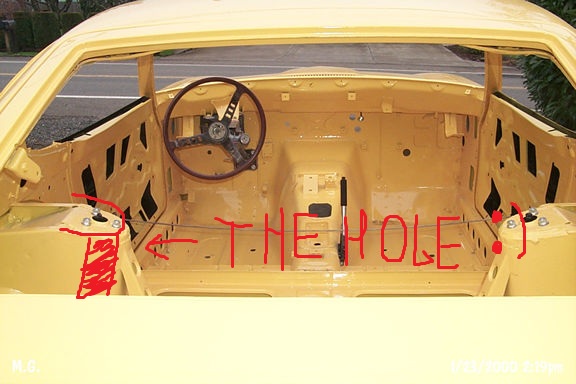

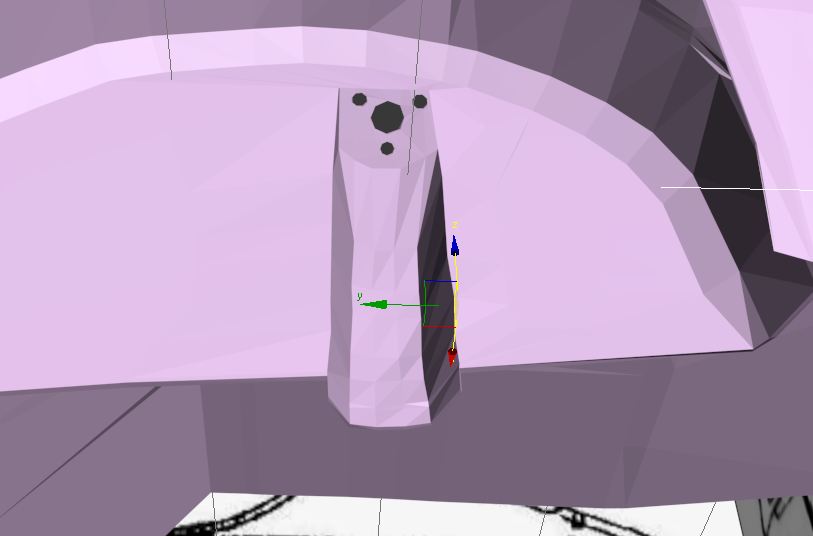

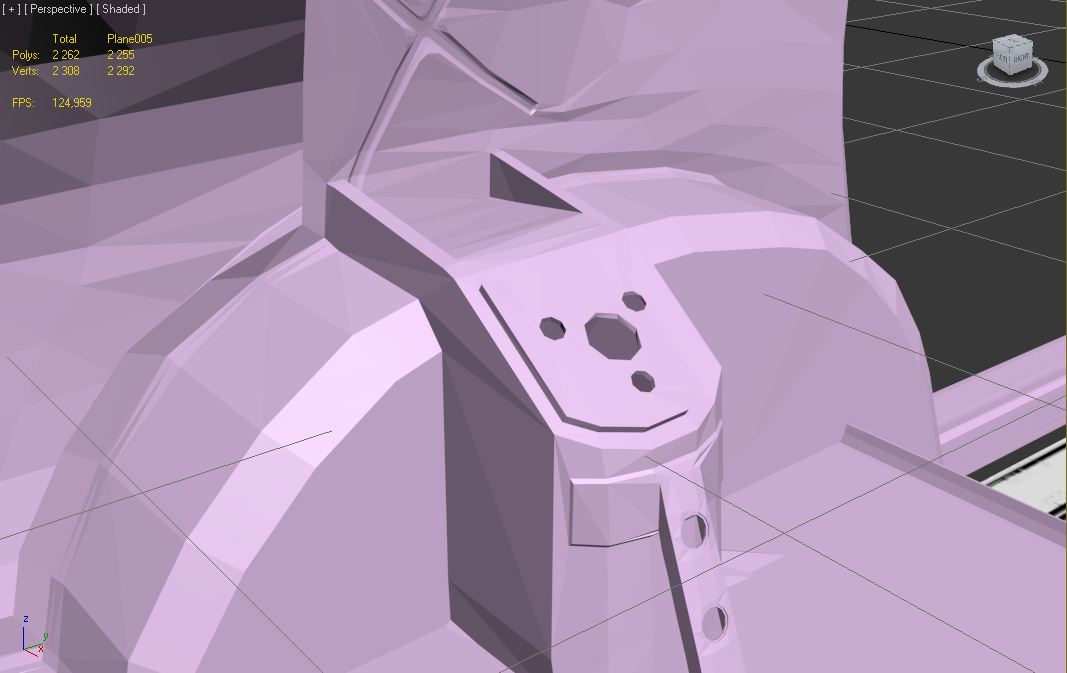

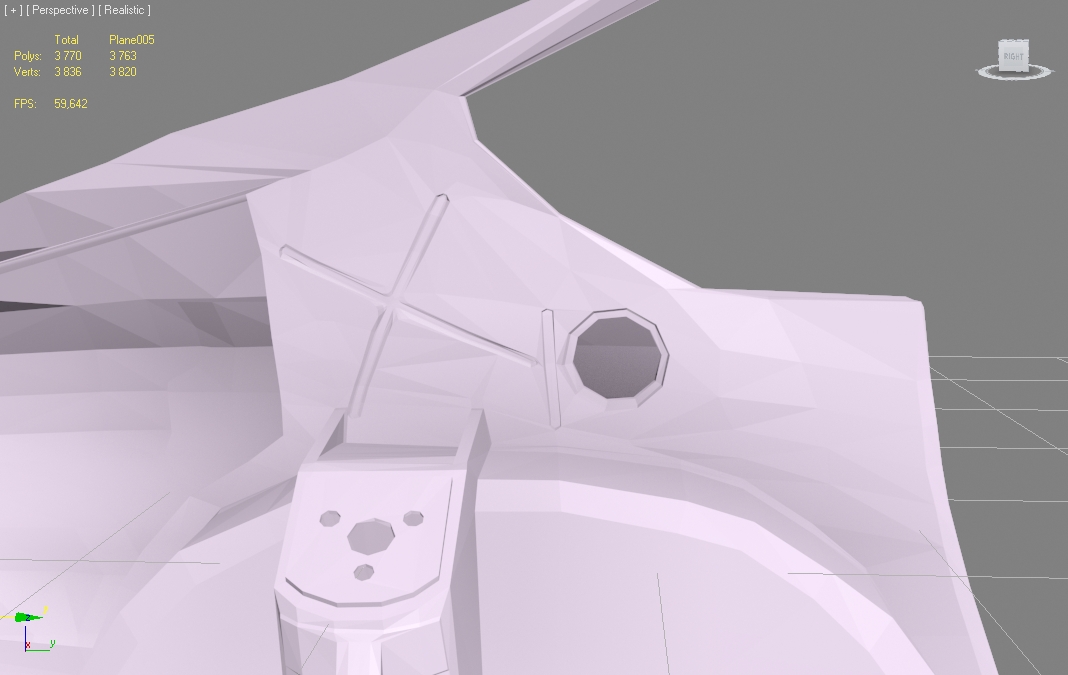

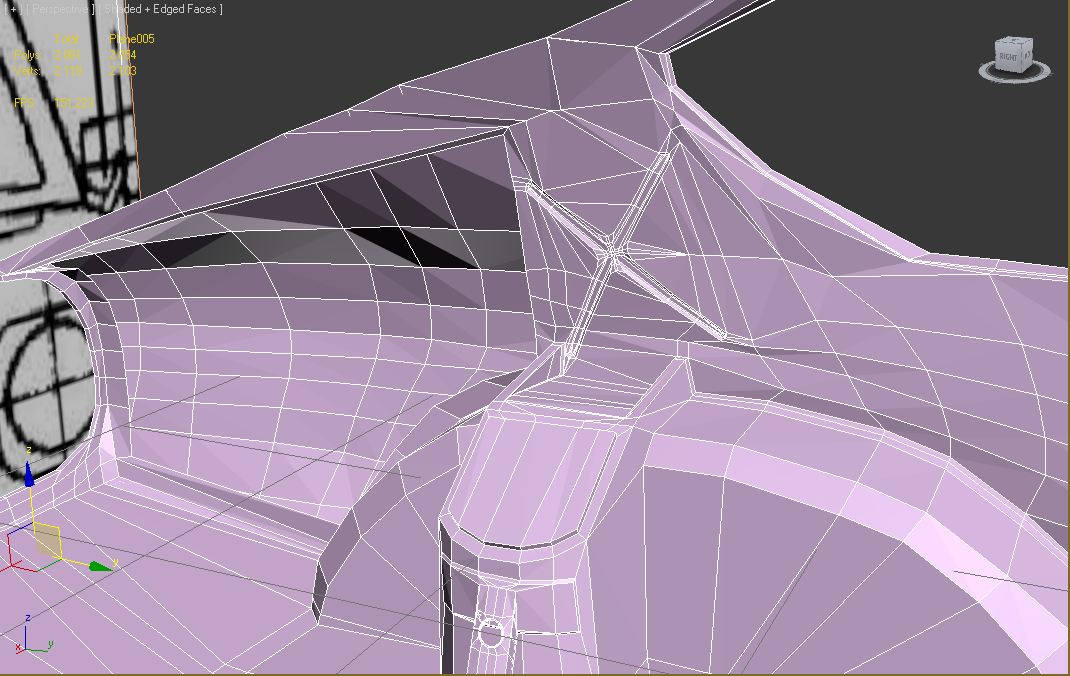

I will be happy to see any reference,so post them,because every reference can help in the process.With the previous post I meant I wanted to see how the hole for strut is made. This It's fuel pipe right? Here some new progress....the "X" and the transitioning into back.Also a wireframe

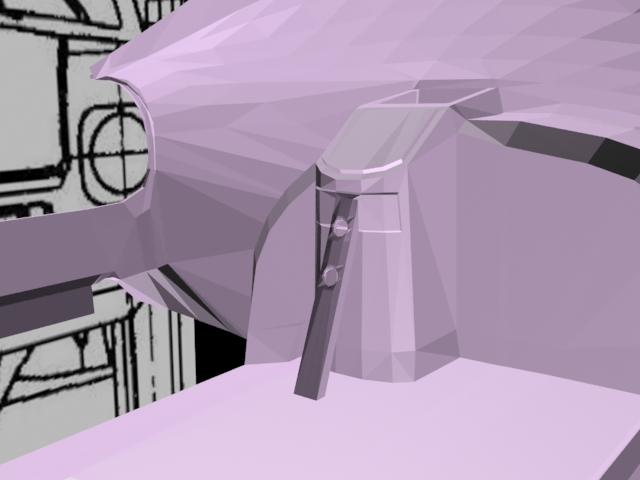

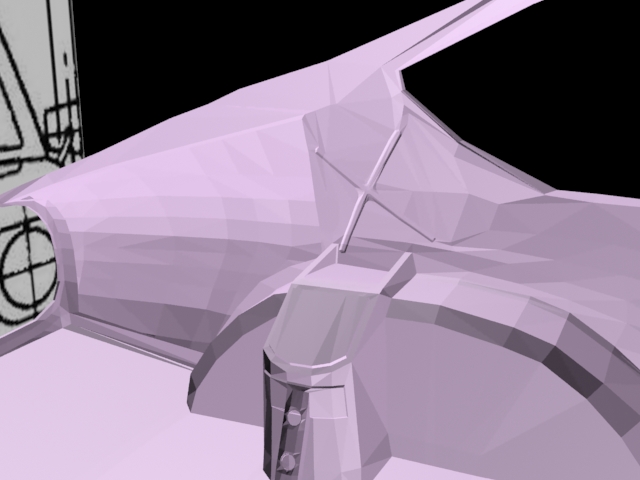

Here's some new progress...So I decided that this thread will be a WIP(work in progress) And again I need your help.....anyone has a photo of this part??(desirable without wheel)

Service book is for 280z That's obvious poly modelling I'm not sure that I'll be doing mid-poly(will also be able to make a template easilly) or high-poly(template difficult to make,but car will look smoother),still thinking. thanks man!helped a lot

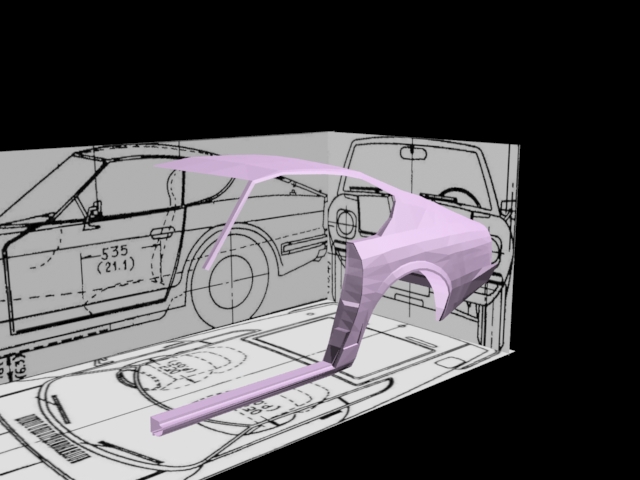

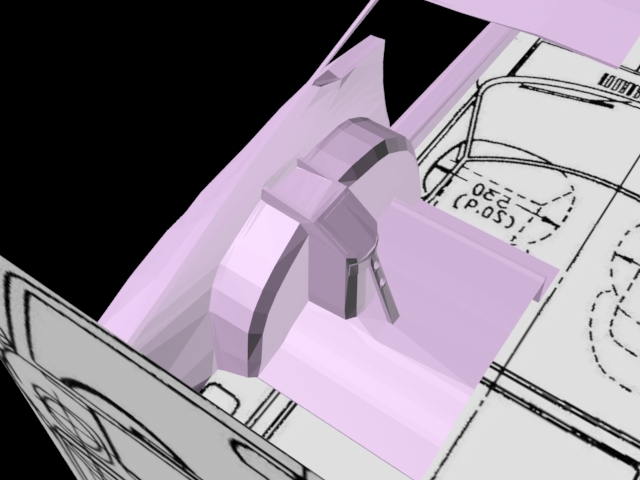

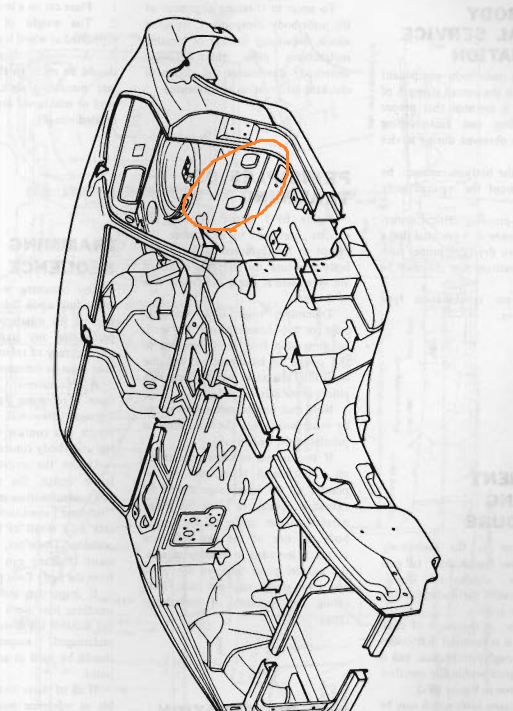

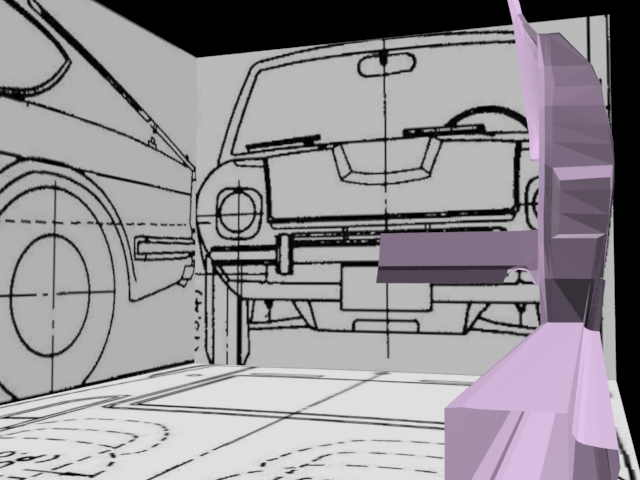

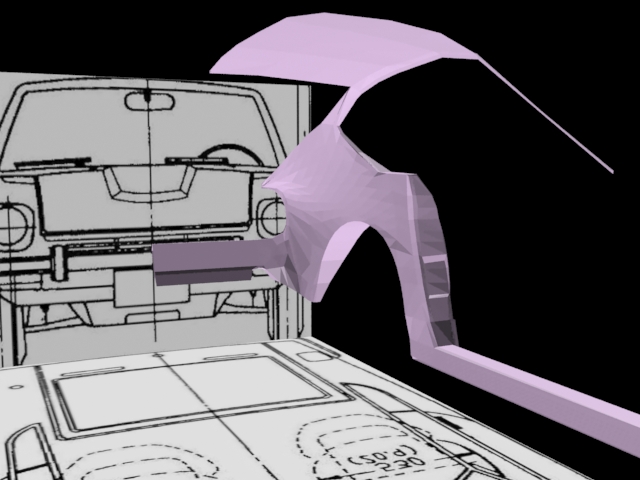

Hi all!!I was making a 280z in 3d,so I get stuck on these: Didn't find any references in google,so that's why I here.So tell me please,are there 2 or 3 holes?If you give me a photo that would be just perfect. Thanks,here's the progress I know that's not much but....I'll be doing it in my free time
