Instrument Brake lights dims a little bit when parking brake is off


jalexquijano

Recommended Posts

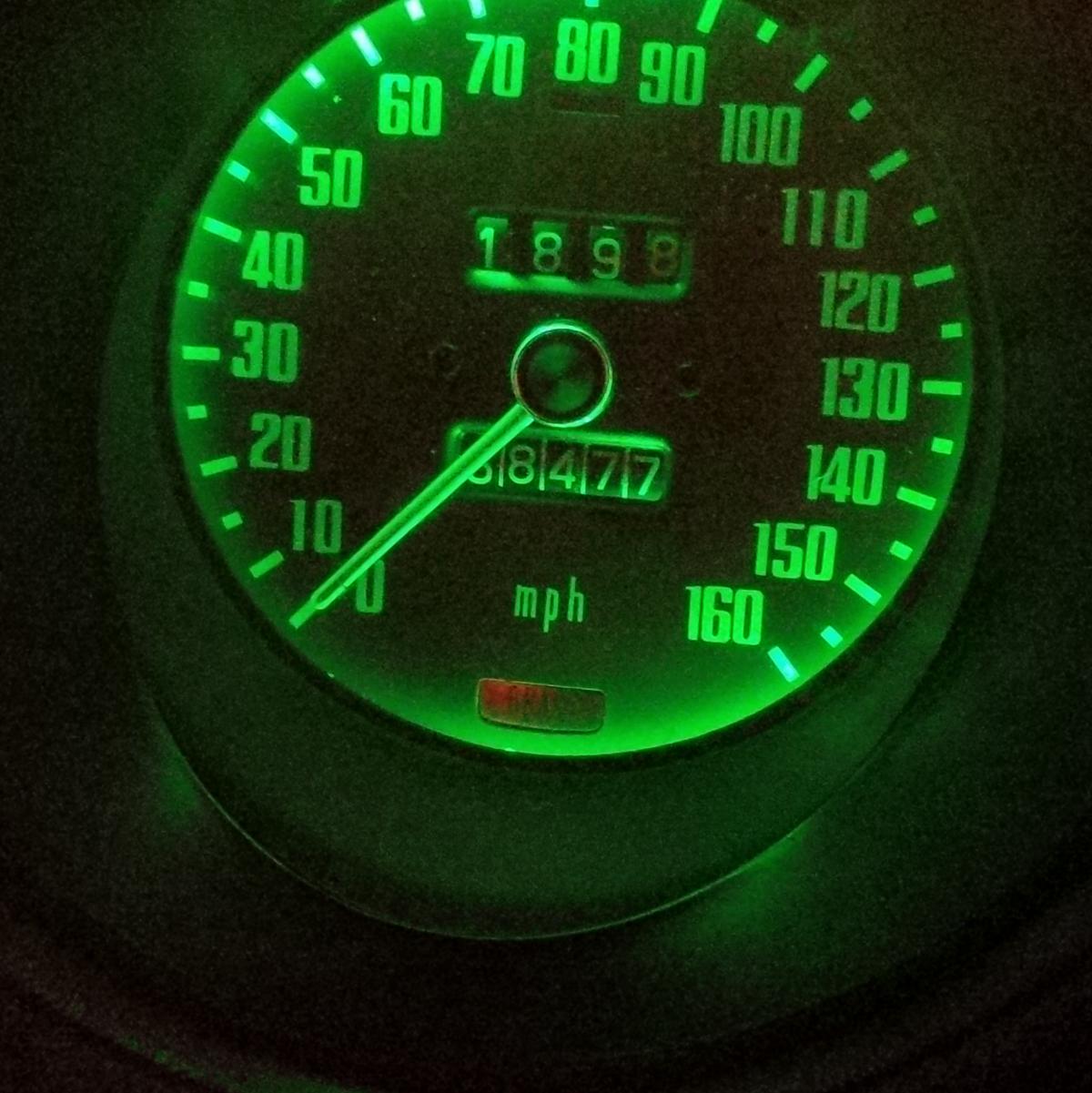

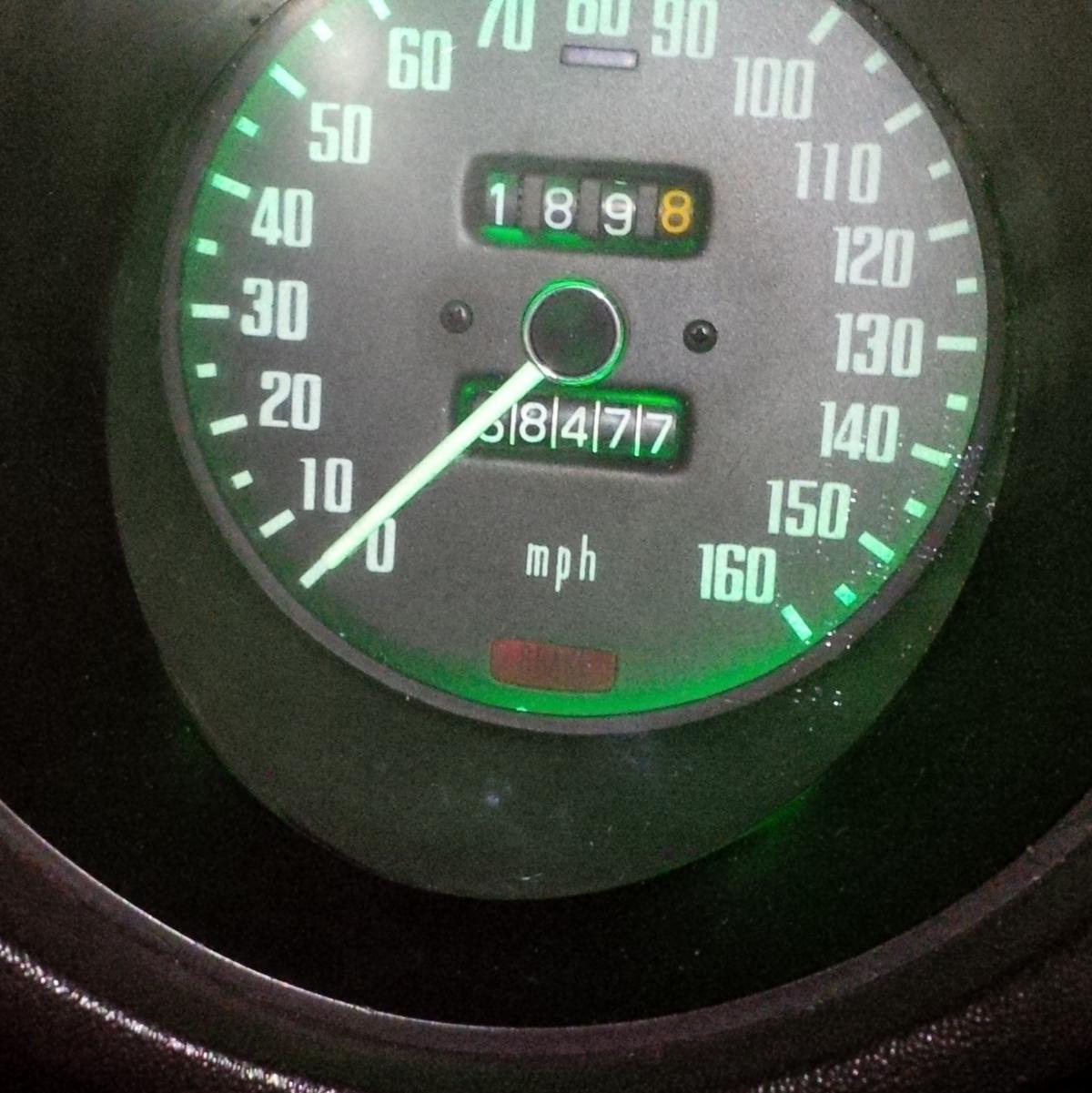

The instrument brake light dims a litlle bit when i take the brake off the car! It does it with the vehicle´s headlights lights on or off! What could be the cause of this and where should i check to get this sorted out! I have already connected and disconnected the turn signal switch for any loose connection but it has no effect. Any recommendations? The bulb is a red led bulb!

post-28721-0-31587600-1448238910_thumb.j

post-28721-0-79245900-1448238932_thumb.j

Edited by jalexquijano
Link to comment
Share on other sites


Anytime the brake light comes on with the parking brake released is indicating a brake system failure. Underneath the master cylinder is a body with brake lines running through it. Your car has two brake systems. If more pressure is applied to one of those systems, it makes a contact to ground lighting the brake light. The light is dimmer because you have a dirty switch  or corrosion in the ground path.



If the brake systems are operating normally - and you can verify it -there is a high resistance short to ground somewhere. You can verify a brake system failure by unplugging the wire lead attached to the center of the body mentioned above. If the light goes out when you disconnect it, you definitely have a brake system failure that needs to be fixed.

Edited by djwarner
Link to comment
Share on other sites

Anytime the brake light comes on with the parking brake released is indicating a brake system failure. Underneath the master cylinder is a body with brake lines running through it. Your car has two brake systems. If more pressure is applied to one of those systems, it makes a contact to ground lighting the brake light. The light is dimmer because you have a dirty switch  or corrosion in the ground path.



If the brake systems are operating normally - and you can verify it -there is a high resistance short to ground somewhere. You can verify a brake system failure by unplugging the wire lead attached to the center of the body mentioned above. If the light goes out when you disconnect it, you definitely have a brake system failure that needs to be fixed.

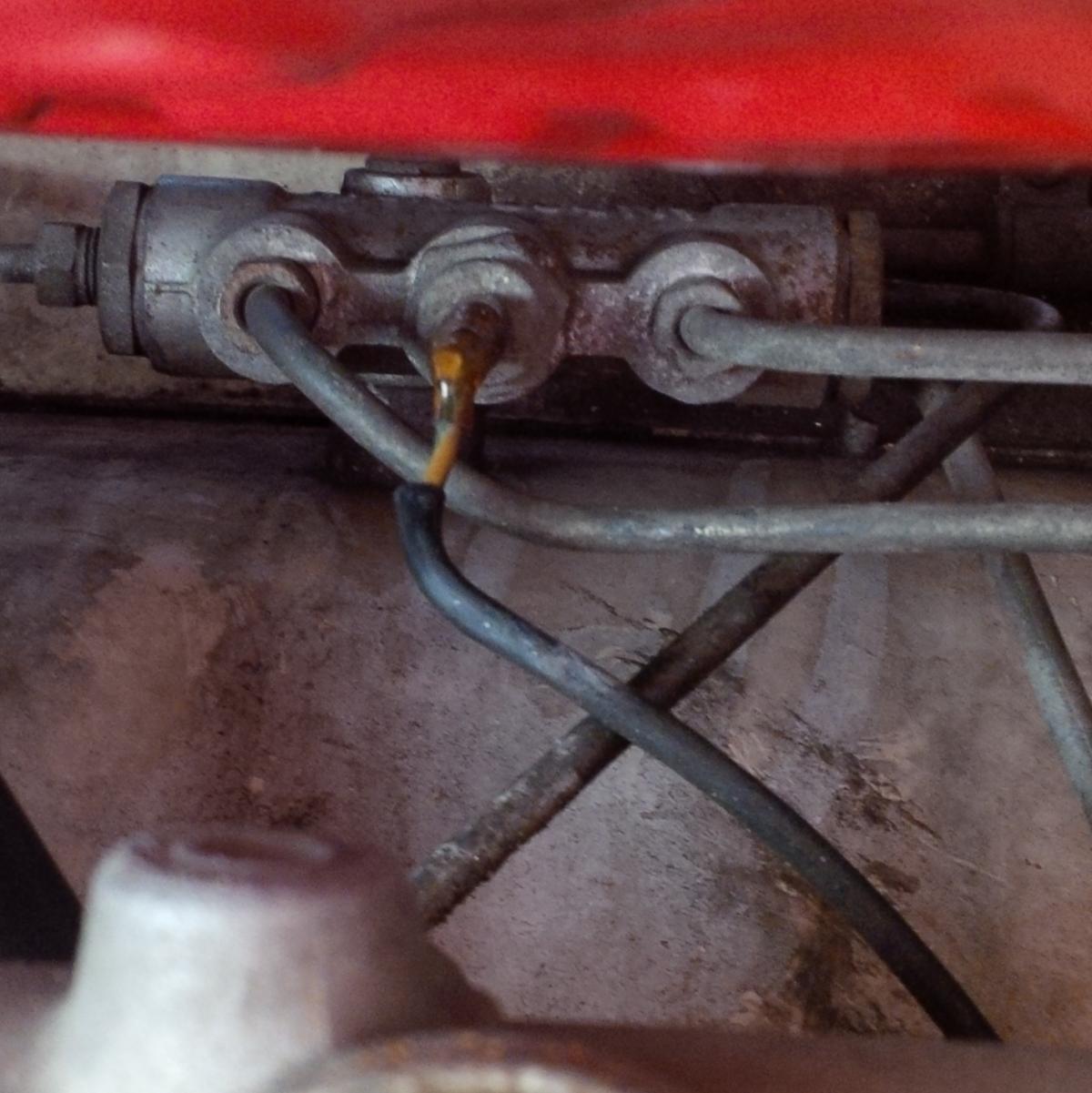

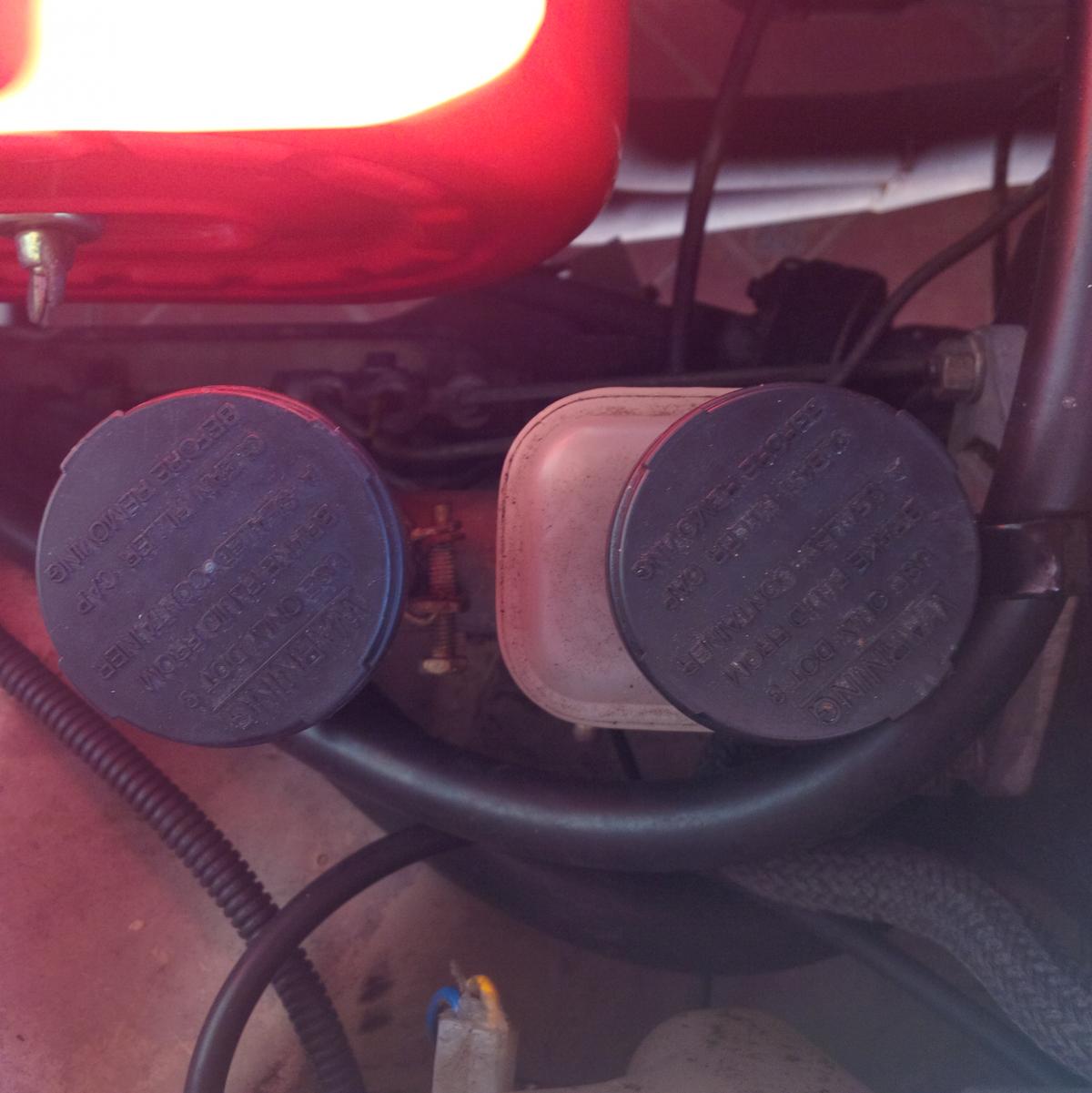

Can you point out directly where should i check or disconnect? I have taken some pictures of the master cylinder. Fluids seem right!

post-28721-0-11048900-1448310918_thumb.j

post-28721-0-93437300-1448310937_thumb.j

Link to comment
Share on other sites

okay! i followed your instructions remover the connector from the brake line. Got inside the car and the brake light is on when the e-brake is pulled. If released, the brake light dissapears completely. I decided to clean the connector with contact cleaner and brass wire brush then tightned the connector with a pair of pliers but after connecting it back and testing the e-brake light stills dims when the ebrake is off. What could be the cause of this?

Link to comment
Share on other sites

Unfortunately, the unit is not repairable, but they were used for many years and should be available. Datsun called the body "Assembly - Switch Brake Indicator".



The parts manual lists two part numbers, 46100-26100 and 46100-U5200. The last number superseded the older 46100-26100, but either one should work.



The light is dim indicating deterioration internally. If there was an external brake system failure, the light would go out when brake pedal pressure is released

Link to comment
Share on other sites

Unfortunately, the unit is not repairable, but they were used for many years and should be available. Datsun called the body "Assembly - Switch Brake Indicator".



The parts manual lists two part numbers, 46100-26100 and 46100-U5200. The last number superseded the older 46100-26100, but either one should work.



The light is dim indicating deterioration internally. If there was an external brake system failure, the light would go out when brake pedal pressure is released

I cleaned the female bullet connector and the male in the assembly switch, plugged it back again, got inside the car and reléase the emergency brake. The result was the same, the red brake line in the speedometer showed up very dim as in the picture. If i unplug the female bullet connector and reléase the emergency brake, the light is completely gone. I do not think it is a corroded contact on the e-brake switch. WIth these facts do you still confirm it is an internal problem of the assembly swith blade indicator???

Link to comment
Share on other sites

Corrosion makes a high resistance or open circuit. The fact that the light comes on at all indicates there is a current path to chassis ground. The fact that it is dim indicates a high resistance path to ground.



If corrosion existed at the bullet joint, and if it affected performance of the circuit, removing the corrosion would only may the brake light glow brighter. But the brake light would still indicate a brake system failure.

Link to comment
Share on other sites
