I should have taken more pictures but some thing doesn't look right.

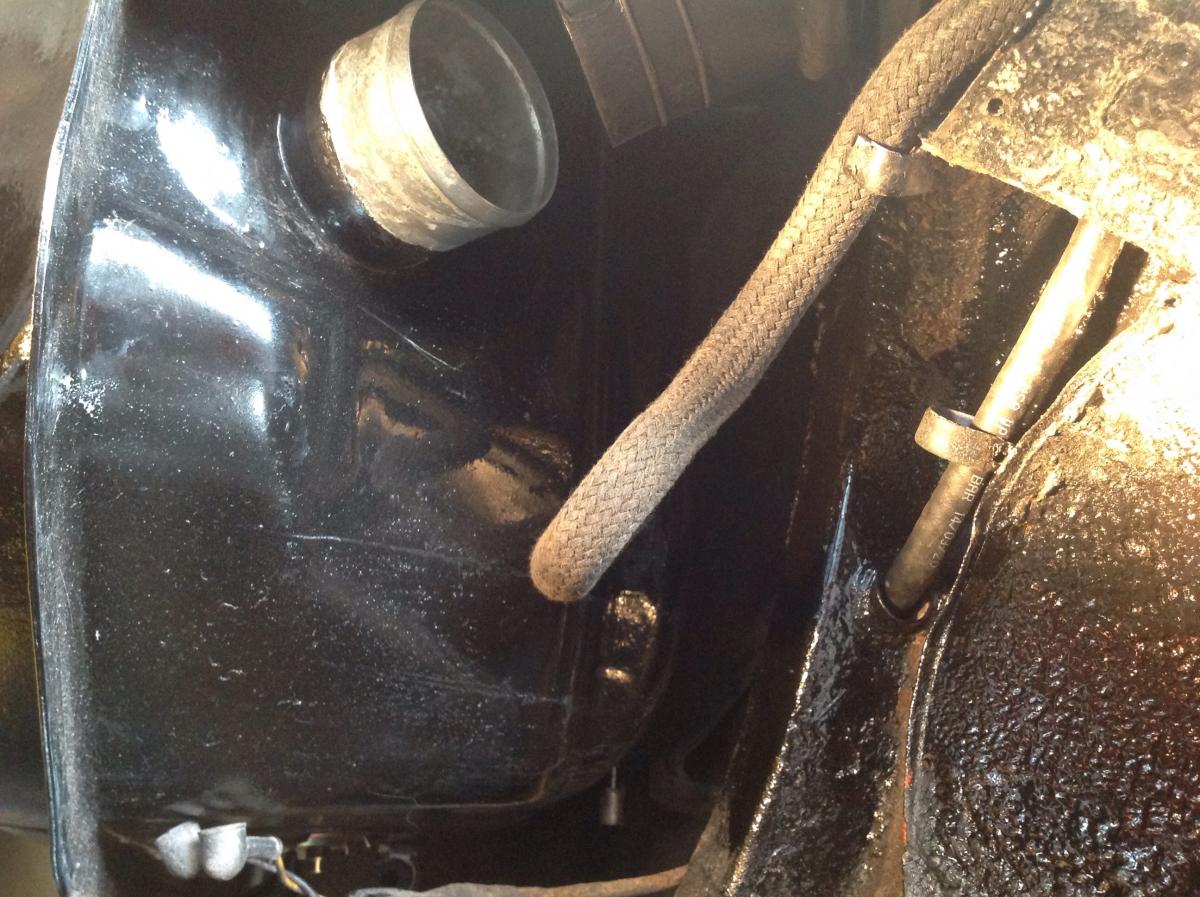

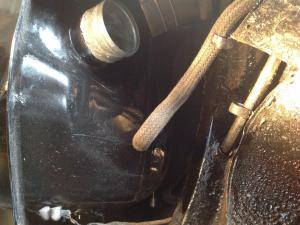

In the first picture you can see from under the car it looks like I have the wrong line routed through the frame. Should it be the bigger 3/8" going to the gas tank or the smaller 1/4" line going to the canister the way I have it.

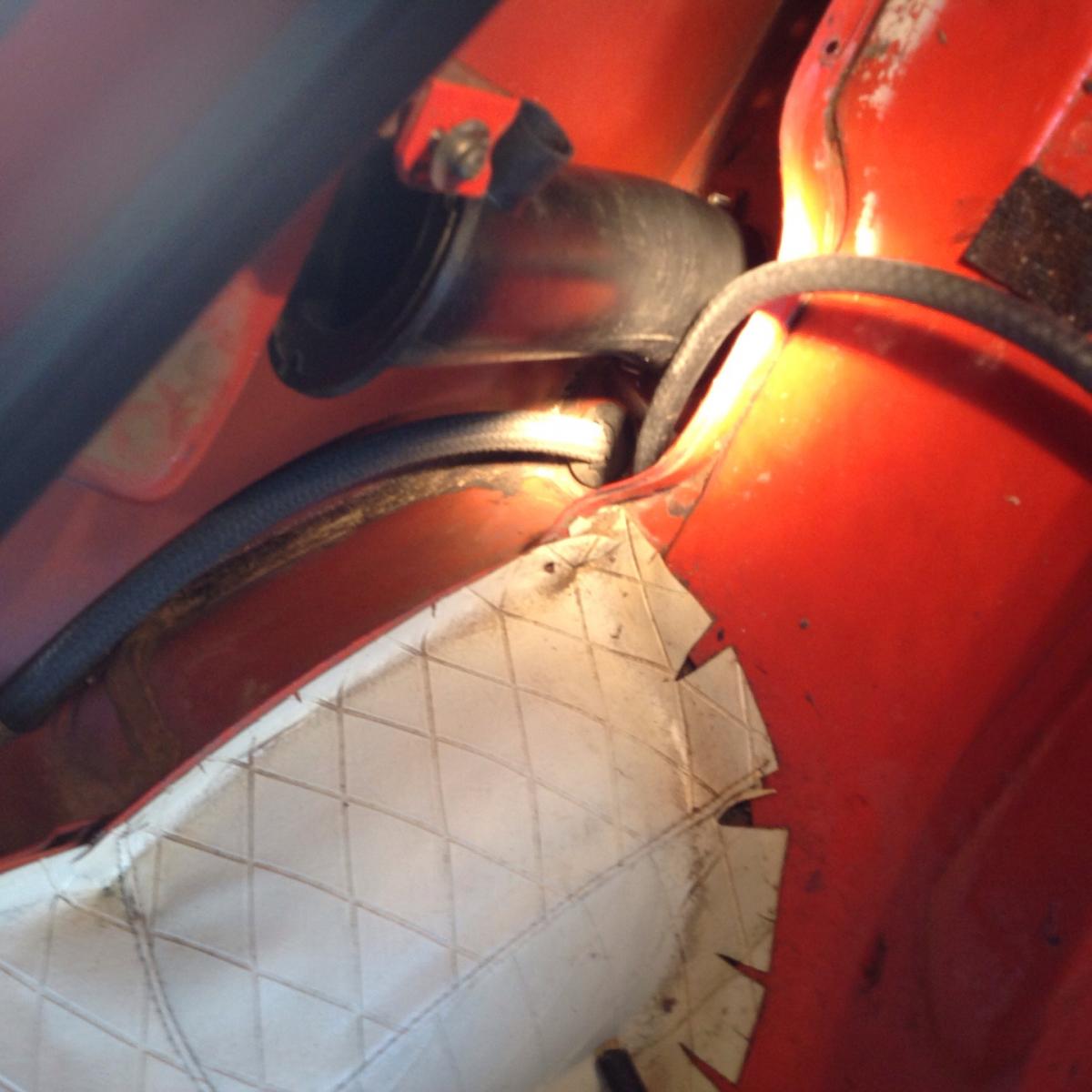

I ran it this way based on the size of the grommets in the floor. You can see that in the second picture.

Thanks, I hate when little things bring a project to a halt!!

See if this helps. 240z Fuel Tank

Edited April 1, 201511 yr by bvolken

Thanks, I did have things reversed. Put in new grommets in the correct spots and reversed the lines. All good now

I should have taken more pictures but some thing doesn't look right.

Some things I never imagine hearing:

1) My TV is just too big

2) I took too many pictures of my Z

3) Finally, I'm finished with my Z

4) That cost much less than I expected

I have an insane number of photos (6.5Gb)  I took during the disassembly of every do-dad and thing-a-ma-bob.  Came in VERY handy 6 months later at assembly time.
