Weber DGV Picture needed

Dayz
in Carburetor Central

Featured Replies

Guys,

Yes it is my first post and I have searched. I need a picture of the DGV linkage. I have the parts but cannot figure it out the fit in a logical manner. The most logical position doesn't work without grinding some pieces...which I don't want to do on this car.

Thanks, After this it will be out of its 3 year jail time, or soon to be.

Dayz

__________________

240z -1971 - Simple Restoration...close to show car - In progress

240z -1972 - Street machine -next one on the table

240z -1973 - Need to find a new home !! Someome wants to buy it?

  • Author

This isn't a popular topics...LOL:)

Dayz

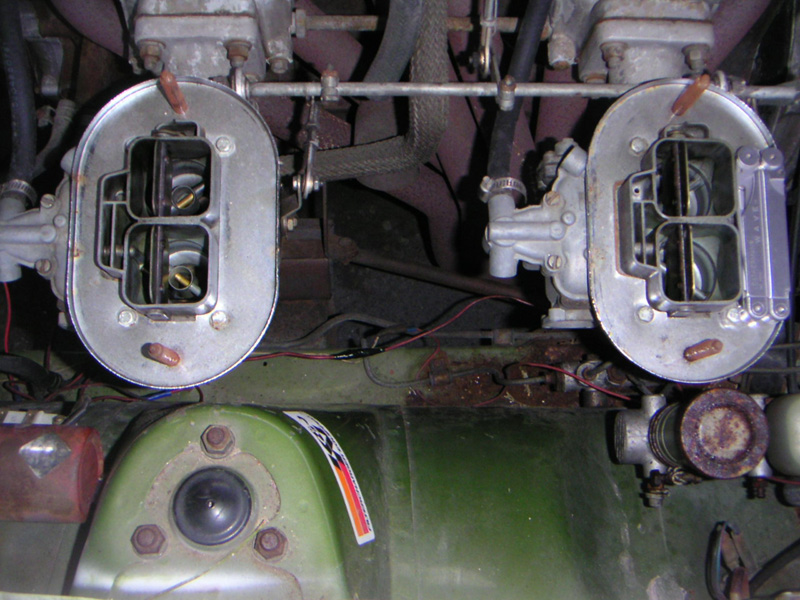

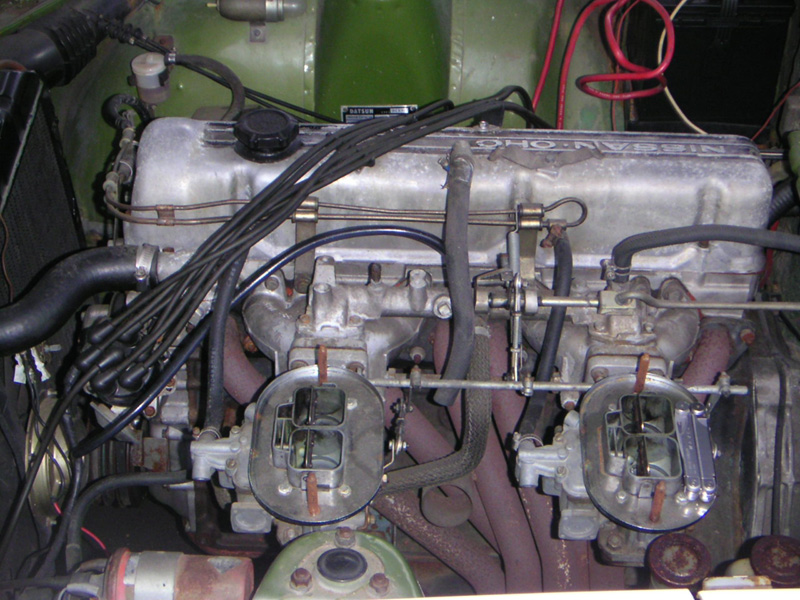

[ATTACH]26268[/ATTACH]

[ATTACH]26269[/ATTACH]

This is all i have, hope they will be at some kind of help.

Chris

  • 3 weeks later...
  • Author

Thanks guys...I decided to put the SU back on...Cannot figure the linkage at this time, Will figure it out during the winter I guess!

Dayz
