original jute material

[redzedsled]

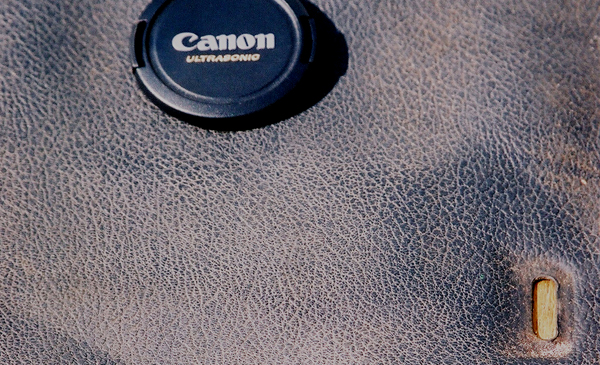

That is a very fair observation, perhaps I should recant my previous statement of "exactly the same" and replace it with "very similair to". It is in my opinion that the jute, being a natural product, most likely would succumb to aging, especially when moisture is introduced. Thus the color over time would change with it. I could be wrong but jute is jute, and after forty years of abuse, it is likely to brown out. The "black latex" is more of a dark charcoal color with the color underneath being tan to light brown. This particular needle-punched jute undercoating came direct from the English source I provided, so yeah you are right there is a difference. Heritage Trim is the company that is reluctant to deal with the general public. I would recommend getting a sample sent to you from the English source, Coverdale, and be the judge for yourself. It is definitely thinner than the original 240Z jute, but can vary in thickness from 1/4" to 1/2". Zeddsaver at one time used to have this English jute brought in from the same source, but perhaps he has found another local source, i.e. Heritage Trim. Even though no one will see the jute, it still has an important role to play in the comfort of driving your car.

Another thought on the darker original color could be that the early jute was impregnated with Bitumen. From what I have researched, Bitumen was commonly used to coat jute in its day as well. Perhaps the Bitumen coating wass a fire hazard thus they moved to Latex, I'm not sure. It seems all the English jute that is available now has the black latex coating. Also, jute is a broad term, and therefor there could be a darker source material that Nissan used, perhaps it might have even been horse hair. Horse hair has a much darker appearance and was used in the old antique cars in its day. All theory, but take it for what it's worth!

Edited October 13, 2012 by redzedsled

[Mike B]

I guess it is possible that the jute Nissan used was originally tan and then changed to a dark brown over time, but if that was the case I would think you would still see some of it that was a ligher tan color. I have a 40k mile 1972 with near perfect original jute and carpet and it is the same dark brown on both sides. Anyway, thanks again for the sources. I will give one a try. The person I mentioned earlier ended up getting some of the uncoated tan jute from a place called 'Re-Originals' http://reoriginals.com/jutepaddingoriginalitalianstyleabout12-13mm-u0083.aspx It's very nice, but is only 1/4", so he ended up doubling up on it to get similar to the original thickness. I'm not sure what happened to Zeddsaver, but like I said, the low quality jute that the person I know recently received was nothing like the English jute he advertises and was no where near the original jute patterns, as compared to the original pieces that I have from several cars.

-Mike

[redzedsled]

I think it is very difficult to have patterns made. There were many variances to the patterns from the factory between the early 1970-71 cars and the later 72-73 models. There would be too many patterns to satisfy all owners from all model years. Plus it is very difficult to cut. I bought an old original set from Ebay and reproduced them for my own car and was very happy with the end result. I even made the jute pad for behind the luggage riser trim that you see in the Microfiche, but most likely have never seen in an actual 240Z. The English jute averages at about 3/8" thick, whereas the original jute was at least 1/2" to 9/16" in thickness.

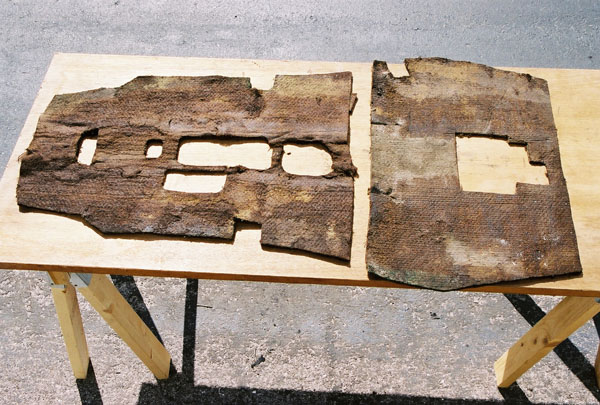

See original jute for reference...

Edited October 13, 2012 by redzedsled

[Mike B]

I agree there are variances in the carpet and jute patterns, but not that many. Fortunately I have several sets from my cars and cars I have parted out, so I have pieces to use as patterns. I'm not sure what piece you are referring to as 'behind the luggage riser trim". Which number is it in the attached pages from a Nov 69 US parts catalog?

-Mike

[redzedsled]

Refer to Section 113-4 of your fiche. Item No 15, part number 74922-E4100.

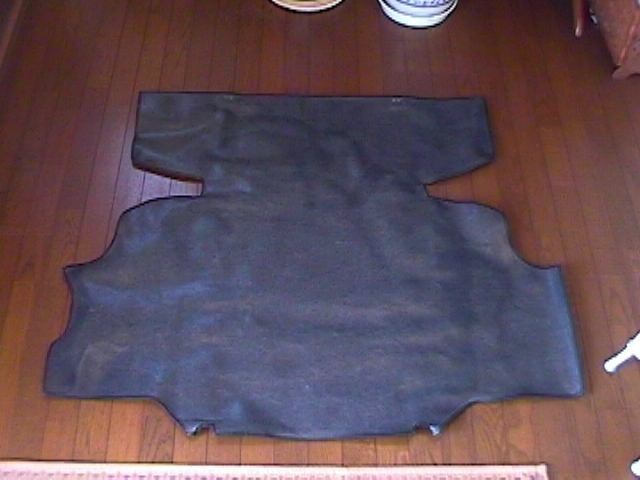

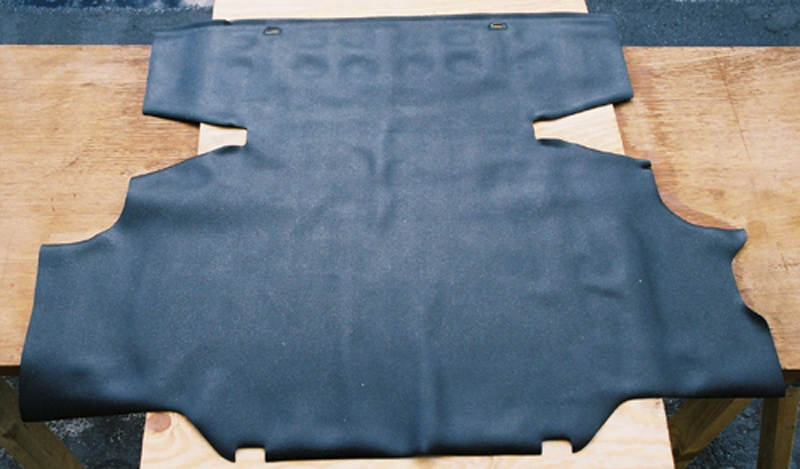

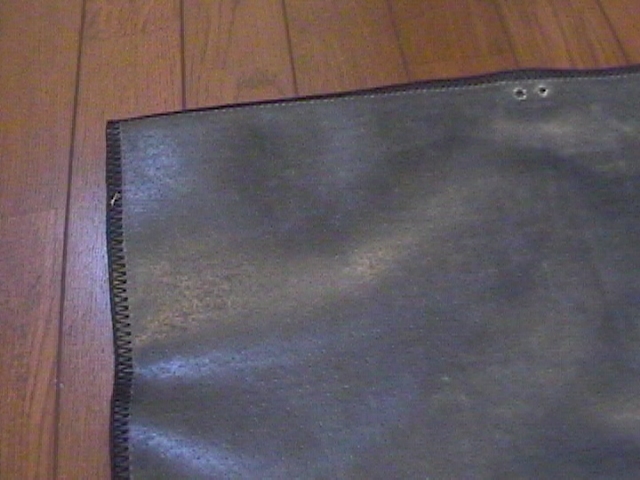

As far as variance goes, keep in mind that the transmission tunnel changed, the pieces that go behind the seat (70-71) were much different. Also the front carpet jute would have changed over the years whatwith the position of different carpet clamping methods. Also the rear cargo area changed as a result of the tool doors being moved to the hatch area. The jute on a 70-71 goes all the way up to the luggage riser trim, and the later cars are shorter as not to cover the tool doors. I've got both early 71 and 73 patterns and I see a broad variance. See images below...

If you would like a PDF pattern file of the proper contour of an early 69-71 for behind the seats, PM me and I will send it to you...

Edited October 13, 2012 by redzedsled

[chuck r]

Hi Redzedsled and Mike and thanks for the info and discussion. At this point, I've already cut and fit the jute using the material supplied from ReOriginals. I was pretty happy with how closely it matched the original in texture although it was more of a tan color that matched Kats photos than what apprears to be the original brown color. It did not have a coating on either side.

For what its worth, my car (June '70) had a couple pieces of the original jute. It seems to match the patterns on the upper left. The different pattern (under seat and tool box area) from earlier Series 1 cars seems to be the beginning of the rear seat mount support running laterally from the tunnel to rocker. I think Nissan started using this somewhere around March/April of '70????

Thanks again!

[AZ-240z]

Refer to Section 113-4 of your fiche. Item No 15, part number 74922-E4100.

The jute on a 70-71 goes all the way up to the luggage riser trim, and the later cars are shorter as not to cover the tool doors. I've got both early 71 and 73 patterns and I see a broad variance. See images below...QUOTE]

Hello redzedsled. I was able to source some of the natural fiber jute that you have pictured. When I made my pattern for the rear deck jute, I used the original rear deck jute from a friends original,

unrestored car. His rear deck jute actually did not extend to the luggage riser trim. It came within 2" of the trim so that the forward luggage strap bracket holes were exposed. The stock machine screws for those strap brackets were too short to have been able to penetrate both the bracket, carpet, and jute when secured to the floor.

I am, of course, talking about a series 1 car with the tool bins on the forward side of the luggage riser panel. I also don't believe, even given your reference to the above parts catalogue, that, at least

on series 1 cars, jute was used under the diamond vinyl on the front face of the luggage riser panel. If it were, it would have almost totally covered the little securing tabs that extend from the front of the riser panel used to secure the plastic tool bin covers.

These are just my own researched observations and conclusions, but there certainly were a number of variations on early and later series 1 cars.

FWIW

Dan

[redzedsled]

Very noteworthy observations, Dan. I have never seen jute behind the diamond vinyl luggage trim before either, but it is in the fiche. I was pointing it out as more of oddity than anything else. I had some left over jute so I decided to cut the pattern anyways. I have not actually tried to fit it yet, so I am not sure if the small screws obscure the fit as you mentioned. I cut this jute for this pattern just shy of the plastic trim that secures the vinyl to the body, so the screws would not effect the fitment. When I go to fit this piece I will let you all know how it looks. The length of the rear cargo jute pad is very important, mine was ripped towards the front of this pattern, so I coud not confirm the actual length, but I knew it was longer than that of later Z cars with the tool box in the back. So thanks very much for that confirmation. Regards, Rob

Edited October 14, 2012 by redzedsled

[Taz0162]

So what happened to this thred? what was the consensus for a viable place to order Jute that can be cut to the correct shape as needed? are there measurements of the patterns used somewhere?

[redzedsled]

Refer to Post #99 dated 10-13-2012 on the previous page within this thread.

[redzedsled]

Hello guys and gals... here attached please find a 2-page PDF template of the rear tool box area for a Series I 240Z. Each page contains a left and right pattern. It has been test-fitted and is very accurate. Enjoy...

jute mat 70-71 FINAL.pdf

[Mikes Z car]

redzedsled,

Thanks! Can this be used for making a carpet piece? Does anyone know if the carpet needs to be a little bigger than the jute so it hides the jute underneath it?

Mike

[redzedsled]

No this will not make the carpet template, it was much different. The later model Series II used a two-piece jute whereupon the other piece went directly under the seat and the other piece went in behind the seat. In the 70-71 pattern it was a one-piece unit which went under the seats and behind and around the plastic tool box doors directly behind the seat. This of course is where the jack and tools were stored on the early cars. The jute was definitely "undercut" smaller such that the carpet would not show the jute underneath. I am sure there are other message threads with respect to Series I carpet reference pics, but please see attached as an example...

Edited April 25, 2013 by redzedsled

[Taz0162]

is there a pdf template for 1972 240Zs produced yet?

[zed2]

Any recent development to report on the Jute topic?

Thanks,

Keith

[zed2]

On 4/24/2013 at 5:23 PM, redzedsled said:

Hello guys and gals... here attached please find a 2-page PDF template of the rear tool box area for a Series I 240Z. Each page contains a left and right pattern. It has been test-fitted and is very accurate. Enjoy...

jute mat 70-71 FINAL.pdf

Did anyone produce a pdf of the front and rear deck jute mat?

Thanks,

Keith

[zed2]

Jute per Andrew (aka abas) https://www.classiczcars.com/forums/topic/8002-original-jute-material/?&page=4#comments post #79 - a April 1970 240Z

Jute per Allen (aka z8987) https://www.classiczcars.com/forums/topic/66275-new-gold-standard/#comments Post 4 - a July 1970 240Z





Anyone have photos of other Series 1 front jute available?

Keith

Edited January 24, 2022 by zed2

[zed2]

Jute in Serial No 4684:

This is the earliest VIN jute photo I have found.

Baring any other information, I will create my template based on the above.

Keith

[kats]

12 hours ago, zed2 said:

Jute in Serial No 4684:

This is the earliest VIN jute photo I have found.

Baring any other information, I will create my template based on the above.

Keith

What a beautiful, intact mats they are !
Thanks Keith , I am also very interested in original early carpets and jute pads.
Kats

[zed2]

Kats,

Are you aware of any JDM floorboard stamping that would necessitate the jute cutouts indicated by the red circles in the photo below?

Thanks,

Keith

[HS30-H]

On 1/23/2022 at 1:09 AM, zed2 said:







I believe that jute section is wrongly positioned. It appears to be upside down and back-to-front, if that makes sense. That long oblong cutaway at the front is for the Japanese market seat mounts, whilst the more square cutouts at the rear are for the passenger footrest bar mounts.



Edited March 8, 2022 by HS30-H

[HS30-H]

4 hours ago, zed2 said:

Kats,

Are you aware of any JDM floorboard stamping that would necessitate the jute cutouts indicated by the red circles in the photo below?

Thanks,

Keith

They look like they are to accommodate the Japanese market forward seat mounts.

Below photo shows left (passenger) side floor of Japanese market RHD car:



[zed2]

HS30-H,

The photo in Post #120 is the USDM left side, noted by the heel pad on the floor mat.

Thank you for your explanation of the circled cut-outs.

Keith

[HS30-H]

5 hours ago, zed2 said:

The photo in Post #120 is the USDM left side, noted by the heel pad on the floor mat.

Yes, I noticed the carpet section was LHD format but I was specifically addressing your question about the jute section next to it.

Do you agree with my thoughts on the cut-outs in the rear end of the jute being there to accommodate the Japanese market forward seat mounts (and hence 'universal' jute pattern)?

[zed2]

1 minute ago, HS30-H said:

Yes, I noticed the carpet section was LHD format but I was specifically addressing your question about the jute section next to it.

Do you agree with my thoughts on the cut-outs in the rear end of the jute being there to accommodate the Japanese market forward seat mounts (and hence 'universal' jute pattern)?

HS30-H,

I understand your observation.  I am a bit confused however, since the USDM Series 1 were shipped to the United States (US) without carpet and padding.  The carpet and padding were cut and installed in the US, therefore why would US fabricator make accommodations for Japanese market forward seat mounts?

(Unfortunately, I do not have access to "Japanese market forward seat mounts" to compare the measurements of the bracket locations and the cutouts.)

The mystery is not yet solved!

Thanks for your input!

Keith
