Building Up HLS30-59920


CW240Z72

Recommended Posts

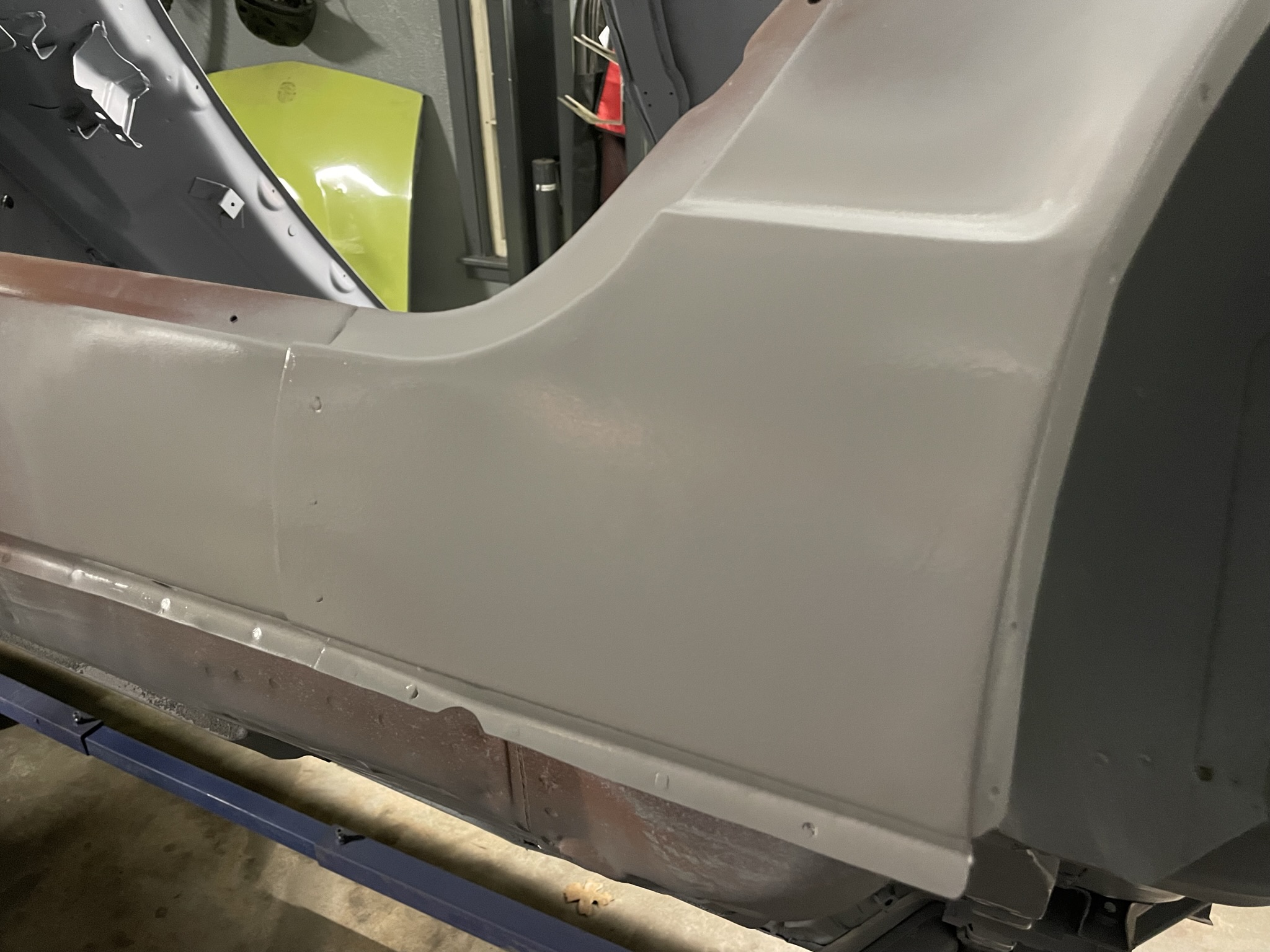

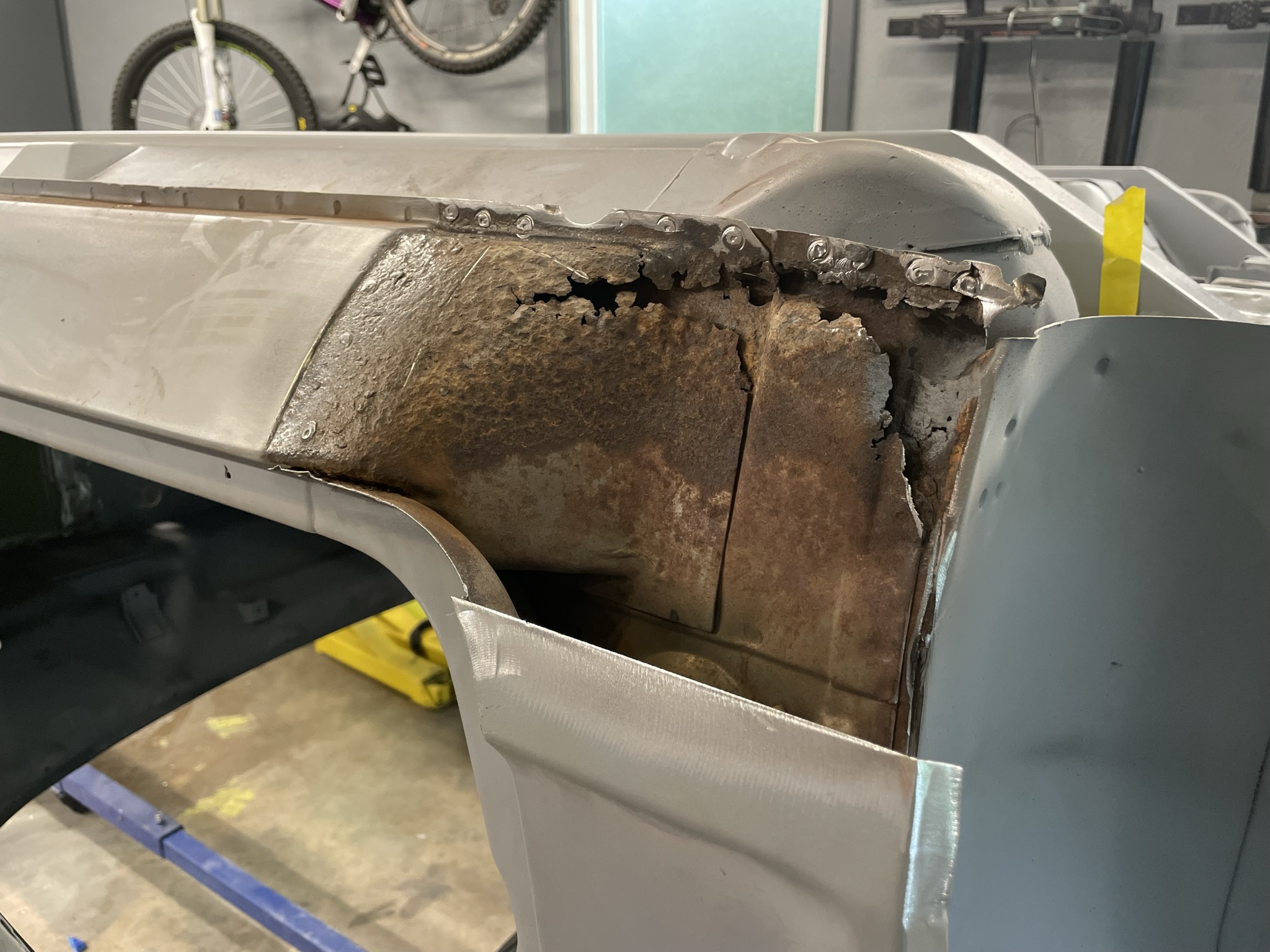

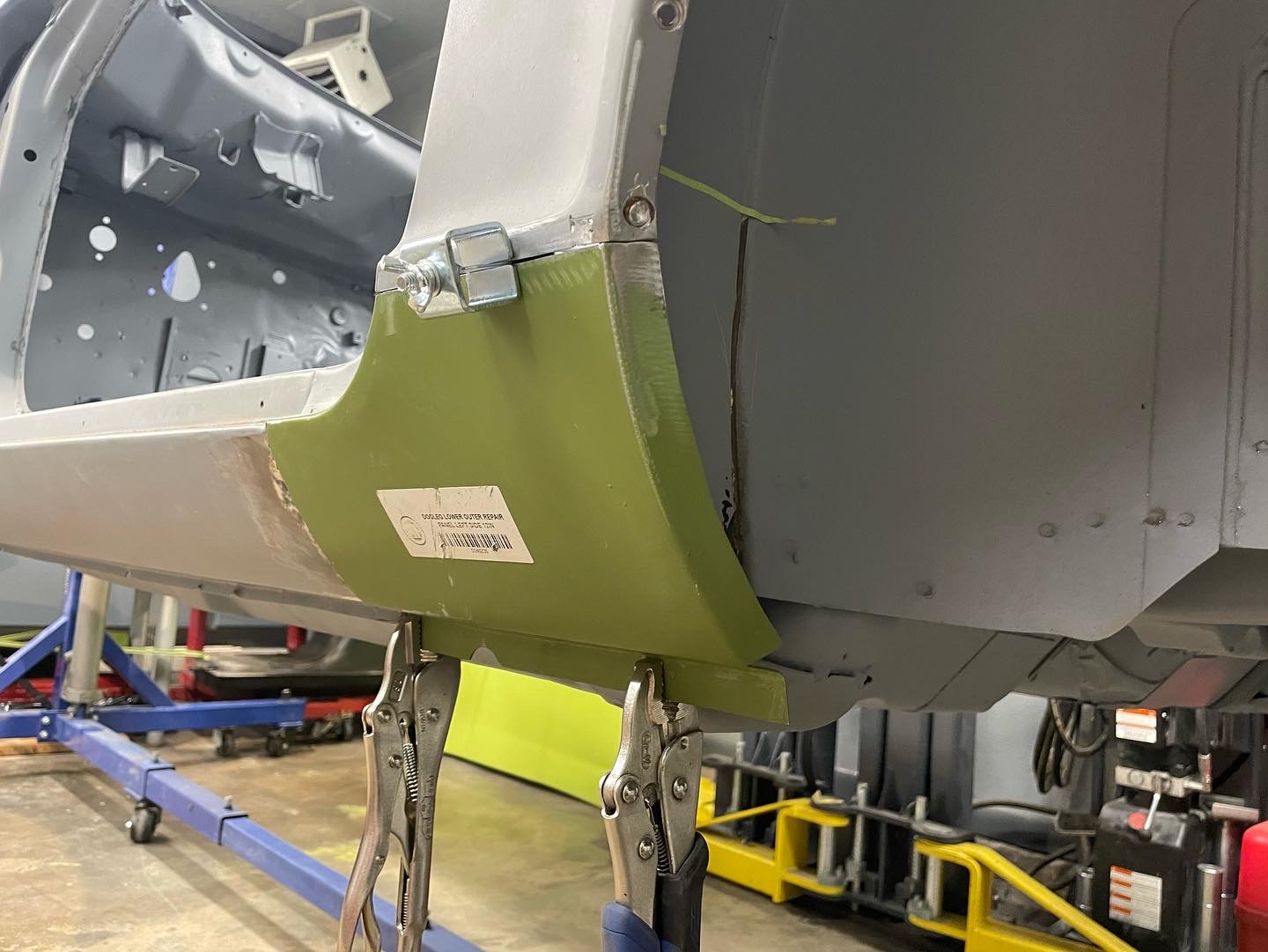

Both dog legs on the Z needed the same rust/damage repair. Fortunately the Klassic Fab pieces were a very close fit to the existing metal, both for the inner structure and outer body panel.

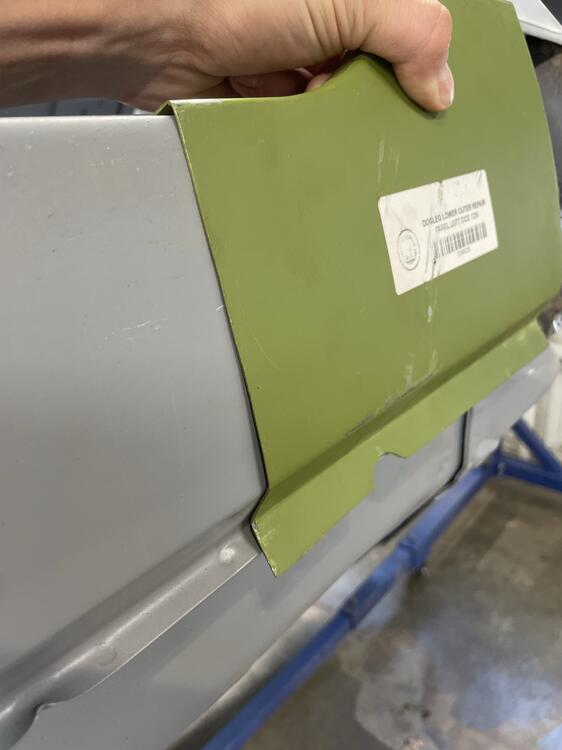

The panel itself had slightly longer flanges which worked out great for trimming them down to fit the car. I also had to replace a section of the inner wheel well in the process. Overall not a bad job to do. I need to finish up the "spot welds" around the perimeter to make them appear more authentic.


  • Like 2
Link to comment
Share on other sites

Wrapped up the floor pan install with new seat mounting brackets and supports. I will say these weren't 100% a drop in where the factory mounts were previously, but very close. I would attribute that to possibly human error when they were originally placed, as the LH and RH sides were not aligned with each other. That and no aftermarket part will ever be a perfect match. Regardless, happy with the final outcome. All it lacks now is seam sealer and sound deadening before final paint.




  • Like 2
Link to comment
Share on other sites

Switching gears slightly, the wheels for the Z were delivered from Love20bee. The Epsilon wheels have always been my favorite for the Z and Celo did a fantastic job with these. Was also able to grab a set of repop center caps for it to complete the set. 16x8.5 should tuck under the car nicely.



  • Like 2
  • Wow 1
Link to comment
Share on other sites

2 minutes ago, SpeedRoo said:

Had the Epsilons on my "JPS" World Championship Edition Lotus Esprit, bugger to keep clean!




Love it. I agree, the mess is a pain to clean especially when its gold or silver in color!

Link to comment
Share on other sites

Update on the drivetrain for the build. Fairly long list and I’ll probably forget something.


RB25DET S1

Bottom End:

Custom S30 oil pan

Nitto front drive and oil pump

Ross crank pulley

87MM bore Wiseco pistons

Manley Rods

Cosworth head gasket

ARP hardware where possible

N1 water pump

External Oil Cooler

Block painted same factory L-series blue

Top End:

Supertech solid lifter conversion

Tomei 270 Procams

Tomei Cam Gears

ARP hardware where possible

Walton exhaust manifold

PRP crank and trigger setup

RB25 valve covers painted factory S30 graphite (taillight panel, grille, etc.)

Garret HTA 3076 turbo built by Forced Performance

Drivetrain (and chassis) will be ran off of a Haltech Nexus R5



  • Like 2
  • Wow 2
Link to comment
Share on other sites

3 hours ago, CW240Z72 said:

Update on the drivetrain for the build. Fairly long list and I’ll probably forget something.


RB25DET S1

Bottom End:

Custom S30 oil pan

Nitto front drive and oil pump

Ross crank pulley

87MM bore Wiseco pistons

Manley Rods

Cosworth head gasket

ARP hardware where possible

N1 water pump

External Oil Cooler

Block painted same factory L-series blue

Top End:

Supertech solid lifter conversion

Tomei 270 Procams

Tomei Cam Gears

ARP hardware where possible

Walton exhaust manifold

PRP crank and trigger setup

RB25 valve covers painted factory S30 graphite (taillight panel, grille, etc.)

Garret HTA 3076 turbo built by Forced Performance

Drivetrain (and chassis) will be ran off of a Haltech Nexus R5



Looking good.

 I wish these engines had a cam chain, rather than a belt. Broken cam belts are so messy.

  • Agree 1
Link to comment
Share on other sites
