Hot/Cold knob not moving


MH77280Z

Recommended Posts

Hi guys,

My hot cold knob at the center console is stuck. It is in the middle and when I try to push it towards the right hot point it just springs back, it seems like the flap or door whatever it moves is stuck.


I have the center console arm rest out and want to see if I can get it fixed while I have it out.

what should I check and can it be fixed easily without removing too many things. I don’t believe it is a vacuum issue. It is just a mechanical thing stuck I believe? Any help greatly appreciated…

Link to comment
Share on other sites

It could be the watercock at the heater core. I sprayed mine down with silicone lubricant while I worked the slider back and forth. It moves smoothly now.

  • Agree 1
Link to comment
Share on other sites

Posted (edited)

I had that problem.  The control wire is bent.  Somebody moved it too fast or it was stuck in the sheath and they forced it.  Take it apart and you'll see.  If you're careful you can straighten it out and it will work again.

Edit - actually I just remembered that I bought a new piece of wire at the hardware store and bent the ends to make a new control wire.  The straightened wire worked but it wasn't smooth when the fixed bent part entered the sheath.  Still had a small kink in it.

Edited by Zed Head
Link to comment
Share on other sites

The wire seems ok to me. It is not bent. The place where it hooks into is stuck. What is that part? I will be looking at it a bit more closely tomorrow during daytime and take pictures. It is some sort of module.

Link to comment
Share on other sites

Posted (edited)

As Steve said, it is connected to the watercock, as the slider is moved, it opens or closes the flow thru the heater core.

Edited by S30Driver
spelling
  • Agree 2
Link to comment
Share on other sites

Link to comment
Share on other sites

10 minutes ago, SteveJ said:

Yes end away from the panel. I will post some pics shortly.

Link to comment
Share on other sites

Posted (edited)

Just to clarify what SteveJ, S30Driver and ZedHead have said, you most likely have two issues:  1) your water control valve is seized; 2) with the result that your 'TEMP' control cable wire has bent at the point where it connects to the control lever.  If you have an early car ('Series 1'), this is almost certainly what's happened.  Some pix and comments follow:

  • The control cable wire for the early Z's ('Series 1') was undersized (1.0mm dia) and therefore prone to bending if anything in the assembly got stuck or balky.  In later versions ('Series 2', etc.)  the cable diameter was increased to 1.2mm.  The cable sheaths were upsized to match.

  • The Series 2 design incorporated numerous other detail changes to the heater control system's mechanicals in an effort to make it more robust:  revised lever frame, levers, and finish knobs; revised control cable wire ends (loop-over-peg).

  • Lawn mower control cables can be a good replacement.  Alternatively, try tempered-steel 'piano wire'.  Otherwise, non-tempered wire from the hardware store will probably be ok, unless something gets stuck again and you try to operate the controls at sub-zero temps.

  • Unfortunately, your water control valve and/or its actuator lever have probably seized.  The probable reason is that the valve has a leaky seal. White stains on the outside of the heater plenum box are a clue.  NAPA (but not Nissan) used to offer a replacement seal, but it's been NLA for years.  So, if your water control valve is leaking you'll need to buy a complete new control valve.  If you don't fix this problem, the old valve will leak coolant onto the floor whenever it's left in the 'COLD' position.  Also, the actuator lever will probably start to stick again, too.

  • I suspect that problems with the water control valve stem from PO's who run their cooling systems filled with straight tap water.  A stuck water control valve responds nicely to an overnight soak in a de-liming product like 'C-L-R'.   If the seal is ok, then you may be good to go. However,

  • The older-design water control valves were said to also suffer from internal leakage, leading to a situation where the valve isn't able to fully block coolant flow even when it's set to the 'off' (cold) position.  That certainly wouldn't help if you plan to drive a Series 1 car on hot summer days.

  • Make sure you also free up the water control valve's actuator lever.  Lubricate its pivot pin and grease the sliding surfaces.


These are some pix that I took when rebuilding the Heater system for my Series 1 car:





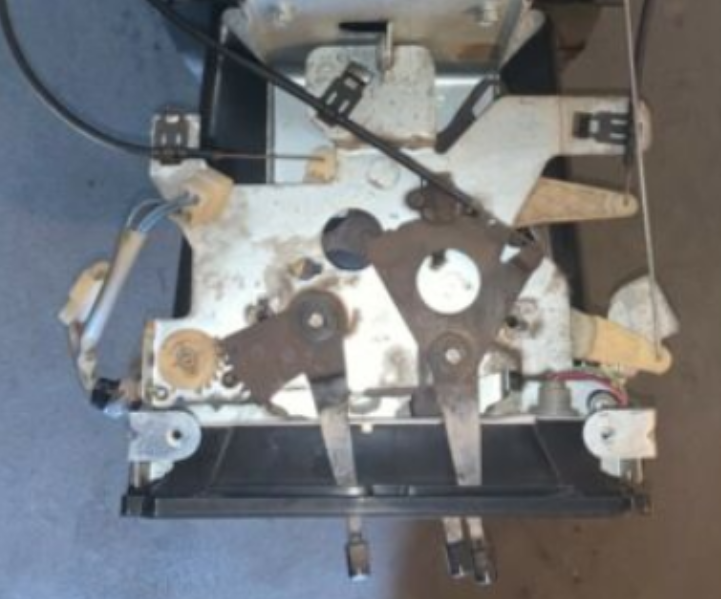

S30 HVAC Control Lever Assy.jpg
Below:  Top side of Lever Assy
Note: Control cable on the left side (TEMP) had been removed when this photo was taken)

102_0118 small.JPG

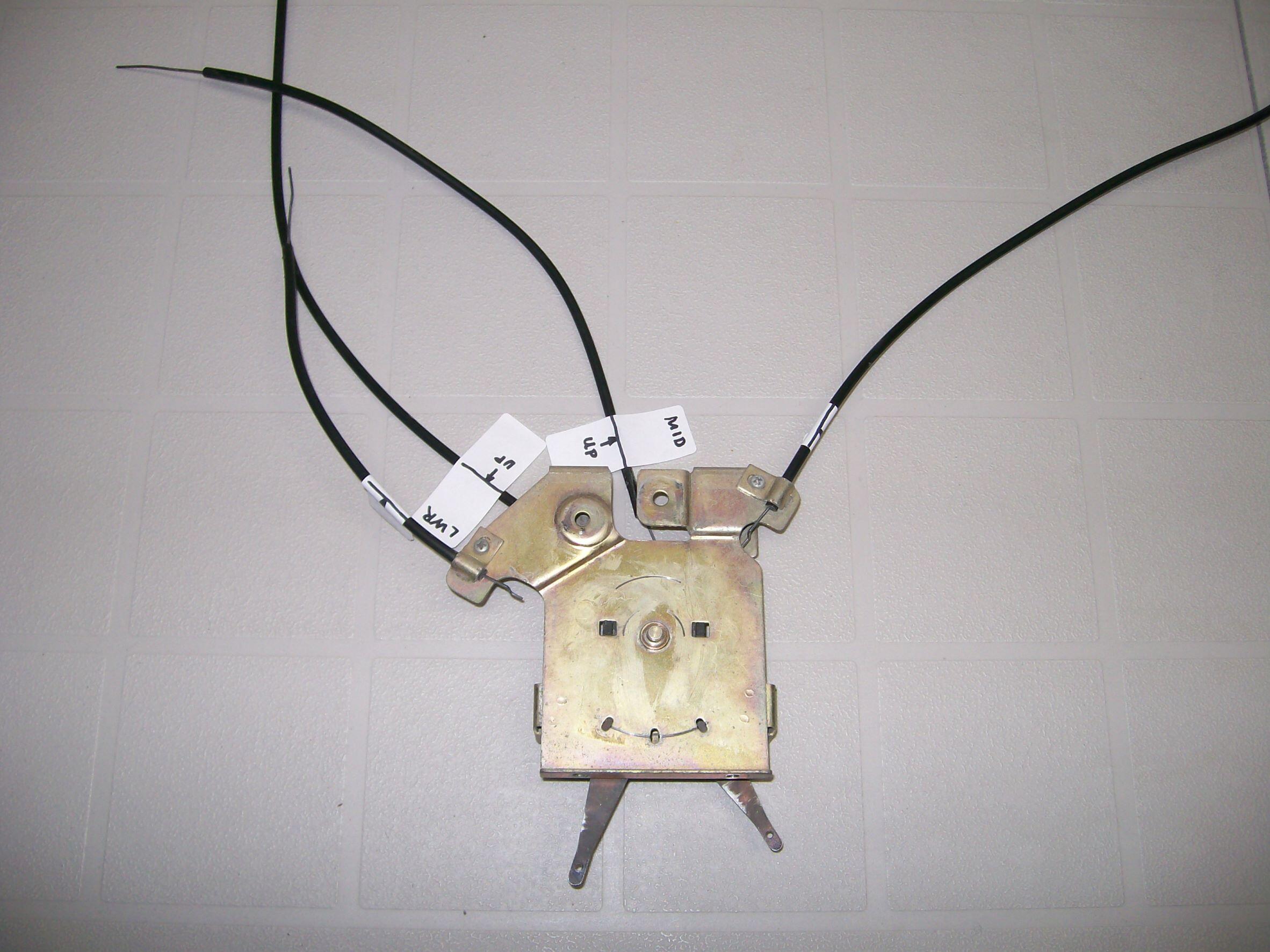

Below:  Bottom side of Lever Assy (photo #1 of 2)
Note:  The bottom control lever (DEF/ROOM) and the associated left and right bellcrank plates had been removed before this photo was taken)

102_0133 small.JPG

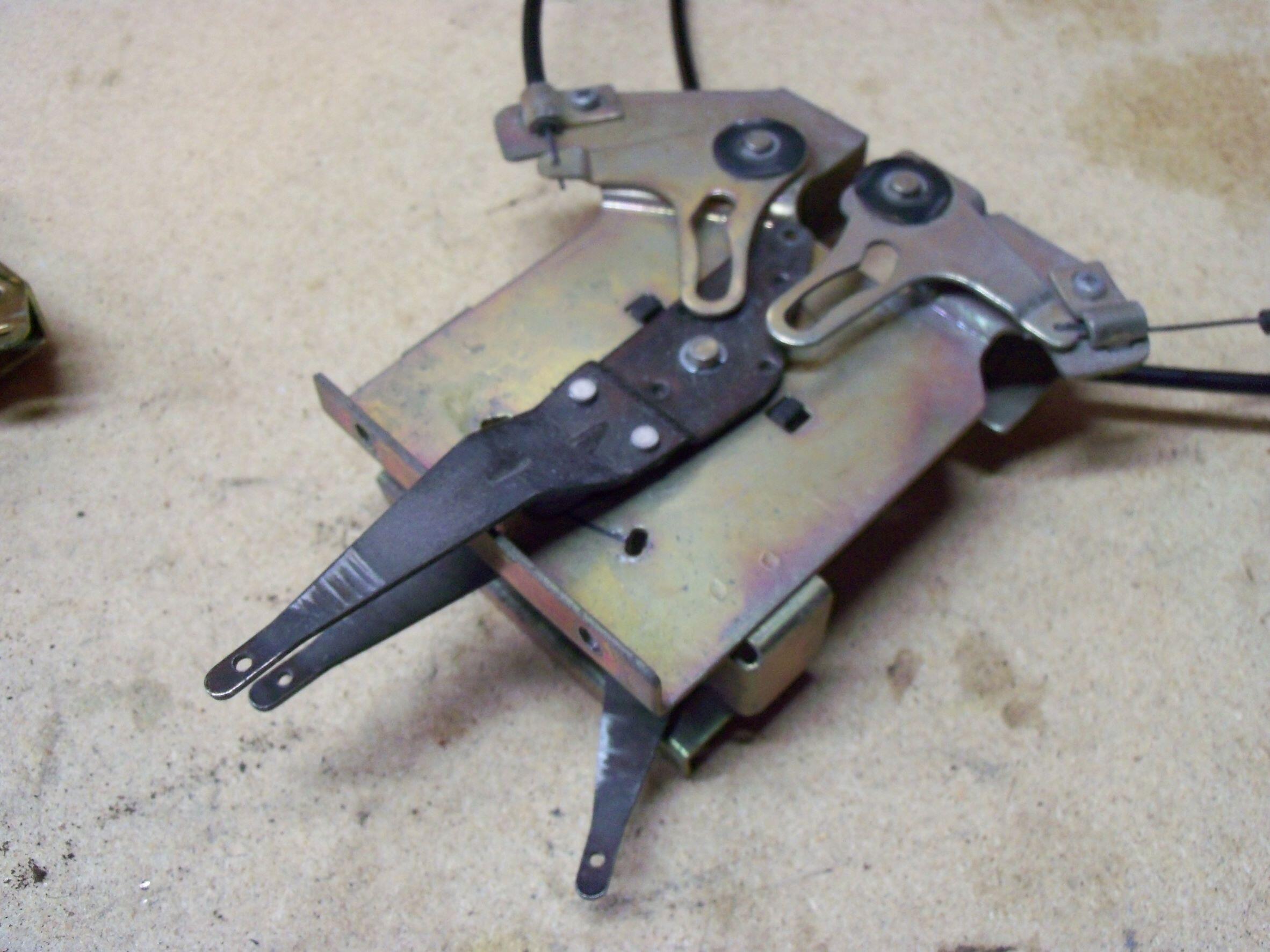

Below:  Bottom side of Lever Assy (photo #2 of 2)
Note:  In this photo, the DEF/ROOM control lever, bellcrank plates, and cables are in place.  However, the control lever's centre actuating pin had snapped off so the bellcrank plates had nothing to engage with.
100_4696 small.jpg

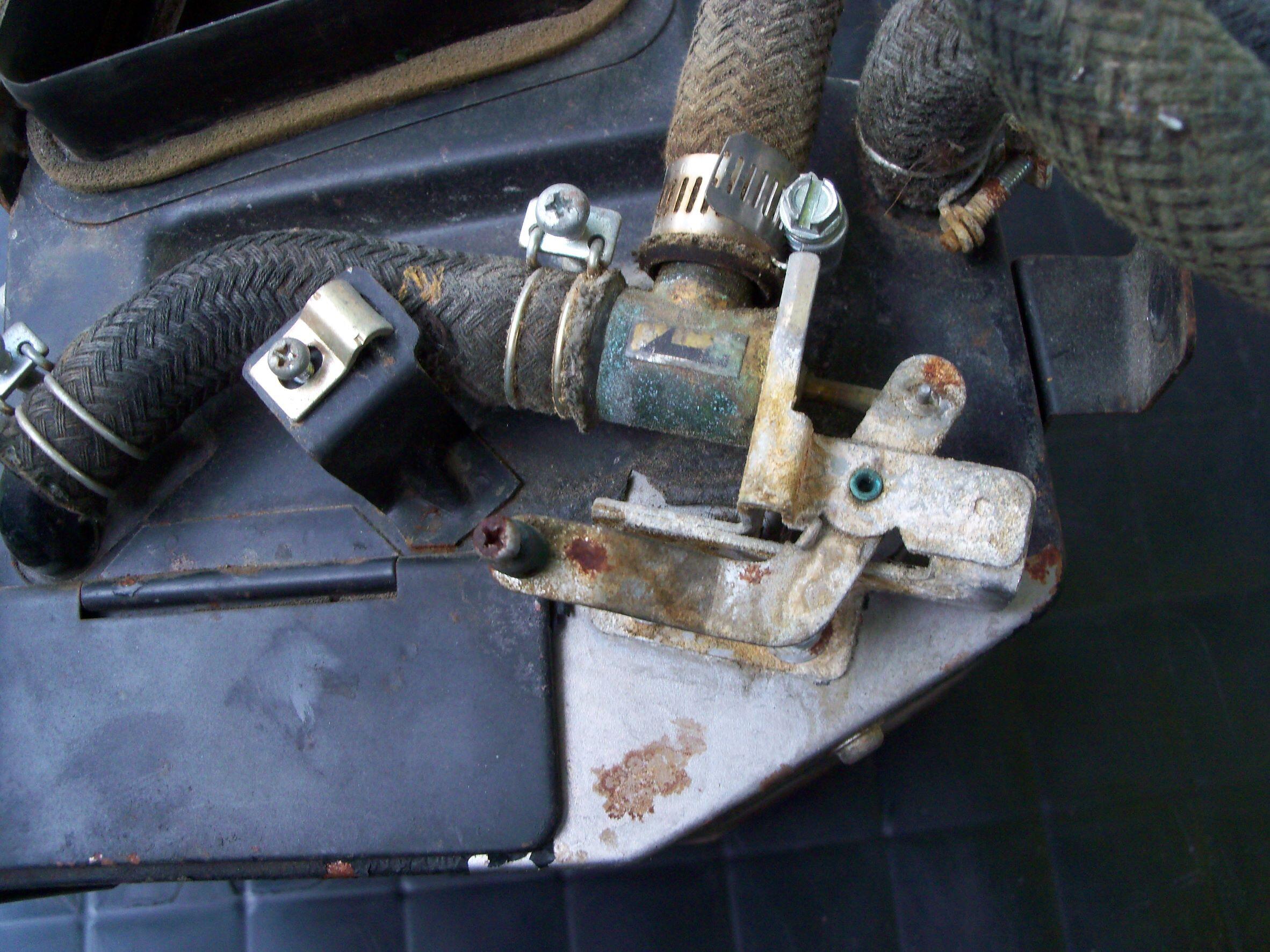

Below:   Water Control Valve, c/w actuator lever assy (actuator cable has been removed)
Note:  Control valve's actuator rod can be seen here.  Actuator lever may need to be freed up and lubricated if it, too, has become frozen because of corrosion.

100_4268 small.jpg

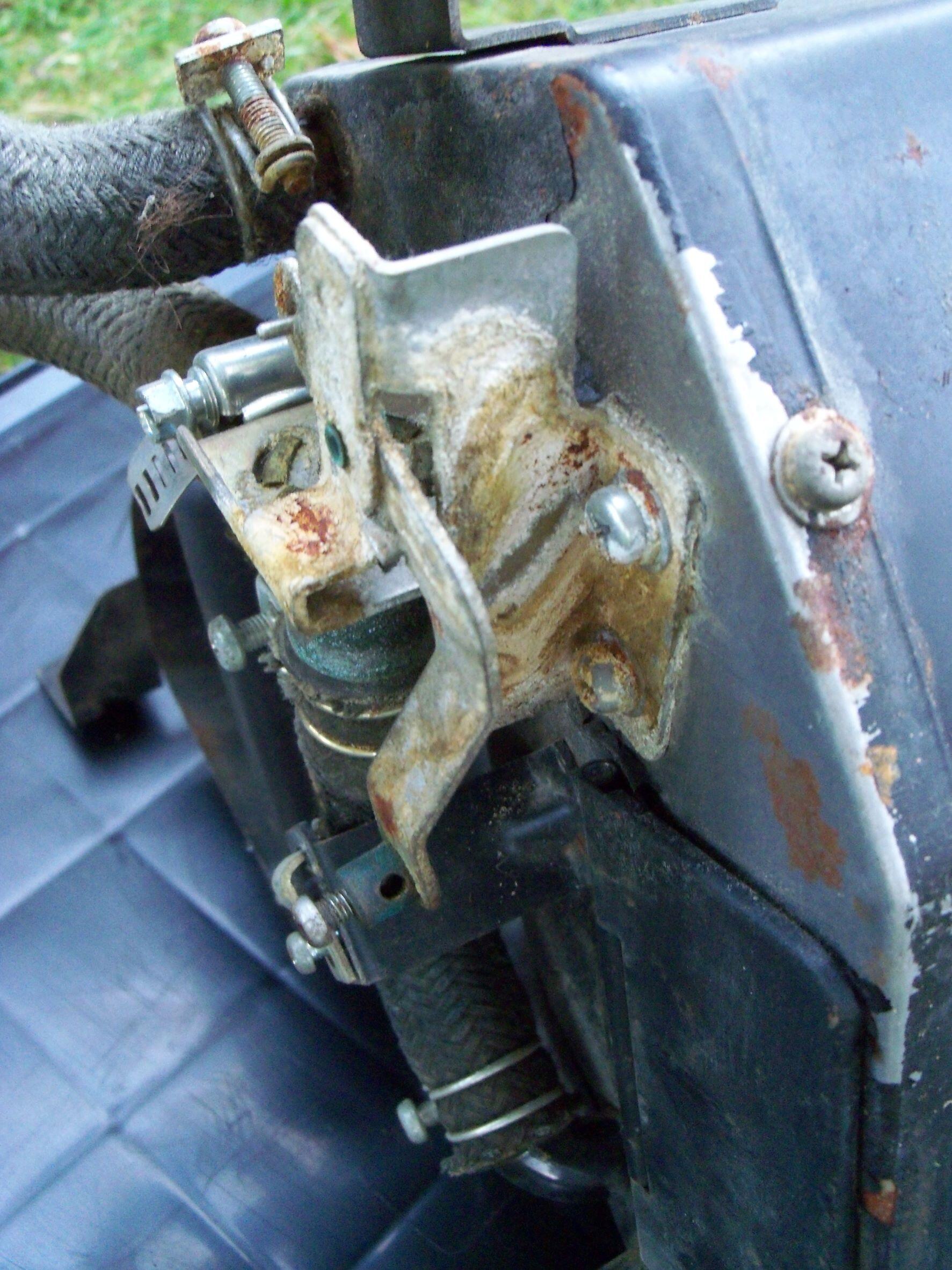

Below:  Water Control Valve's actuator lever assy
Note stains.  Presumably caused by leakage from the Water Control Valve.  They look like calcium deposits.  If they are, then my car's cooling system must have been filled with straight water at some point (probably during the time when it lived in New Mexico).

100_4290 small.jpg

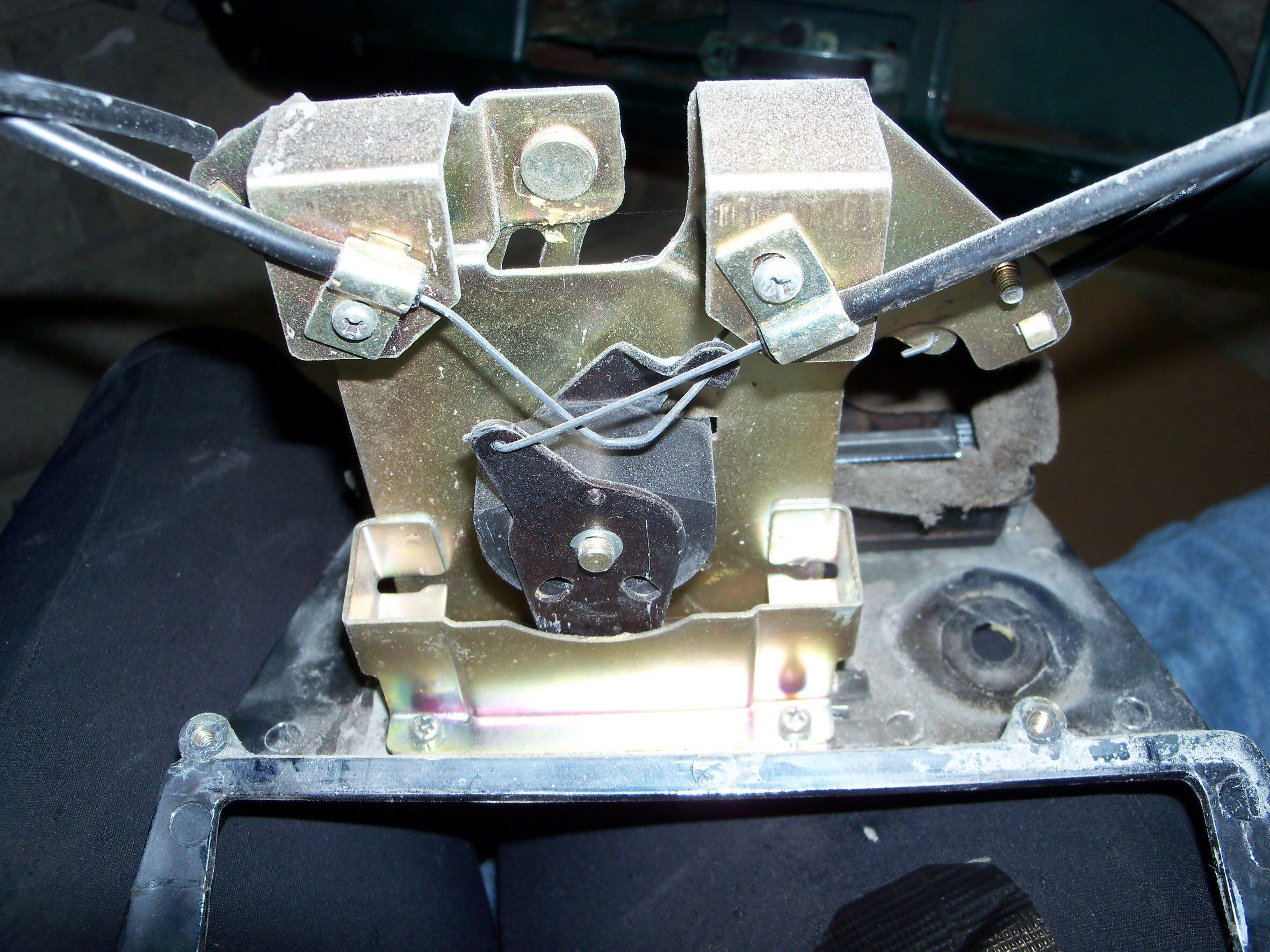

Below:  'TEMP' actuator cable with bent wire (photo #1 of 2)
Note:  Here, the cable is fully extended and the bellcrank has been rotated about 45 degrees CW from its centred position.

100_4210 small.jpg

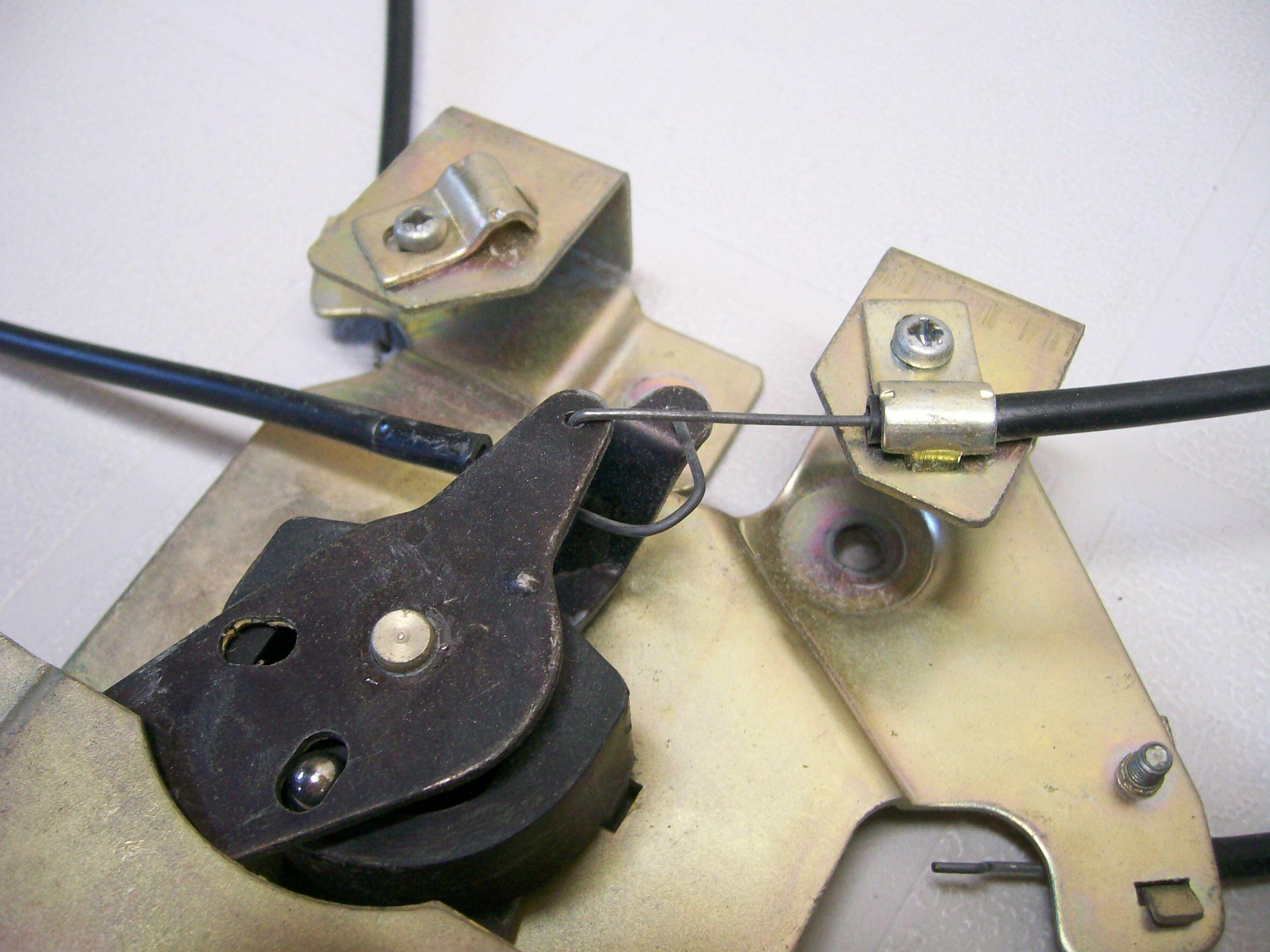

Below:  'TEMP' actuator cable with bent wire (photo #2 of 2)
Note:  Here, the cable is fully retracted, but the bellcrank has not been rotated CCW any further than its centred position.

102_0124 small.JPG



Edited by Namerow
add photos
  • Like 4
Link to comment
Share on other sites

Ok u guys are right.

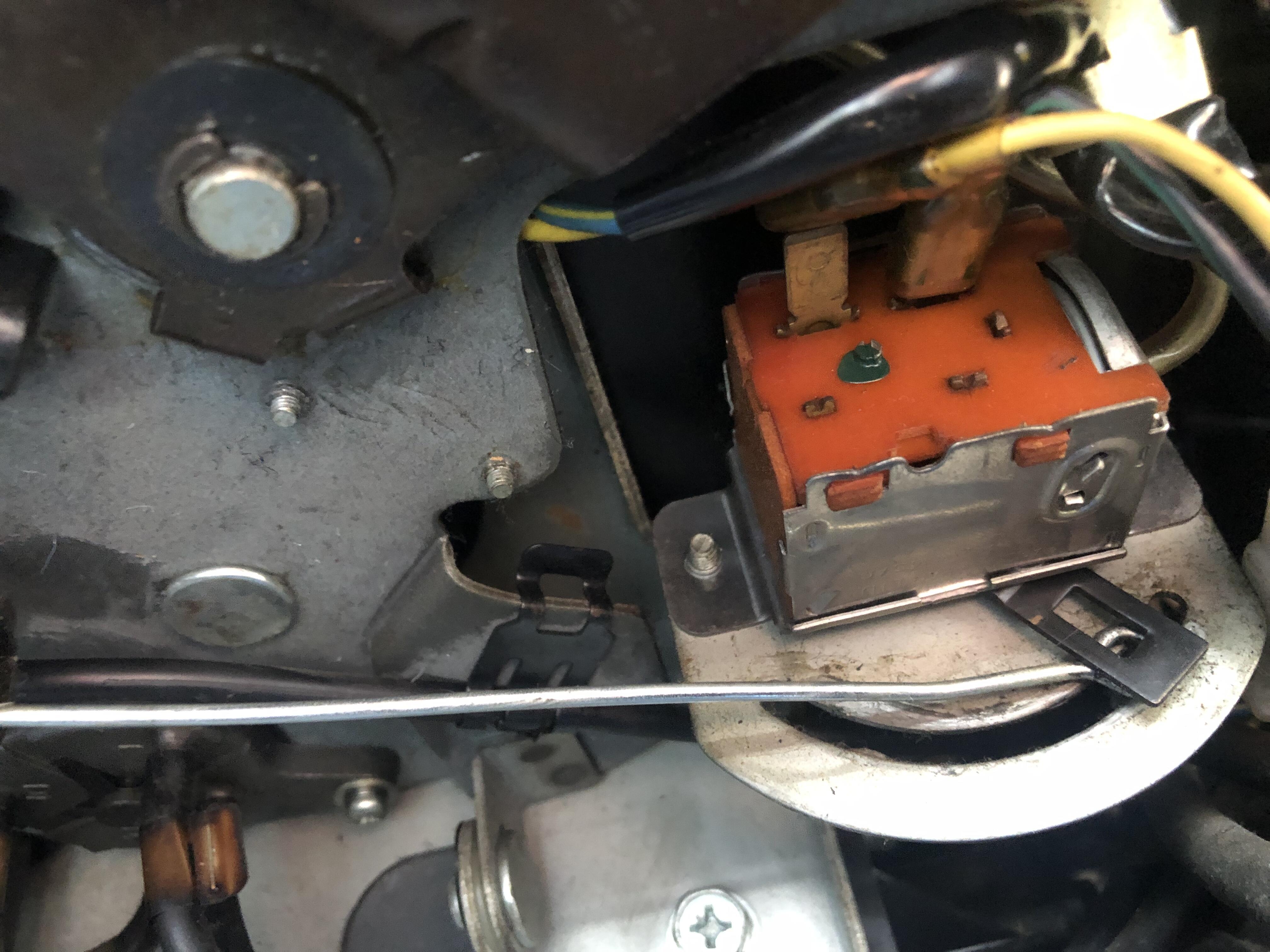

there are 2 wires connected to this dash knob. The silver thicker one goes to this orange module. What is this orange module?

also there is a thinner wire in the black wire sleeve that probably goes to the watercock. It was bent. I held it with my hand and moved the lever and it did moved back to the cold. So it is a thinner wire and needs replacement.

Also while I pulled the old carpet out I noticed a slight coolant in the front passenger bay towards the rear? So what does it mean? I have a leak somewhere? Will moving the knob to cold prevent further leaks? If I left it like this.

pardon me if my understanding is a bit weak and I am repeating something.





Link to comment
Share on other sites

Correction water was under the seat in the rear passenger area and I did not notice much in the front pan. May be some moved to the back while the old carpet absorbed some.

Link to comment
Share on other sites

Took another pic under the dash…these 2 hoses seems to be old and I do see slight dampness. Can these be replaced from in dash easily? I assume I had to drain the coolant?

Link to comment
Share on other sites

Sorry.  I missed the '280' in your user name.  I'm not familiar with the 280 heater, so you'll have to rely on other members for help.  Having looked at your pictures, I suggest you start by putting some good-quality penetrating oil (not WD40) on any fastener that looks like it's going to need to be loosened.  If you do that now, it will same you a lot of grief when you actually set to work on repairing the system.

Link to comment
Share on other sites

1 hour ago, MH77280Z said:

The silver thicker one goes to this orange module. What is this orange module?

That orange module is the temperature control switch for your A/C compressor.   The temp silder lever on the HVAC control panel does one of two things:

When you are in non-A/C mode, the temp lever controls the amount of water flowing through the water cokk. But when you are in A/C mode, the system automatically cuts off all water to the heater core using the vacuum controlled valve that lives near the water cokk. So when you're in A/C mode, no water flows through the core regardless of where the lever is. And then in that A/C mode, they instead use the slider lever to control the setpoint for that orange device.

That orange cube is a temperature controlled switch with a sensor stuck in the evaporator coil. If the evaporator warms up enough, they turn the compressor on. And if the evaporator cools off enough, they cut off power to the compressor.

Basically, they cycle the compressor and the duty cycle is dependent on the position of the temperature slider lever.

TMI?     LOL

  • Like 2
Link to comment
Share on other sites

57 minutes ago, Captain Obvious said:

That orange module is the temperature control switch for your A/C compressor.   The temp silder lever on the HVAC control panel does one of two things:

When you are in non-A/C mode, the temp lever controls the amount of water flowing through the water cokk. But when you are in A/C mode, the system automatically cuts off all water to the heater core using the vacuum controlled valve that lives near the water cokk. So when you're in A/C mode, no water flows through the core regardless of where the lever is. And then in that A/C mode, they instead use the slider lever to control the setpoint for that orange device.

That orange cube is a temperature controlled switch with a sensor stuck in the evaporator coil. If the evaporator warms up enough, they turn the compressor on. And if the evaporator cools off enough, they cut off power to the compressor.

Basically, they cycle the compressor and the duty cycle is dependent on the position of the temperature slider lever.

TMI?     LOL

That explains it well. Appreciate

Link to comment
Share on other sites

3 minutes ago, MH77280Z said:

What about the two hoses in the pic. I think changing those would need all coolant drain first correct?

Yes, those hoses are full of coolant and will gush some when you take them off. With that in mind, I would drain the coolant first to minimize the mess. There will still be some coolant coming out of the tubes even after draining the system, but probably less than if you didn't drain the system first.

Oh... And when you're all done with the coolant leak repair, I would disconnect the electrical connectors that go to the center console and clean them out. It's common for those connectors to be green crusty corroded due to heater system leaks over the years getting inside the contacts and sitting wet and festering.

Link to comment
Share on other sites

I had a similar problem.  I removed my water valve in order to free it up.  But then I eventually decided just to inhibit all the coolant flow into the cockpit by plugging the lines, rather than risk anymore leakage.  This is not a daily driver, and I'll never need a heater here in Houston.

Link to comment
Share on other sites

  • 5 weeks later...

Getting back on this topic, with car at normal operating temp and vent on Heat and full hot my fan DO NOT blow hot air 🙂

Does that mean air it not getting to the heater core? door not working? or water **** jam? my level is freely moving from COLD to HOT and i do see movement at the watercock (external connector etc.)

Where to start? also do u think the two in cabin hoses can be serviced without taking the blower motor out?

Link to comment
Share on other sites

There is a vacuum **** and a water **** in the diagram they both have to function to allow water through the core I think? The water **** is a mechanical one and I believe does move with that thin wire I have been playing with. The vacuum clock is located at the same place? Dumb q but I will look at the manual more closely.

Link to comment
Share on other sites

Yes, they're both up under the dash behind the glove box. Easy to see.  The vacuum cark has a vacuum hose connected to it.

If I remember right if you lose vacuum to the vacuum tank it stops working, no heat.  So your problem might be under the hood.  I had a problem with the hose splitting, and got used to fixing it when I suddenly didn't have heat.

Link to comment
Share on other sites
