Woodruff key disappeared into the abyss


Awk34

Recommended Posts

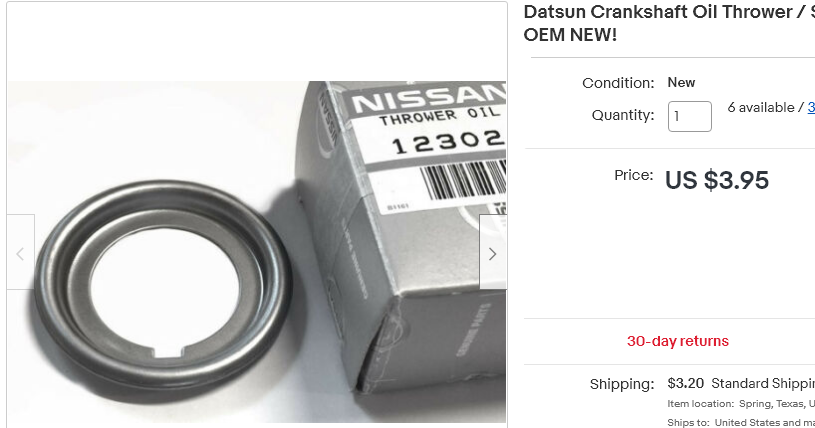

You can still get them.  Doesn't seem to be much to them.  Wonder which way the oil is meant to be thrown.   Seems like the translation from Japanese should have been deflector, not thrower or slinger.  I'll bet it is just a shield to keep the distributor gear from piling oil up in to the front of the cavity.  Edit - actually the distributor drive gear is probably the "thrower".  It sits right there throwing oil toward the seal as it spins.

https://www.ebay.com/itm/313204496693?chn=ps&norover=1&mkevt=1&mkrid=711-117182-37290-0&mkcid=2&itemid=313204496693&targetid=1068323850870&device=c&mktype=pla&googleloc=9033513&poi=&campaignid=10459841973&mkgroupid=104612009900&rlsatarget=pla-1068323850870&abcId=2146002&merchantid=6520324&gclid=Cj0KCQjwl9GCBhDvARIsAFunhsk-dWNN7wM3i3pAAR4Cr-9JOEmxBrISOUjfedPQLrRQVC0BdKcf-fwaAlDGEALw_wcB


Edited by Zed Head
Link to comment
Share on other sites

2 minutes ago, Awk34 said:

I do not appear to have an oil slinger.

Hence, your quandary.  The "ping".  Wonder if the slinger will fit inside the seal opening.  You could still install one.

Edit - never mind, your seal is out.  Easy to do.

Edited by Zed Head
Link to comment
Share on other sites

21 minutes ago, Awk34 said:

I do not appear to have an oil slinger.

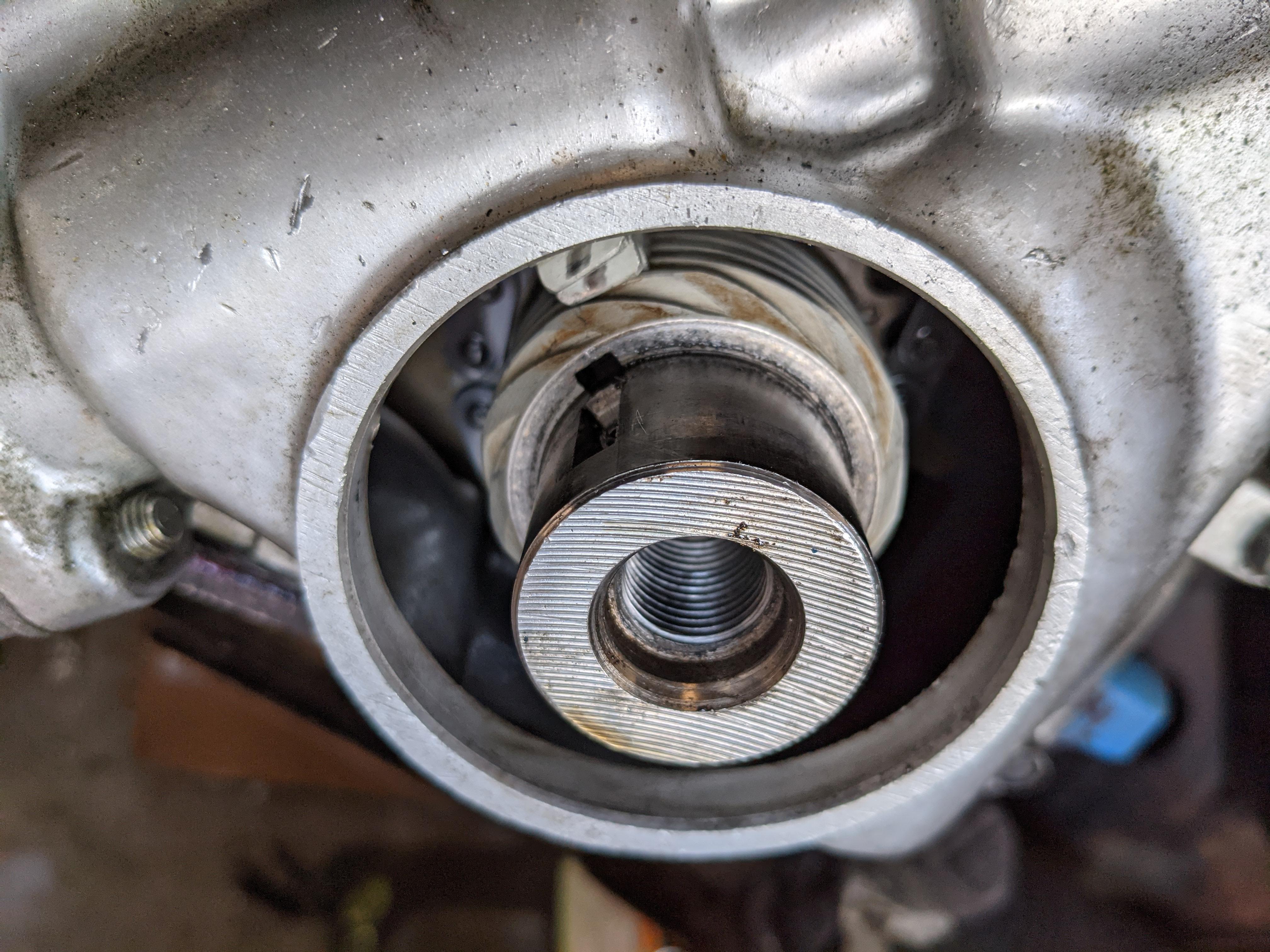

What are all those nicks and gouges on the front cover?

I see a toolmark on the edge of the seal bore that has displaced meta into the bore. Take a jeweler's file and smooth that back down to restore the radius of the bore before putting a new seal in. Use a shop vac while filing to suck the metal bits away from the crankcase.



16 minutes ago, Awk34 said:

Those are both adjectives. Throw and sling are verbs 🙂


@Zed Head Why not. I ordered a couple.

But you only need one.
