ring gap posistion

[Dave WM]

4 hours ago, Captain Obvious said:





21 hours ago, Dave WM said:



Gaps at o'clock please

1) bottom oil control ring at "7:30  " o'clock

2) oil ring expander ring at "4:30  " o'clock

3) top oil control ring at "1:30  " o'clock

4) bottom compression ring at "7:30  " o'clock

5) top compression ring at "1:30  " o'clock

would be CO's pic with the piston marked on top if I read it right. This keeps the gap at 180 out as much a possible with adjacent rings (except for the oil spacer which I presume has no sealing effect so does not matter really).







Edited May 25, 2020 by Dave WM

[Captain Obvious]

Zed Head, I looked into the ring rotation a little, and you're right. Pretty much everyone says they rotate unless they're pinned in place. So knowing that, it seems to make the importance of the clocking of the ring gaps less important.

One opinion I dug up said that it makes it easier to compress the rings evenly and install the pistons if the gaps are staggered. Another opinion was that it mattered in the initial start first few seconds of the initial start and then doesn't matter at all after that. In any event, I guess I'll keep doing what I'm doing, but won't get anal about nailing my 45 degrees exactly every time.

[Captain Obvious]

5 hours ago, Dave WM said:

1) bottom oil control ring at "7:30  " o'clock

2) oil ring expander ring at "4:30  " o'clock

3) top oil control ring at "1:30  " o'clock

4) bottom compression ring at "7:30  " o'clock

5) top compression ring at "1:30  " o'clock

Right. That's what I'm doing.

The oil expander ring does not contact the cylinder walls at all, so there's no sealing implications there at all. I do suspect, however, that (because of friction) the bottom rings may not rotate at all, or if they do, I suspect they will all rotate together as a set.

So my read is that it's important to get the two lowest ring gaps 180 out of phase, and the expander at 90 between those two. And I wouldn't be surprised if they always stayed that way.

[Captain Obvious]

On ‎5‎/‎25‎/‎2020 at 10:34 AM, Av8ferg said:

You need to be careful when using the ring compressor when installing them as it will cause the rings to migrate. I had to redo a couple. You’ll need to verify them afterwards. You can either use a d flashlight or rotate to crank and look for oil witness marks.

Yeah, I remember our discussions about that and I wanted to let you know where I am at this point...

I only put one piston back in the block, and it was a PITA. Like you, I found the band style compressor to be very finicky. I'm assuming it gets better with experience, but it took me three tries to get the first piston back in without catching one of the oil rings on the block deck. Third time it snicked into position, but I'm just not happy with the compressor. I've actually got two of them and I'm not completely enamored with either of them.

So I decided to try something different and made myself a tapered installation ring tool.

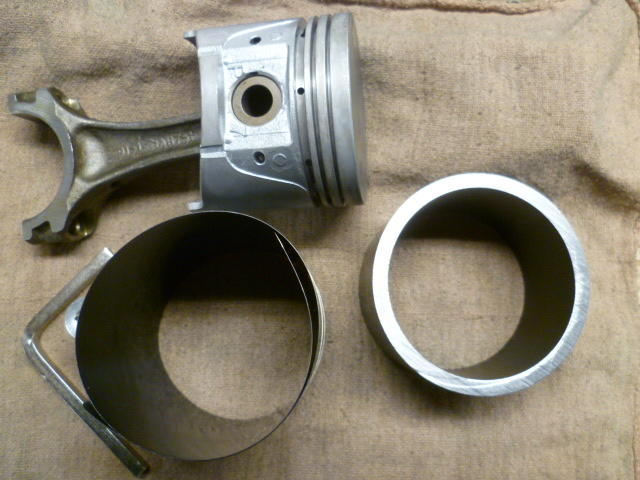

Bought some steel tubing of appropriate size. Here's what I started with, Band tool on left, and thick wall tubing on the right:

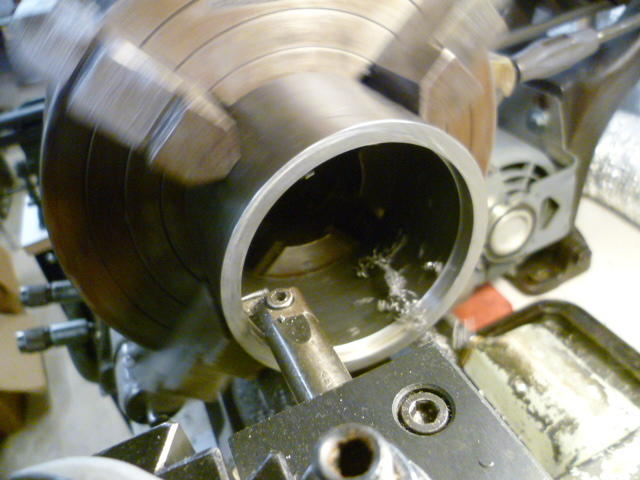

I chucked the tubing up in the lathe and bored it out to be a precision fit over the piston:

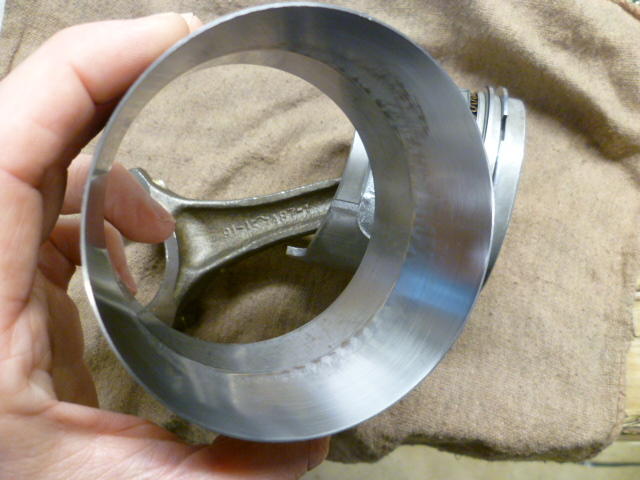

And then I tapered one end with a gradual taper and polished everything up so the rings slide easy:

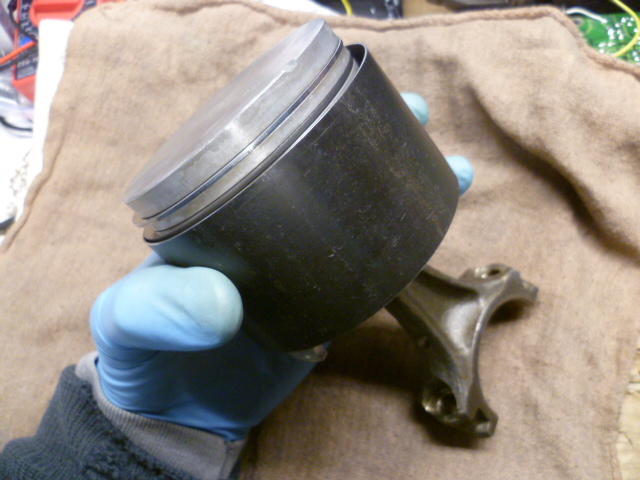

The concept is you can slip a fully ringed piston into it and the rings will compress as you push the piston down the tapered section:

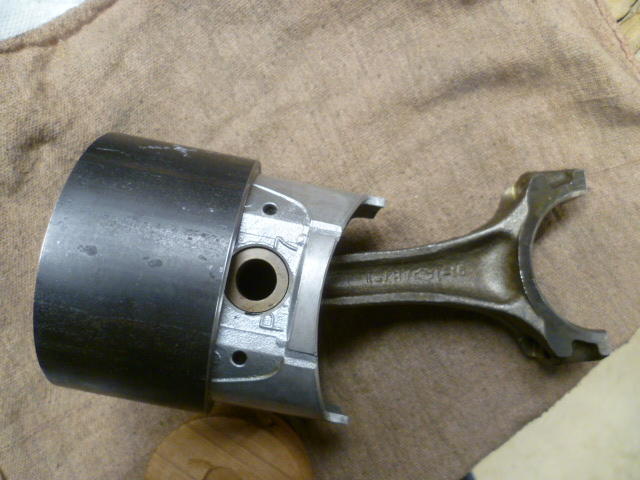

And once the rings are all compressed, the theory is that I can just slip the pistons into the bores from here:

And why does this pertain to ring gaps? Because since you're pushing straight down, the gap positions don't migrate. They stay where you put them.

So I'm jumping the gun here a little since I haven't actually used it to put a piston into the block yet, but it worked great on the bench. What could possibly go wrong? go wrong? go wrong?

[Dave WM]

ok yul...

nice work. Do you free hand that taper? I only have a small lathe all manual controls.



[Av8ferg]

I have tool and talent envy. Good job. I have a hammer and vice grips .


Sent from my iPhone using Tapatalk

[Patcon]

Using the lathe to make a thick wall funnel is cheating!!

I have the band style spring compressor. You have to get them very tight and tap the piston through with the butt of a hammer handle. They also have to be kept tight to the deck. I normally don't struggle too much with them but I have done quite a few this way

[Captain Obvious]

Well nobody get too envious yet. I've not actually tried it for real yet. I'll be sure to keep everyone posted if it actually works.  And a note about the tool... I made that one, but I didn't come up with the idea. I've seen them used in videos in the past, and they are available for purchase cheap in the sizes we would use for our engines.

So, why would I go through the trouble of making one when I could just buy one for $40? The answer is I wanted one made out of steel, and I also wanted to put a little lip on the bottom side to fit into the chamfer recess on the block deck. The commercial ones have a flat bottom where they contact the block, but what I made has a little ridge on the underside that I'm hoping will make it even easier for the rings to make the transition from the tool into the block. Like I said, I'll let everyone know if it works, or was a time wasting fail.

Dave, I did not freehand the taper. I used the compound slide on the lathe. It's got maybe a three inch working throw there, and I only needed two. The most difficult part of the whole job was getting a good polished finish what won't snag a ring. I don't have carbide boring tools, so had to use HSS. And because of that, I had to run very slowly. And I still smoked the cutting oil. It took a while to hit on a tool grind geometry that would cut and not "tear", but I finally did. But even so, there was still a lot of hand polishing required to remove the tool marks.

The REAL way to do this would be to cut on the lathe a little undersize, have it heat treated, and then final grind to size. I'm not really setup for that. And (for the foreseeable future), I only need to get twelve shots out of the tool. Six for me, and six for my buddies build.

[Captain Obvious]

3 hours ago, Patcon said:

Using the lathe to make a thick wall funnel is cheating!!

I have the band style spring compressor. You have to get them very tight and tap the piston through with the butt of a hammer handle. They also have to be kept tight to the deck. I normally don't struggle too much with them but I have done quite a few this way

  I have a lathe and I'm not afraid to use it.

So about the band style... I actually have two of them. First one I am borrowing from the super-generous hoover @240260280. It uses an infinitely adjustable friction based holding "latch" to keep the size you crank it to. I have a hard time with it though because the latch is quite stiff and it takes a lot of force to crank it down and a lot of force to release the latch. I find it cumbersome and needs three hands to use.

The second one I have uses a ratchet-gear based latch. It's easy to turn, but the problem is I get it tight to the piston, and I really need ONE MORE CLICK. But I can't GET one more click. So when I relax on the tightener, the clamp relaxes a tiny bit and I think that's why I kept snagging oil rings on the deck.

And the other problem with both of them is the area where the spring band overlaps. It's never completely round. I was thinking I could cut off some of the extra metal band to take care of that, but wasn't sure if it would be that much better.

Anyway, after all the futzing with both band style tools, I remembered seeing the tapered style and figured I would give that a try. It took three hours to make, and if I can get six straight shots out of it without worrying about snagging an oil ring, then I'll be satisfied.

[grannyknot]

3 hours ago, Patcon said:

I have the band style spring compressor.

Me too, do you also have the scars from the razor sharp spring steel? The bag I store it in is covered in dried blood.

CO, that looks like a good winter lathe project.

[Namerow]

Tens -- maybe hundreds -- of millions of engines are manufactured annually  -  cars, trucks, motorcycles, chainsaws, leaf blowers, what have you.  A complete six-cylinder engine probably gets assembled in net 15 minutes.  I wonder what's used at the factories to compress the rings?

[Captain Obvious]

Namerow, Funny you ask that. I first saw that kind of tapered ring compressor tool on TV. Don't remember exactly what show it was, but probably something like "How It's Made". which is one I watch a lot. I took a quick look through some of the episodes I could find on youtube and didn't find exactly the one I remember, but I did find all sorts of piston installation techniques.

Here's some quick clips with some examples:
https://www.youtube.com/watch?v=0clb7aTYn5o - At approx. 2:15, they use a tapered ring, and the neat thing is that due to the way they attach the piston to the crank first, their tapered ring has a slot in it so they can slip it out of the way past the rod after the cylinder has been slipped over the piston,

https://www.youtube.com/watch?v=Ub0xP9tUzr8 - At approx. 1:30 they use a funky pliers style clamp in one hand while pushing the piston into place with the other. Not a tapered ring, but pretty cool. Looks like it works great.

https://www.youtube.com/watch?v=GUo7qOVycvs - At approx. 3:25 they use a tapered collar style.

I can't remember where I first saw that tapered collar style, but it was a production facility. I think I saw a whole bank of pistons being inserted at once through multiple tapered holes in a jig. I couldn't find that one, but that's what I remember.

So IMHO, the whole drawback to the tapered ring style is that it only works for one piston diameter. If you're only planning to do one or two sizes most of the time, it would be worth it, but if you have no idea what's coming in the door next week, you'd probably just get to be an expert with the spring steel band style.
