Xenon air dam, what is the trick?


grannyknot

Recommended Posts

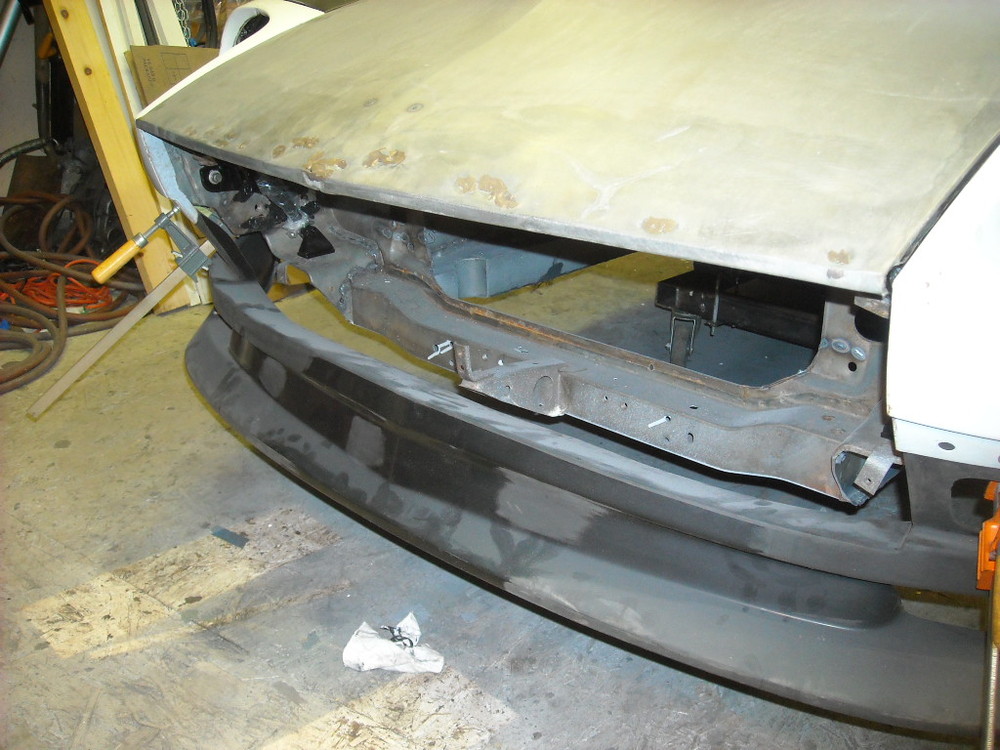

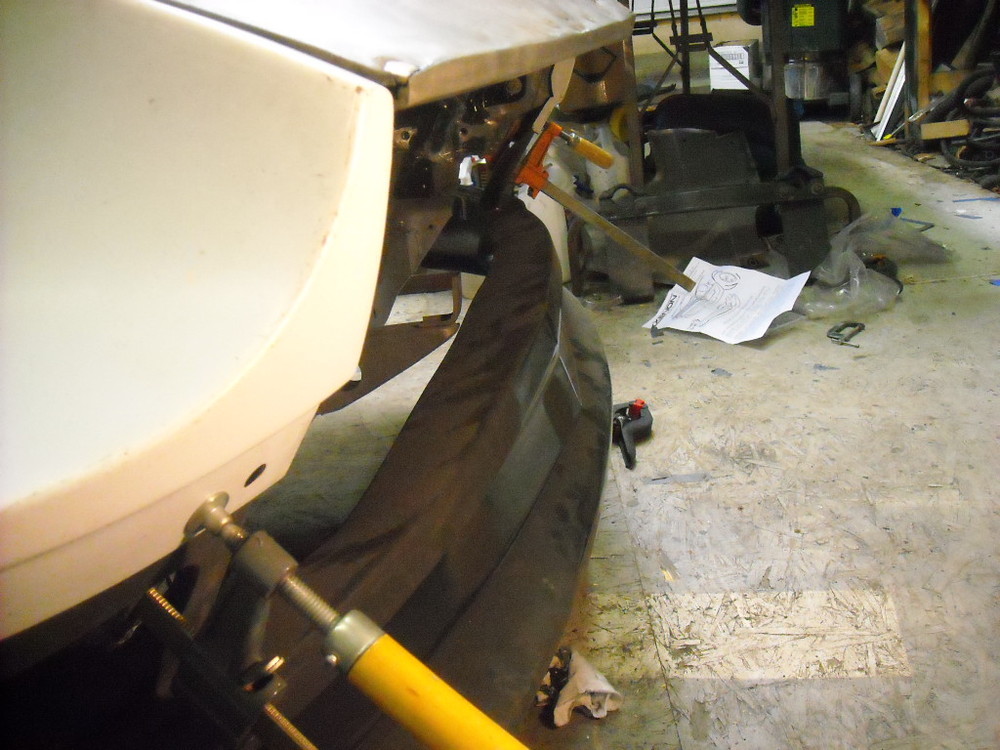

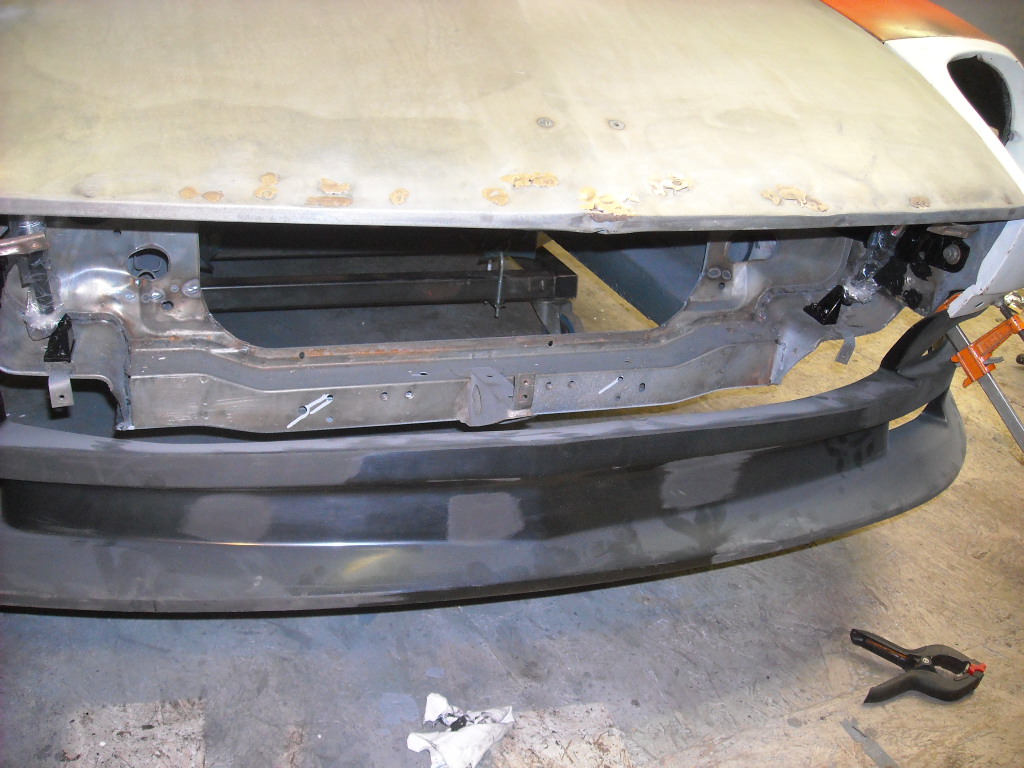

Trying to mount  a Xenon air dam and I'm sure the flat part of the air dam that mounts just under the grill is suppose to be level but mine is pointing up in the air at about a 25* angle, is there is trick or do I have to make a brace or something to force it to level out?

The sides of the air dam where it mounts to the fenders and sugar scoops are level and fit well.

Thanks,


Link to comment
Share on other sites

1 hour ago, Patcon said:

Does it go on the inside or outside? I thought it went on the outside... I had planned on building a brace on the inside or else it will droop at speed and drag the ground

You made my heart stop there for a second but after having another look at it it has to mount on the inside of the sugar scoop or it won't a line with the wheel well arch

1 hour ago, SteveJ said:

Look here. I have one photo after I mounted the air dam and before I mounted the bumper. https://fiddlingwithzcars.wordpress.com/260z-air-dam-and-front-bumper/ I think the top angled back like yours.

Steve, I zoomed in on a couple of your pics and it looks like you have a bit of an angle but I don't think it is as steep as mine.

Maybe it just needs to be mounted for a while and it will relax some but I've seen lots of Z's with these air dams and they were flat. I guess I could heat it up and put a bit traction on it to persuade it to behave.

Open to any suggestions.

1 hour ago, siteunseen said:

I left that metal limp behind mine, it's adjustable and adds some firmness.

Cliff, what is a metal limp? Put your beer down and use both fingers when typing.:P

Link to comment
Share on other sites

I just went downstairs to check mine. It has a slight angle down, but it's not that noticeable. I'm not sure whether the angle decreased since that photo on my blog, or if the angle in the photo looks greater because the front end is slightly elevated.

Link to comment
Share on other sites

4 hours ago, grannyknot said:

You made my heart stop there for a second but after having another look at it it has to mount on the inside of the sugar scoop or it won't a line with the wheel well arch

Steve, I zoomed in on a couple of your pics and it looks like you have a bit of an angle but I don't think it is as steep as mine.

Maybe it just needs to be mounted for a while and it will relax some but I've seen lots of Z's with these air dams and they were flat. I guess I could heat it up and put a bit traction on it to persuade it to behave.

Open to any suggestions.

Cliff, what is a metal limp? Put your beer down and use both fingers when typing.:P

Budweiser and auto-fill, bad combo. :D

Link to comment
Share on other sites

50 minutes ago, cbuczesk said:

I made a brace for my street Z and race Z to make it flat. Yeah, I have OCD issues. lol. My friend's race Z points down.

Chuck



Chuck, you wouldn't happen to have any pics of that brace would you? Did you just brace the upper flat ?

Thanks

Link to comment
Share on other sites

The brace on the race car is an aluminum U channel that I made. Maybe 8"+ long and 2" wide. It's riveted to the bottom of the radiator support and the other end rests inside the lip of the air dam. This is from memory so I could be a little off. It's held up to 125+MPH and some contact with cars and a tire wall. The street car attached higher to the radiator support. That's about all I remember. I'll try to get pics tonight.

Chuck



Link to comment
Share on other sites

  • 4 years later...

I have/had the same problem. My right side seemed twisted up too. I got most of it fixed by leaving it the sun and then I put the car on my lift and tied a bungee cord around that twisted side to the lift to pull that side down. Had it under tension for about 3 days. It’s still isn’t perfect but I think it may get better as time goes on . It has to be a glitch in the manufacturing process. My air dam is currently off being painted to match the car but here is a pic of how it looked after tried to fix it. You can still see the right side it slightly twisted up and a smaller gap on that side. I plan to build a reinforcement system behind the air dam at a later date.


Sent from my iPhone using Tapatalk

Link to comment
Share on other sites

Well, in my opinion it's a shame what Xenon delivers here.

I even had a crack at the bottom of the air dam, but Xenon did not really care. It is the customer's job to repair it... They are not interested in improving the product or the package it comes in.





Link to comment
Share on other sites

Let'em sit in the sun for a few days would help the most. They get bent in shipping, such a large box. @Av8ferg ROFL

If you leave the lowest lip on the OE metal air induction to the radiator it will support the Xenon. It's adjustable so you snug them together. Mine sounded like a busted front tire the 1st time I got up to higher speed. Scared me! Then I figured out the support needed. No more problems.

Link to comment
Share on other sites

I already used a heat gun, but this only helped a little bit.

Acc. to MSA the air dams used to be a lot more flexible in the past. I guess they changed the PU compound without testing what would happen to the fitment.

Link to comment
Share on other sites

19 minutes ago, YZFMax said:

After painting the air dam.



Sent from my iPhone using Tapatalk

Did you do anything with the lower grille or is it the stock big-bumper grille?  I plan to do the same setup, but with a powder coated 240Z bumper.

Link to comment
Share on other sites

4 minutes ago, Jeff G 78 said:

Did you do anything with the lower grille or is it the stock big-bumper grille?  I plan to do the same setup, but with a powder coated 240Z bumper.

I'm using a Skillard grill.
