I only know because I picked up a spare complete ZX engine.  You do know the later ZX's have the lambda sensor in the exhaust manifold?  It's the narrow band type and the manifolds are shorter so the down pipes don't swap.  I don't know if the threads and bosses are the same either.  But if you realize that you're going to end up removing manifolds, it might be an option.  I've been pondering using a 1990's Nissan EFI system on my car so have looked at some of these things also.

Looks like lots of fun.  Will you be running your three injector drives as a single batch fire or grouping them in to a sort-of semi-sequential system?  I don't think I've seen a three x two system.

Link to comment
Share on other sites

25 minutes ago, Zed Head said:

I only know because I picked up a spare complete ZX engine.  You do know the later ZX's have the lambda sensor in the exhaust manifold?  It's the narrow band type and the manifolds are shorter so the down pipes don't swap.  I don't know if the threads and bosses are the same either.  But if you realize that you're going to end up removing manifolds, it might be an option.  I've been pondering using a 1990's Nissan EFI system on my car so have looked at some of these things also.

Looks like lots of fun.  Will you be running your three injector drives as a single batch fire or grouping them in to a sort-of semi-sequential system?  I don't think I've seen a three x two system.

I have a lot of ZX engine parts too, because a friend found an old clapped out zx and used the block and head in his 240Z. Kicking myself now for not taking the exhaust manifold and down pipe. Also have a lot of parts from a 280Z 75, but left that manifold because it was for the N42 with square ports.wall.gif

Ill be running the injectors in 3 groups of two, 1&6, 2&5, and 3&4. 1 pulse per revolution, 2 pulses per firing. Because I'm using low impedance injectors, they will be wired in series. If I go to the o-ring (EV6) injectors with high impedance then Ill need to use all 6 drivers.

I won't be running sequential injection. Need a trigger wheel for that and if I go that route I would like to try a sensor in the backing plate measuring drill outs in the flywheel.

Edited by EuroDat
Link to comment
Share on other sites

  • 2 months later...
  • 4 weeks later...

Haven't been very active the last months. Personel  issues getting in the way.

The ECU is fitted in the position where the original was. Removing a lot of parts not needed for the new ecu, lke the AFM, TIU, CSV, AAR. Still working out what to do with the fuel pump relay. The ECU has a system where it runs the pump for five seconds when the key is turned on and stops the pump when the distributor signal falls away.

I started tinkering with the exhaust downpipe last weekend and made an adapter for the bosch 4 wire lamba sensor. That ws a challenge getting the three bolts out without breaking any off. Ill try to get the adapter welded in on the weekend and the new exhaust all fitted up.

I'll take some photo's of my progress this weekend.

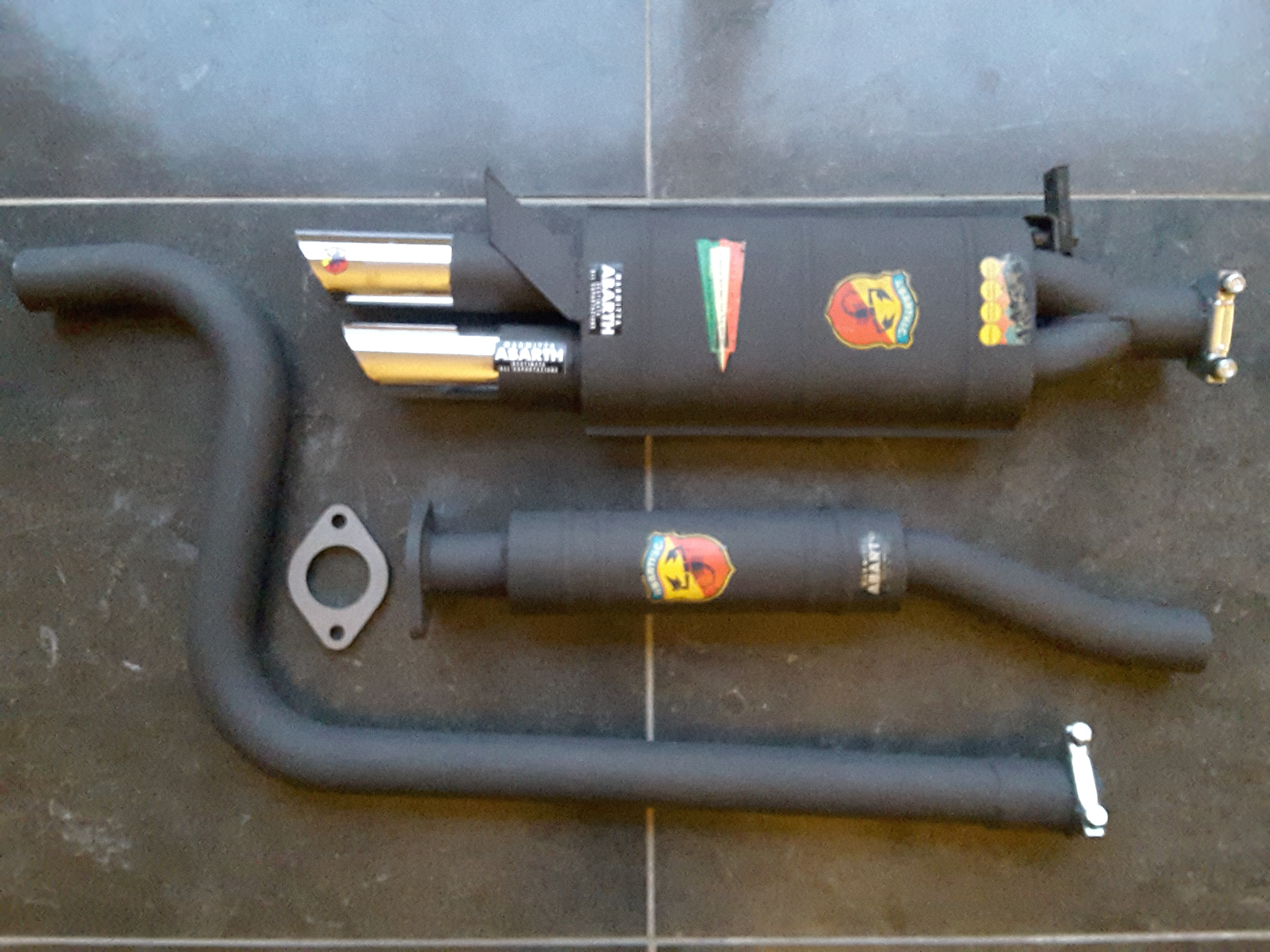

A nice surprise came in today. Ad was so kind to drop off the new Abarth exhaust personally and say hello. Nice present for my birthday. It's been on my "wanna have list" for a long time.

Unfortunatly I'll only have the weekend to work on it, as next week I'm back off to Aus.






  • Like 1
Link to comment
Share on other sites

On 15-1-2017 at 6:11 AM, CG240Z said:

Would this trigger system work for you?  Austin Hoke makes some high quality Z parts.



Hoke Performance Crank Sensor

 It should work fine. I was thinking of using something like this, but first I want to get it running with as little extra mods as possible.

I would like to go with a wasted spark system eventually.

Link to comment
Share on other sites

  • 3 months later...

Well it's been a while, but Im back at it. What I have done so far:

- Removed the AFM and made a tube with the air temperature sensor.

- Removed the AAR and CSV. Not sure if I want to use a stepper motor like the bosch units in the 2003 - 2009 Land rover of simmilar device for cold starting.

- Fitted the map sensor.

- Made an adapter to mount the O2 sensor in the downpipe. Getting that welded in on Friday.

- Stripped one bolt of the three bolts in the down pipe flange. The other two nuts came off ok and I removed the studs without breaking them.

- Removed the TIU. The new ECU will activate the coil through the blue wire that went to the old ECU.

- Fitted the Relay (with coil driver). This is an intelligent relay. It will run the pump, but cut off when the engine stops. When the relay see a 5 volt active signal from the ECU, it will run the pump 5 seconds and then wait until it receives a pulse from the coil. Nice and safe.

- Wired in the original temperature sensor and distributor pick-up. Thermotime not required.

- Dissabled the vacuum, but still need to remove the springs in the mechanical advance. Check the rotor phasing.

Ill take some photo's over the next couple of days.

So far it's cost me €420 for the ecu kit (ecu, relays, map, air temp sensor, 4 wire bosch O2 sensor & harnesses) + shipping + tax. Extras like heat shrink, 1.0, 1.5 & 2.0mm2 wire, variable 3-pin tps, pipe to replace AFM etc etc has set me back about €100. Looks like it will be a little under €550 ($600) when Im done.

I'm currently searching for the terminal connector on the EFI harness to connect to the dash loom. The one on my harness is in good condition, but I dont want to hack up the harness.

If someone has an old harness, that has been used for spare parts, and still has this terminal block, I would like to buy it if possible.

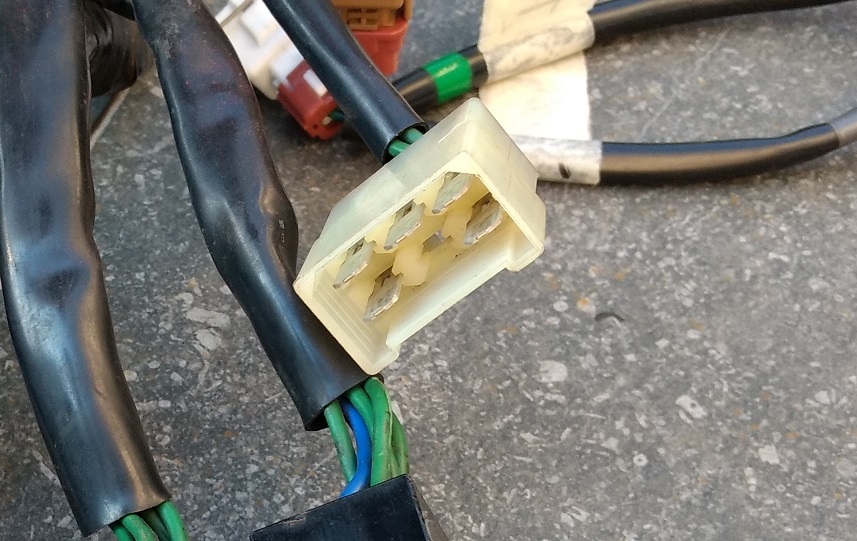

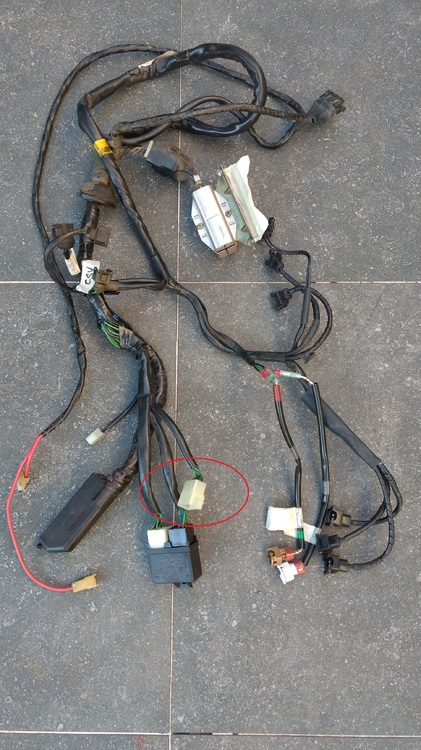

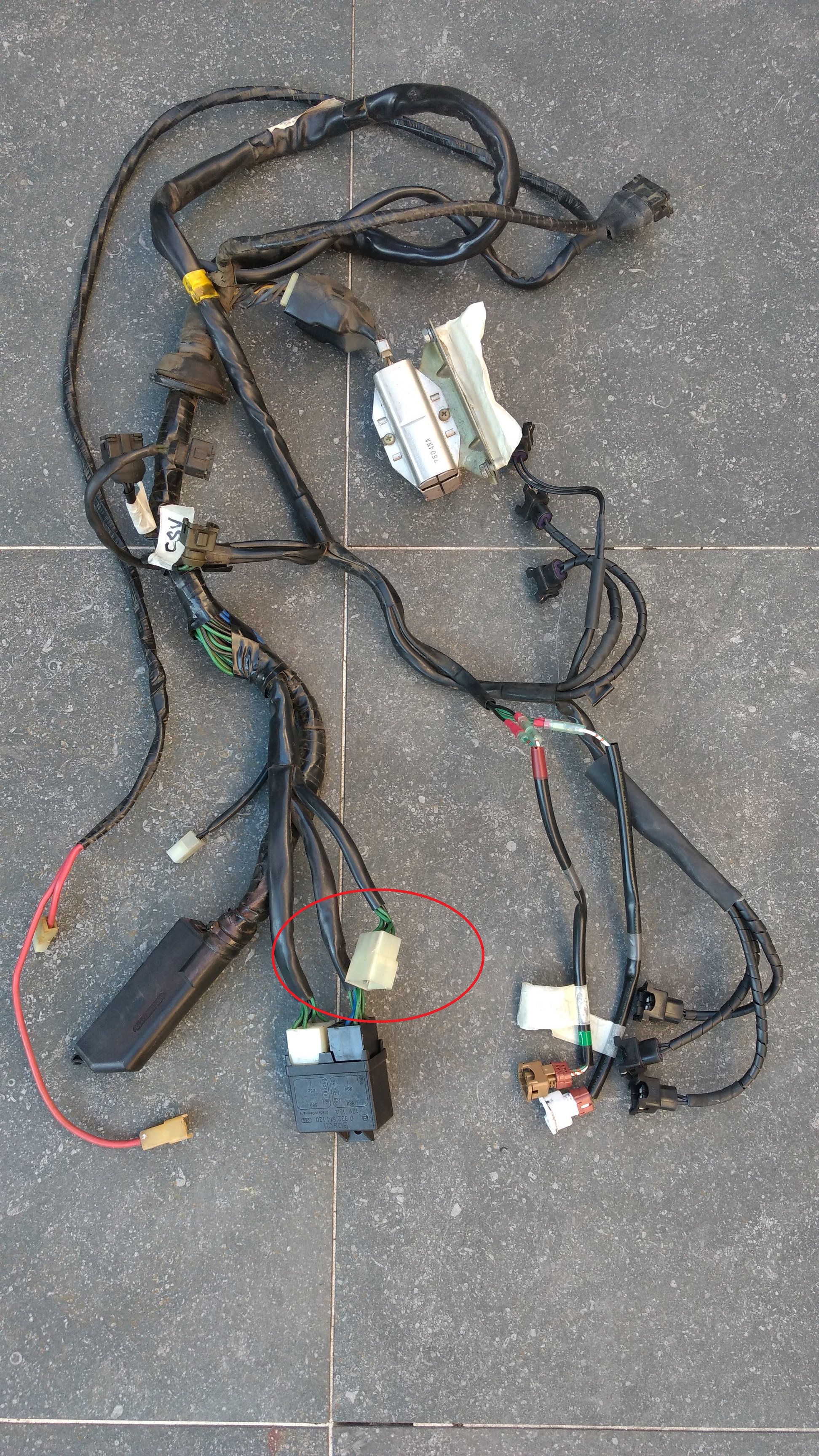

Here are some photo's of the connector.




Link to comment
Share on other sites

Thanks @munters for the offer. Btw: It is the 6x 6.3mm spade, non-latching connector plug.

@ZupThanks for the link. I had forgotten about them. Browsed through their website and found some other connectors and a couple for a mates Celica.

Im glad I don't have to hack it off my harness. I would like to keep it, kind of just in case.....



Link to comment
Share on other sites

I took some photo's of the progress I made, the last couple of days.

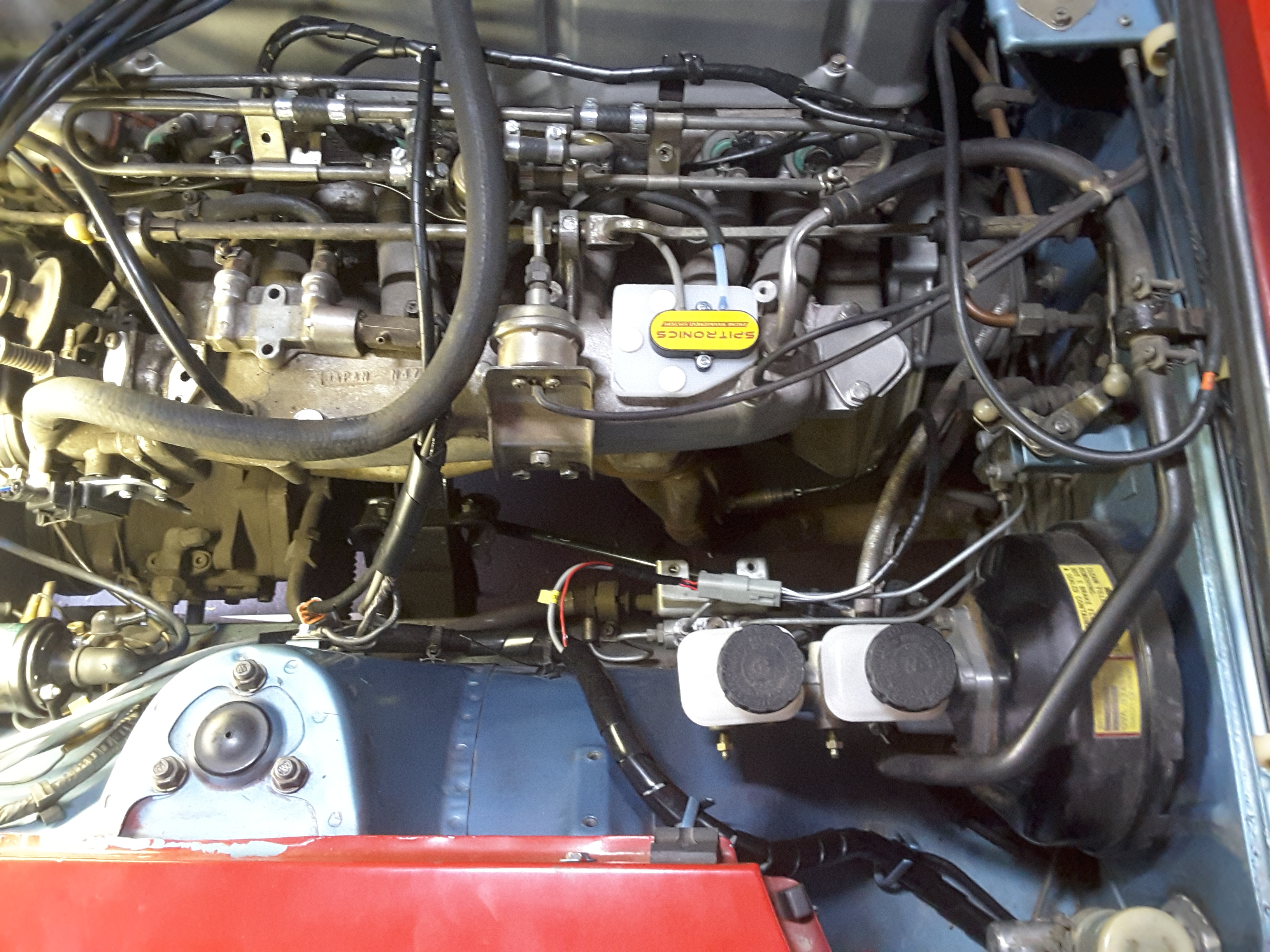

1. Pipe with air temperature sensor to replace the AFM.

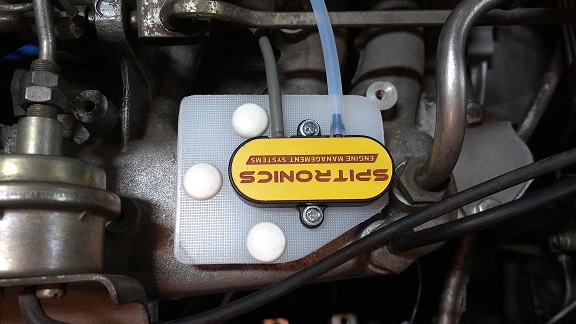

2. MAP sensor to replace the AFM function.

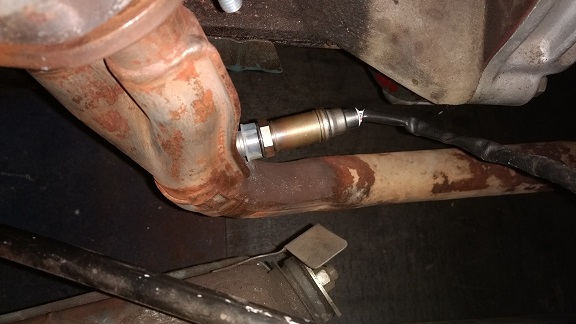

Testing position of the O2 sensor.

I wanted to fit it in the EGR port, But there was not enough space between the manifold and the firewall for this type of O2 sensor.




TPS. It was already fitted last year, but now it's wired and the ECU is reading the signal when I move the throttle.

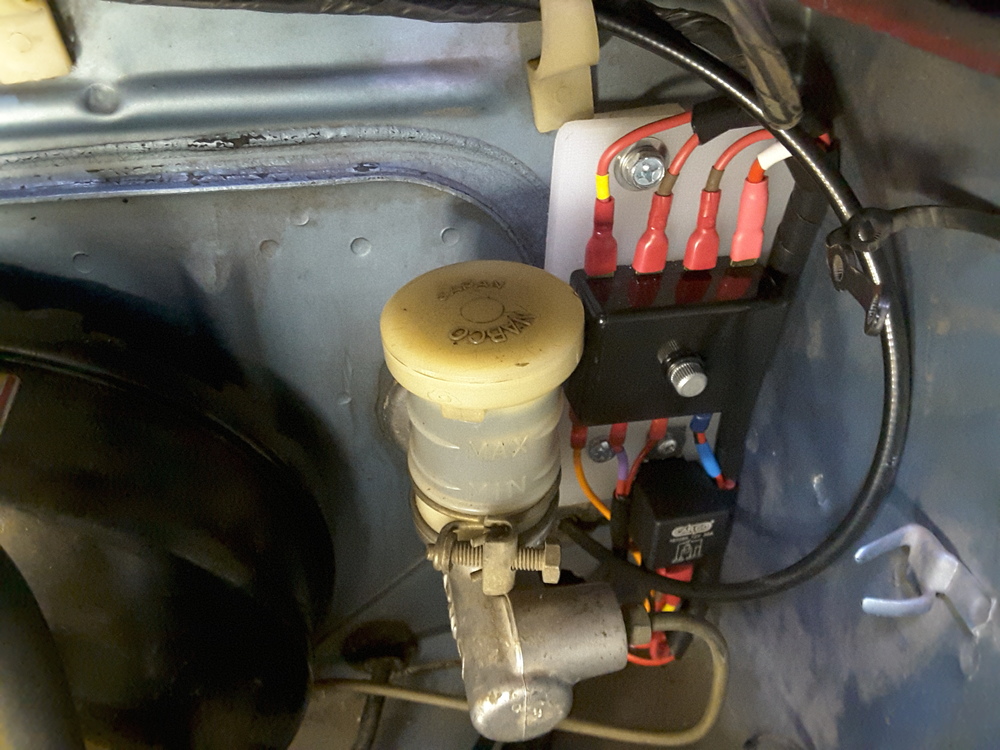

Realy and Fuse block to power the ECU.

Link to comment
Share on other sites

Thanks for the offer Munters. I sent the link from Vintageconnections to a friend with a celica. He wants to place a an order and I will try to order a connector there.

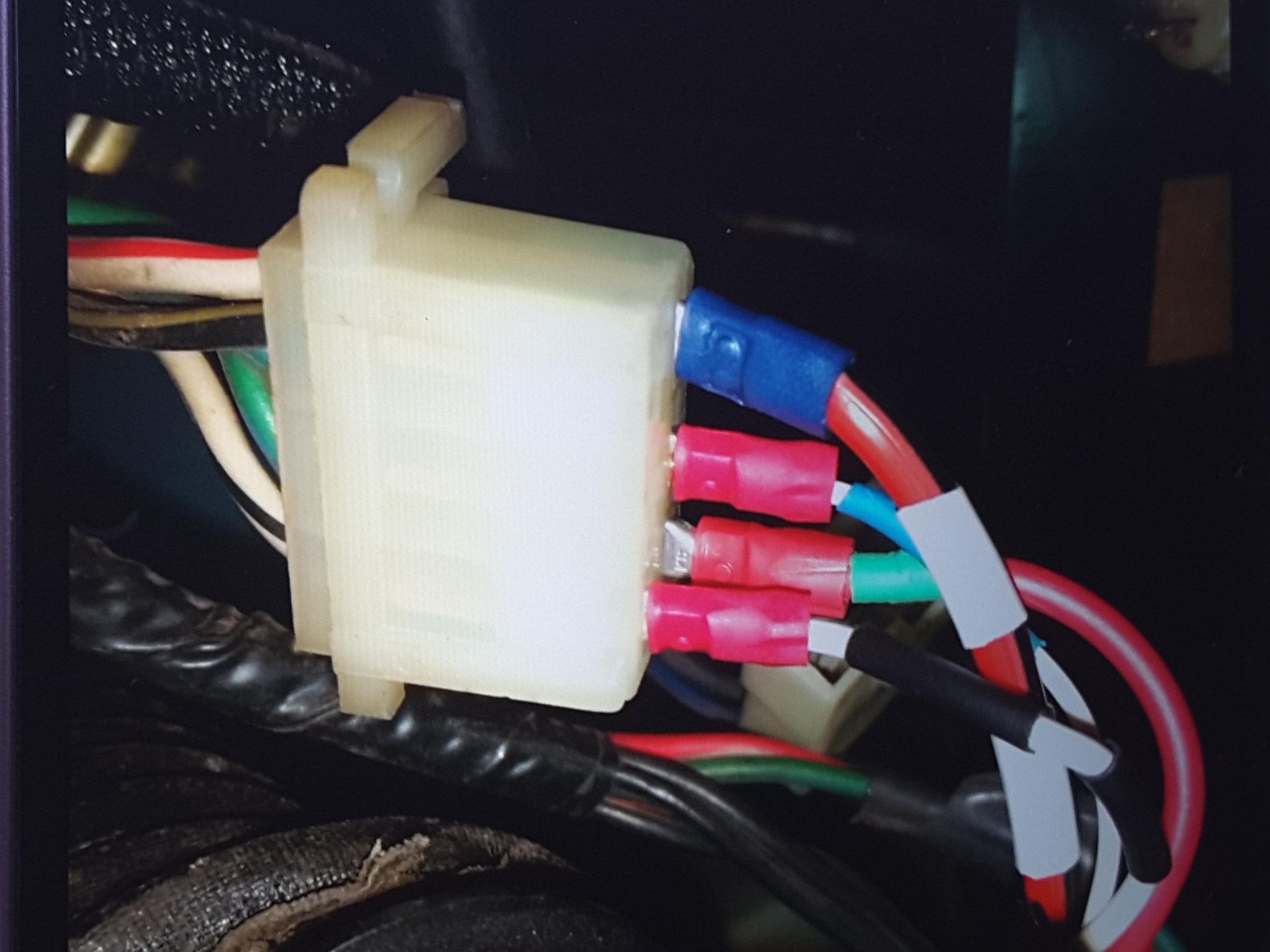

In the mean time Ill use simple crimp connectors to get it running. If the vintageconectors don't work out, I'll send you a pm.


Didn't have much time today, but managed to clean up all the wiring and wrapped it in a simple spiral wrap to keep it tidy and allow easy access.

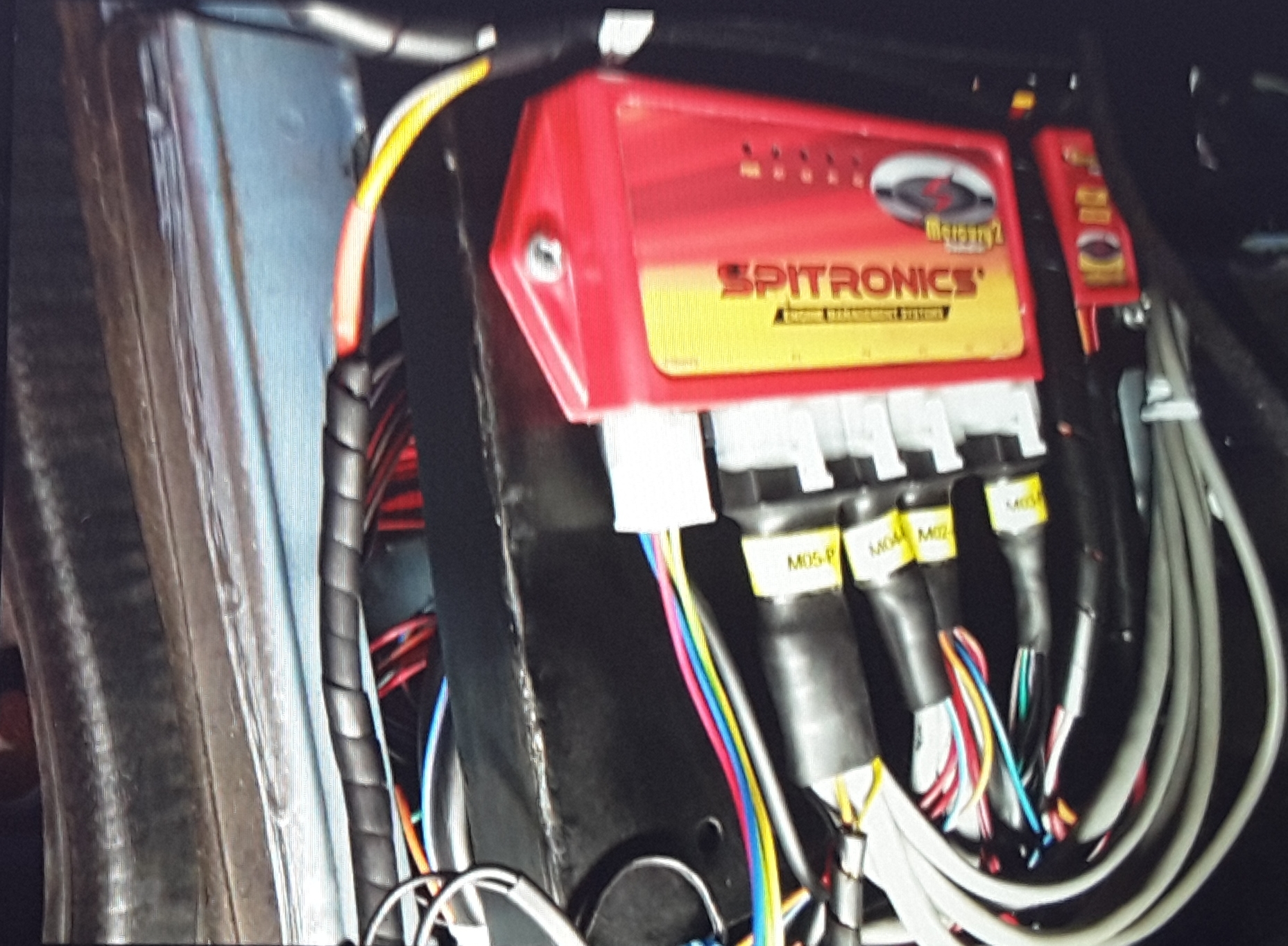

Finished the relay and fuse block and made a bracket to mount the ecu and fuel pump relay /coil driver. I was hoping to mount the new ecu in the old case, but that proved to be too much trouble. Eventually the kick panel will be fitted with an enlarged hole to check the ecu indicator lights and cover up the mess.

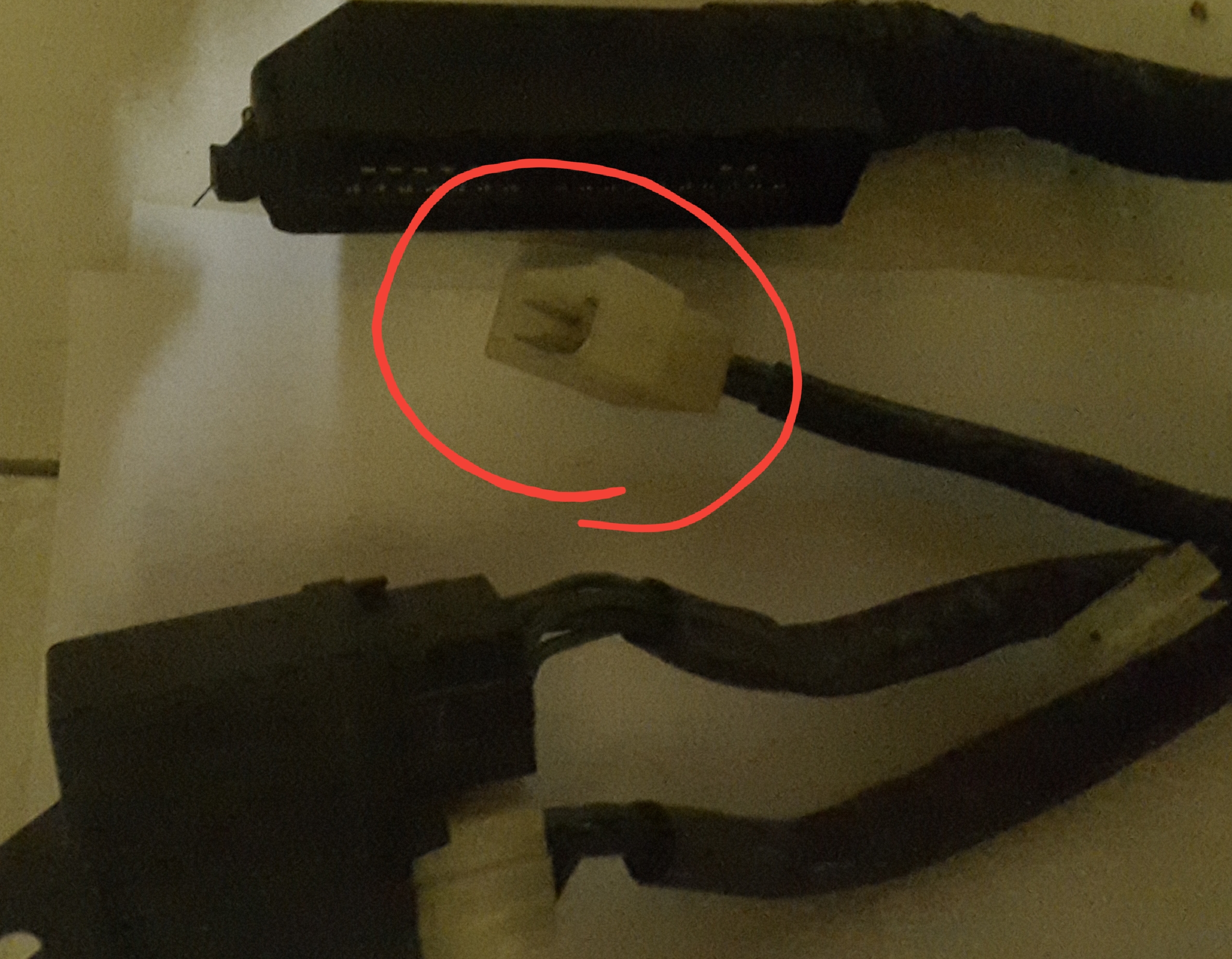

I disconnected the TIU since the coil driver will take over. The coil driver is going through the original harness and connecting via the old ECU blue trigger wire in the photo above.

Stil have a couple of things to do before starting: Distributor advance and phasing, and fitting the new exhaust system plus welding in the O2 sensor fitting.

Tonight I'll play with the maps and download them tomorrow so it will start and run.






Link to comment
Share on other sites
