L28+(maxima)47 build

[240260280]

It has n47 exhaust liners, round ports and 260z cam... poor mans mods.

[madkaw]

Actually moving forward again on the motor. The big cam arrived and I can start doing lash pads . Should get lucky and have just two sizes , and I have a set for the one size. Short block is just where I left it - all assembled under the bench. Things should roll pretty fast now. I was hoping for this high drama push to put the big motor in at the last minute to make it to Z con- but reality just kicked my arse again. Be glad to take the 2.4 !

[madkaw]

Well my 190 lash pads arrived yesterday so I am chumping at the bit to get going on assembly,  trying to take a deep breath before start. Don’t want to rush this . Biggest thing to check now is piston to valve clearance . All other projects are put on hold until this thing is assembled !

Also think I snagged a G-force t-5 trans to mate up with this. For those not familiar it is the Nissan T-5 from the ZXT that gets its guts ripped out and replaced with WC T-5 guts. Larger main shaft and tougher gear sets . Pro- tower shifter , hydraulic TOB! The beauty is that you get a trans that is good for 600 hp , better gear ratios and it just bolts up!

[Zed Head]

4 hours ago, madkaw said:

Well my 190 lash pads arrived yesterday so I am chumping at the bit

That's a new one.  How about chimping?  Which is worse...

[madkaw]

How about chomping !

[madkaw]

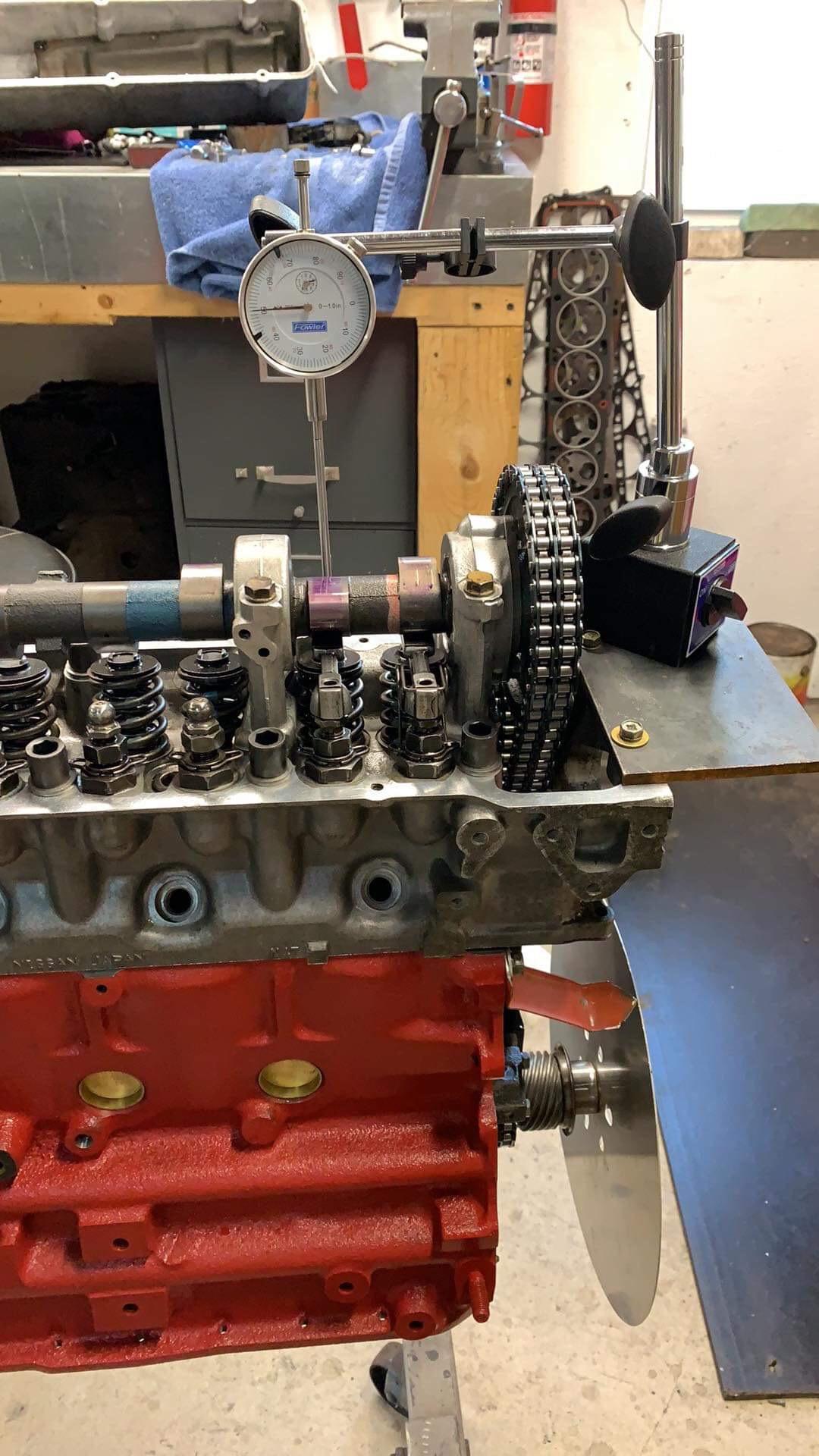

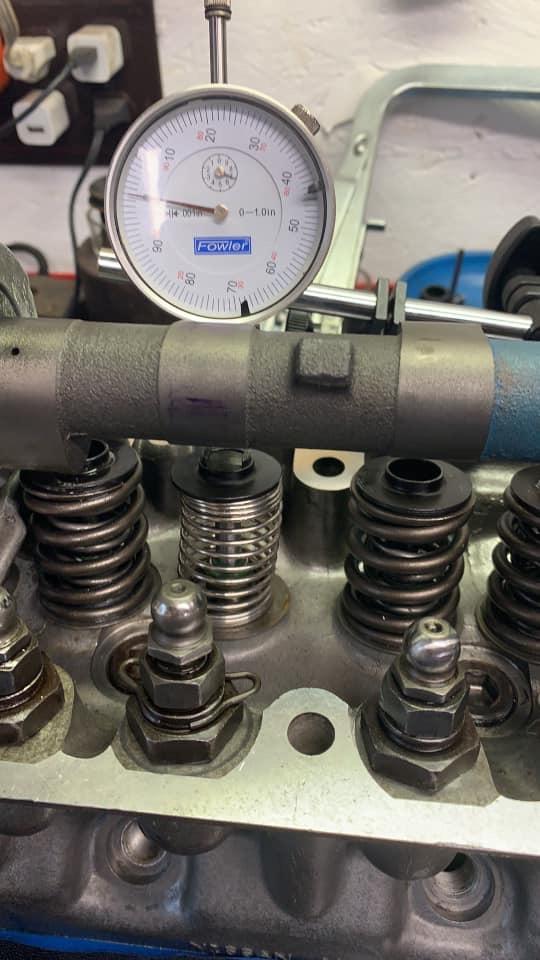

Lash pads installed !

.525 lift and still room for the valves and pistons to share. Waiting on a adjustable cam sprocket and still debating on the balancer . Thinking about spending the $$ because I want to use it on my L32 eventually . Also waiting on some hardware to finish buttoning up things .

[moelk]

Nice!!

What head gasket (thickness) was used and how tight was it between pistons and valves?

Is the head shaved and how much in that case?

//Andreas

[Patcon]

That was a good idea for a dial indicator mount surface!

[siteunseen]

11 hours ago, madkaw said:

Lash pads installed !

.525 lift and still room for the valves and pistons to share. Waiting on a adjustable cam sprocket and still debating on the balancer . Thinking about spending the $$ because I want to use it on my L32 eventually . Also waiting on some hardware to finish buttoning up things .

Did you have to remove any material off the 190 lash pads?  If you did would you mind sharing your method?  Thank you Steve.

[madkaw]

6 minutes ago, siteunseen said:

Did you have to remove any material off the 190 lash pads?  If you did would you mind sharing your method?  Thank you Steve.

Why would I remove material? I figured the size I needed and ordered the correct ones

[siteunseen]

I bought a cam kit that came with 190s.  It's a .460 lift.  Thank you for your reply.

[madkaw]

1 hour ago, siteunseen said:

I bought a cam kit that came with 190s.  It's a .460 lift.  Thank you for your reply.

So what size do you need? The lash pads are available . Have you done a wipe with stock pads?
