Carter rotary pump

[Jeff G 78]

Im using the stock fuel piping...

There are lots of people successfully running the stock fuel rail, but I struggled for years with fuel starvation issues on my race car. It turned out to be vapor lock caused by heat radiating from the head through the stock steel rail into the fuel. Once I ditched the stock rail, it runs like a champ for hours on end. You might want to at least isolate the rail by replacing the steel spacers with a heat resistant material that doesn't conduct as well.

I could only run 20 minutes on the track before I started having symptoms.

As always YMMV. Good luck with the triple swap. It will sound glorious!

[Reverend]

Im quite positive that vapor lock is not issue here, not even hottest summer day. I live 100 miles from arctic circle... I just got new linkage from Pierce Manifolds, now all i need is that fuel pump...

[Reverend]

I wonder does anyone run triples with -73 electric fuel pump?

[madkaw]

Probably work fine. Most triples only need about 3.5psi to run. I guess the worry would be flow- if there's enough.

I thought the 73 pump was a supplemental pump for the mechanical.

[Jeff G 78]

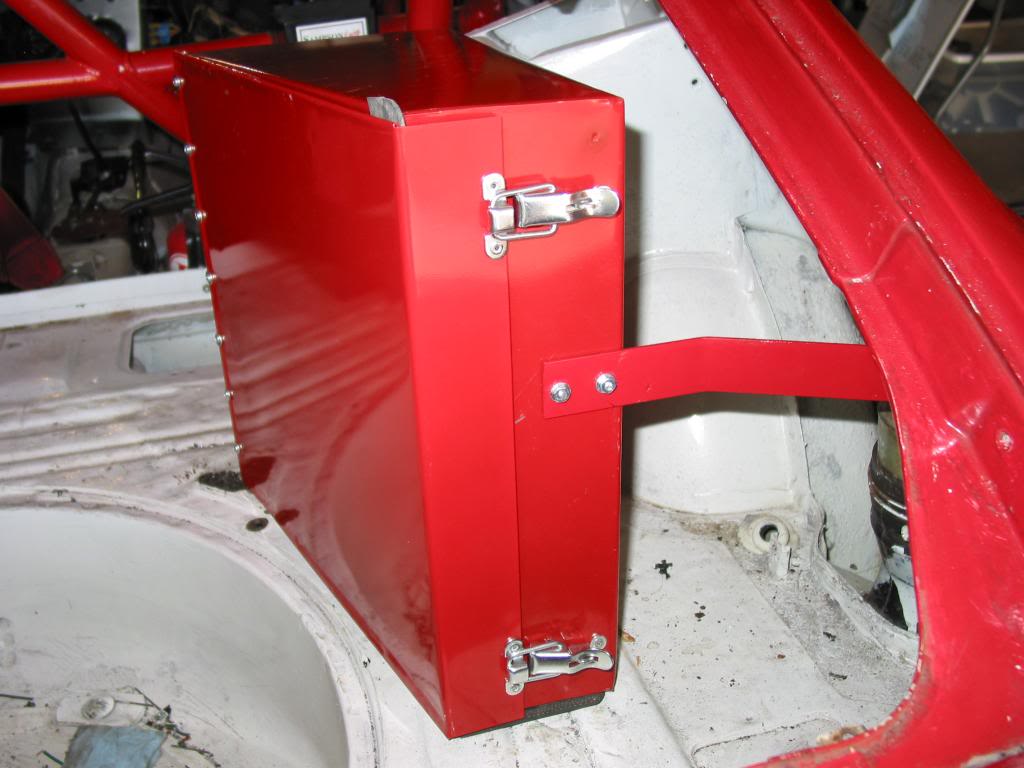

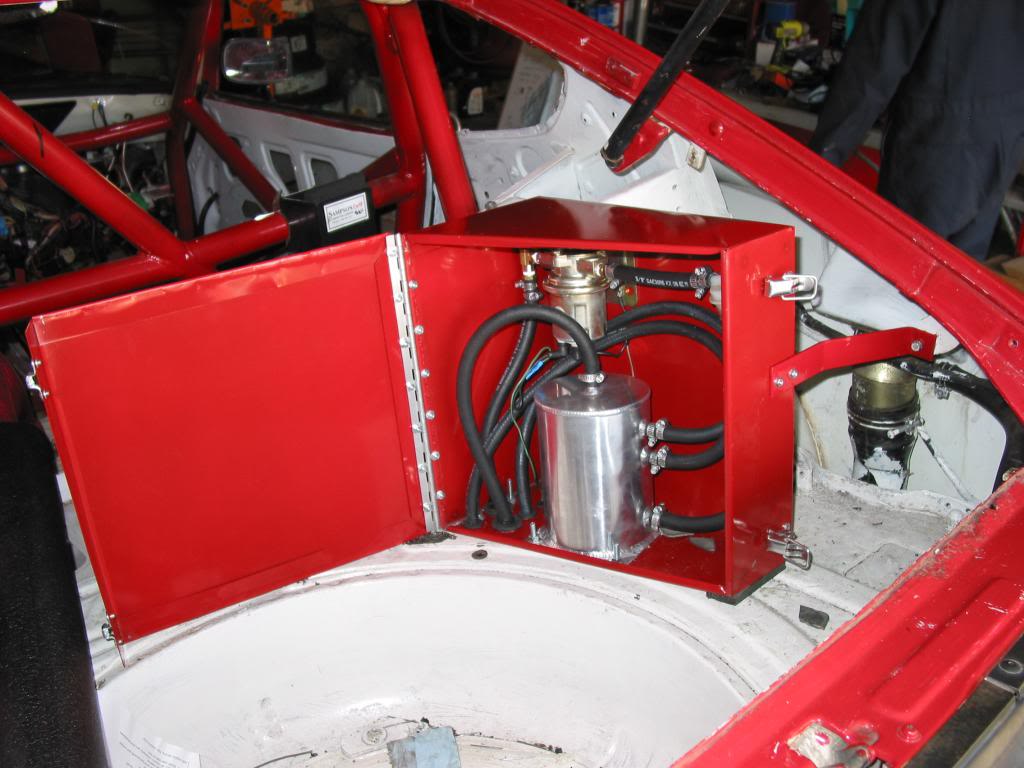

I run the Carter pump in my race car and it works great. My installation won't really help you though. I run a surge tank to maximize the range. Before the surge tank, I could only run about 1:40 on a tank, but now I can run a full 2 hours which is our driver stint limit. I run a Facet pump to get the fuel into the surge tank and then the Carter pump to feed the engine. The Carter is fairly loud, but it is inside the car. The Facet is much louder and it's under the car.

[z boy mn]

I put the Carter P4070 in my car (which has triple Webers) last summer as the pump I had ran too much pressure and not enough volume. I had a regulator, but I got tired of playing with it. I put in the Carter, took out the regulator, put the return line back, and it supples the 3-4 PSI rock solid all day long. It is loud, even with the insulation mounts, but that just lets me know it's running! Also, I ran a separate power line to it, which also keeps it happy and I can shut it down when I want to.

I mounted it on the outside of the car, bolted to the spare tire well...maybe a different location would have been better (i.e. quieter).

Edited December 23, 2013 by z boy mn

[Reverend]

I wonder could you install it on engine bay...? At least it would not be so loud inside the cabin

[Reverend]

Also consider this pump, any experiences? Holley 12 802 1 Blue Electric Fuel Pump External Aluminum Polished Regulator | eBay

[Jeff G 78]

I think that's a fairly popular pump in the Z world.

BTW, why the name change?

[Reverend]

Haha, its a long story. My nick used to be the name of my band, which broke just recently.

Anyone got experience on the Nismo pump? Heard that this same pump was in C10 GT-R

[Reverend]

How about Facet Red Top?

[grannyknot]

Reverend, I'm using the cheapo RX-7 inline pump for a year now with no problems feeding my triples, I have used the Holley pump you linked to, can't remember if it was the blue or the red one but it was very loud.

The RX-7 pump is rated at 4 psi continuous, I found it to be more like 3.5psi so I just opened up the regulator wide with no restrictions and everything is working well.
