New discovery; the story of solid/chrome Z emblem


kats

Recommended Posts

Gents,

Just in case anyone is looking 'in' from 'outside' the clique, maybe we should make it clear that what we are discussing here are the details of the '240Z' emblems that were used on the side quarter panels of the early Export cars ( as opposed to something that had just a letter 'Z' ) and also the details of the 'Datsun' scripts seen on the same cars.

I thought we were talking about the Solid chrome Z on the rear hatch 240Z emblem, as opposed to the later white painted Z.

We are discussing the emblems on the early US 240Z model. The two quarter emblems and the hatch 240Z emblem all had chrome Z's (in place of the later white painted Z's). The earliest quarter emblems and the Datsun script emblem on the hatch were also solid cast instead of the later hollow cast versions. I have not seen a solid cast 240Z hatch emblem, so I am not sure if any of those were ever made.

-Mike

Link to comment
Share on other sites

Just when I begin to think I don't know what I'm talking about, the fates cast their blessing on my karma. Kats is my angel... So much for the so-called "experts"!

I was searching through my files looking for that Fairlady emblem I bought from the guy in London who sold me the Datsun film from the Monte Carlo Rallye (can't find it) and I stumbled across this shot of the long lost Zulu emblem. Now, I know this is drifting from what Kats is talking about but I remember a conversation about the Zulu and here is something you are not going to see any day, let alone some days when you run into a chrome Z emblem!

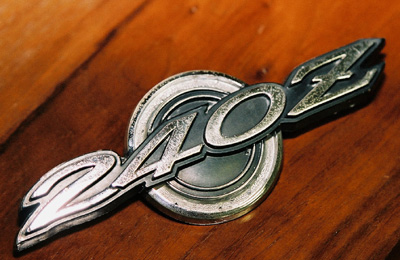

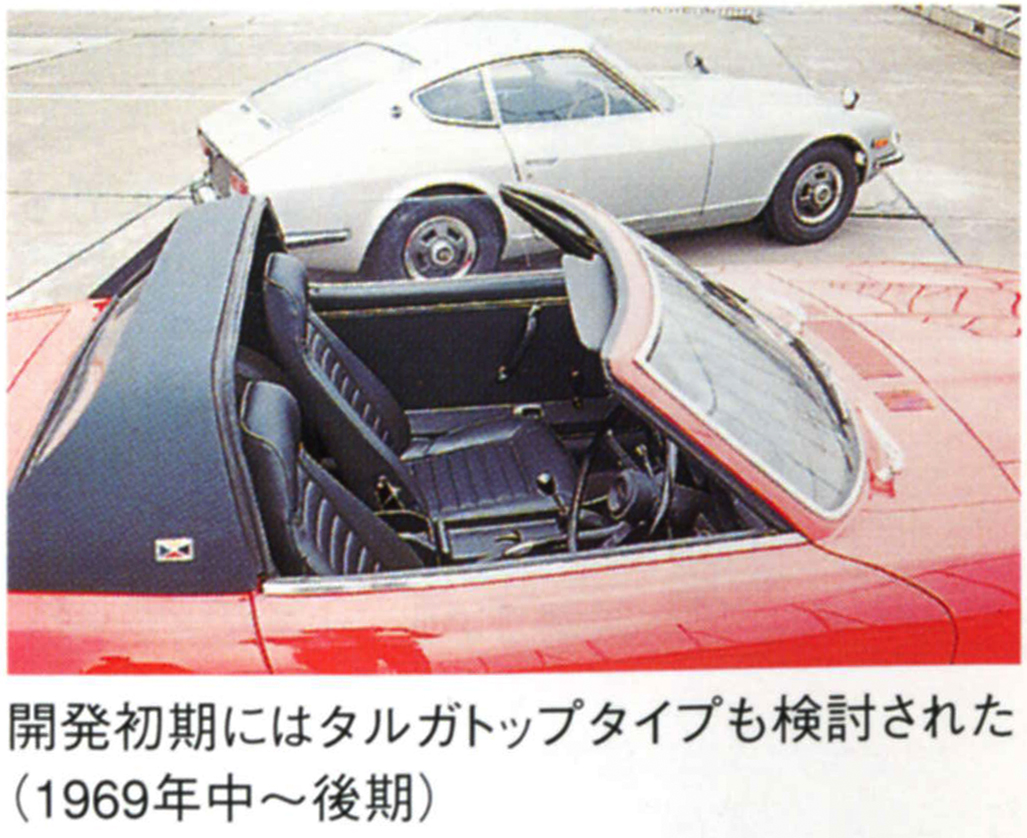

First, let me post some pictures of what we are discussing - the infamous chrome Z. I'll let Kats discuss what he has learned about it. Then, the emblem that appears on the Z 432 (PS30) and I believe Alan gets credit for the photo. Finally, a photo of two prototype S30s - the targa top showing the Zulu emblem that I have been told is pure fictional lore from the "experts". I also want to point out that I have other pictures of the silver car behind the targa top car. Notice the 'D' hubcaps? This "car" is not a car at all. It is a clay. Alan, this should interest you. Notice the Nissan emblem on the quarter panel? I believe this is a round Nissan emblem, is it not? But check out the Datsun hubcaps.





Edited by 26th-Z
Link to comment
Share on other sites

We are discussing the emblems on the early US 240Z model.

Mike,

With respect, maybe you are discussing the emblems on the "early US 240Z model", but Nissan would - perhaps more accurately, and certainly more diplomatically - call them the 'early Export model emblems".

I wouldn't like to bet that all such emblems ended up being sent to the USA, any more than I would bet that all of the "first 500" HLS30s were HLS30Us......

:)

Alan T.

Link to comment
Share on other sites

I was searching through my files looking for that Fairlady emblem I bought from the guy in London........

A slander on proud Londoners! If it's the fellow I'm thinking of, he certainly wasn't from London. From either the houses of York or Lancaster, as I remember........

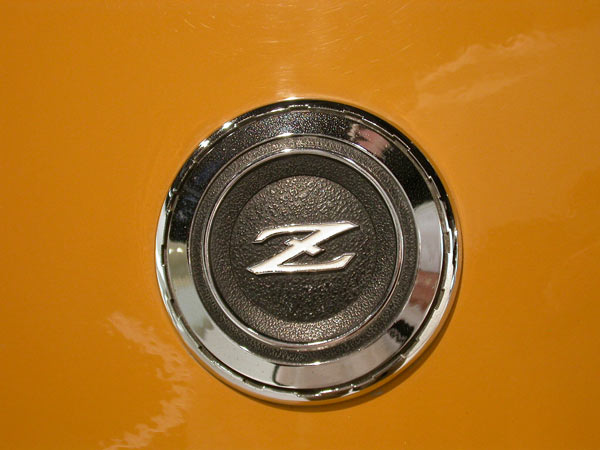

Then, the emblem that appears on the Z 432 (PS30) and I believe Alan gets credit for the photo.

To clarify, this emblem was not applied only to the pre vented-quarter 432 & 432R, but to the Fairlady Z and Fairlady Z-L models too. They were dropped when the pillars became vented, and the tailgates became sealed.

.......the Zulu emblem that I have been told is pure fictional lore from the "experts".

:)

Notice the 'D' hubcaps? This "car" is not a car at all. It is a clay. Alan, this should interest you. Notice the Nissan emblem on the quarter panel? I believe this is a round Nissan emblem, is it not? But check out the Datsun hubcaps.

Yes, I think you are right about the 'Nissan' emblem. You can see that on some of the other clay/prototype photos, I believe. I'm motivated to go and have a look now. I seem to remember it from the high-res. clay photos that Matsuo san gave me in London (?).

Those hubcaps are - of course - C10-series Skyline hubcaps with 'D' emblems added onto the centres. Keeping the bean-counters happy, no doubt!

Cheers,

Alan T.

Link to comment
Share on other sites

Alan, thanks for the correction. I should have said North American models, since my understanding is that all 1969/early 1970 production 240z export models went to the US and Canada. If that is not correct, what other countries received them?

My intent was just to clarify that the chrome Zs were on both the quarter emblems AND the 240z hatch emblem, since you omitted that in your post and Mr Camouflage thought we were ONLY discussing the chrome 240Z emblem on the hatch.

-Mike

Edited by Mike B
Link to comment
Share on other sites

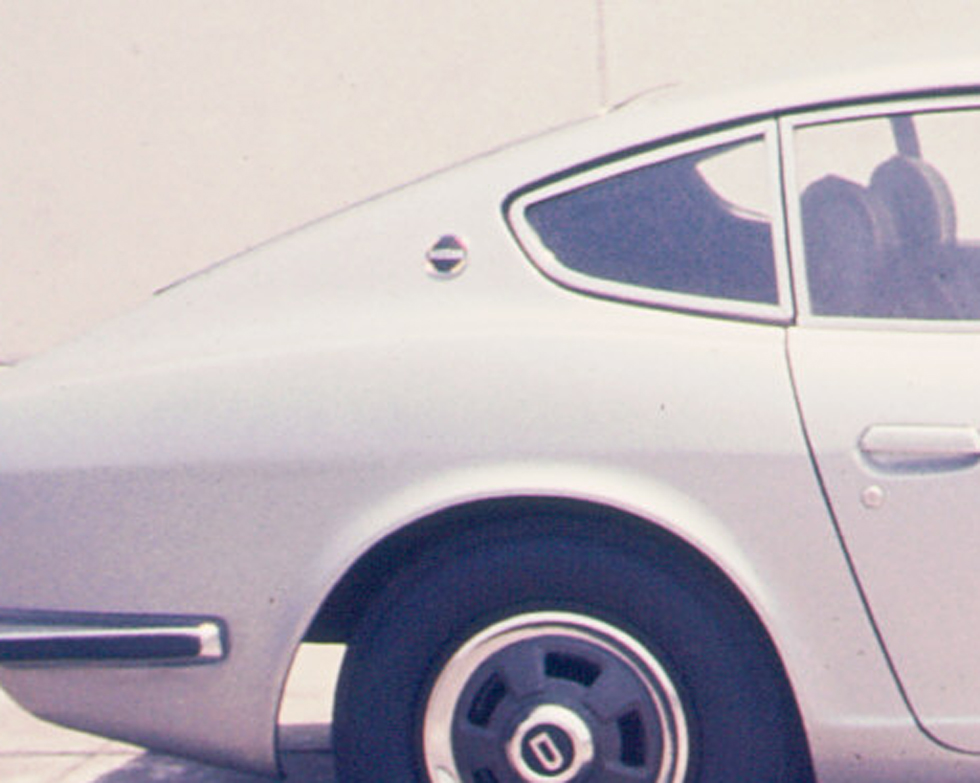

The emblem seen on this prototype with the steep windscreen rake doesn't show up very well. I always thought it said NISSAN. Is that the same as the one in your S30 prototype pic Chris? I think this was possibly the earliest, even before the body design was finalized.

Link to comment
Share on other sites

Alan, thanks for the correction. I should have said North American models, since my understanding is that all 1969/early 1970 production 240z export models went to the US and Canada. If that is not correct, what other countries received them?

Hi Mike,

A few very early production HLS30s were sent to Europe ( arriving in Belgium and Holland ) for road testing and evaluation. One of them took part in the 1970 Geneva motor show. More than one of them ( at least two, and maybe more ) became test mules for the European rally program.

When talking about early production '240Zs' it is also worth remembering the HS30s ( ie - RHD ) that we know Nissan made amongst the very first pre-production and production cars.

Cheers,

Alan T.

Link to comment
Share on other sites

Oh! Well, kick him out of London why don't ya! Is your first picture from Matsuo san? I have the same image - not cropped, of course.

I believe the emblem says Nissan, yes. I think all of our pictures of the silver prototype are of the same prototype taken on a roof top plaza.

Link to comment
Share on other sites

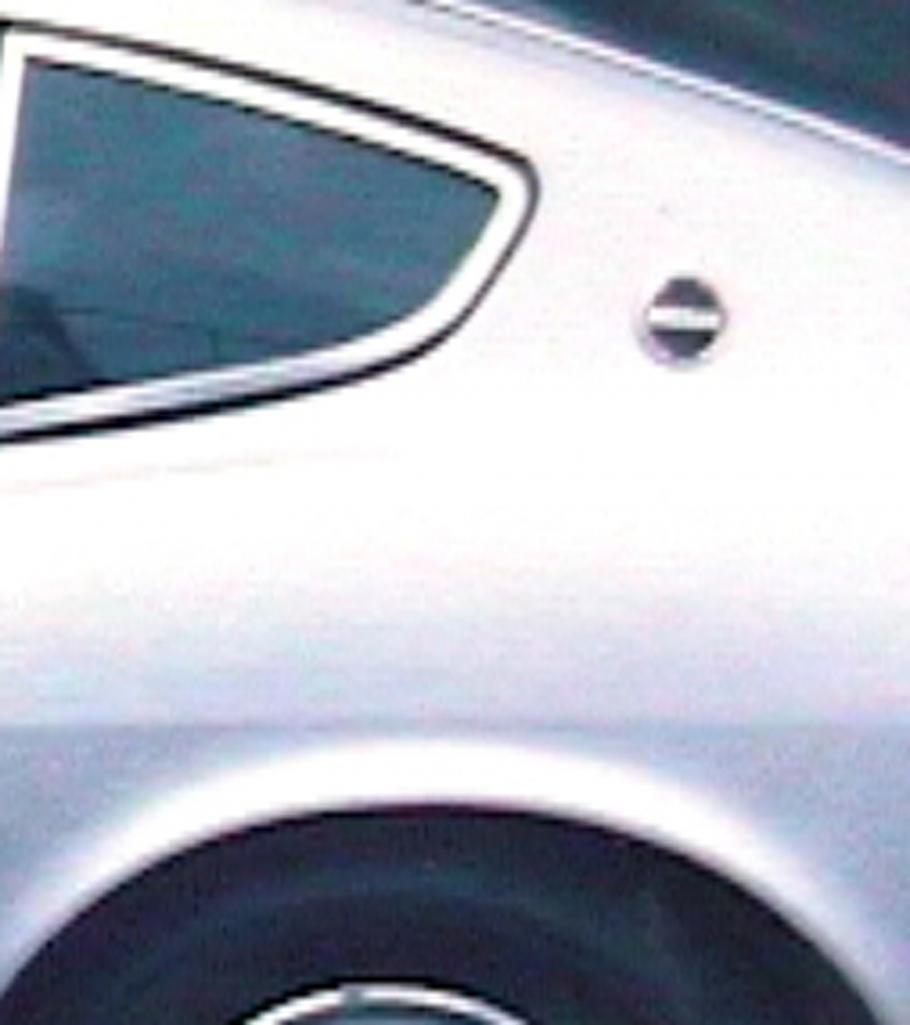

The close-ups were an attempt to focus on the 'Nissan' logo. Failed.

I think Matsuo san gives the same photos to different people and tells them they have an 'exclusive'........ :)

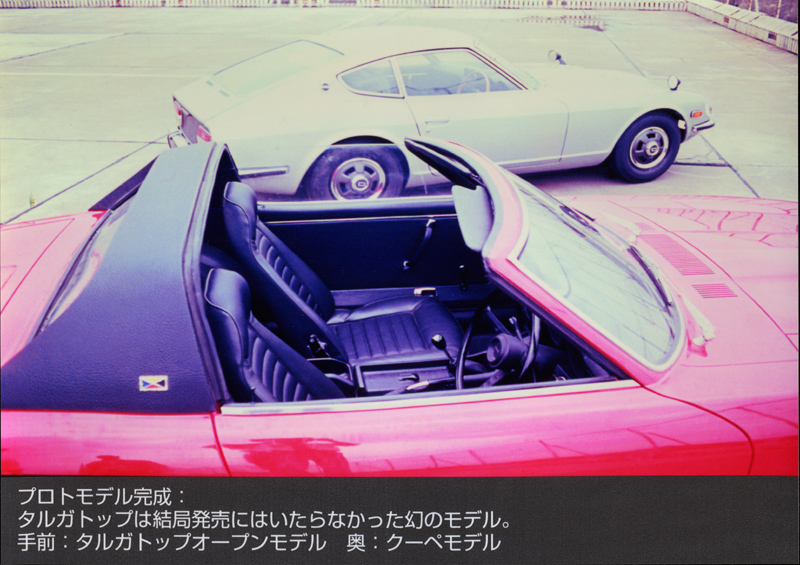

Do you want to expand on the Z signal flag emblem seen on the red Targa prototype? Do you reckon it was on the cards to actually be used....?

To go back to Kats' original question, I still think the big point is that they were working on certain emblems right down to the wire, when they should have had plenty of time to finalise them. That points - I think - to last minute changes.

We already know that the '240' part of '240Z' was something that came quite late, don't we? I think the rear hatch / deck lid 'Datsun' emblem was a last-minute change too - yes?

Link to comment
Share on other sites

Thank you,thank you everyone.

I am now in L.A. no lap top in my room,I have to pay crazy expensive money for the hotel business center.

I will post a letter from Mr.Matsuo, Carl.

Alan,that is right,last minute change is the point. I was wondering why Fairlady's embelms have withe Z from the begining of production? And this is just my guess,I think there is no solid emblem for Fairlady cars.(I need to ask and confirm this Mr.Matsuo soon)

Emblems for the Fairlady cars were settle down already well before the production,but for the Export model,Mr.K refused Fairlady's emblem and he wanted somthing alternative ("Datsun 240Z")

Nissan had to settle down about emblem,the car was about to be assembled in the production line...

I think this is not new for us is not it? However this is the key of existing Chrome/solid Export piller emblem and rear deck DATSUN emblem.

As Mr.Matsuo said, no time to paint,no time to hollow the back for the Export cars.

So,the letter "Z" was surposed to be painted white when the Export name had settled down I think, simply no time to do first.

On the other hand, Fairlady's emblems were hollowed and painted white Z from the bigining.

We have never seen/found solid/chrome Z for the Fairlady cars in Japan.

Chris,the cray model of S30,you can see big picture in my website.

AND please NOTE that the pillar round emblem,that is painted YELLOW and BLACK and RED and NAVYBLUE for the outer circle of the emblem.That is came from ZULU flag that you mentioned.

kats
