E88 not the best head?

[SteveInOakland]

Great job, Piper, thanks. So we learn that although an E88 head with big 'E' same size as the 8s may be a '73, emissions-oriented head -- it may not.

Steve.

[madkaw]

Piper,

your still going to run the spray bar with the internally oiled cam? I am building my e-88 the same way with the bigger valves and some porting work and i plan to still use the spray bar too.

[Piper]

I actually wasn't planning on running the oiler bar on the stage three cam. The stage two I was running wasn't internally oiling. To run the internally oiling cam with the spray bar i would probably need a different oil pump and larger capacity pan. I wonder if that would work. You can never have too much oil.

Edit: I asked around and I guess you can run the oiler bar with an internally oiling cam using stock innards. Probably cools better than with the block off plates.

[SavannahZ]

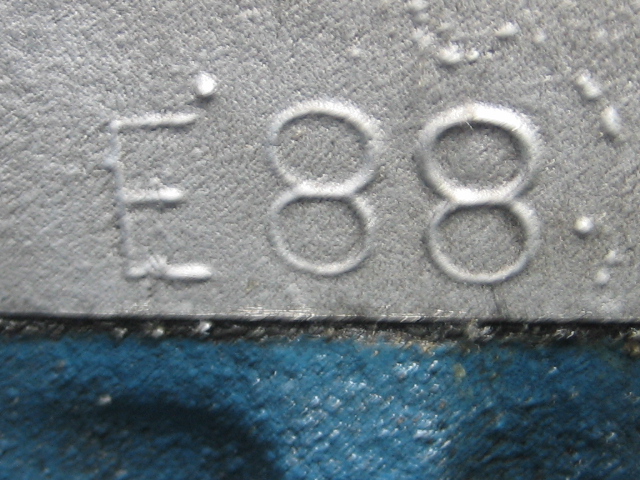

This is a picture of what I believe is the early casting with the skinny E and the uniform 8's. I have read conflicting information that this represents the later emmision enflicted e88.

[Piper]

I have also seen later E88s with a small E and small 8s. I'll see if I can find one.

[dogma420]

Just some things to think about:

Major rebuilders that combine head combos with blocks don't recommend using an E31 or E88 on a L28 block in most instances. I can find my information but I believe that one of the builders on here would say that. DON'T quote me on that, but from past readings, I believe this to be the case, esp when I pm'd asking some questions.

Anyone spending good money on a head rebuild, isn't going to mind having to get a square port header, so I'm not sure why anyone on here would rule out the N47 or P79. Without emissions and milling until you have the desired compression, it's my impression that these can made good head choices as well.

You would obviously want to get a 280zx exhaust manifold, or what most folks would do, and that is a square exh port header.

Just some words for thought.

Have a great Holiday!

[Piper]

I'm running a bored L26 with a balanced and polished crank and a 12.5 lb flywheel. My compression ratio with the shaved E88 and stock E31 is over10:1 so they are perfect with a hotter cam. If you are running an L28 the N42 would be your best choice for a stock bolt on since it has smaller combustion chambers and bigger valves but a lower compression ratio than the E31 and E88.

[SavannahZ]

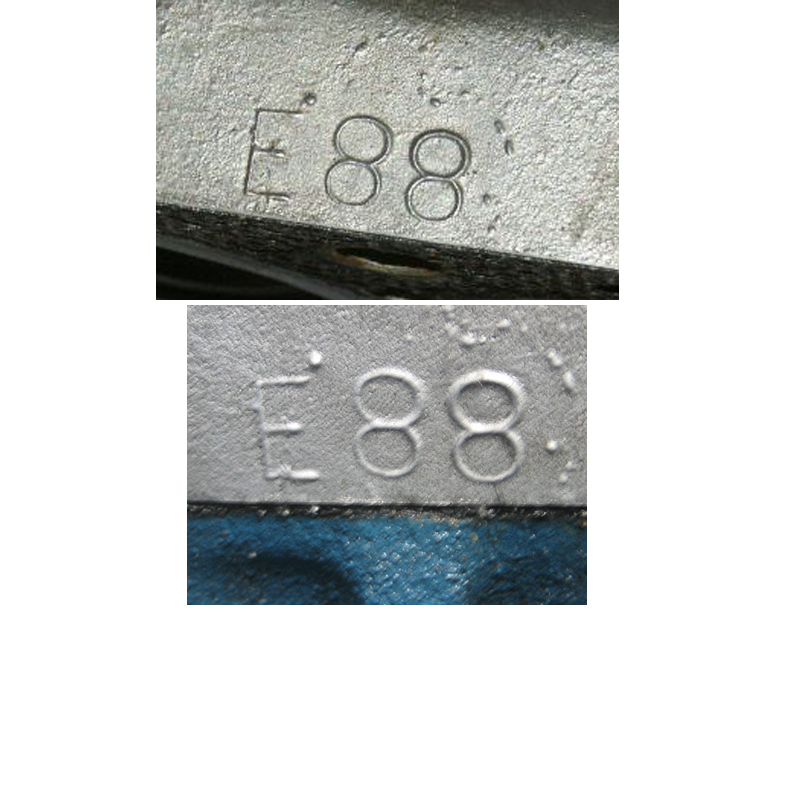

Just thought I would revive this a little since I found an interesting photo. I don't know how many casts were used in the casting of the heads, but I thought it interesting that the dimples and everything are identicle to my E88 as this pictures I yanked off a recent ebay ad. The guy selling it didn't have a pic of the underneath so I could'nt see if it was notched or not, but he said it was original to the 72' he pulled it off of???

I'm not going to be pulling my head anytime soon, hopefully, and I guess that is the only true way to tell if it's early or late...anyhow, I thought the similarities were neat.

[VaGuS510]

I read somewhere that the N42 or maybe it was the n47 head was prone to cracking. Is this true?

I was convinced to get off my butt and get out the trusty "How to Modify your Datsun/Nissan OHC engine" book.

Heres what I get from it:

E31- Combustion chambers: 42.5cc, Intake valves: 1.65in , Exhaust valves: 1.30in

Common modifications: 1.73in intake valves and 1.38in exhaust, DANGER: an E31 milled 1mm will give 11.3:1-11.5:1 compression ratio on an L28 w/ flat top pistions

E88- Combustion chambers: 44.7cc, Intake valves: 1.65in , Exhaust valves: 1.38in

Common modifications: I assume all of the same mods as the E31 but you already have the 1.38in exhaust valves, this is a great head to drop on an L28

P90- Combustion chambers: 53.6cc, Intake valves: 1.73in ?, Exhaust valves: 1.38in ?

Common modifications: Best for low compression forced induction engines

No other heads are mentioned meaning that really they probably arn't worth it. This information is assuming that the head is going to be modified (valves unshrouded, ports matched, polished, etc.) I wouldn't say after reading this that the E31 is any better then the E88, that extra compression could be recovered in other areas if you really were concerened with the 2cc difference. 2cc is significant but if you bore an L24 out 2 mm you will recover from that. Or you can stroke it to 79.0mm with an L28 crank and you will surpass the E31. With the correct setup both the E31 and E88 can achieve very simular results as far as compression.

Lastly, are intake ports on E88 1.5in? I know they are on the E31.

[montoya_fan01]

I read somewhere that the N42 or maybe it was the n47 head was prone to cracking. Is this true?

I was convinced to get off my butt and get out the trusty "How to Modify your Datsun/Nissan OHC engine" book.

Heres what I get from it:

E31- Combustion chambers: 42.5cc, Intake valves: 1.65in , Exhaust valves: 1.30in

Common modifications: 1.73in intake valves and 1.38in exhaust, DANGER: an E31 milled 1mm will give 11.3:1-11.5:1 compression ratio on an L28 w/ flat top pistions

E88- Combustion chambers: 44.7cc, Intake valves: 1.65in , Exhaust valves: 1.38in

Common modifications: I assume all of the same mods as the E31 but you already have the 1.38in exhaust valves, this is a great head to drop on an L28

P90- Combustion chambers: 53.6cc, Intake valves: 1.73in ?, Exhaust valves: 1.38in ?

Common modifications: Best for low compression forced induction engines

No other heads are mentioned meaning that really they probably arn't worth it. This information is assuming that the head is going to be modified (valves unshrouded, ports matched, polished, etc.) I wouldn't say after reading this that the E31 is any better then the E88, that extra compression could be recovered in other areas if you really were concerened with the 2cc difference. 2cc is significant but if you bore an L24 out 2 mm you will recover from that. Or you can stroke it to 79.0mm with an L28 crank and you will surpass the E31. With the correct setup both the E31 and E88 can achieve very simular results as far as compression.

Lastly, are intake ports on E88 1.5in? I know they are on the E31.

This information you got from the book is at least incomplete. There are at least 2 varieties of E88 head (there may be a 3rd). The combustion chamber volumes of the 2 E88's that I know of are different.

[SavannahZ]

I was referring more to the casting mark similarities of potentially the early or late head. My engine is an ATK rebuild on an L26. I have read that the lettering similiar to my "E88" have been known to be both early and late. If I do have an later head, and the ebay in fact was an early, that means they are around three years difference and used the same cast...right?

[wishihadaz]

I read somewhere that the N42 or maybe it was the n47 head was prone to cracking. Is this true?

I was convinced to get off my butt and get out the trusty "How to Modify your Datsun/Nissan OHC engine" book.

Heres what I get from it:

E31- Combustion chambers: 42.5cc, Intake valves: 1.65in , Exhaust valves: 1.30in

Common modifications: 1.73in intake valves and 1.38in exhaust, DANGER: an E31 milled 1mm will give 11.3:1-11.5:1 compression ratio on an L28 w/ flat top pistions

E88- Combustion chambers: 44.7cc, Intake valves: 1.65in , Exhaust valves: 1.38in

Common modifications: I assume all of the same mods as the E31 but you already have the 1.38in exhaust valves, this is a great head to drop on an L28

P90- Combustion chambers: 53.6cc, Intake valves: 1.73in ?, Exhaust valves: 1.38in ?

Common modifications: Best for low compression forced induction engines

No other heads are mentioned meaning that really they probably arn't worth it. This information is assuming that the head is going to be modified (valves unshrouded, ports matched, polished, etc.) I wouldn't say after reading this that the E31 is any better then the E88, that extra compression could be recovered in other areas if you really were concerened with the 2cc difference. 2cc is significant but if you bore an L24 out 2 mm you will recover from that. Or you can stroke it to 79.0mm with an L28 crank and you will surpass the E31. With the correct setup both the E31 and E88 can achieve very simular results as far as compression.

Lastly, are intake ports on E88 1.5in? I know they are on the E31.

On the contrary!

It depends on what that head is mated to, and if you plan on just bolting it together or modifying it.

You have to consider what the sum of your build-up will consist of including induction, exhaust, and ignition.:stupid:

The following is an except from one of the best "head forums" I have ever read.

If you take the time to read this then I invite you to look at the L6 forum on our sister site HybridZ. ( By Paul Rushman)

The biggest air flow restriction in the Datsun L-series head is the valve curtain area, i.e. the region between the valve head and the valve seat when the valve is OFF the seat. In all my L series engine builds, unshrouding the valves is always the first place I start. Even on mild street heads, I perform moderate valve unshrouding. Next, if the head is a square port head and will be used in a race only application I’ll widen the bowl to slow down the flow of air in this region. This allows the exhausting gasses to transition from the vertical plane out of the chamber to the horizontal plane on its way to the header with less chance of loosing the laminar air flow across the port floor. In dong this, the laminar air flow across the port floor will remain, (keeps the boundary layer intact), if this laminar flow separates from the port floor you will now have turbulence and this will restrict air flow considerably. (you may or not be able to catch this on a flow bench as a flow bench doesn’t measure the dynamic air flow in and out of the ports. I’ll expand on that at the end of this post). If the head has the round exhaust ports with the liners, all I do is blend the back of the valve seat into the liner. All of the heads I do, whether for street or full race, also receive a nice 5 angle valve seat, (sometimes only 4 angles can be performed do to space constraints), that I perform in house here at Rusch Motor Sports using Sunnen seat cutters, (I’ll be offering radius seats soon), and the valves are treated to a 30 degree back cut and the exhaust valves sometimes even get a nice little 45 degree chamfer on the chamber side of the head. All this extra valve and seat work mostly benefits air flow at low valve lifts, i.e. as the valves leave and return back to the seat itself.

Here is my personal take on the L-series heads.

E-31 and the early E-88 heads with the E-31 chambers are decent heads. They have the same potential as the other N-series heads when rules permit extensive carving. My opinion is the best place for the E-31 and the early E-88 is for a restoration project, or for a performance application where class rules dictate no material can be added to the chambers, no carving can be performed on the head and the update/backdate rules apply to the engine as an assembly, then these heads are a great choice. Now if you are not bound by those kinds of rules, you do have other choices available and being as the E-31 is becoming so rare now, these other heads are an easier option from a financial and availability stand point.

The N-42 head is a great maximum effort race head if class rules allow extensive carving and welding to the head. In this case, weld the chambers, open the exhaust ports as described above, perform some serious valve unshrouding and “waa laa”, you now have a wonderful maximum effort race head that would SUCK on a street engine. (Side note; If you intend on having your valves unshrouded and have not done this type of work before, you are best served leaving this to a qualified experienced engine builder, preferably one that has been successful in extracting noticeable to impressive documented performance gains. If you are not sure what you are doing, do not attempt to unshroud the valves yourself. In experience can hinder the flow worse than what the heads were stock.) Of course there is more to building/machining/porting a maximum effort cylinder heading than just welding a chamber and/or unshrouding valves. There are items such as setting spring heights, clearancing the retainers, stem seals, and guides for the mega lift cam, deciding on just how far to go with oversize valves even to the extreme of offsetting the valve guides to allow even BIGGER valves if the cylinder bore permits, etc.

The Z car N-47 head is a great street head. This head becomes almost ideal for the mild to hot street engine and even the mild to moderate race engine especially if the chambers can be welded up, (pretty much turns this head into the Maxima N-47 head which is a slightly more efficient chamber than the E-31). This “peanut” or “kidney” shaped chamber when used with flat top pistons or matching* dished pistons gives the ideal quench area which makes for a more efficient combustion process. To make use of this “kidney” shaped chamber on an L-28 running pump gas you will need matching* pistons. What I mean by “matching* pistons”, is a set of custom pistons from JE or other comparable source that has CnC the dish directly under the open portion of the “kidney” shaped chamber, not the entire surface area of the piston as is the OE 1975-1980 L-28 and all L-28-ET pistons. Any how, with this ideal squish, the engines optimum ignition advance will be less than the open chamber heads optimum ignition advance due to the more efficient chamber design. This happens because the flame front doesn’t have as far to travel to consume the entire air fuel mixture within cylinder, it now is in smaller area so the flame front doesn’t have to travel all the way to the other side of the cylinder during the ignition sequence. To better understand this concept, just visualize the open combustion chamber as being a flat wide circular disc, the diameter of the cylinder itself containing the air fuel mixture with the spark plug on one side, vs a small kidney shaped ball containing the same volume of air and fuel. Ideally a sphere shaped chamber with the spark plug in the dead center would be perfect, since that isn’t realistic, tuners just try and get as close to this ideal as possible. Some engines came for the factory much closer to this ideal, ala HEMI heads, etc. As for those round exhaust liners in the N-47 and P-79 heads, they actually flow VERY well. The liners offer a nice gentle radius as the air flow transitions from a vertical flow out of the chamber to the horizontal plane where it meets the header which keeps the air flow moving undisturbed even at high velocities where as the square ports with their really sharp short side radius doesn’t allow the air to make that transition with as much ease. What happens is the boundary layer of air along the port floor can and will separate causing the air to slam into the roof of the port and tumble along the floor of the port when the velocity gets high enough. This is not a good thing in the quest for power as this turbulence is very disruptive to air flow. This why we make that region of the port, the bowl, larger in an effort slow down the air flow to keep that laminar air flow across the port floor. Of course this only happens at very high velocities. Also, all L-series heads starting in 1977 have a slightly smaller intake port volume. What the engineers did was cast one side of the intake port wall with a “flat” in it, “D” shaped if you will. This reduction in cross sectional area starts approx ¾ of an inch into the port. This port shape is supposed to help bias the air flow as it enters the chamber more towards the middle of the combustion chamber itself, steering away from the chamber walls is passes the valve head. In theory this helps to reduce some of the air from slamming into the chamber walls of the combustion chamber. I don’t have enough hard evidence to back up this theory, but I do feel that this port bias does not detract from the performance potential of the cylinder head one bit.

Now we get to the P-79 and P-90 heads. The combustion chambers of these heads are IDEAL, almost perfect once the valves are unshrouded. The only down side I see to the P-series heads, (and this down side is for the extremely radical ragged edge engines, not so much for the milder even hot race engines), is since the chambers are taller, (valves are now shorter as a result), the floors of both the intake and exhaust ports now have an even sharper short side radius and as stated previously, this is a detriment to flow as velocity increases. The transition from the horizontal plane to the vertical plane on the intake and vice versa for the exhaust, is not as smooth as the N-series and E-series heads. Now don’t take this as I am bad mouthing the P-series heads cause I’m not. I really like these heads for hot street and mild to moderate race applications. They are an inexpensive way to get the ideal squish using an OE flat top piston with a compression ratio compatible with pump gas. I have built several and will continue to build the P-90 and P-79 heads for street and mild race Z’s. What I’m saying in regards to the P-series from the stand point of building THE mega extreme N/A performance power house that is at the ragged edge of making useable power over a very narrow yet very high RPM range such as a best of the best N/A drag racing engine, these items should not be overlooked.

Maxima N-47 head. What a darling mild race head this is. For mild to moderate race engines on a budget, using flat top pistons in an L-28, or even opting for pistons with a slight dome for greater than 13:1 compression, this is my go-to head. Just have your machine shop cut out the old intake seats and install the larger seats for the 1.73” or larger valves, have a competent Datsun engine builder/tuner unshroud the valves, blend the exhaust seat into the liner, and “waa laa”, a moderately high compression ratio race engine that will perform rather well up to 8000 RPM with the right cam, induction, and exhaust system. With a set of custom pistons machined so that the dish is directly under the open portion of that gorgeous peanut chamber, this head, in my opinion, makes for the perfect street head or mild race engine that runs pump gas. At the moderate level of race and above, I tend to prefer the N-42 with welded chambers and opened up exhaust ports.

Now for that flow bench info I promised earlier on…

Since a flow bench cannot duplicate the dynamics that are happening within the intake and exhaust tracts while the engine is actually running, i.e. sound pressure waves, pressure surges, exhaust heat, fuel enriched intake charge, valve overlap extraction, etc, flow bench numbers are nothing that should be used for comparing one head to another or bragging how good one thinks their head is! The best way to use flow bench numbers is using the SAME flow bench to compare ONE cylinder head for improvement after modifications have been performed, making note of any changes in air flow whether improvements were made or lost, nothing more. Flow benches do not represent what is actually going on within the intake tract OR the exhaust tract as mention previously, i.e. Dynamic air movement, pulses, waves, heat, etc!!!!. In real life, the valves are opening and closing causing the air to stop and move, stop and move, over and over and being as air has weight and is compressible, this constant surging will cause the pressures to rise and fall FAR above and below ambient. Depending on RPM, runner length, runner cross section, port shape, number of bends in the port and radius of those bends, valve shrouding, air density, cam timing in relation to the piston movement, (this has a HUGE effect on how the air gets moving within the intake and exhaust tracts, hence lopey idles, hard hitting powerbands, etc), there could be higher than ambient pressures at a particular RPM, i.e. a natural supercharging effect, that is why intake and exhaust runner lengths are TUNED! We have all seen where almost all Nascar engine builders have achieved over 110% volumetric efficiency on a naturally aspirated 2 valve engine by tuning the intake AND exhaust tracts to a specific RPM with specific runner cross section and runner lengths. This tuning is taking full advantage of the Helmholtz principle. Your basic garden variety flow benches do NOT and can NOT duplicate this, I’m not even sure if there is a flow bench made that can do this. The only real measure of how good a port can make HP, is to mount that head on an engine and run that engine on a Dyno, (and this is what we are REALLY after right, HP! Not just some arbitrary static flow number through a head port)! An example would be if one head that on one flow bench indicates it will outflow all the others tested, when all are attached to equivalent short blocks, the high flowing head could easily make LESS power on the dyno, but then again change the configuration a little with a different cam, intake tract, piston some shape, etc, the results would get even more confusing.

Ok, I think I’m finished now.

Inhale…… WHEW……..

Thank you all for allowing me to take up so much band width.

Paul (BRRAP) Ruschman
