Sway bar end link bushings

[Phil Z]

I purchased the MSA urethane bushings for my sway bar and end links the photo shows one side with a raised surface. Does that go away from or toward the metal caps ? Or does it matter? Thanks for the help!





Phil Smith

[EuroDat]

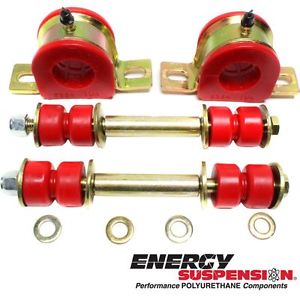

The raised lip goes in the sway bar. See photo's.

The lip is there to prevent the swaybar touching the metal bolt. Prevents meta, to metal rubbing noises and acceleratd wear on the bolt.

Edited February 4, 2018 by EuroDat

[Phil Z]

The raised lip goes in the sway bar. See photo's.
The lip is there to prevent the swaybar touching the metal bolt. Prevents meta, to metal rubbing noises and acceleratd wear on the bolt.

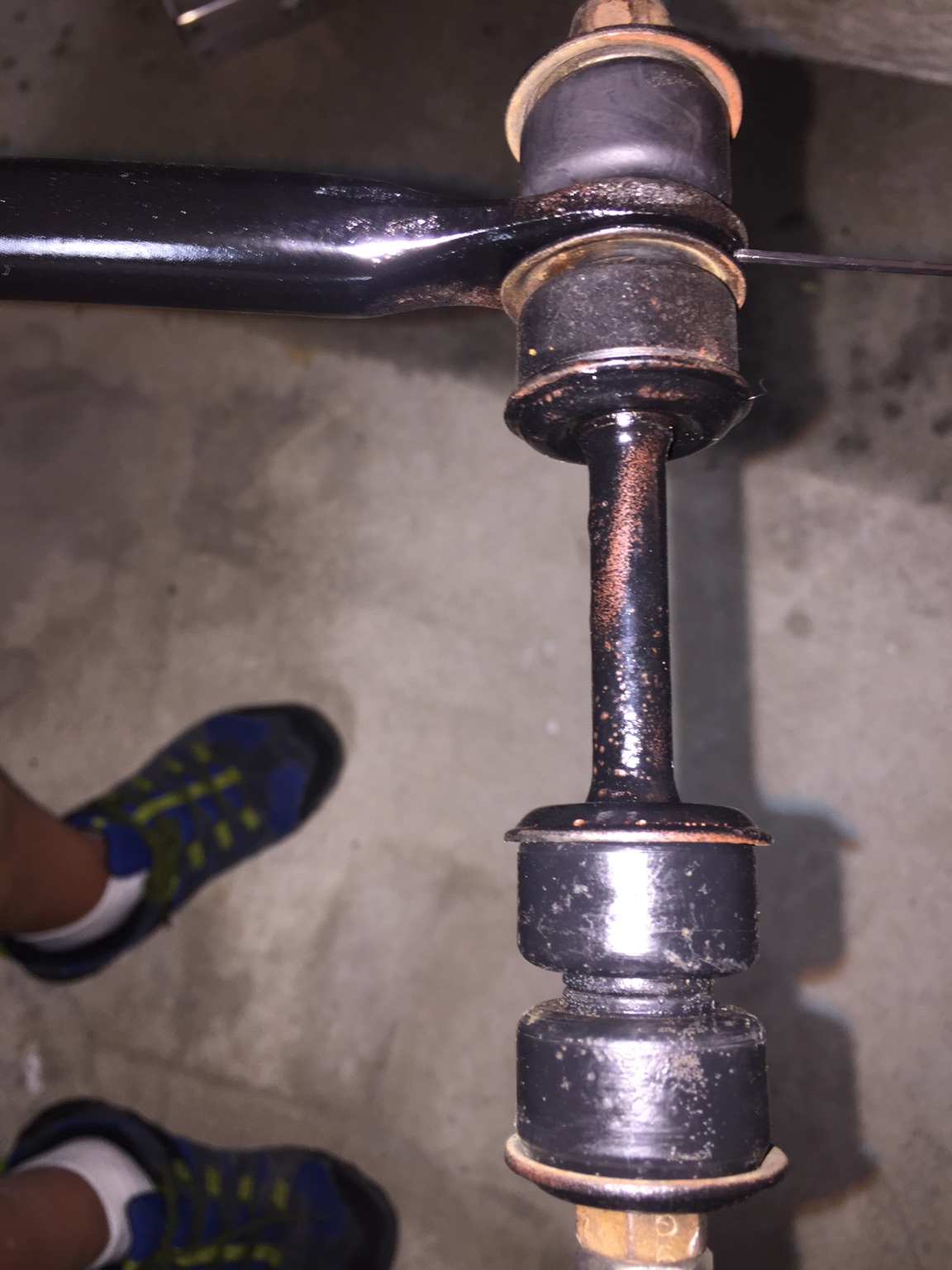

What you explained to me makes perfect sense, unfortunately I have another issue now as I see your pictures of how it is supposed to look are different from what I have in bushing washers. My end links are original equipment. There were 4 bushings and 5 washers. Two of the washers are fixed in position.The picture I am including shows where I think they were located but this would allow the metal washer direct contact with the sway bar. I am pointing at the washer in question. This washer has a larger diameter hole but the new bushing doesn’t fit through the hole. Anyone else see what I am asking about? Note: this is the first time these bushings have been removed in the 46 years I have had this Z. 1972. Anyone have a picture of there original links and bushings? Thanks


Phil Smith

[EuroDat]

20 minutes ago, Phil Z said:

What you explained to me makes perfect sense, unfortunately I have another issue now as I see your pictures of how it is supposed to look are different from what I have in bushing washers. My end links are original equipment. There were 4 bushings and 5 washers. Two of the washers are fixed in position.The picture I am including shows where I think they were located but this would allow the metal washer direct contact with the sway bar. I am pointing at the washer in question. This washer has a larger diameter hole but the new bushing doesn’t fit through the hole. Anyone else see what I am asking about? Note: this is the first time these bushings have been removed in the 46 years I have had this Z. 1972. Anyone have a picture of there original links and bushings? Thanks


Phil Smith

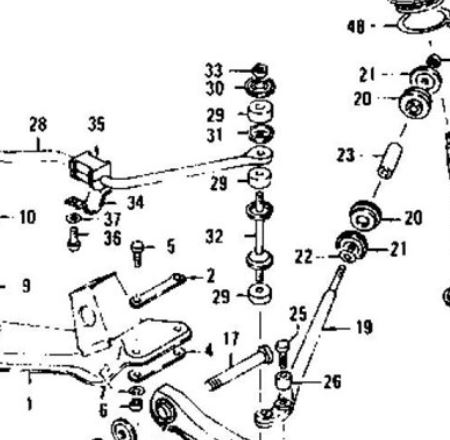

You have the extra washer on the Bottom side of the swaybar. It should be on the top side. See pos#31 in screenshot. It is not used when you use PU bushes.

Sent from my [device_name] using http://Classic Zcar Club mobile


Edited February 5, 2018 by EuroDat

[Phil Z]

You have the extra washer on the Bottom side of the swaybar. It should be on the top side. See pos#31 in screenshot. It is not used when you use PU bushes.

Sent from my [device_name] using http://Classic Zcar Club mobile


Thank you, I will leave it off.


Phil Smith

[AlbatrossCafe]

I just installed these yesterday in the front as well. EuroDat nailed it. I was worried I was gonna break the endlinks cus the bushings felt very hard, but they end up flexing pretty well with the weight of the car on them.
