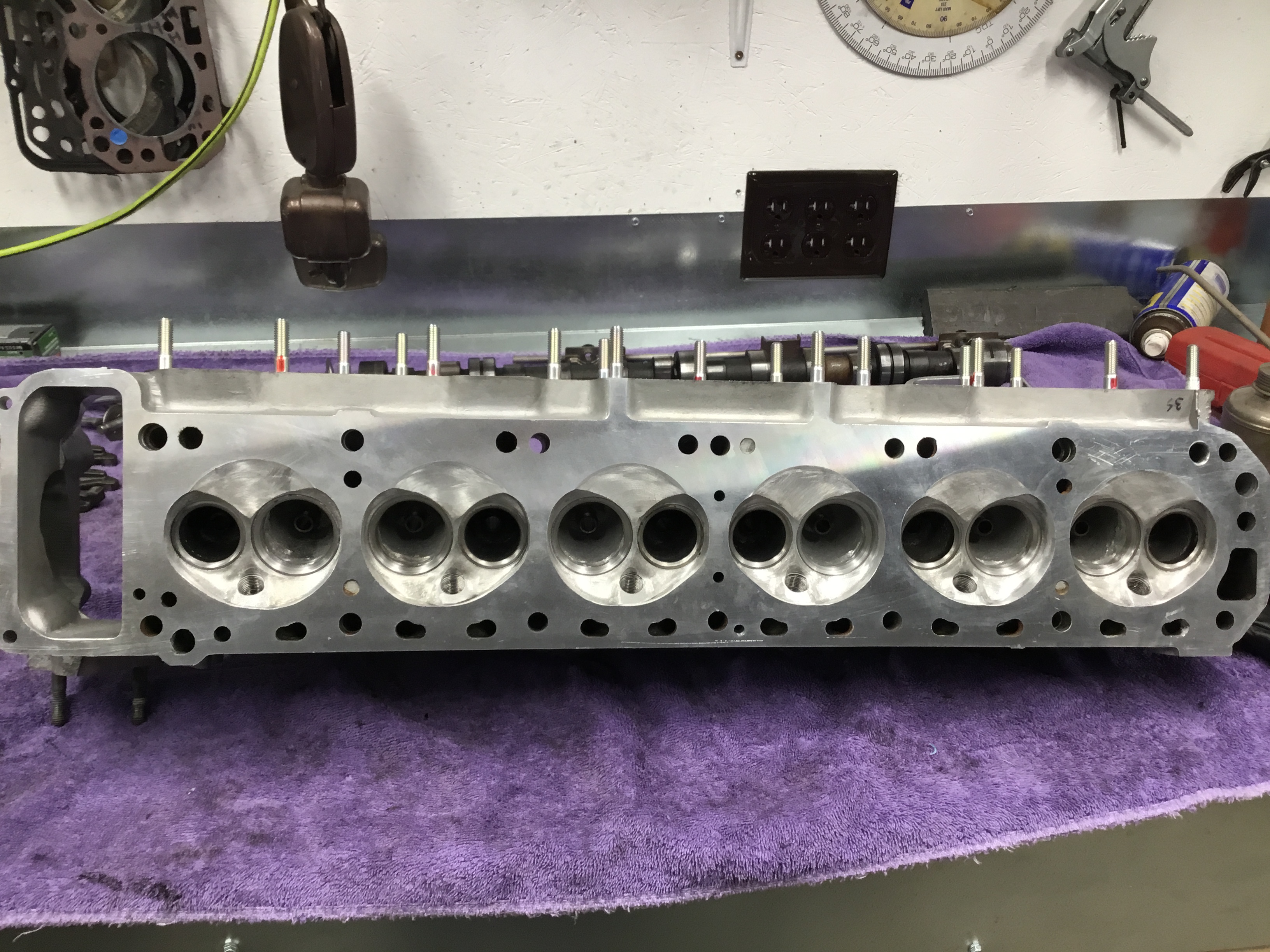

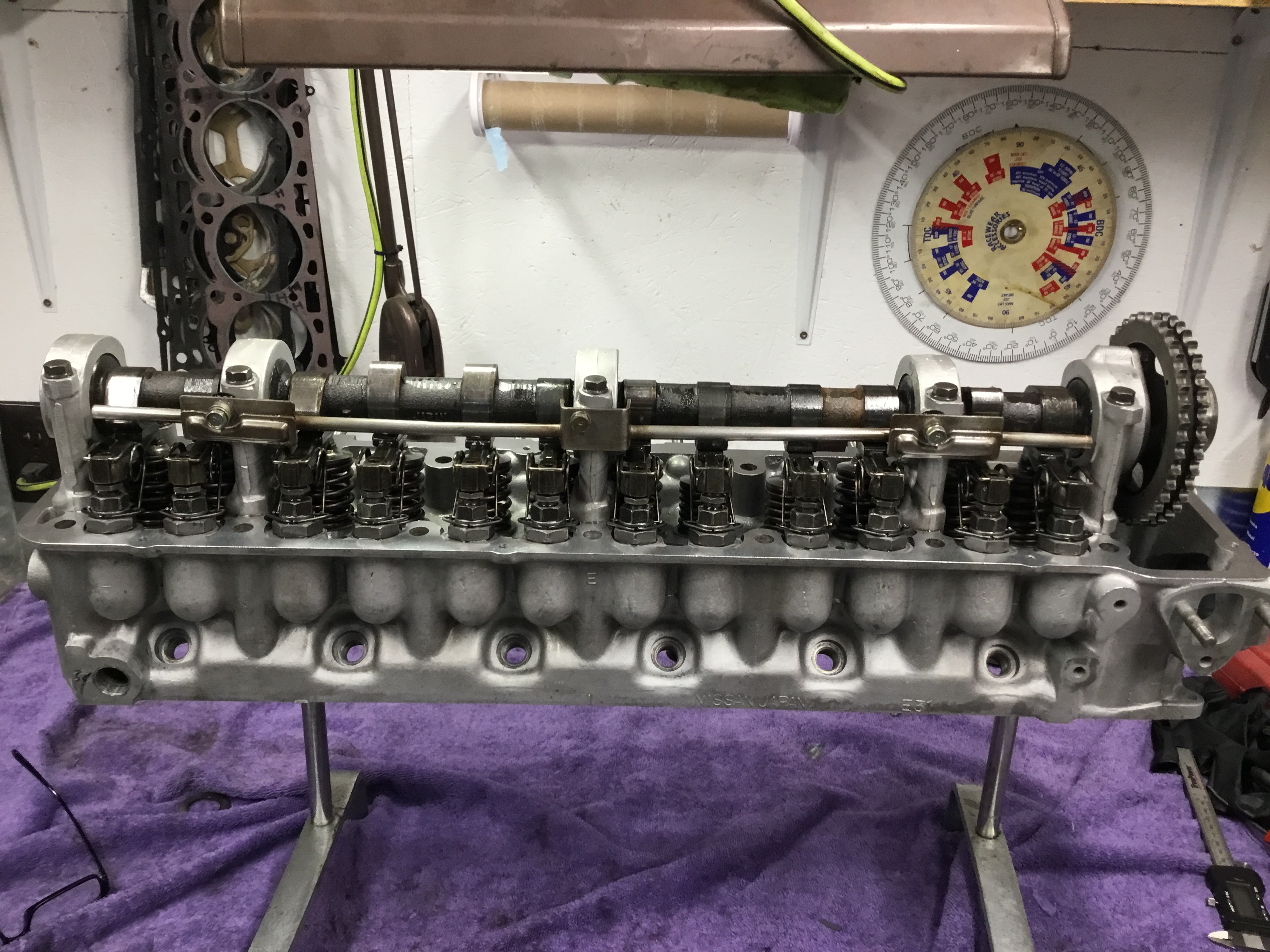

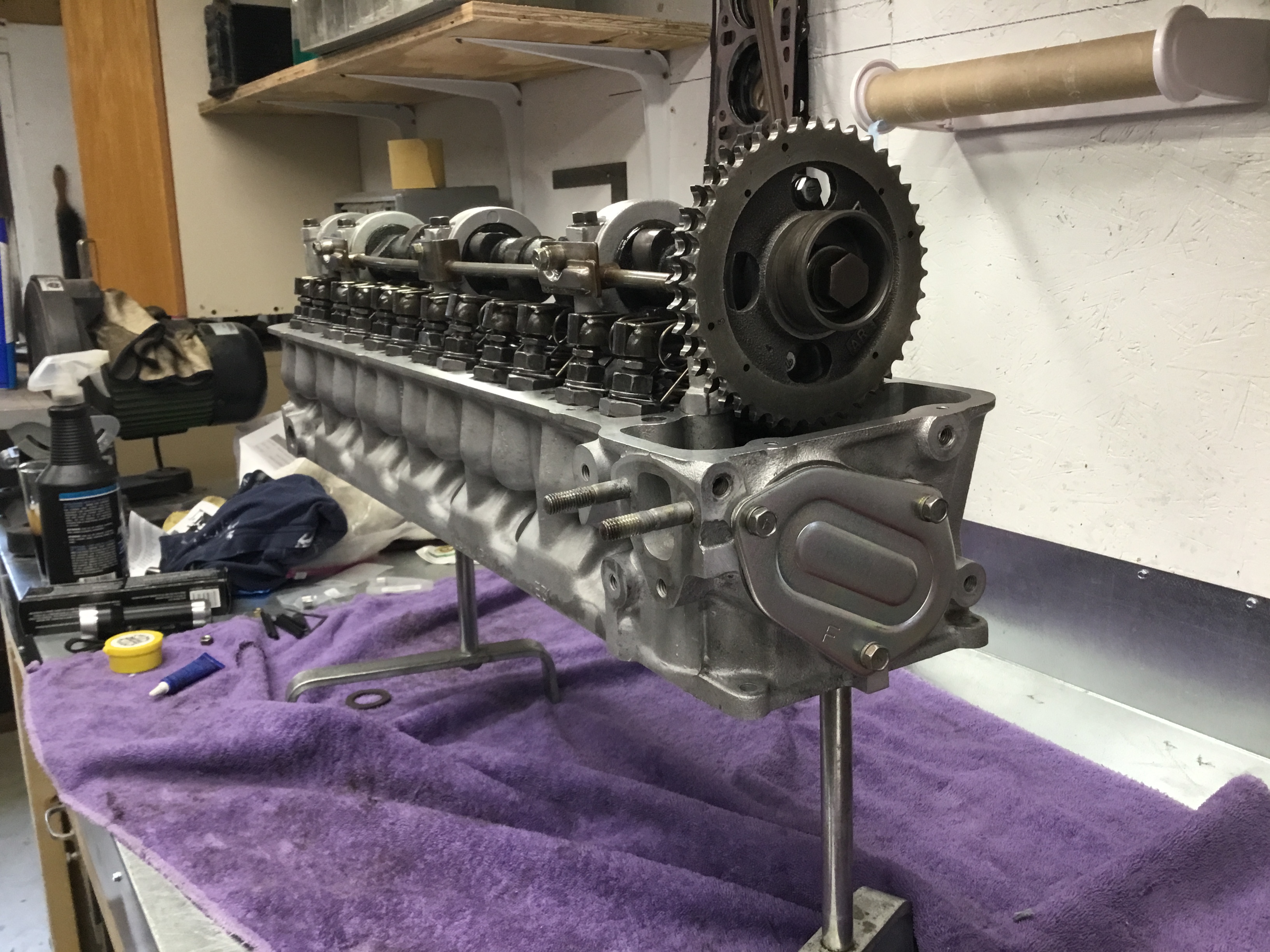

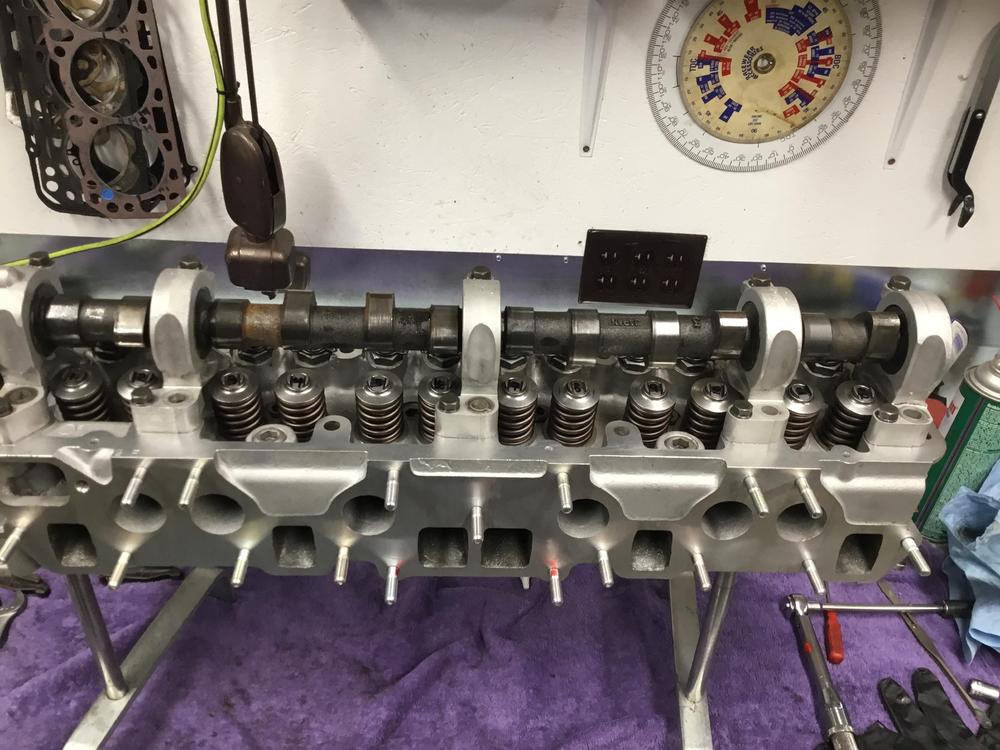

madkaw Posted February 3, 2018 Share #1 Posted February 3, 2018 (edited) Refurbished Datsun E 31 cylinder head for sale. This cylinder head came off a 1971 240 Z that I recently parted out. It was in very clean condition when I found it, but needed some TLC. This would be an ideal head for your restoration with its clean casting and stock specs. I decided not to modify this head because the cam was in such wonderful condition as well as the valve train. I have listed below what I have checked and had done on this head. I am presenting a cylinder head that you should be able to unbox and bolt to your motor. Stock valve sizes. Pressure checked head. Machine surfaced all three sides of mating surfaces . I measure a total of .018 removed from head thickness. All threads cleaned. All bronze intake seats replaced with steel. All guides within tolerance, new Viton guide seals installed Complete valve job with new intake seats blended to ports. All new valve springs. All wipe patterns checked and any adjustments made. Valve lash is adjusted on all valves. All combustion chambers cleaned of pitting and sharp edges ,and unshrouded for breathing purposes. All Chambers CC’d and all measure 41.8cc plus or minus .2 cc All new exhaust/intake studs installed . New inspection plate. New freeze plug installed Sprocket is used and was just mounted to provide proper spacing for cam. This head never saw a bead blast cabinet and was run thru a parts washer at least 3 times. I am asking 1100$ for the head with credit for your core. Core does not have to be an E-31 casting . Will always consider partial trades for Z parts. . Like I said earlier this should be good to run out of the box . I will ship with a valve cover . Price includes shipping in the USA I will be glad to answer any specific questions and will offer tech support to buyer if needed. PM me or email sfinnerty1018@gmail.com Edited March 2, 2018 by madkaw 1 Link to comment Share on other sites More sharing options...
madkaw Posted February 26, 2018 Author Share #2 Posted February 26, 2018 Still available with lowered price . Link to comment Share on other sites More sharing options...
7tooZ Posted February 26, 2018 Share #3 Posted February 26, 2018 Tried to email the address above, sfinnerty1018@comcast.net, and got a failure msg. Link to comment Share on other sites More sharing options...
madkaw Posted March 2, 2018 Author Share #4 Posted March 2, 2018 I guess I had messed up my e-mail address on this posting - my apologies . It is correct now. Surprised I haven’t got more action on this, maybe that was one of the reason -lol. Link to comment Share on other sites More sharing options...
madkaw Posted March 10, 2018 Author Share #5 Posted March 10, 2018 I need to move this , so 900$ shipped in the USA . Link to comment Share on other sites More sharing options...
7tooZ Posted March 11, 2018 Share #6 Posted March 11, 2018 Sending PMSent from my iPhone using Classic Zcar Club mobile Link to comment Share on other sites More sharing options...
gundee Posted March 11, 2018 Share #7 Posted March 11, 2018 This is a good buy for the early 240Z owners especially. If I did not already have my original 1972 head rebuilt the same way I would consider this one. Link to comment Share on other sites More sharing options...
madkaw Posted March 11, 2018 Author Share #8 Posted March 11, 2018 Sold! 1 Link to comment Share on other sites More sharing options...
